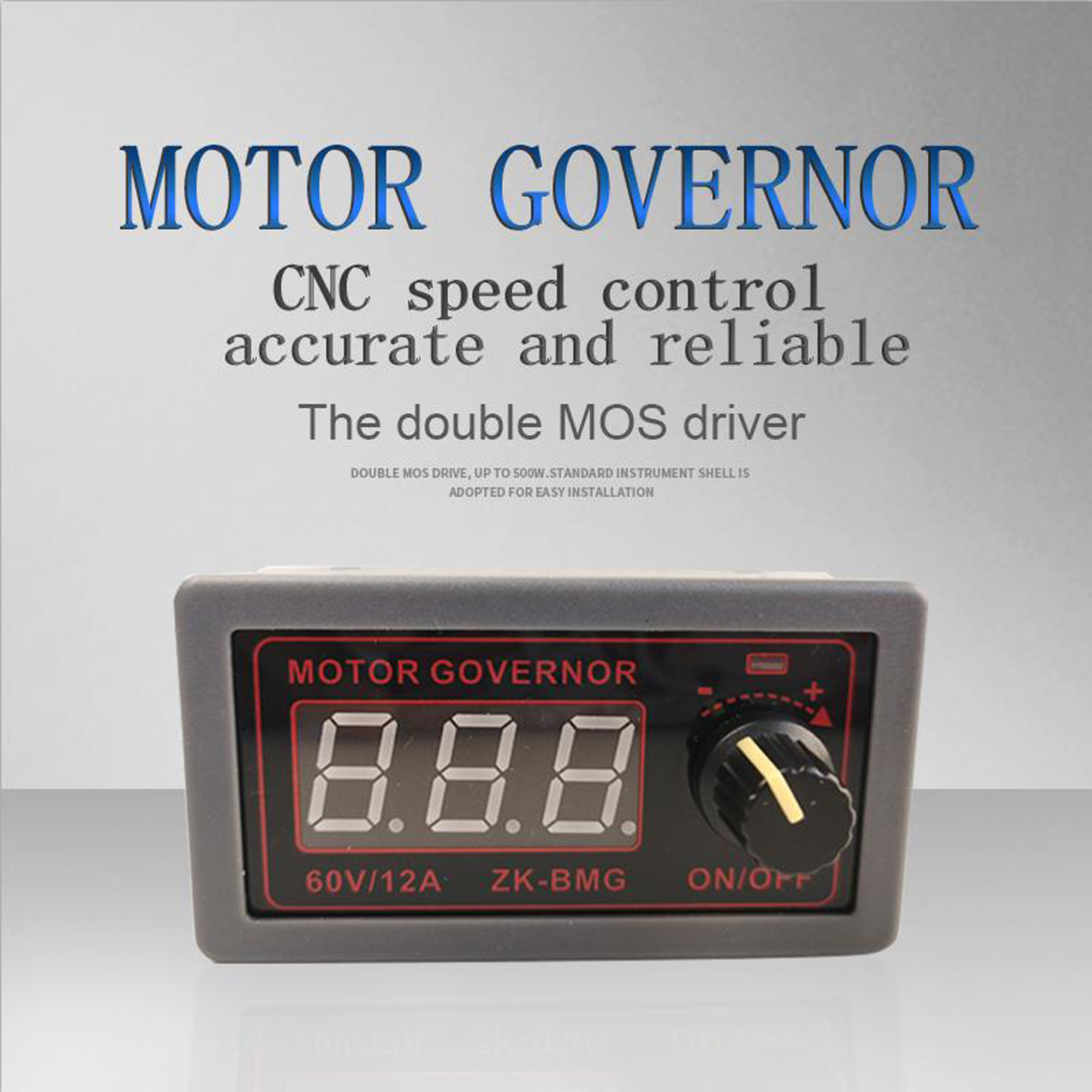

Motor drive module of high-voltage high-power DC motor speed controller

With housing With switch Can set the frequency Can set the upper and lower limits of the duty cycle BMG

Why does the motor governor need to set the frequency? ? ?
The frequency of the motor governor is too low, the power supply ripple is large, the vibration of the motor is large, the frequency is too high, the switching loss is large, and the electromagnetic noise is relatively obvious. If the frequency selection is not suitable, the effective power output of the motor will be greatly reduced. The factory default frequency of this product is 20KHz, which can meet the requirements of most motors. Consult the motor manufacturer for specific frequency selection.

1. Product highlights:

1.1 Using two original high voltage low internal resistance MOS tubes, as well as front-stage drive, the performance is better and more stable, supporting high voltage and high power.

1.2 The duty ratio, upper and lower limits of duty ratio and working frequency can be set, which is convenient for customers to operate and use according to the working characteristics of their motors.

1.3 The digital encoder knob adjusts the motor speed, which is higher than the ordinary potentiometer, with higher accuracy, better consistency, and no drift.

1.4 Motor soft start function, the current increases slowly when starting the motor, no surge current, effectively protect the motor and extend the service life of the motor

1.5 Comes with start and stop buttons, and can be controlled by external switches to meet various control needs of customers. (Note that external switches need to use self-reset buttons or buttons, click to open, and then press to close; cannot always close the output to open, not closed The output is turned off.)

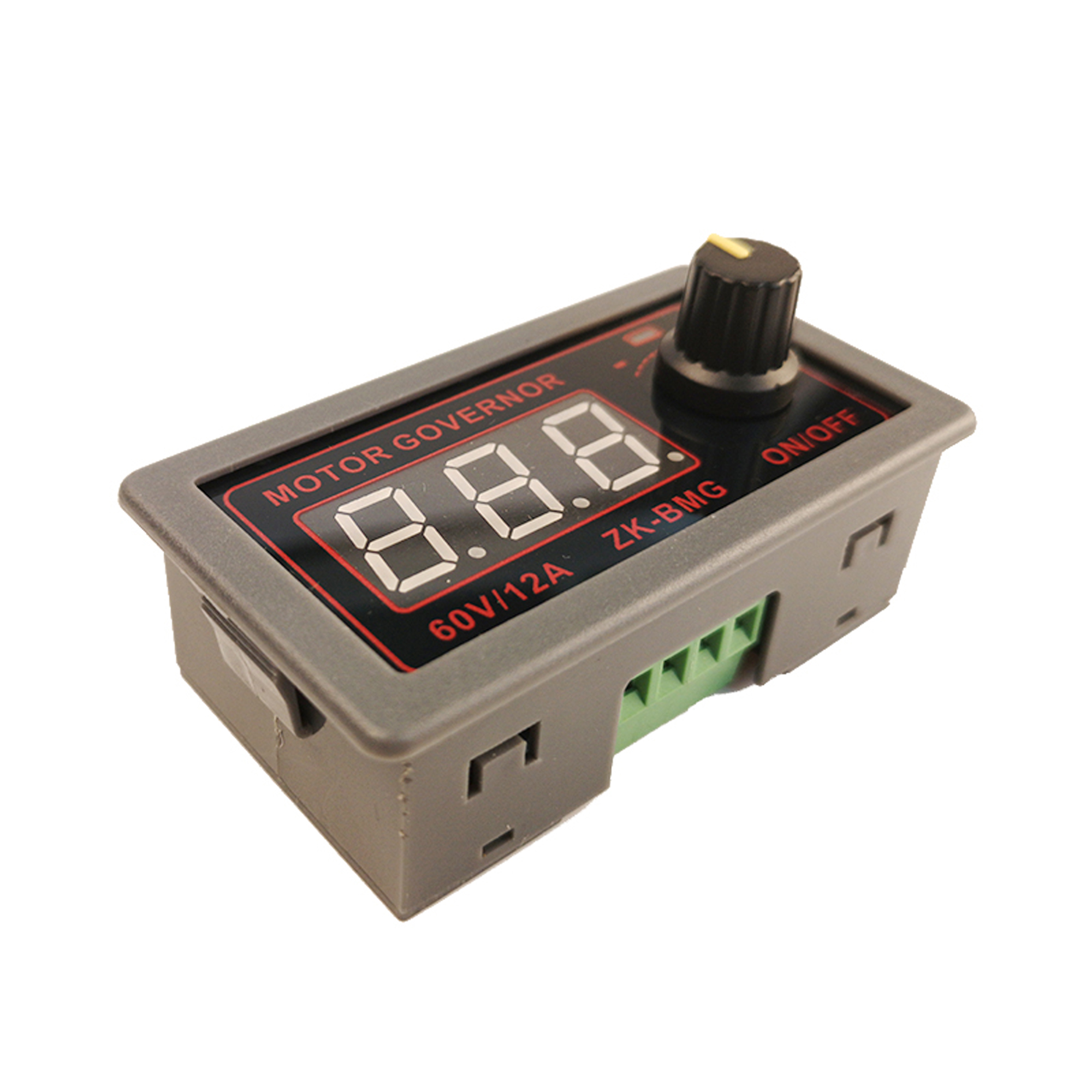

1.6 Comes with a standard 5135 instrument case and has a back cover, which is convenient for customers to install.

2. Technical parameters:

2.1 Working voltage: DC9V~60V, input anti-reverse protection

2.2 Rated current: 12A, maximum current 20A

2.3 Maximum power: 500W

2.4 Working frequency: 1KHz~99KHz adjustable, 1KHz step, default frequency 20KHz, accuracy about 1%

2.5 Duty cycle: 0-100%, 1% step

2.6 Product size: 79mm*43mm*26mm

Installation hole size: 39.3mm*76.5mm

All settable parameters are stored after power off.

3. Operating instructions:

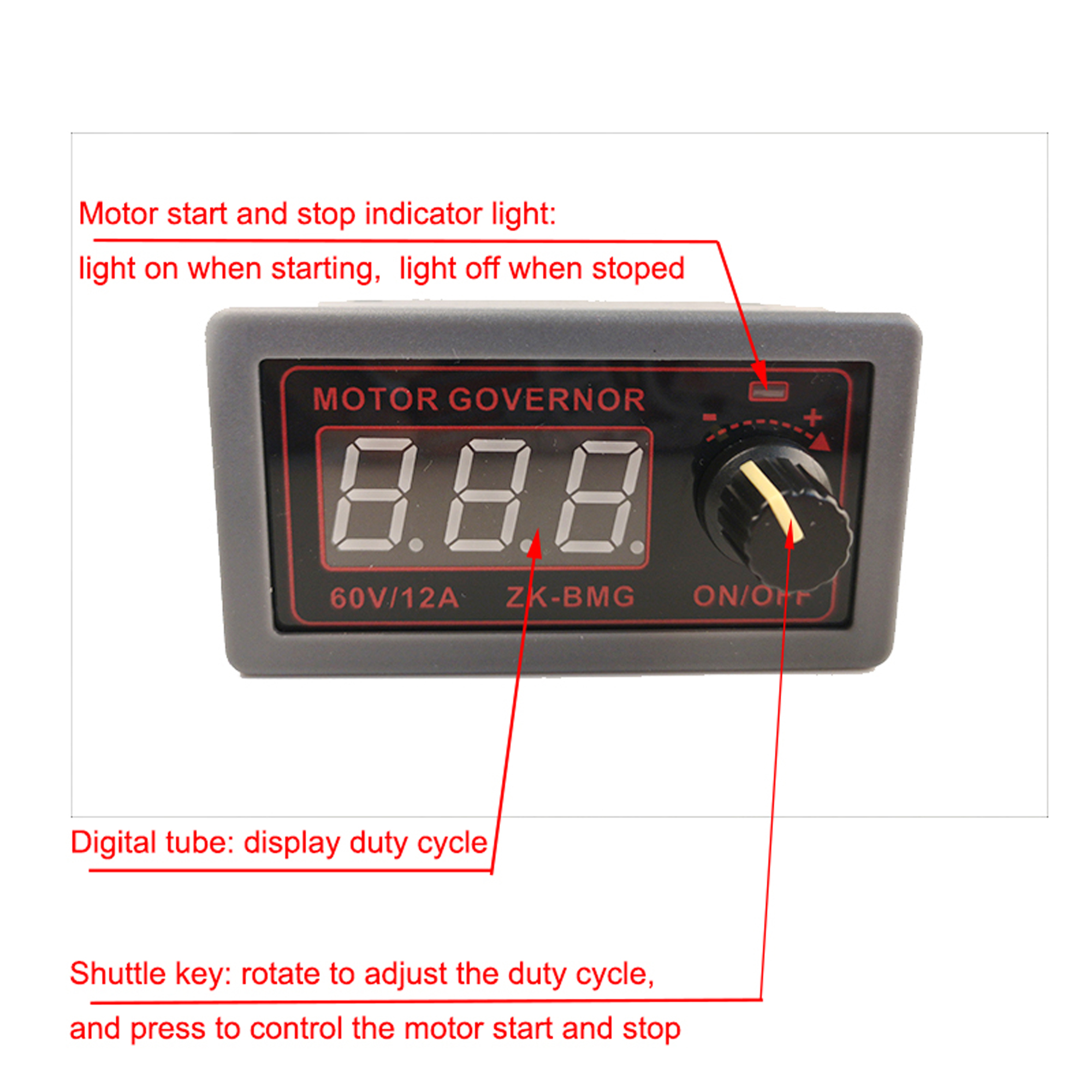

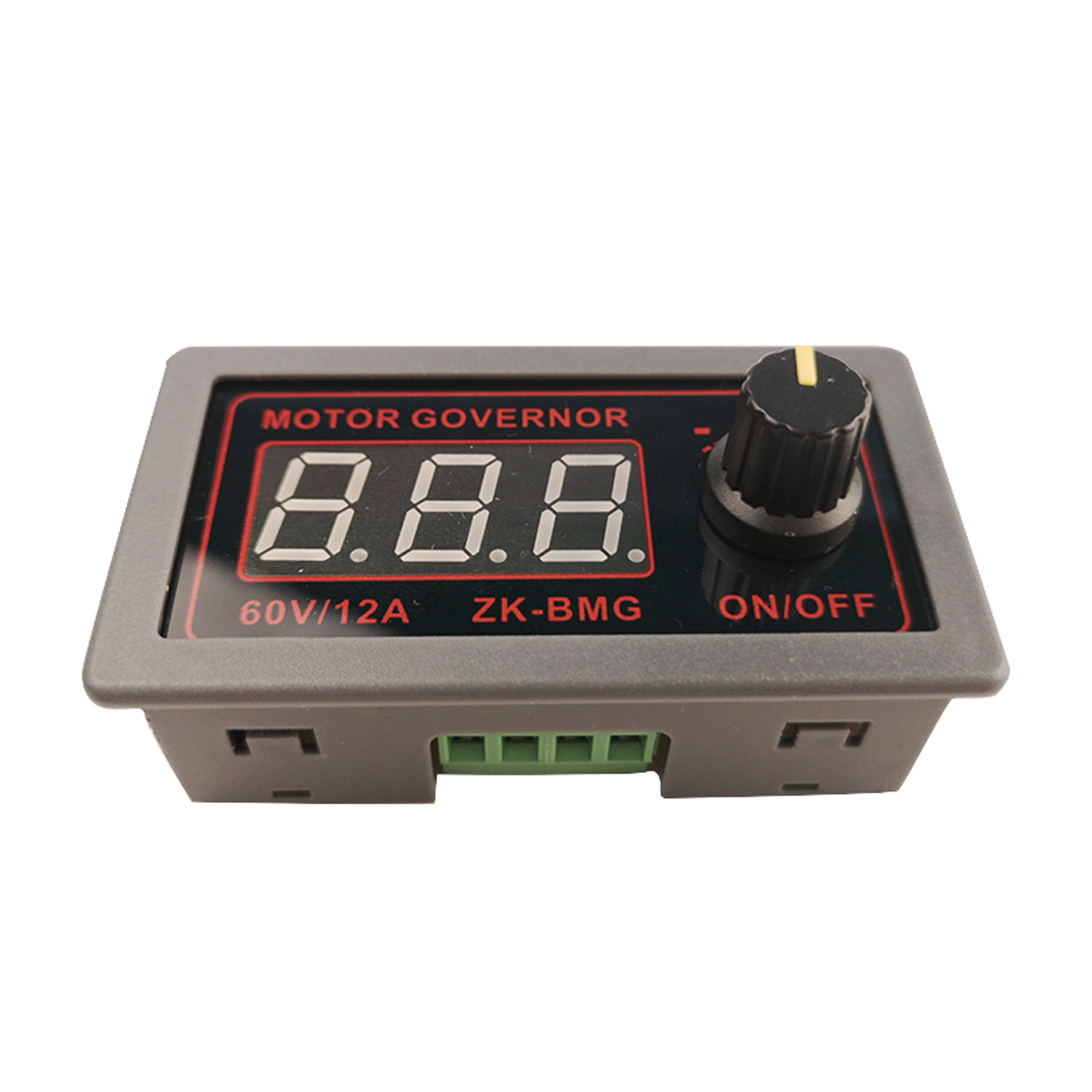

3.1 Knob operation of digital encoder

In the default interface: (The default display is the duty cycle)

Short press-switch the motor to start and stop

Press and hold for 10 seconds-enter the setting interface

Rotate counterclockwise-the duty cycle decreases

Clockwise rotation-duty cycle increases

In the setting interface:

Short press —— Select the setting parameter, and the setting parameter switches between ON-OFF, duty cycle lower limit, duty cycle upper limit and working frequency. ON-OFF is the power-on default module normally open or normally closed, the lower duty cycle display format is "L" + two digits, the upper duty cycle display format is "H" + two digits or "100", work The frequency display format is "F" + two digits.

Press and hold for 2 seconds-exit the setting interface

Turn counterclockwise-the corresponding setting parameter decreases

Turn clockwise-the corresponding setting parameter increases

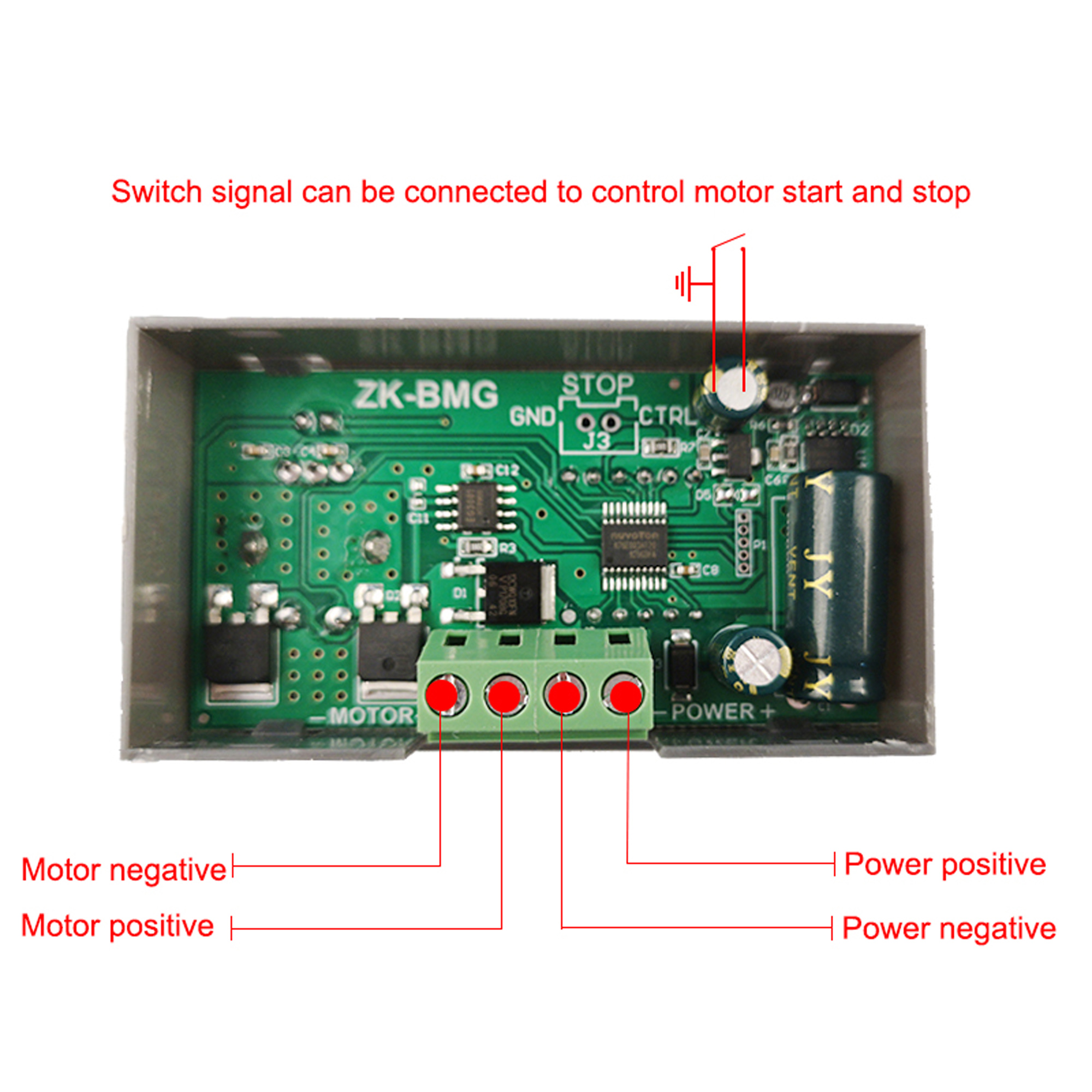

3.2 Rear STOP port

It can be connected with external switch buttons or 3.3V level. Do not use it in complex electromagnetic environment. There is no relevant protection inside the circuit. (Note that the external switch needs to use the self-reset button or button, press once to turn on, and then press again to turn off; the function of always closing the output to turn on and not closing the output to turn off cannot be realized.)
