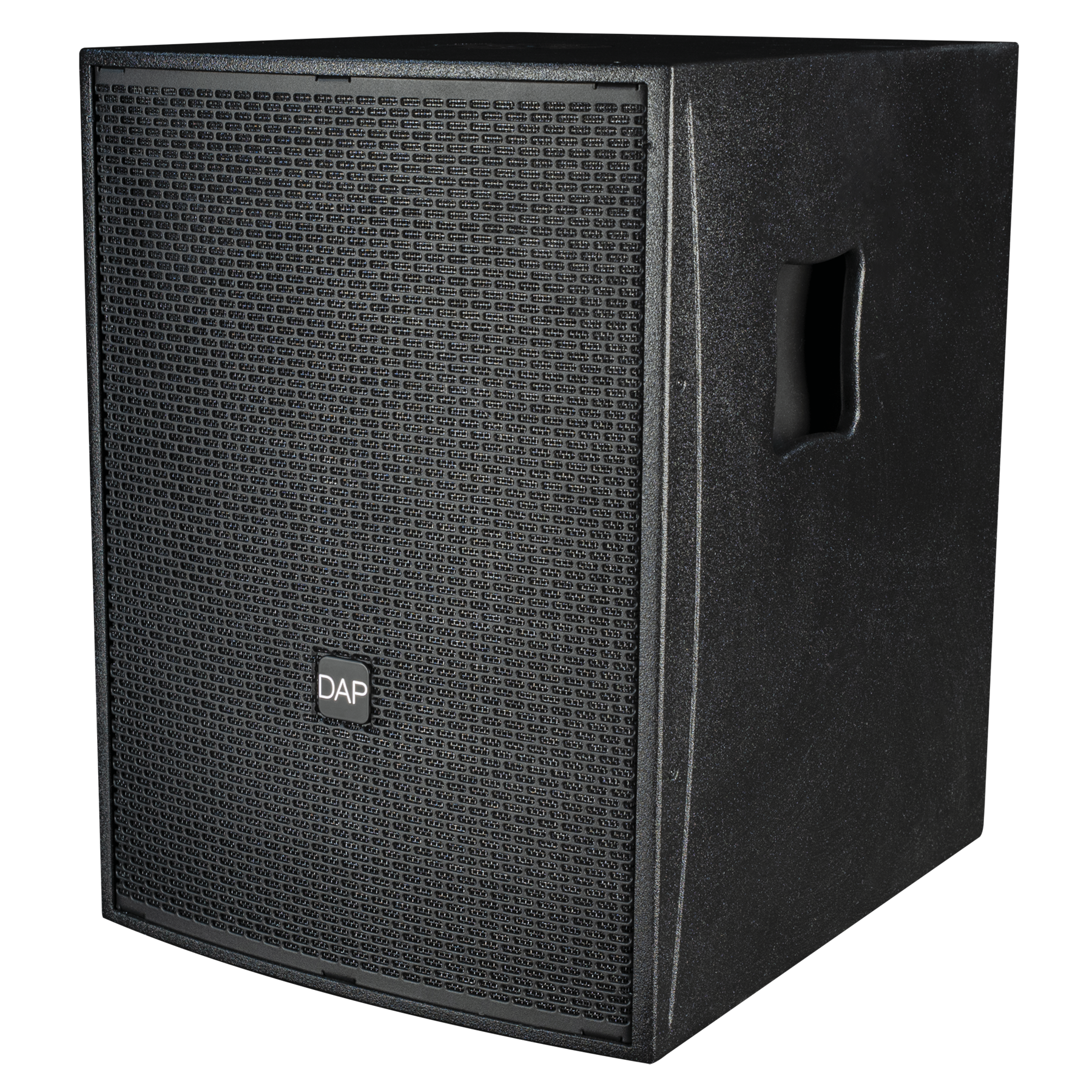

DAP NRG-12S Passive 12” Bass Reflex Subwoofer 1200w Peak

Product Description

Description:

The DAP NRG-12S is a passive subwoofer rated at 1200 watts peak (300 watts continuous RMS). It uses a 12” woofer with a 2.5” voice coil to deliver bass down to 50 Hertz (-6 dB). With a sensitivity of 94 dB/W/m, it comfortably produces up to 120 dB continuous and up to 132 dB peak.
The rugged, lightweight plywood enclosure has an M20 threaded insert for mounting a speaker pole. It uses 4-pole speaker in and thru connectors and offers an additional 4-pin terminal connector, which is particularly useful for fixed installations. To get the most out of the NRG-12S, we recommend using a 4th order high-pass filter at 45 Hertz and a 4th order low-pass filter of up to a maximum of 450 Hertz.

Specifications:

Inputs

RMS Input Power 300 W
Peak Input Power 1200 W
Passive Input Connection Speaker Connector 4 pole , Terminal
Outputs
Passive Output Connector Speaker Connector 4 pole
Audio Specifications
Speaker System Subwoofer
Speaker Sensitivity (1 W/1 m) 94 dB
Speaker Impedance8 Ω
Maximum SPL at 1 m 120 dB
Frequency Response (-6 dB) Minimum 50 Hz
Frequency Response (-6 dB) Maximum 120 Hz
Woofer Diameter 12 "
Woofer Voice Coil Diameter 2.5 "
Woofer Magnet Type Ferrite
Subwoofer Dispersion Angle (Horizontal) 360 °
Subwoofer Dispersion Angle (Vertical) 180 °
Mechanical Specifications
Height (mm) 525 mm
Width (mm) 380 mm
Depth (mm) 60 mm
Material Plywood
Weight 17.5 kg
IP Rating IP20 (indoor use only)
Colour Black
Finish Painted
Product Properties
Pole Mount M20
Speaker Grille Material Steel
Speaker Handle Positions Left side, Right side
Castors None
Thermal Specifications
Maximum Ambient Temperature 40 °C

DAP NRG-12S Passive 12” Bass Reflex Subwoofer 1200w Peak
