Packing List:
- 1 Unit M48 Electric Tapping Arm with Oil Spraying Function(110V/220V)

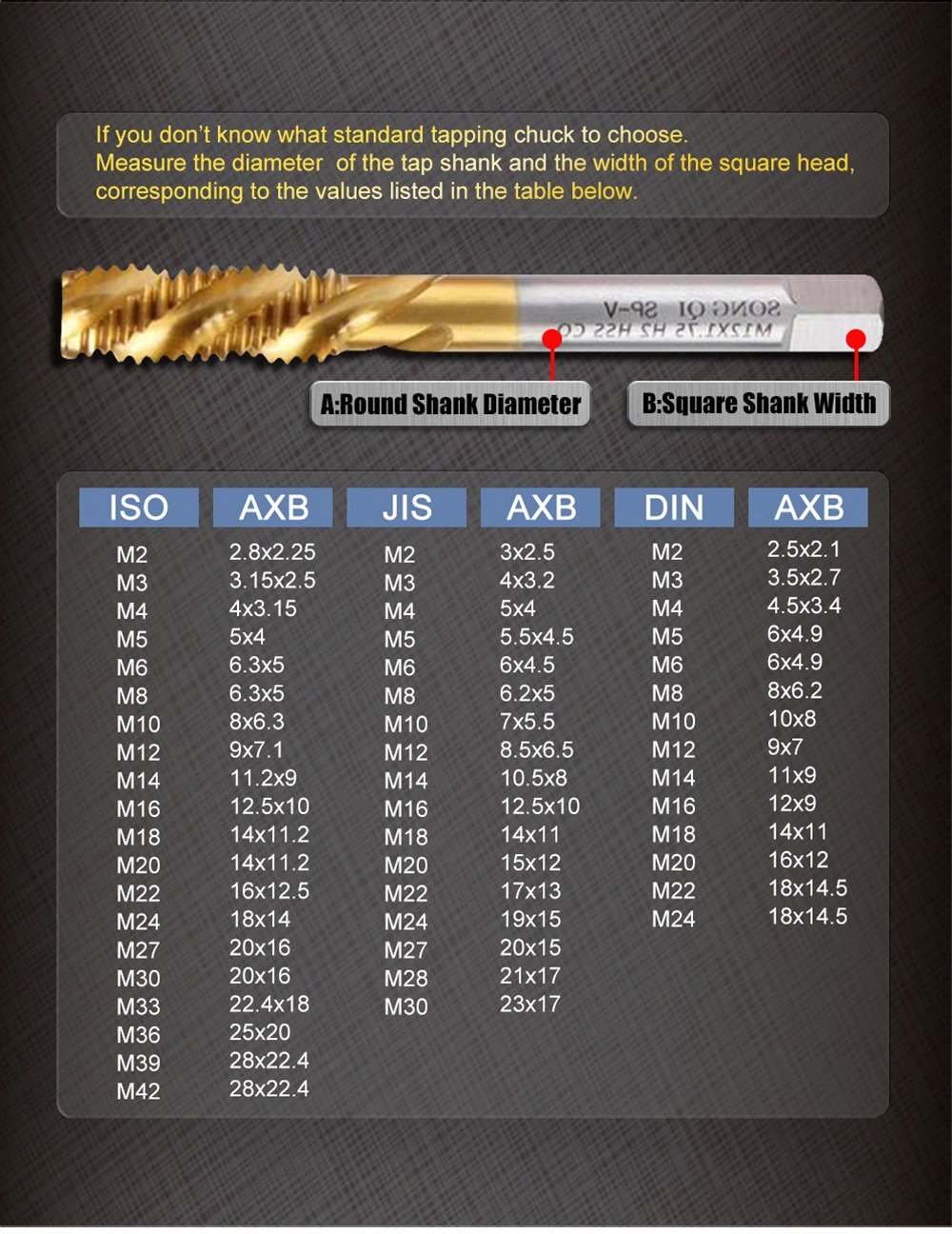

- 1 Set ISO Collet Chuck (M12, M14, M16, M18-M20, M22, M24(Conversion Chuck 45-31), M27-M30, M33, M36, M40, M42, M45-M48)

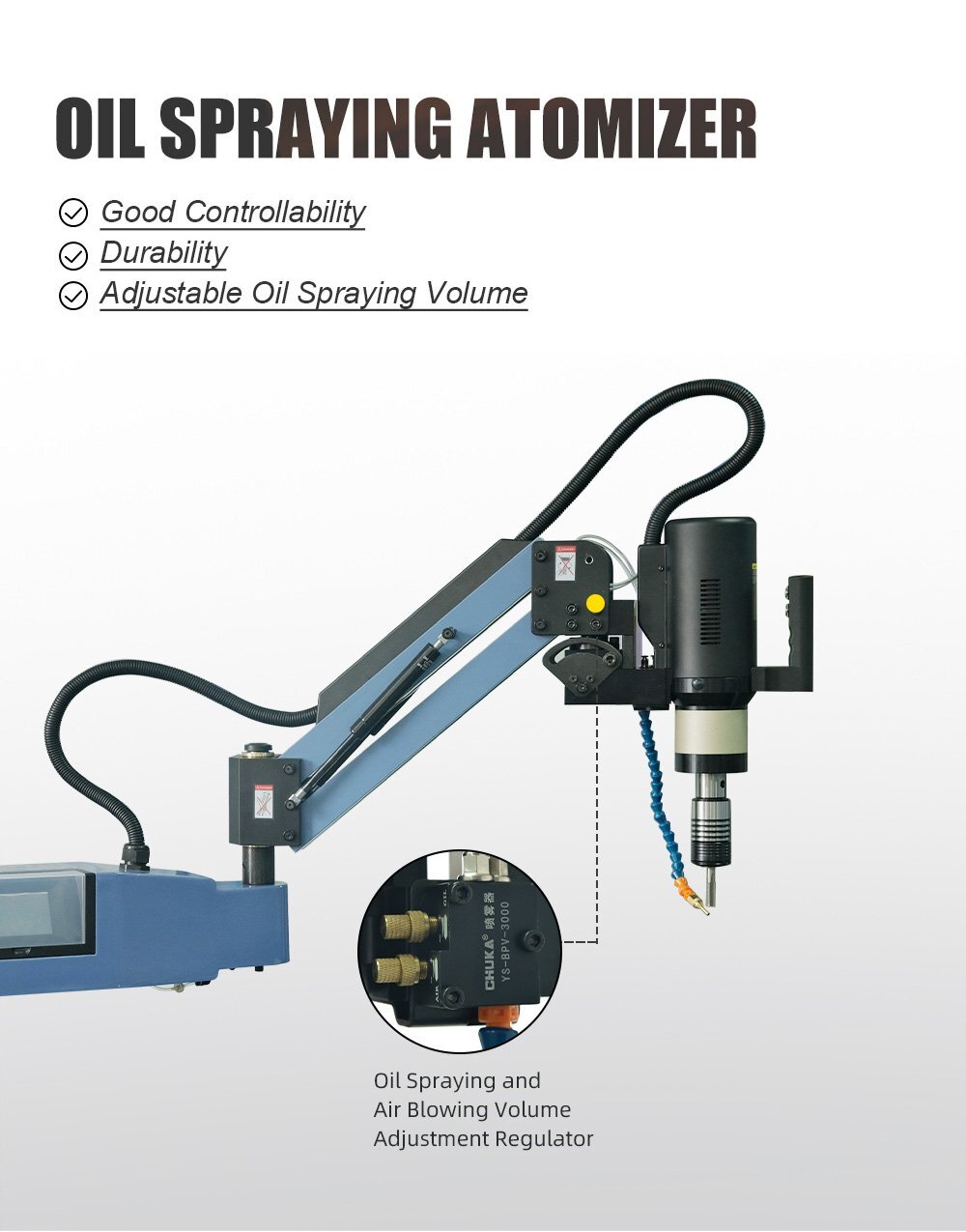

Auto Oiling and Blowing: Improve production efficiency.
Easy to move and operate, large-sized workpieces preferred.

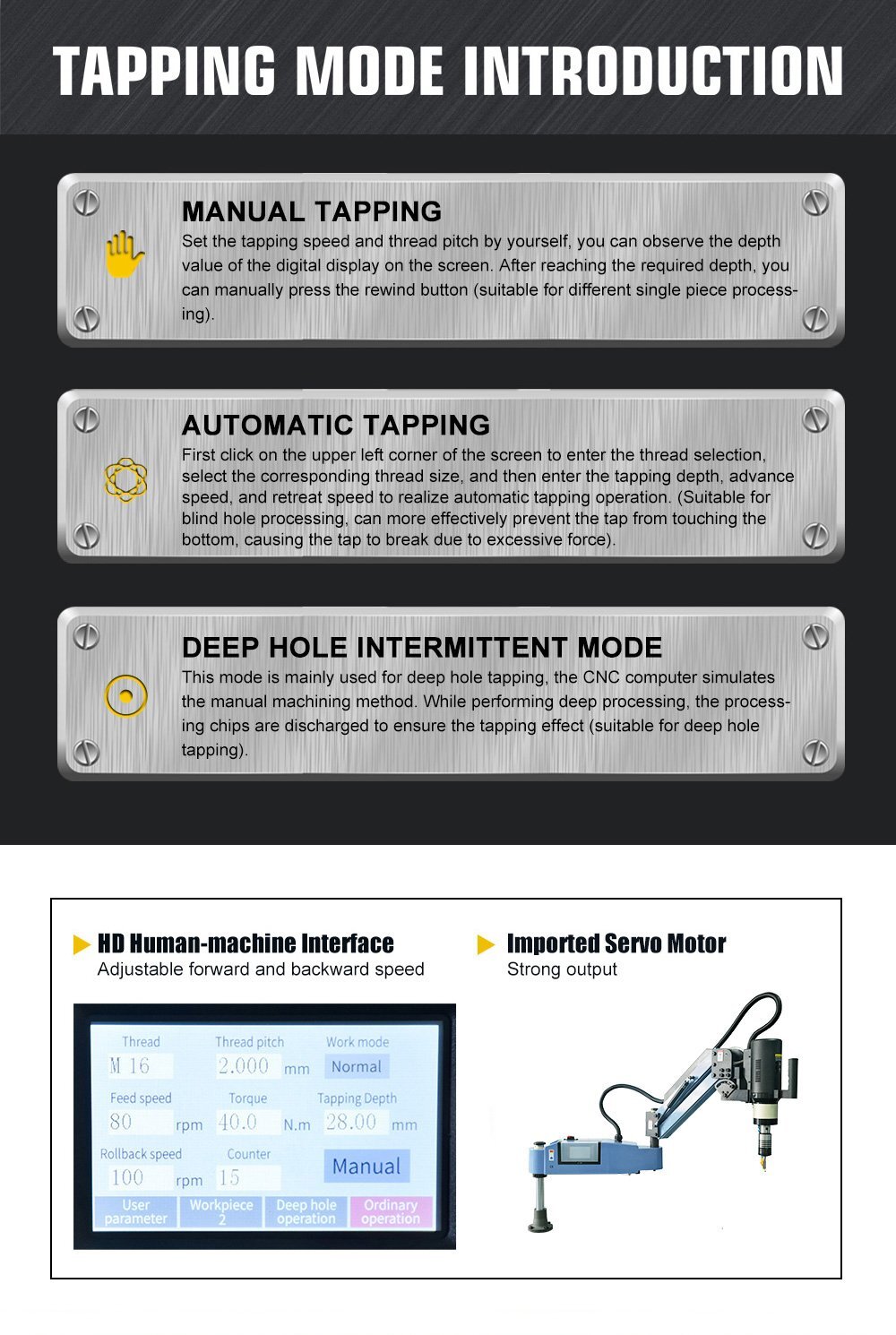

Three tapping models: Manual tapping model, automatic tapping model with depth setting, deep hole intermittent model.

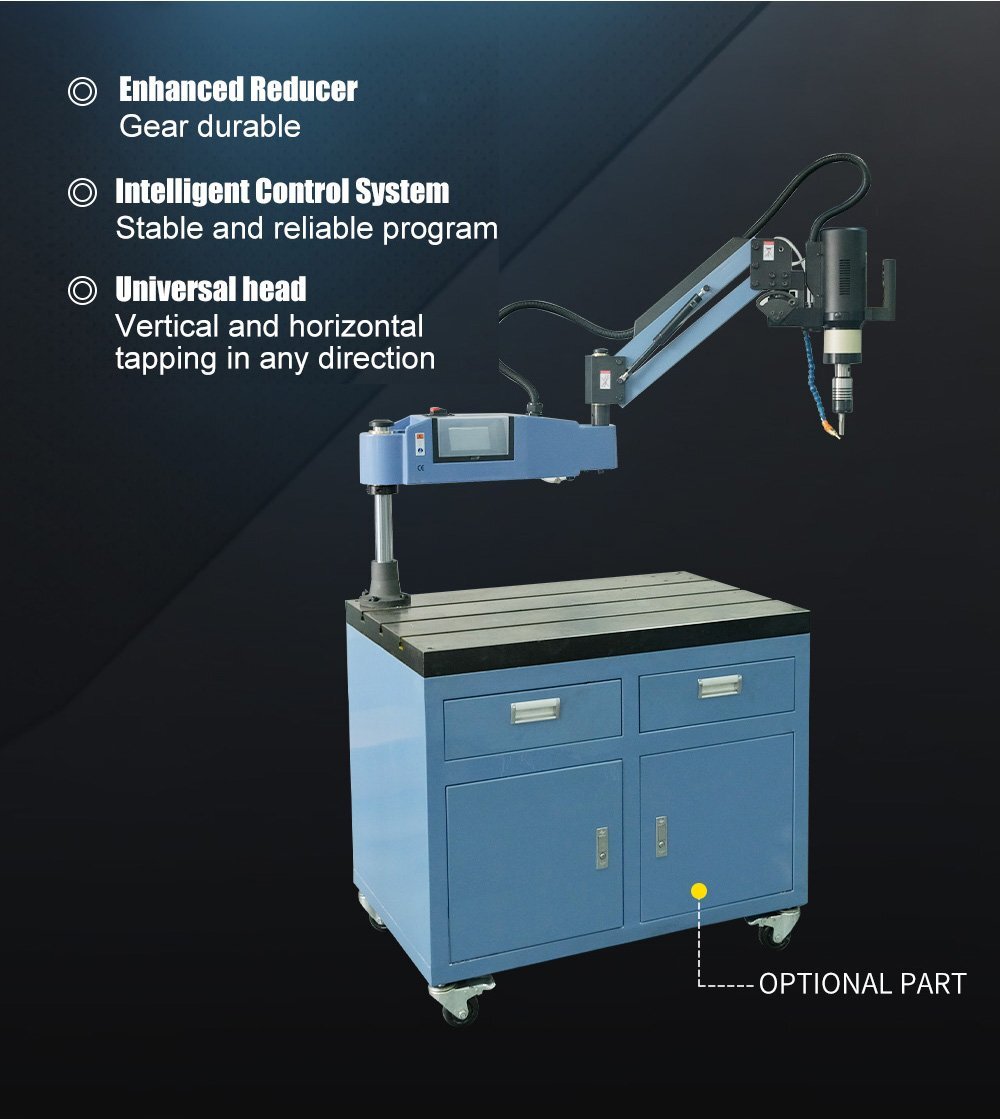

Enhanced Reducer: Gear durable. Intelligent Control System: Stable and reliable program.
Universal head: Electric tapping machine with Vertical and horizontal tapping in any direction.
Delivery:
5-10 days to your door by UPS/DHL/FedEx, no import duty if you are from USA.
Warranty:
1 year for the whole machine. We would repair the machine for free if there is any technical problems caused, man-made errors are not included.
Technical Parameter:
Tapping range: M12-M48
Tapping direction: Universal
Spindle speed: 50-200RMP
Working area: 1250mm for horizontal direction, 400mm for vertical direction (Adjustable)

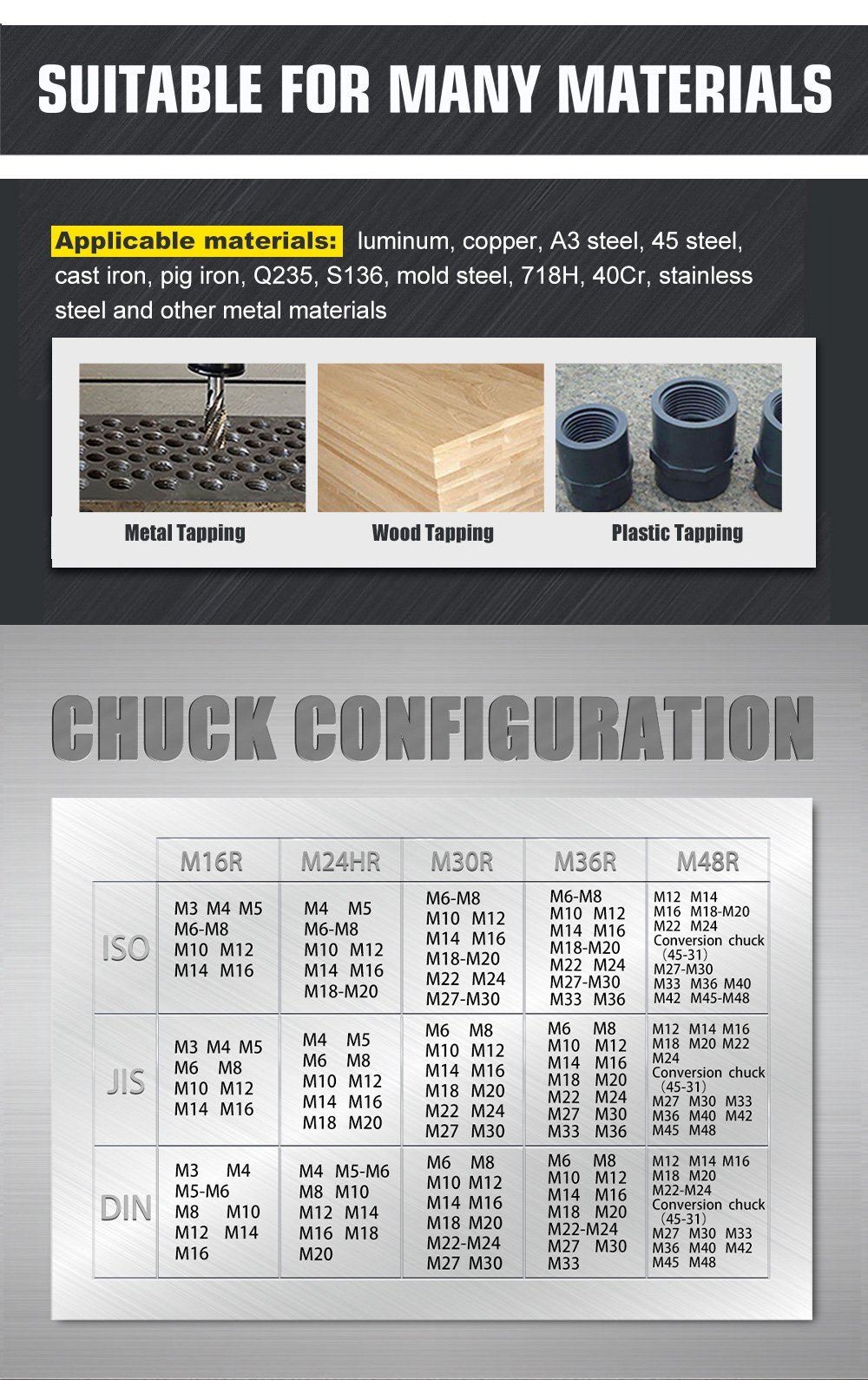

Applicable material: aluminum, copper, A3 steel, 45steel, cast iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel and other metal materials, wooden, plastic etc.
Standard accessories: 1 set tapping arm, 1 set servo and reducer, 1set tap holder, universal joint(tapping for a vertical and horizontal)
