Features:
l Only supports 5V voltage receiver, otherwise the module may be damaged. If the receiver and steering gear use high voltage system, you should add a step-down module to the module.
l 1 steering gear signal input, control one electronic switch

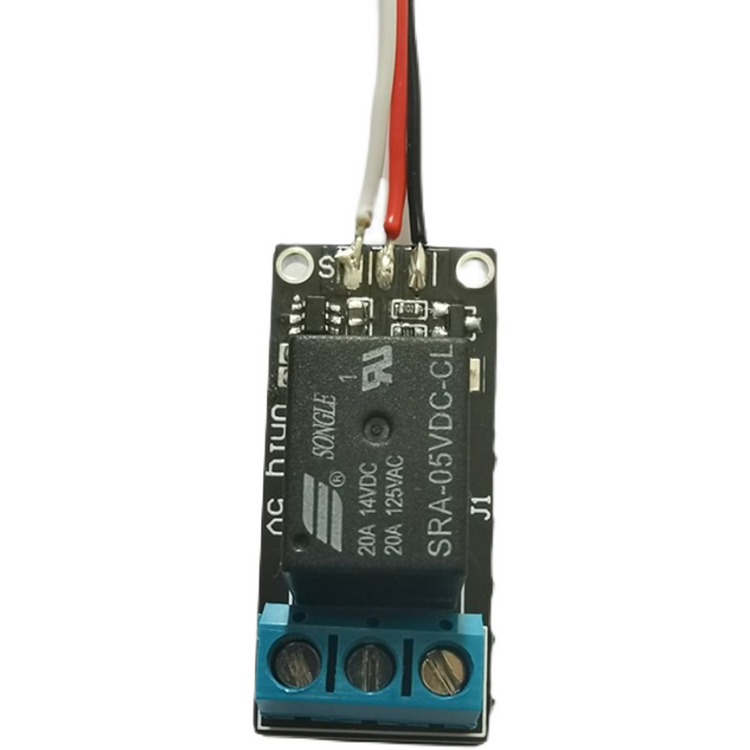

l Normally open end supports 20A current
l One LED indicates working status
l With boot protection function, easy to operate
l The input channel does not need to be calibrated, compatible with all brands of remote control equipment
l Adopting double-sided tape on the back, the appearance is clear

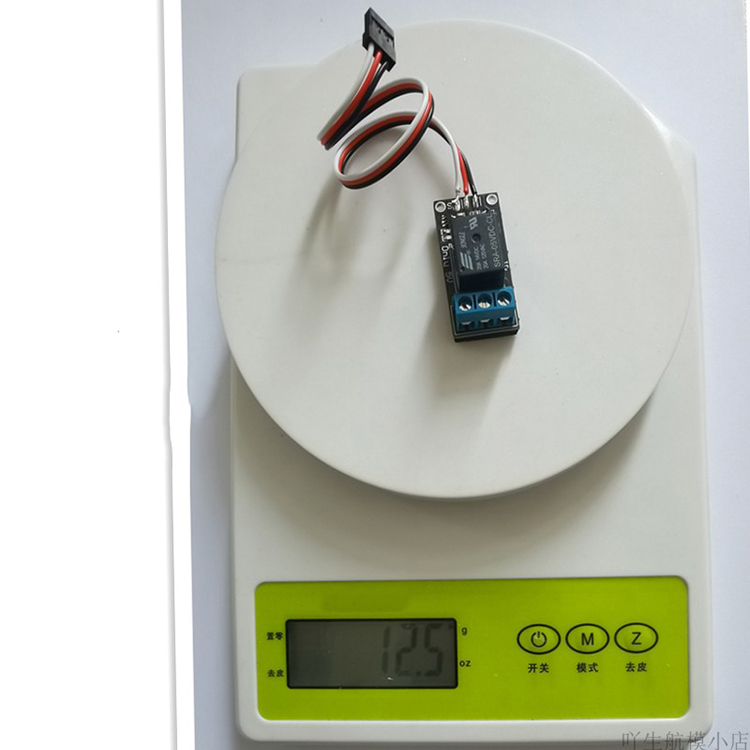

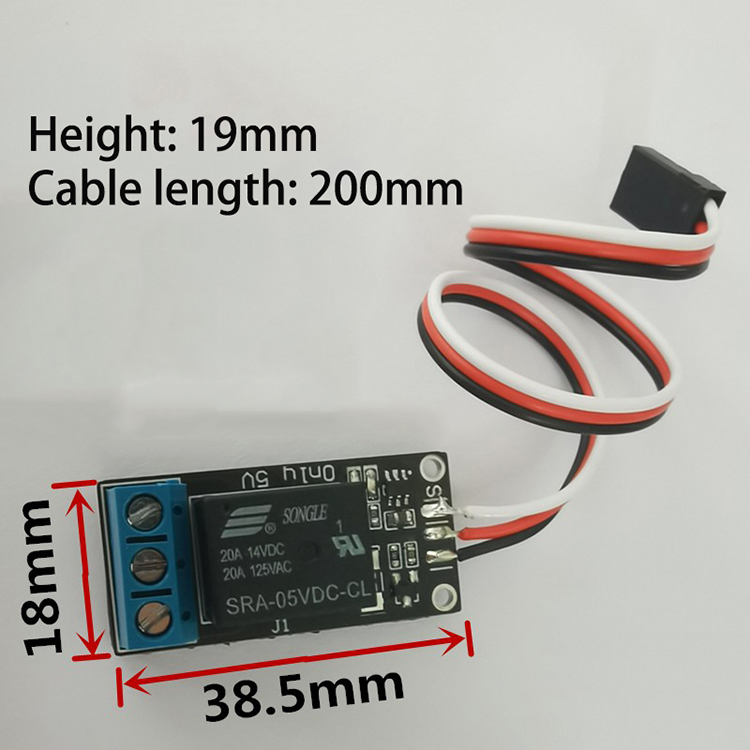

l Small size and light weight

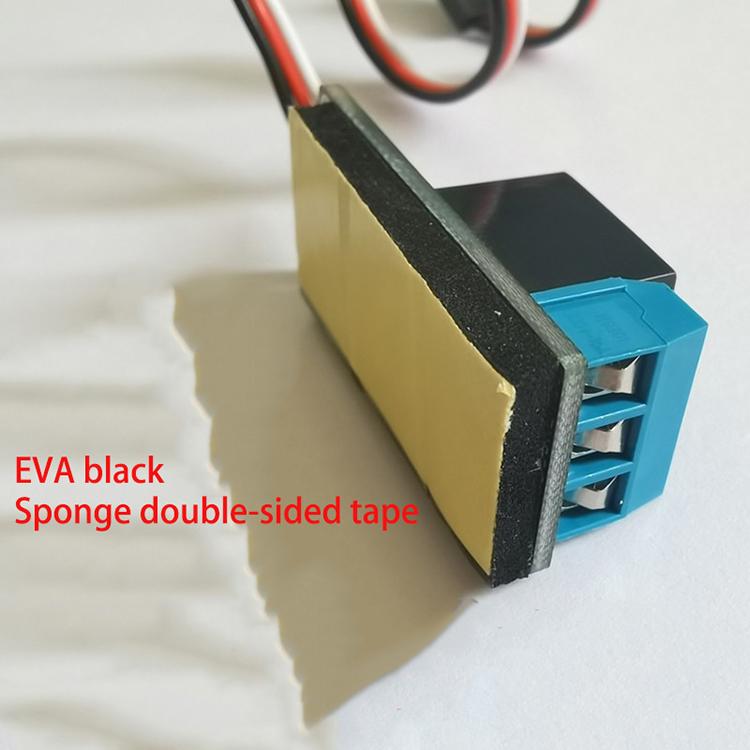

l EVA black sponge double-sided tape, can be fixed at will
l The remote switch remotely controls the electrical equipment on the aircraft model through a switch channel on the remote control, and 1 LED dynamically demonstrates the current switch status in real time, so you can quickly get started without an operation manual
Scope of application:
l Remote control model rocket launch
l Remote control model smoke control
l Weapon system control like a real machine
l Smoke control of model airplane
l Control of various remote switch systems
l Switch the signals of the two cameras
l Control the power on and off of various electrical appliances, such as navigation lights, searchlights, strobe lights, buzzers, etc.
l Control the camera shutter, or switch the camera's video and camera modes
Connection:
l Insert the signal input cable into an idle receiver channel, which corresponds to a switch on the remote control.
l When connected to the receiver, the power indicator will be lit.
l When the switch channel is open, the work indicator lights up, on the contrary it is closed.
Operating mode:
l The red LED light indicates the power indicator.
l The blue LED light indicates the working status of the relay.
Trigger:
l Turn the switch (OFF-> ON) on the remote control, the green LED light is on and the relay starts to work.
Packing includes:
l 1 x Relay Switch
