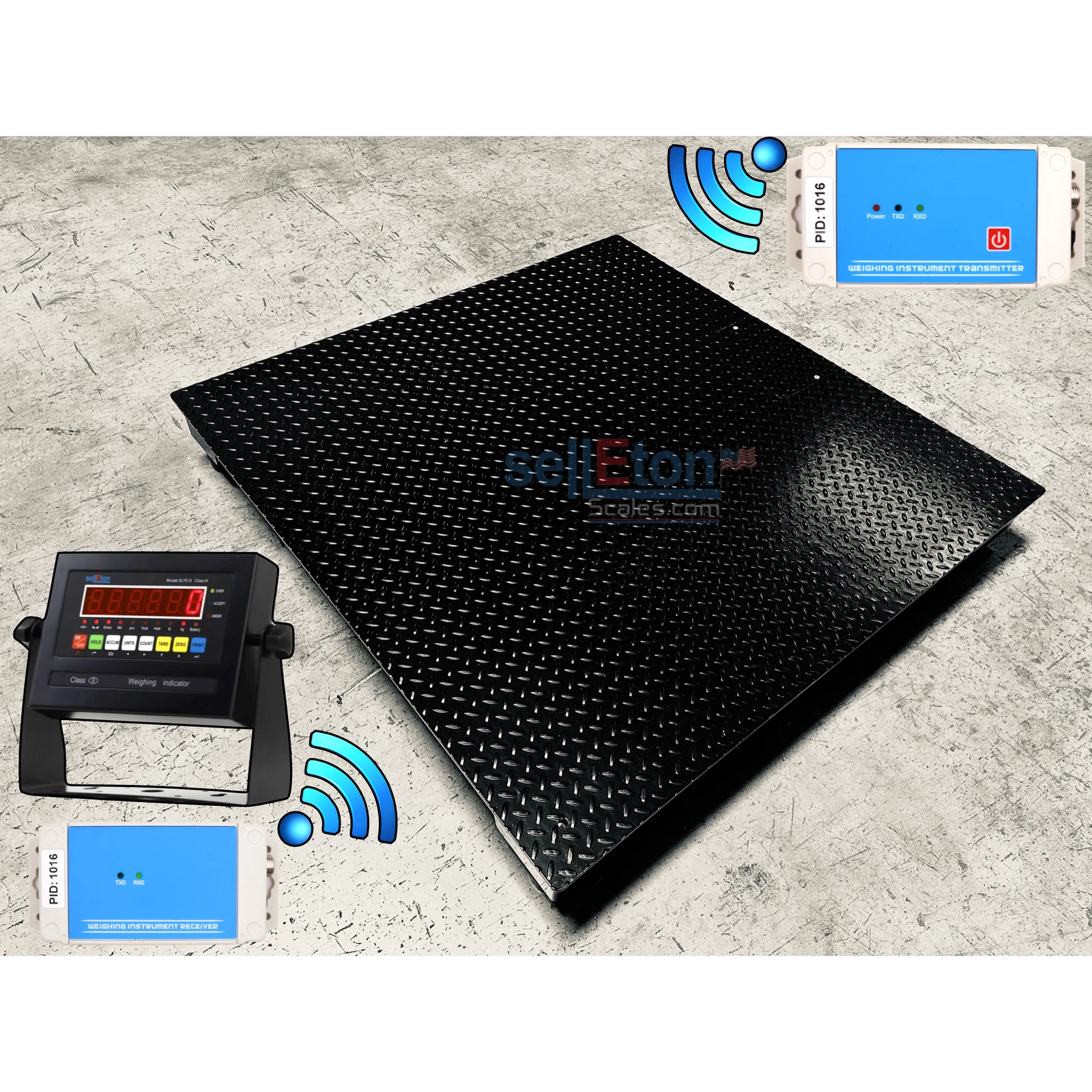

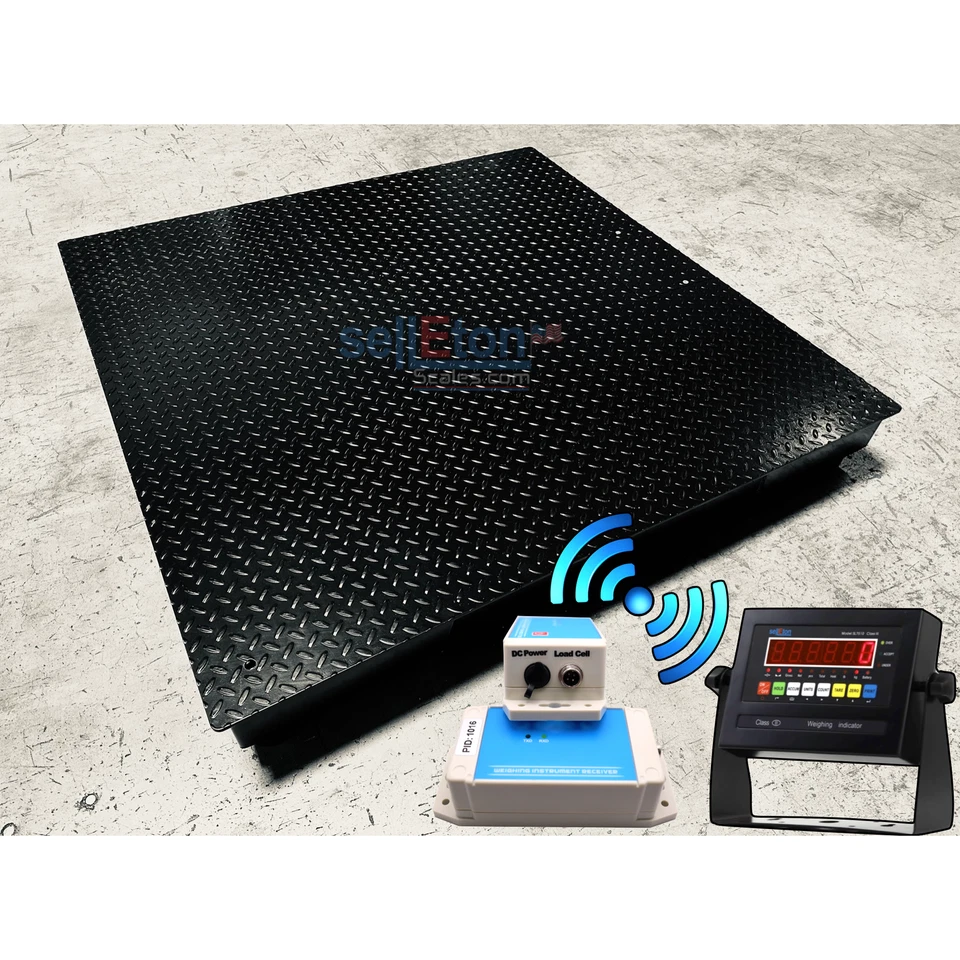

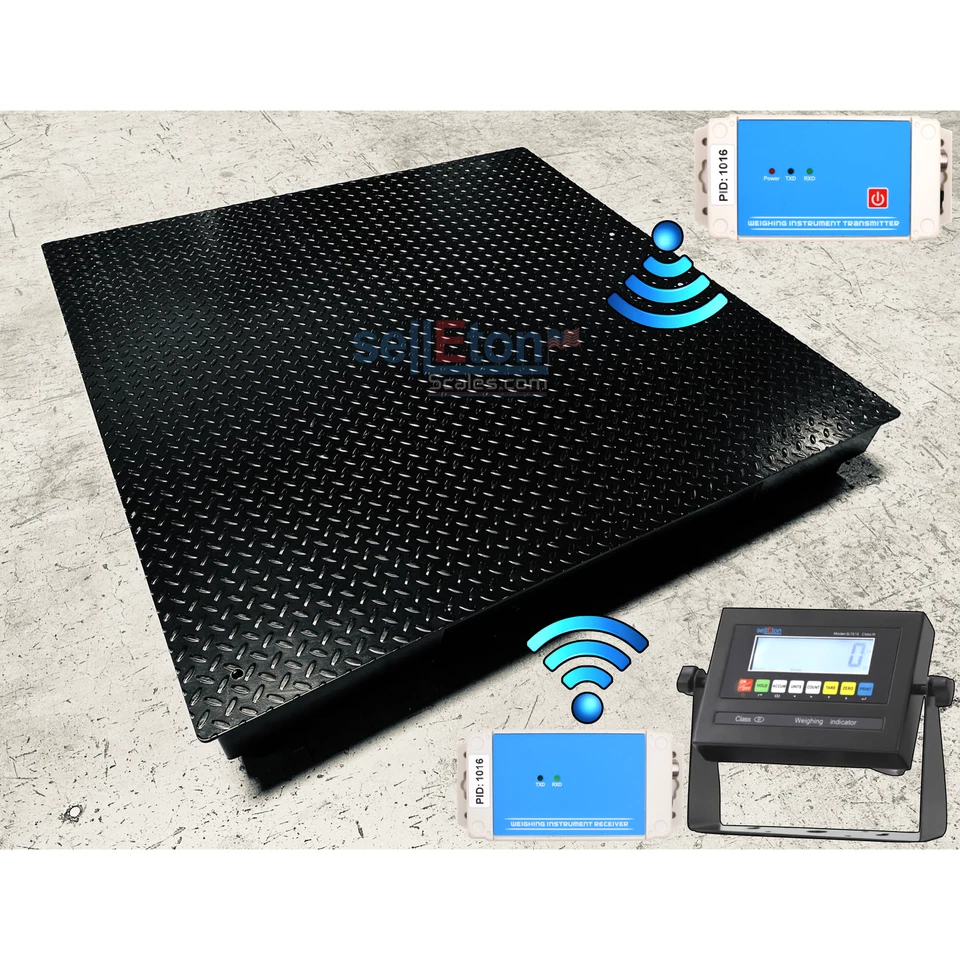

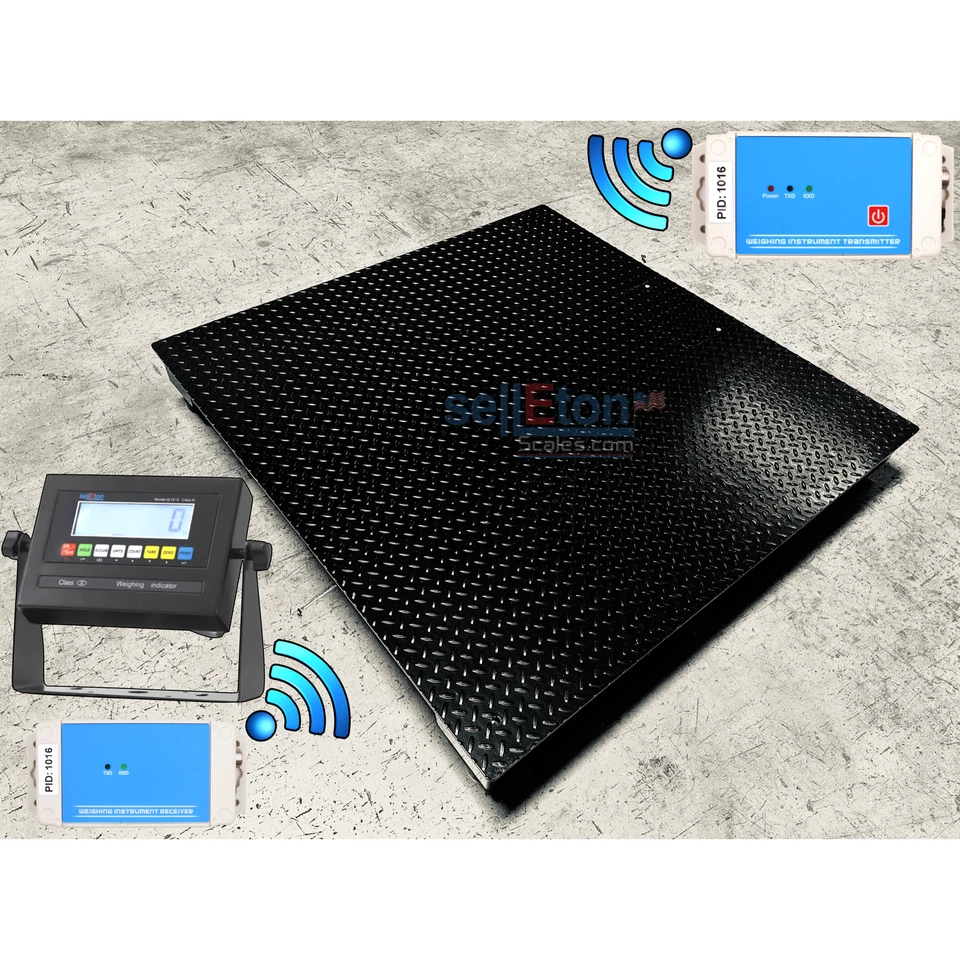

NTEP Certified SL-800-W (60" x 60") Wireless Industrial Floor scales 20000 lbs
description
The SellEton SL-800-W Wireless Floor Scale is your solution for efficient and accurate weight management. This NTEP-certified industrial Floor Scale enhances operational efficiency by eliminating the physical constraints of wired connections, allowing for seamless data transmission directly to your remote systems. Ideal for dynamic industrial environments, this scale offers the flexibility and accuracy required for precise weighing tasks.
-
Wireless Connectivity: Enjoy the convenience of wireless data transmission, keeping your workspace free from the clutter of cables.
-
NTEP Certification: Assures you of precise and reliable measurements that comply with industry standards, which are ideal for commercial transactions.
-
Portable Design: Move the scale effortlessly across various locations within your facility, optimizing workflow and space usage.
-
Forklift Compatibility: Attach the indicator to a forklift for real-time weight monitoring, significantly reducing manual handling and saving time during operations.
Specifications: - Display: LCD or LED, 1-inch with a 6-digit numeric readout.
- Units: lb, kg (primary), oz, g (LCD only).
- Accuracy: Class III, 5,000 e.
- Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
- Excitation Voltage: 5V DC.
- Output Current: Max 120 mA.
- Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
- Display Resolution: 30,000; ADC: 2,000,000.
- Zero Stability Error: TKspn < ± 6 ppm/K.
- Sensitivity: Internal 0.3 μV/d.
- Input Voltage: -30 to +30mV DC.
- Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
- Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
- Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
- Display Increment: Selectable 1, 2, 5, 10, 20, 50.
- Decimal Point: Selectable 0, 1, 2, 3, 4.
- Conversion Rate: 12 samples/second typical.
- Analog Signal Input Range: 1mV / V to 3mV/V.
- Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
- Measurement Rate: 0~15mV.
- Auto Zero Tracking: 0 - 5 dd increments.
Available Sizes: - 24" x 24" (2'x2')
- 24" x 36" (2'x3')
- 36" x 36" (3'x3')
- 40" x 40"
- 48" x 48" (4'x4')
- 48" x 60" (4'x5')
- 48" x 72"(4'x6')
- 48" x 96"(4'x8')
- 60" x 60"(5'x5')
- 60" x 84"(5'x7')
- 60" x 96"(5'x8')
- 72" x 72"(6'x6')
- 84" x 84"(7'x7')
