Application:

Perfect for all 4/6 cylinder and 2.5L-6.0L engines

Capable of Boosting Horse Power up to 600HP

*Note:

1. Please confirm that there is enough space in your car to install this turbo before purchasing.

2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Product Specific:

Turbine Side:

Exhaust Inlet Flange: T3 Flange

Exhaust Outlet Flange: V-Band

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Side:

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Wet Float

Thrust bearing: 270 degree

Cooling Type: Water + Oil Cooling

Horse Power: Up to 600HP

Turbo Type: Individual

Universal Fitment: Yes

Finish:Matte

Wastegate：Without Wastegate

Oil feed/inlet: M10*7/16-24

Oil drian/outlet: 2*M8*1.25

Water inlet/outlet: M14* 1.5

Maximum PSI: 22

Condition: 100% Brand New

Accessories: You will get exactly as shown as picture above

Pakage Size: 32 x 27 x 23 cm

Pakage Weight: 8.7 kg

Package Included:

1x Turbocharger

2x Flange gaskets

2x Oil feed/drain gaskets

1x V-Band  flange adapter ring & Clamp

1x Manual

1x Brochure

1x Sticker

Features:

*Product Material

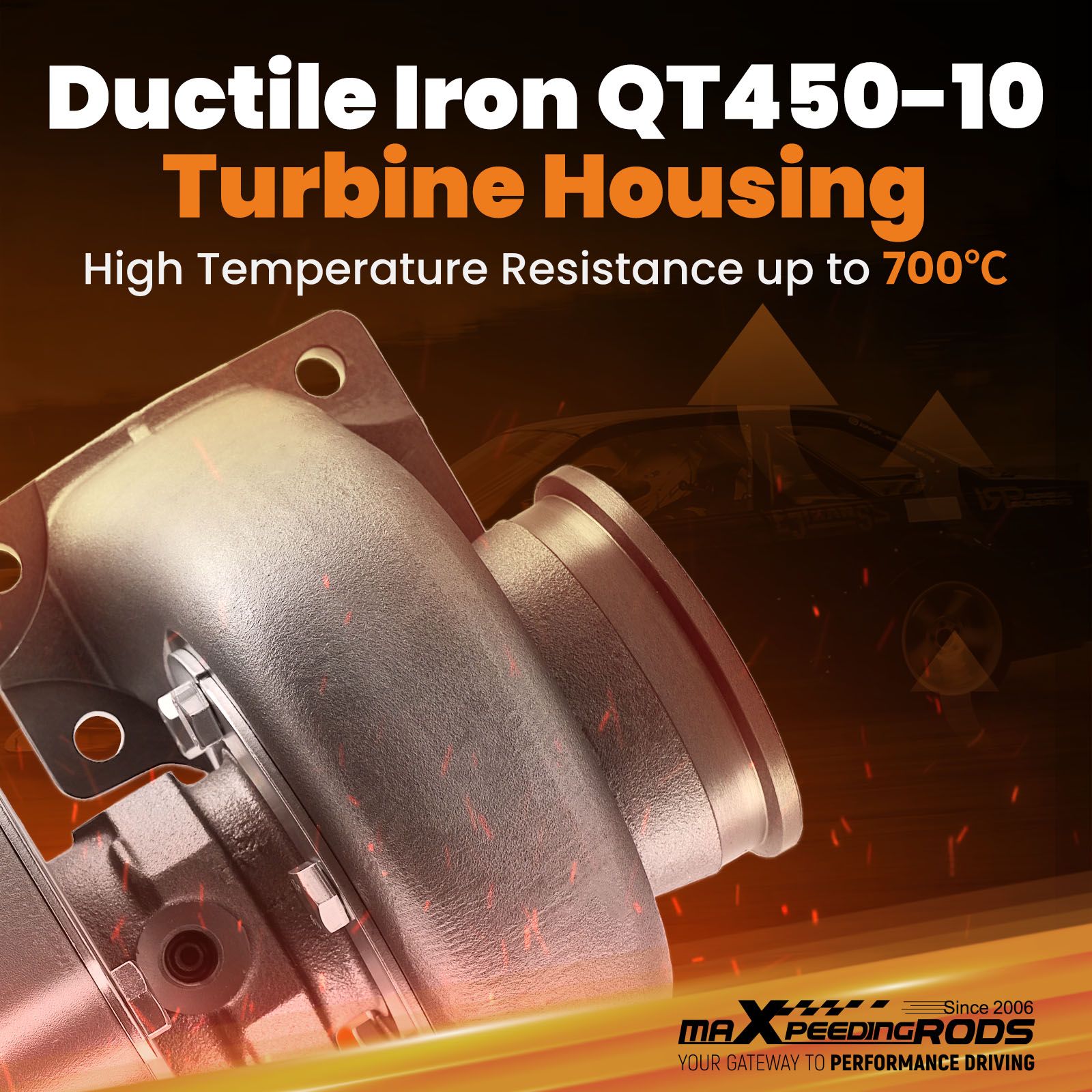

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

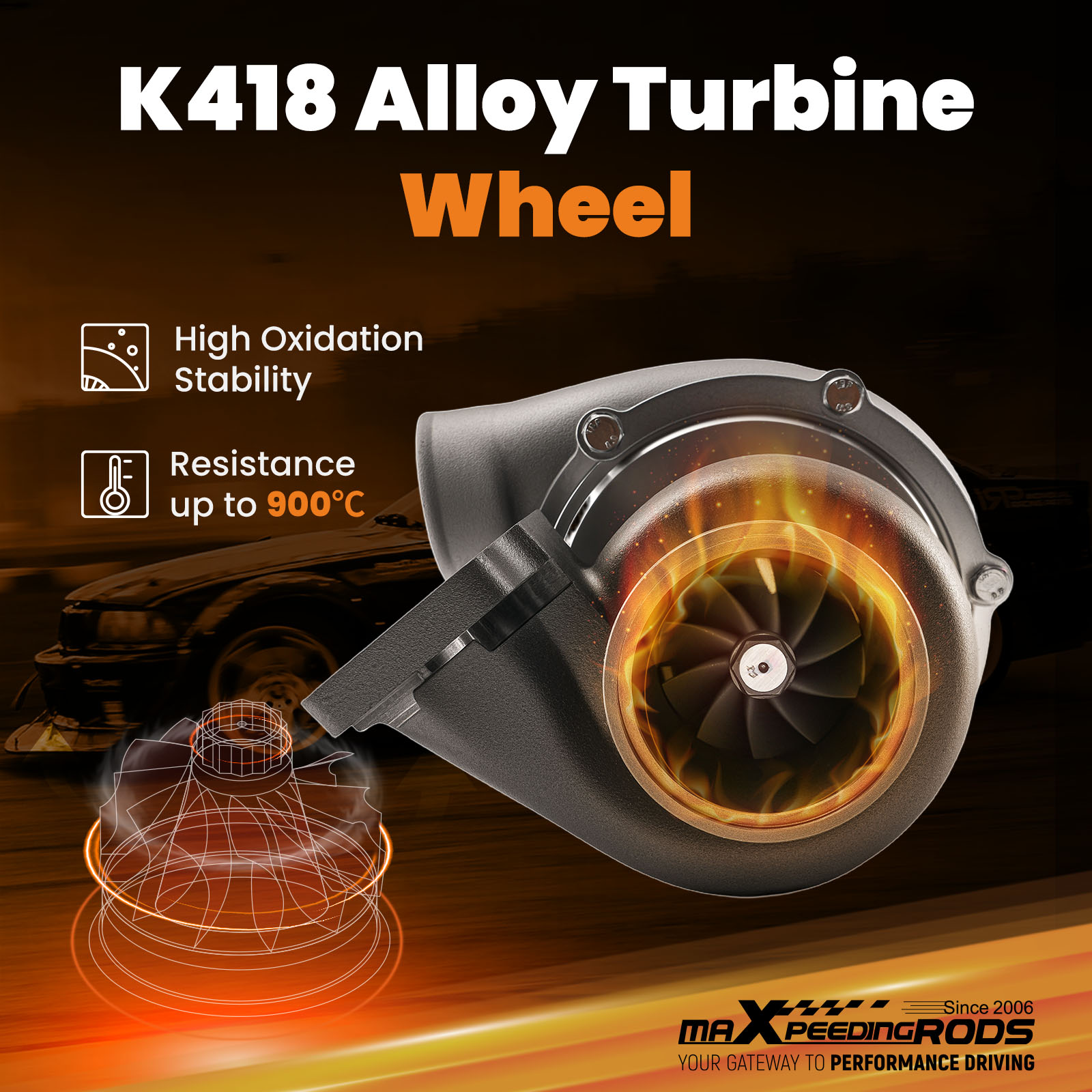

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

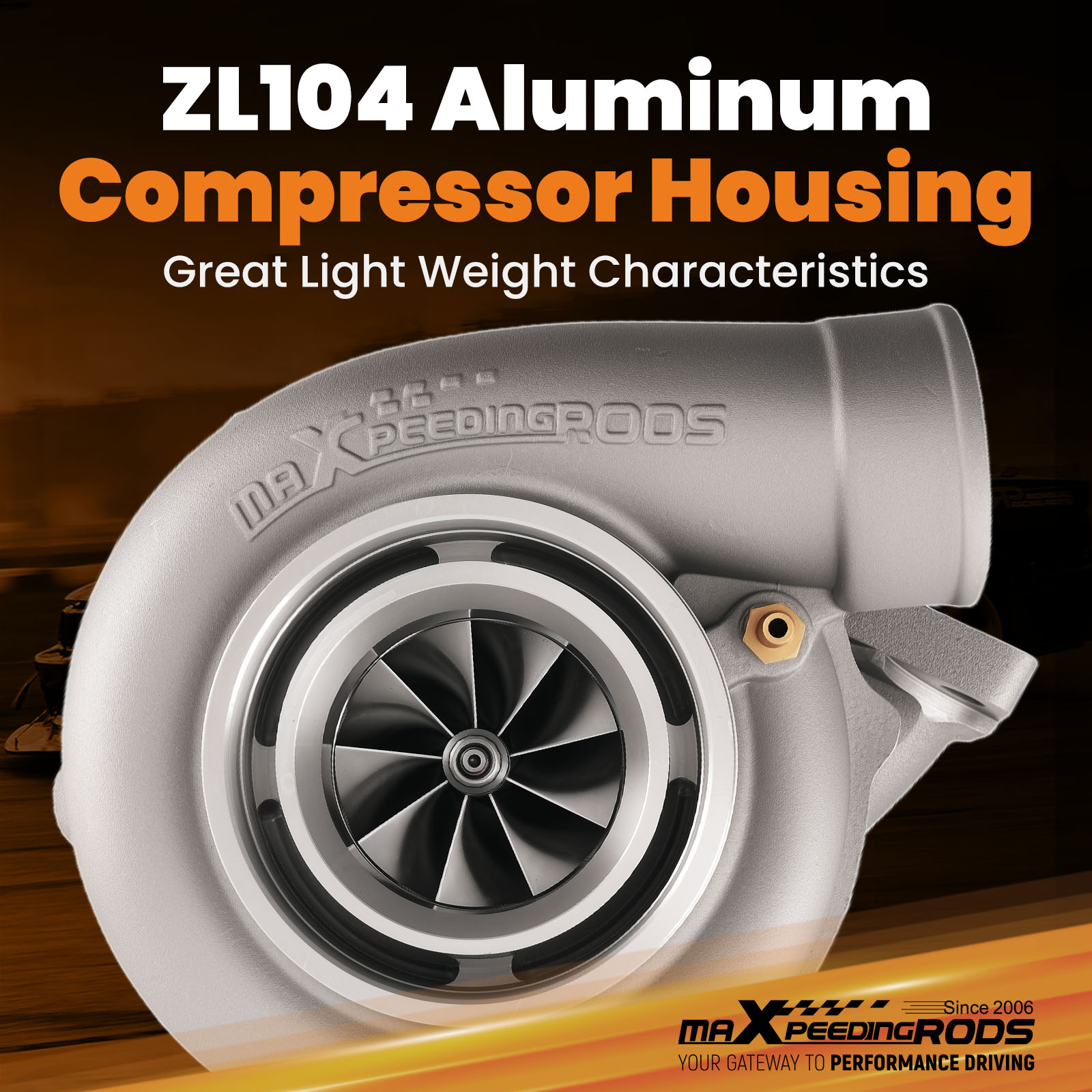

3. Compressor housing: ZL104 aluminum with lightweight

4. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

5. Appearance upgrade

（1）Turbine outlet V-BAND: Easy installation

（2）Anti-surge compressor housing: Increase air intake

（3）New compressor wheel design

Note:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Note: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
