TI CC2531 USB Dongle ZigBee Adapter / ZigBee Debugger / protocol Analyzer Packet

Features:

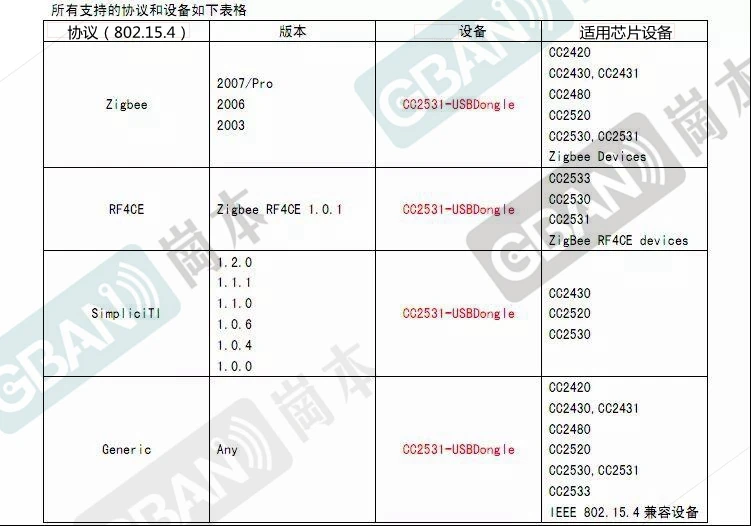

Added program analysis for CC2650/CC2630/cc2538 chips! In theory, devices using the 802.15.4 protocol can be analyzed.

1. Environmentally friendly solder paste, Shenjin technology, customers can use or recommend with confidence;

2, quality assurance, components are designated labels;

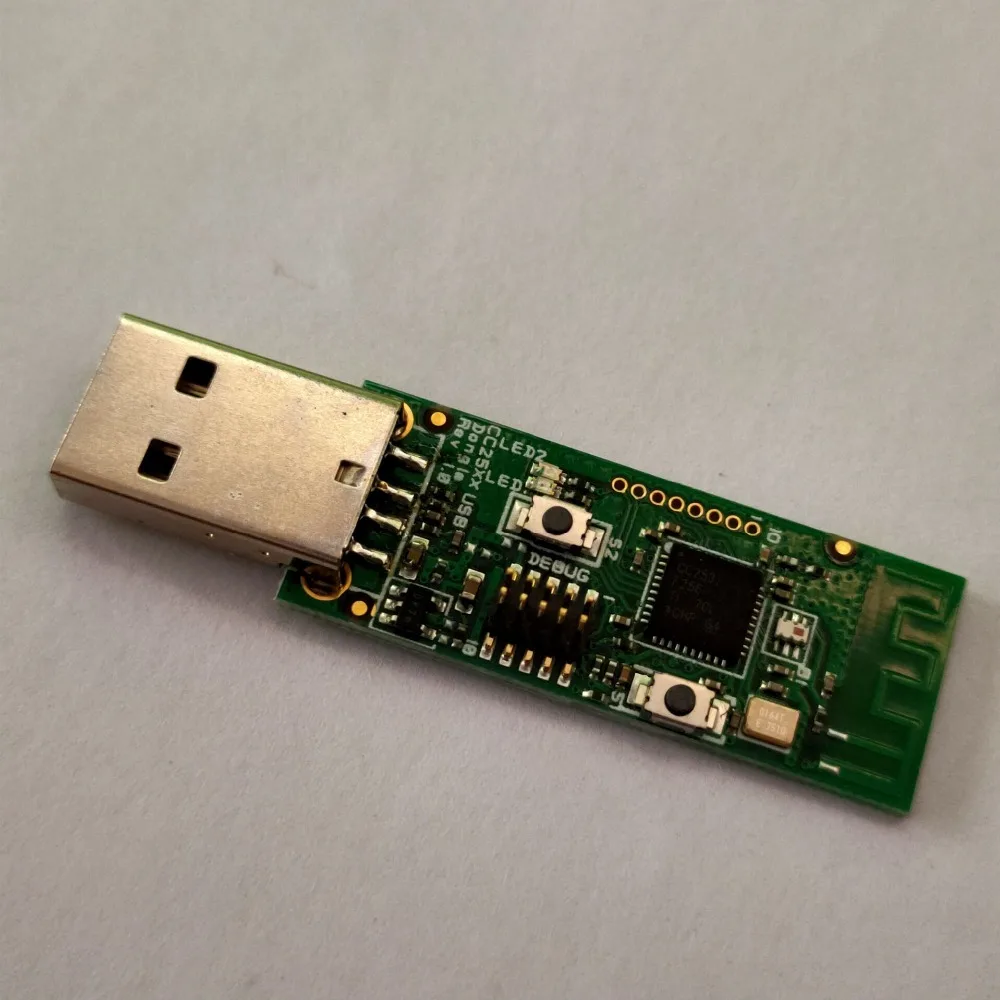

3, small size: 4.1 * 1.6 cm, ultra narrow side design, avoid conflict with other USB devices;

4, the product is small in size, the board thickness is 1.6MM, and 8 IO ports are drawn out, and the DEBUG pin is used. And can increase the outer casing;

5, the working frequency is 2.405-2.485GHz, the wireless transmission rate is up to 250Kbaud;

6, power consumption: receiving current <20mA, emission current <25mA;

7. Cooperate with the firmware to implement the protocol analyzer function;

8. Select BALUN design (2450BM15A0002E), the distribution parameters have small influence, and the performance is superior and stable;

9. The DONGLE can burn its own program to do the transceiver module.
