1. Description:

PLEASE NOTE: This device only works on Android phones and is not compatible with IOS systems.

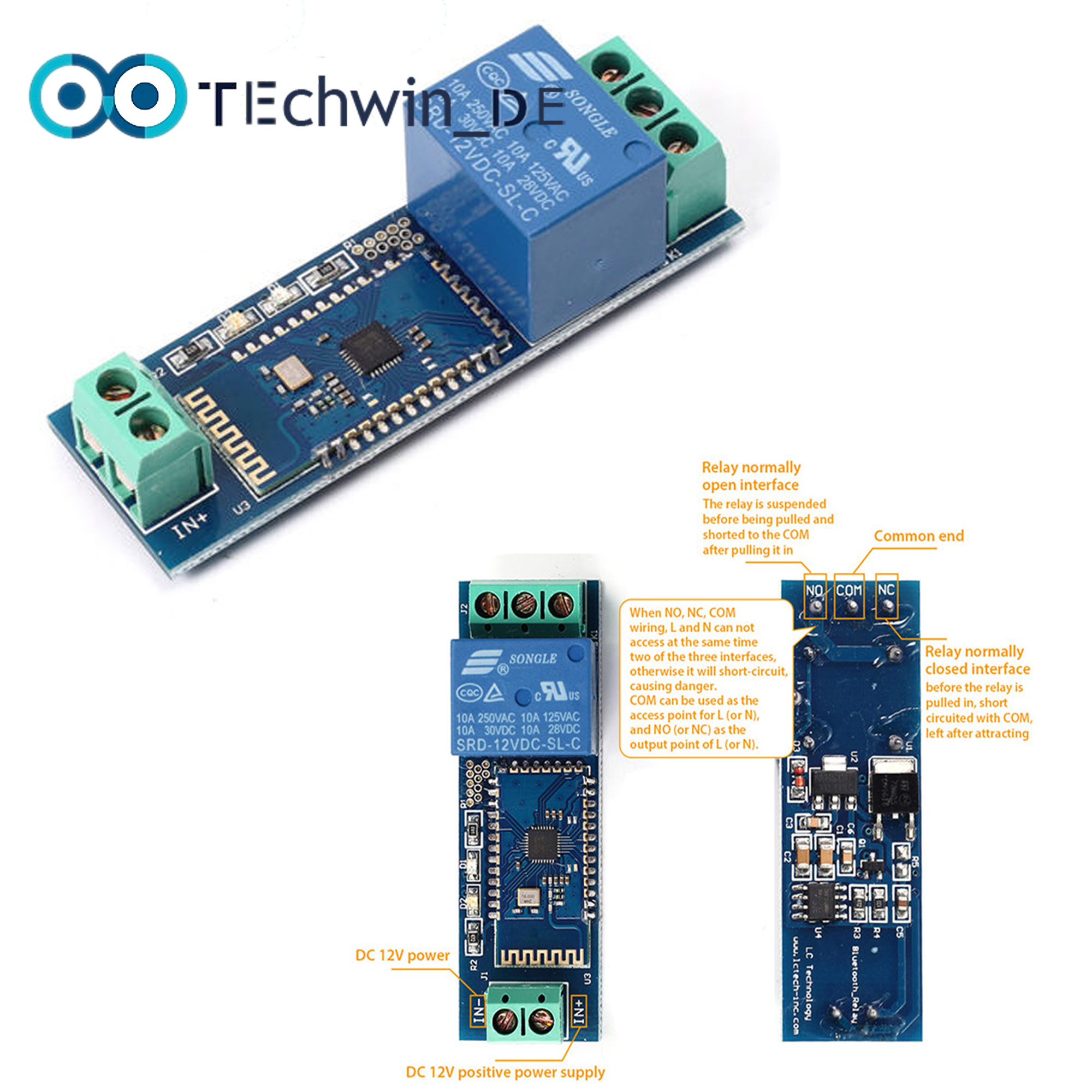

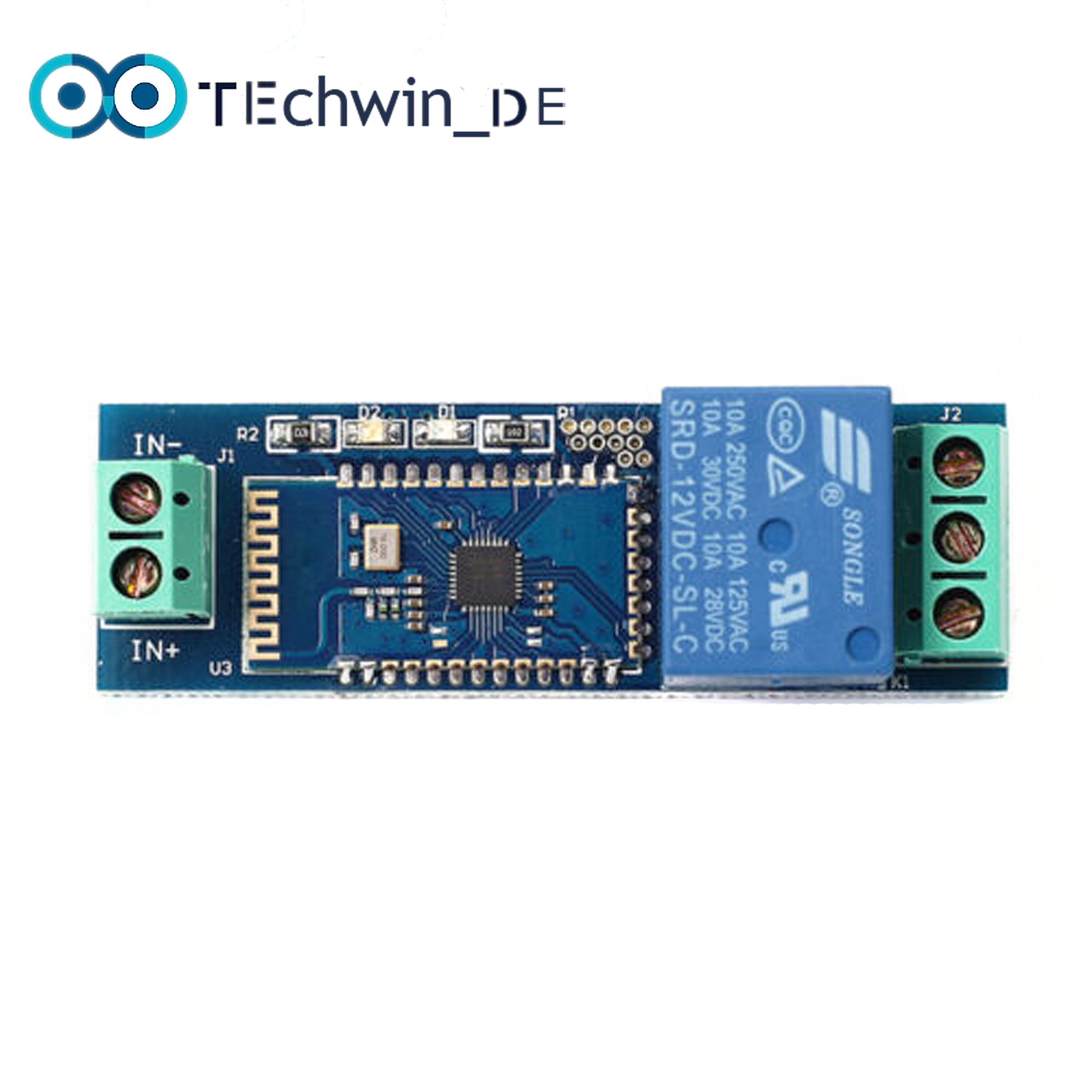

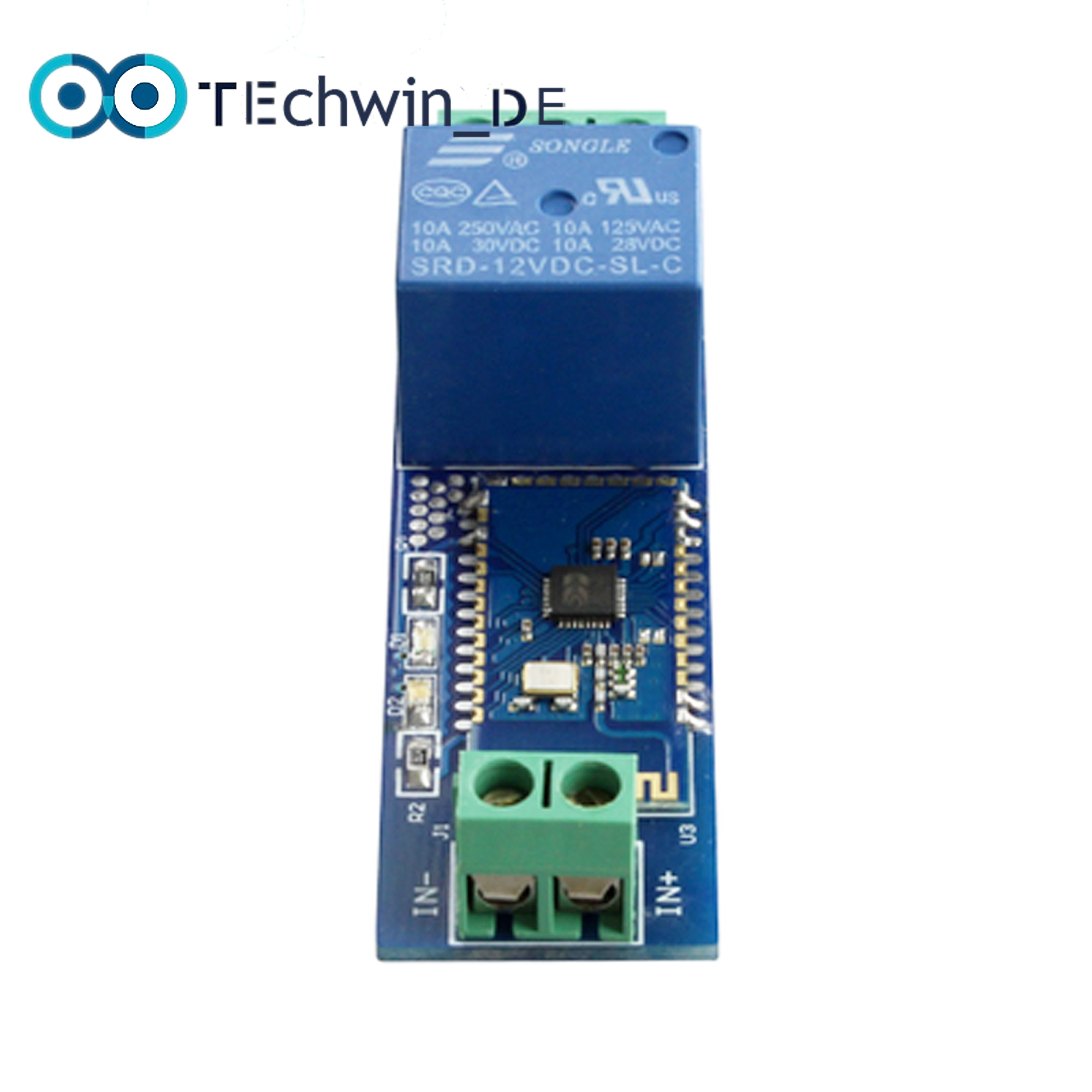

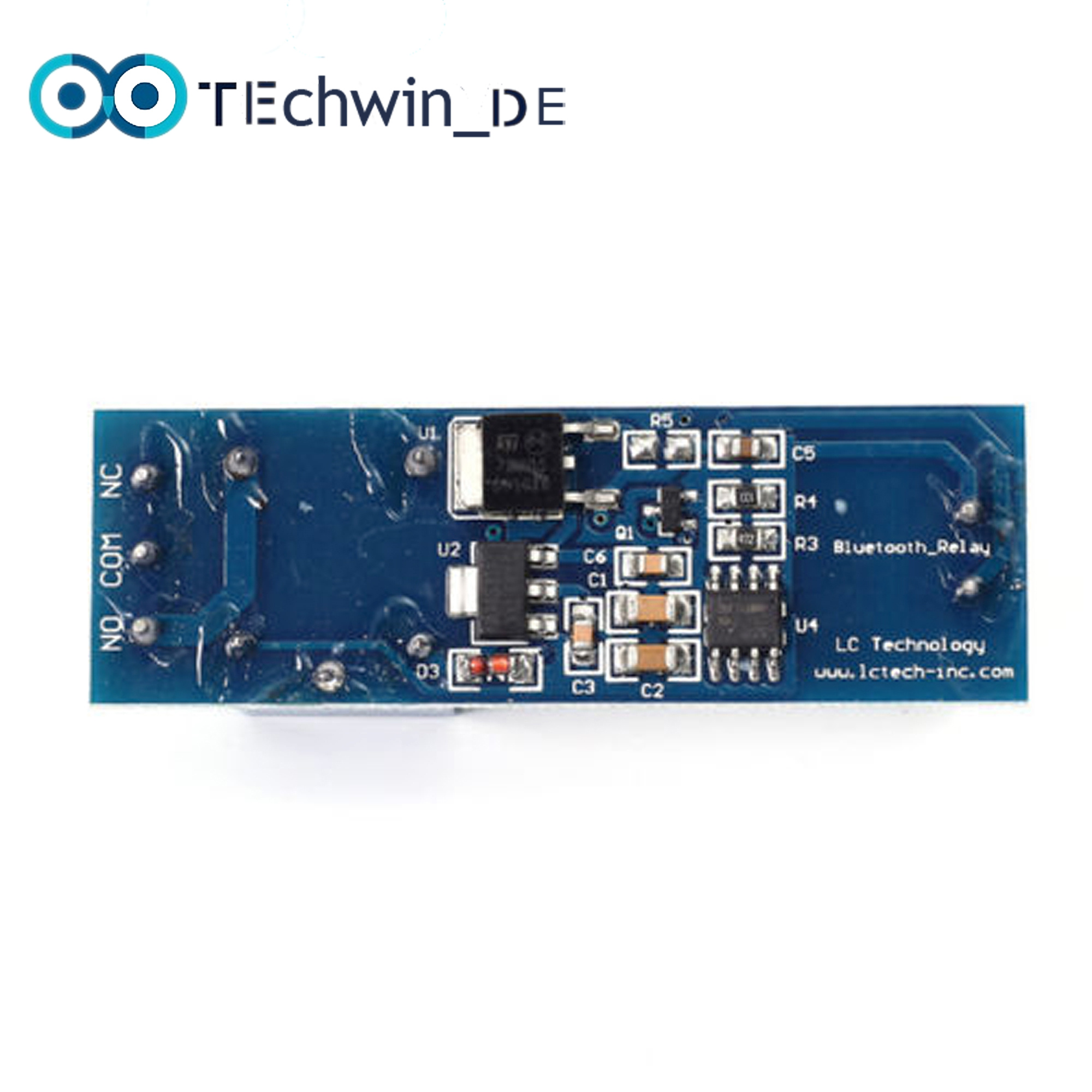

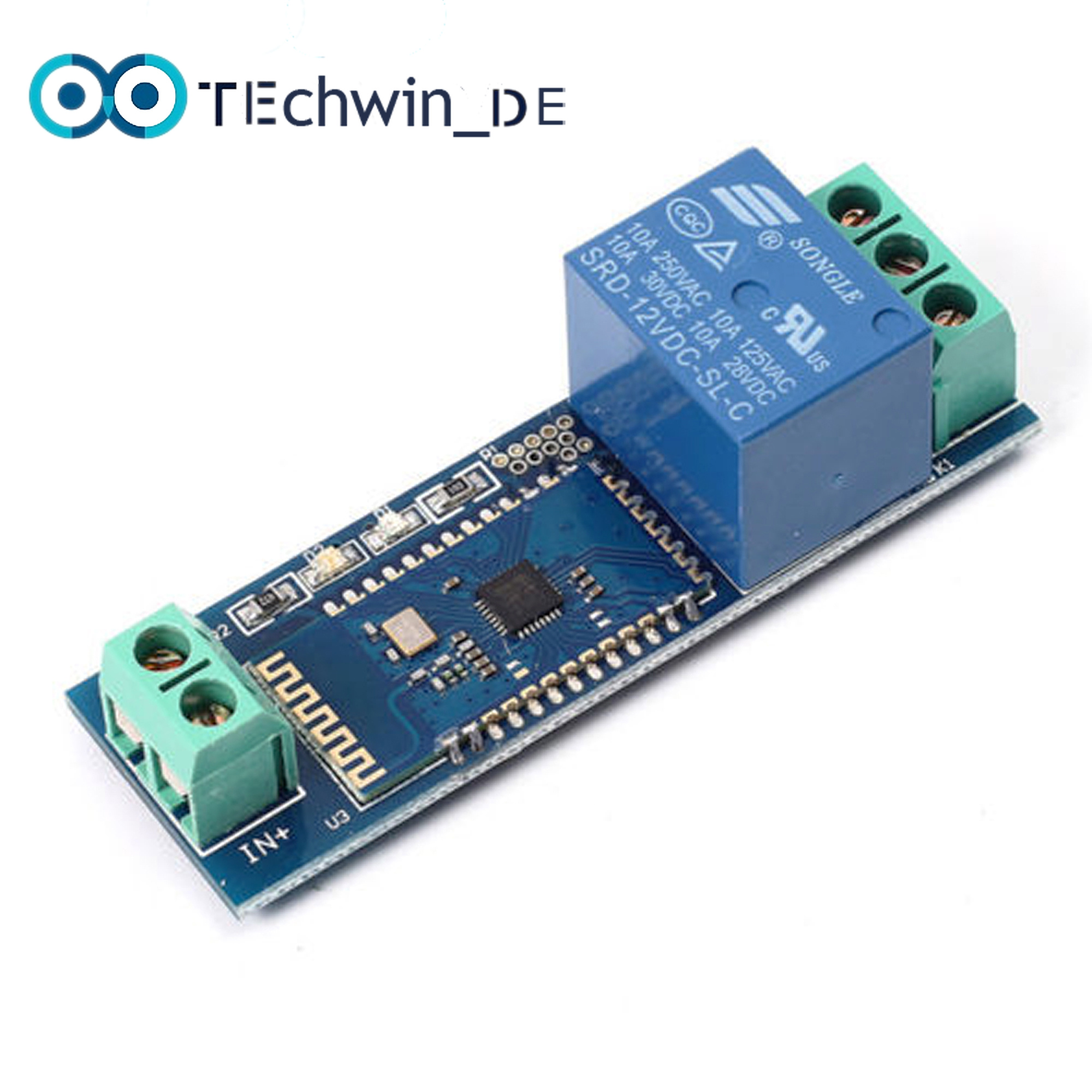

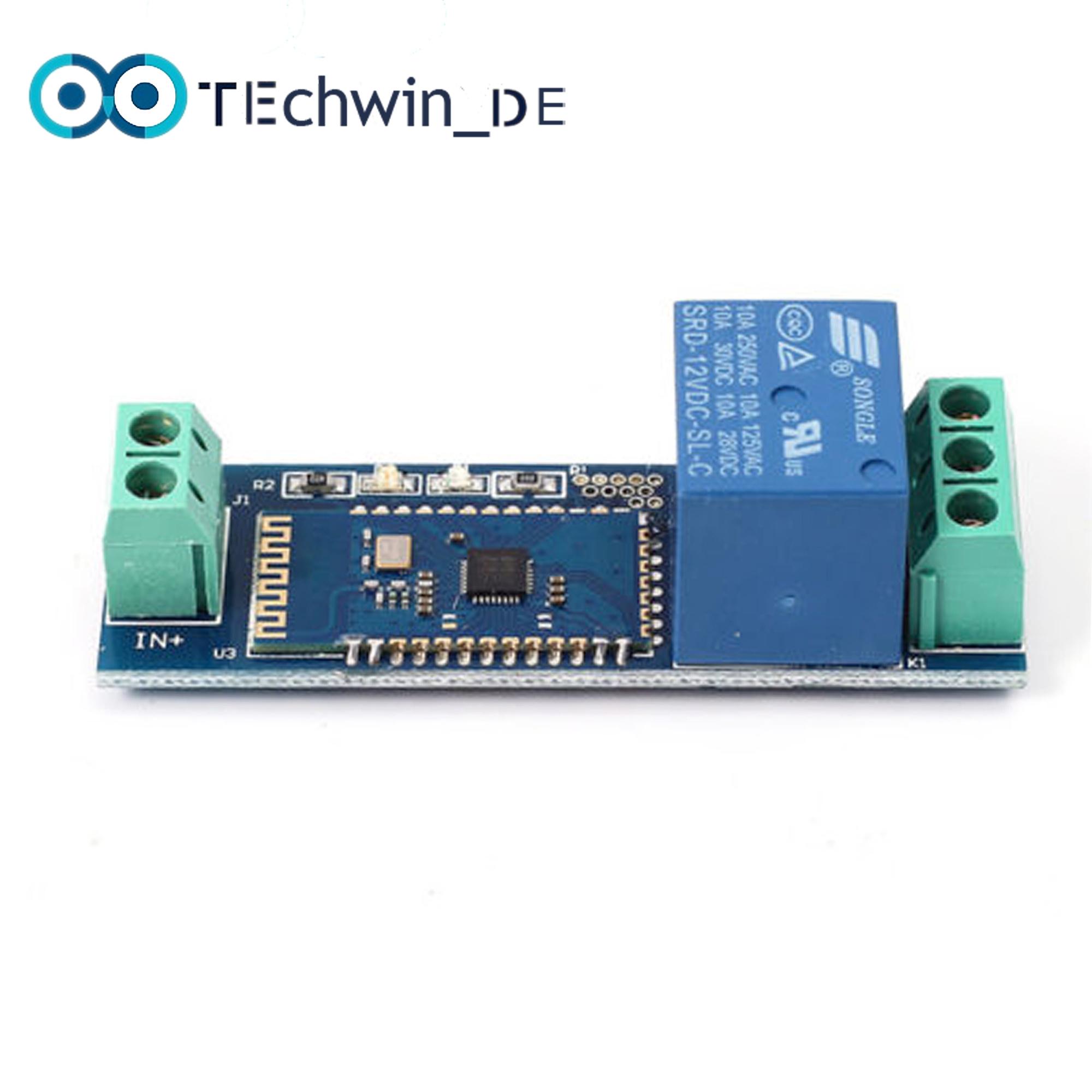

It is a bluetooth smart relay module.

2. Parameter:

Parameter	Value
On-board module	On-board SPP--C Bluetooth serial port slave module with wireless control function
On-board relay	On-board 12V, 10A//250V, AC, 10A//30V, DC relay, life can be continuously attracted one hundred thousand times
Diode drain protection	With diode discharge protection, short response time
On-board indicator light	Bluetooth status indicator ( slow flashing without connection, long flashing after the connection) and the relay status indicator (light up after pull in)
Control distance	10m(Wide and open environment
Working voltage	DC12V
DC control maximum voltage	DC30V
AC controlled maximum voltage	AC250V

1.

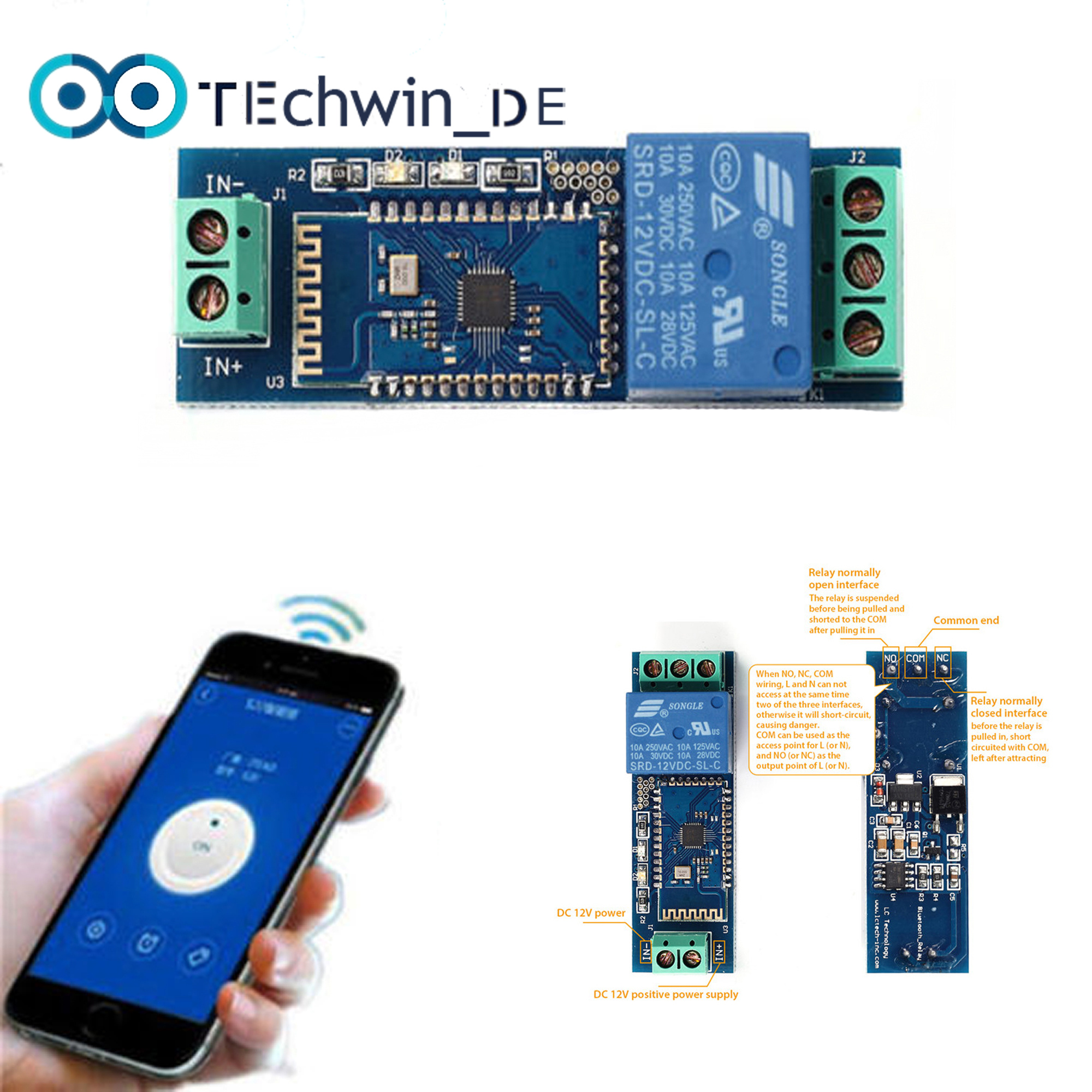

   Bluetooth relay module application method

1>. Install Bluespp Bluetooth serial port, APP

2>. Set up the Bluetooth serial port APP, open APP, switch to switch options,long set



according to the grey box pop-up menu, select sixteen hex, open the instruction A0



01 01 A2, when you close the command A0 01 00 A1, attention to no more spaces,



and the format should be consistent.

3>. Power the Bluetooth relay module, in the APP point connection for searching,



the first pairing time will be longer, search more than a few times (also can use your



own Bluetooth search to pair). After pairing, you can use the APP control module.

Please note:
1. The maximum stable transmission distance of this module is 10m.
2. The module only supports Android system, does not support IOS
