Description:

Modules can be used for ambient temperature detection,
detection temperature threshold can be adjusted
by potentiometer, relays, can do a variety of temperature switches,
such as temperature monitoring, temperature monitoring,
automotive chassis temperature monitoring

Module Features:

1. the use of highly sensitive thermistor detected ambient temperature,
comes with genuine quality relay can directly control AC or DC loads,
Normally open interface maximum load capacity: AC 0V--250V/10A DC 0V--30V/10A;
2. Temperature can be adjusted by potentiometer threshold,
when the ambient temperature is above this threshold, relay,
when the temperature falls below this threshold, the relay releases;
3. Design, smart regulation, when after the relay will automatically fine tune threshold,
solves the problem of critical values over;
4. Module has a counter function, reverse polarity will not damage the power supply module;
5. Equipped with power indicator light (red), the relay status led (blue);
6. Operating voltage 12V;
7. With 4 fixing bolt holes for easy installation;
8. Module dimensions: 5.0CM*3.0CM*1.8cm;

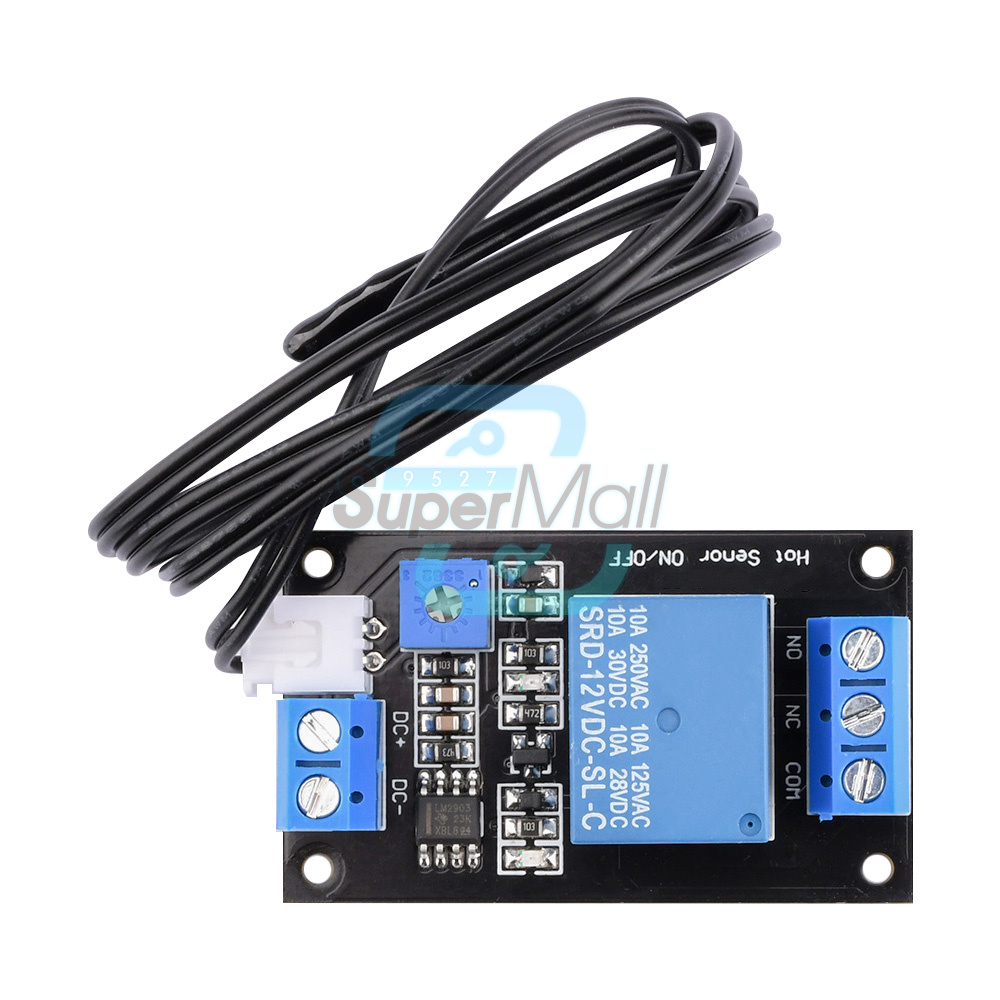

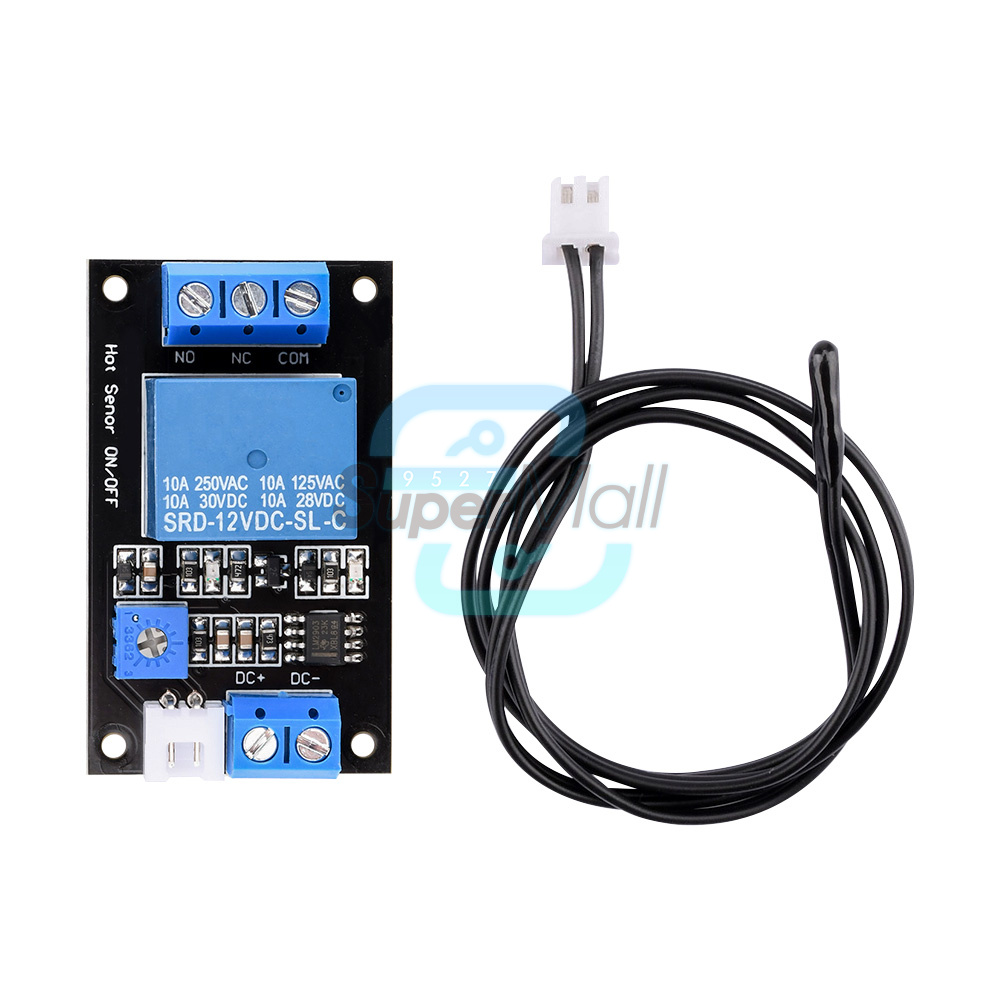

9. Modules free with the 50cm fuse thermal sensor;

Instructions:

1.Module ambient temperature-sensitive thermistor, typically used to detect changes in ambient temperature;
2.Module when the ambient temperature is higher than the set threshold,
relay to pull-in, beginning public side and often connected (disconnected from the normally closed-end),
when the outside temperature drops below a set threshold,
the relay disconnect, and common Terminal disconnected from the beginning
(with normally closed-end connected);
3.The common Terminal, normally open, normally closed three ports is equivalent to a double control switch,
relay coil current, common Terminal and start turn-on, no power,
common Terminal and the normally closed-end of conduction;

Electrical parameters:

Working voltage: DC 12V
Operating current: relay after pull-in: 12V module is less than 50mA
Before the relay actuation: less than 5mA
Load capacity: AC 0V--250V/10A, DC 0V--30V/10A;
temperature range - 20℃ to 100℃


Package Included:

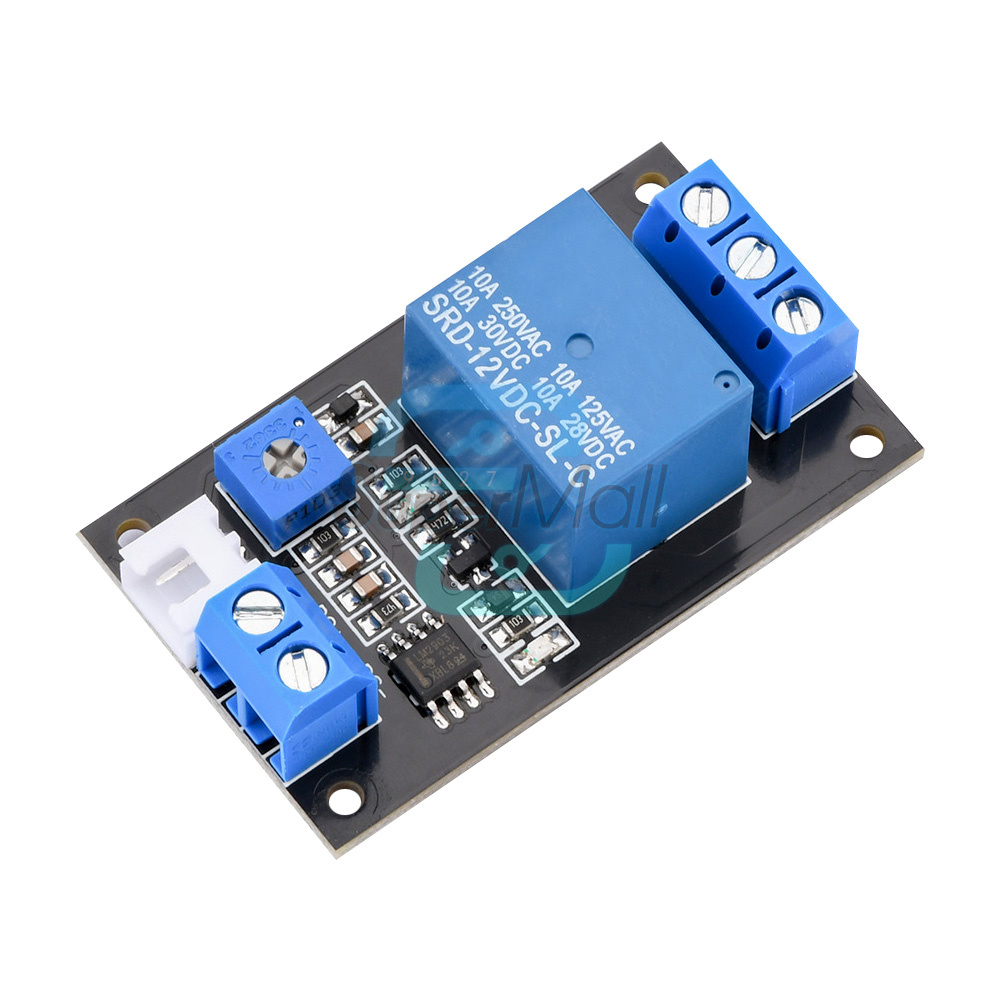

1 x 12V 1Channel Control Switch Thermistor Relay Sensor Temperature Detection Module
