Product Description


Features:

  • This product is a PWM-controlled relay switch, unlike FETs, it is a direct physical line connection, so it can be adapted to higher DC voltages and can also be connected to AC power

  • Small size and light weight

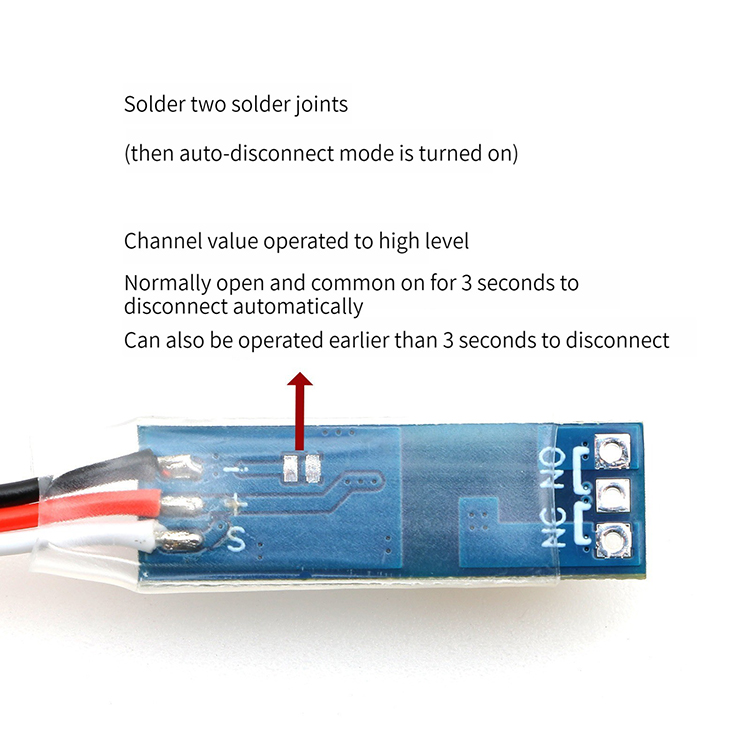

  • Solder two solder joints according to the markings in the diagram, then turn on the automatic disconnect mode

  • Recommend to find a professional to replace it, in case of damaging



Specification:

  • Material: Metal

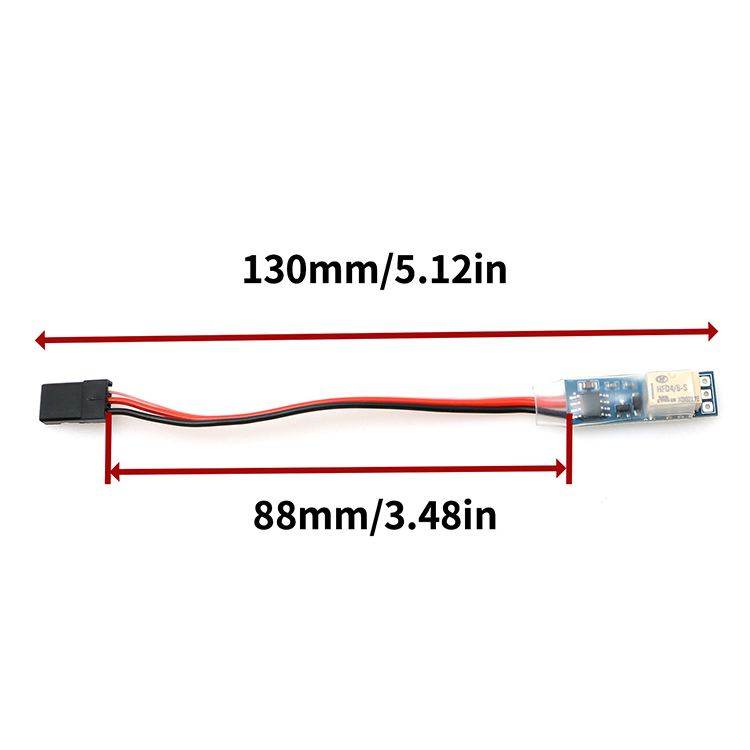

  • Size: 130x88mm

  • Quantity: 1 PCS



Console:

  • Input Voltage: 5V (connected to the receiver)

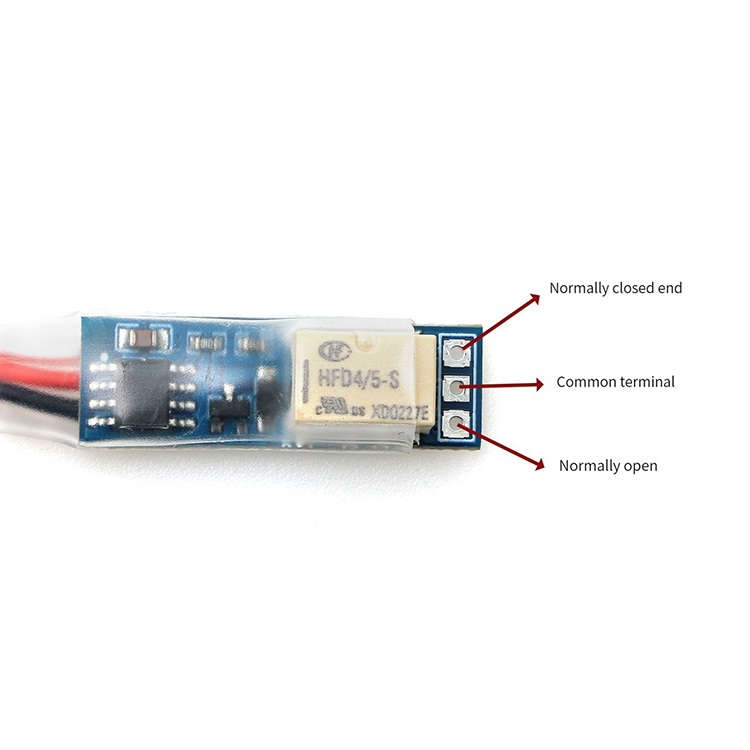

  • PWM Control: when high (>1750us), the normally open terminal and the common terminal are connected (while the normally closed terminal and the common terminal are disconnected)

  • (meaning that the normally closed and common terminals are connected at all times except when >1750us)

  • Here PWM is the servo signal, can turn the servo, you can use this device

  • There are solder joints can be set to delay 3 seconds, automatically disconnected



Connection Terminal:

  • 30V DC, allowable current 2A

  • 125V AC, allowable current 0.5A

  • Main Board Size: 29x9x8 mm

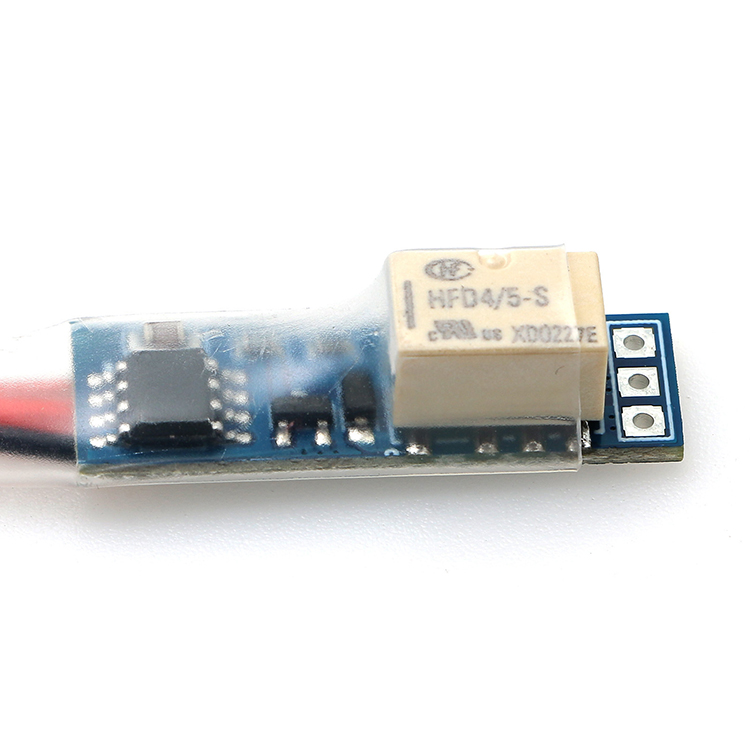

  • White Relay Size: 10x6.5x5.4 (mm)

  • Relay coil power consumption of about 140mW

  • The model should be used on the small relay



Package:

  • 1x Relay Switch
