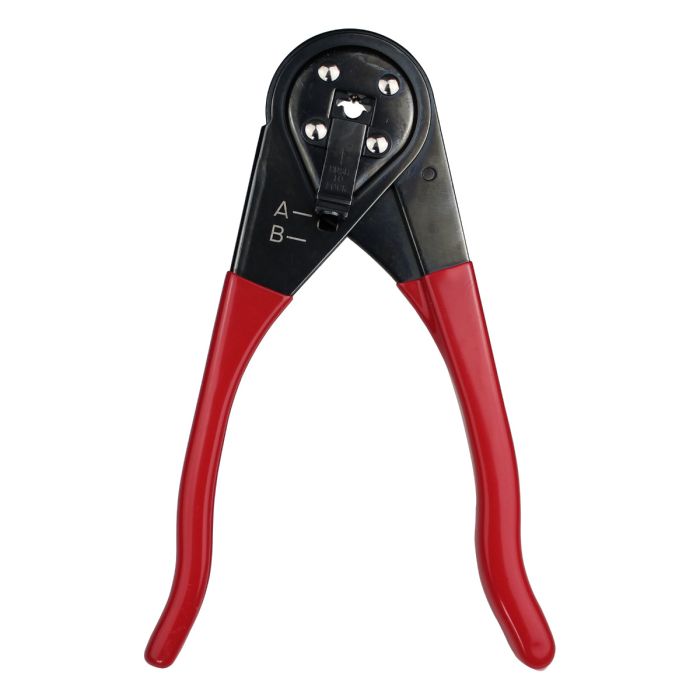

Eclipse Tools Pro'sKit 4-Way Crimping Tool AWG 22-10

• Application: Electrical wire and cable
• Capacity: 22-10 AWG
• Electrical splice caps and lugs
• Uninsulated
• Spring-loaded, cam-actuated plungers
• Overall length: 8 in.

To adjust tool for various fittings: set latch to position A for splice caps and lugs. Set latch to position B for larger caps.

To terminate wires with lugs

1. Strip wires approximately 5/16 in.
2. Slip lug on wire with latch set to position A
3. Insert into tool with flat side of lug in up position so tongue enters slot in latch and crimp

To splice wires when using splice caps

1. Strip wires approximately 3/4 in.
2. Insert wires through cap and twist
3. Insert into tool with latch set at appropriate position
4. Crimp, then cut flush

Introducing the Eclipse Tools Pro'sKit 4-Way Crimping Tool (Model: 902-623), your ultimate solution for reliable and versatile crimping tasks. Designed specifically for electrical professionals and DIY enthusiasts, this new crimping tool empowers you to seamlessly connect wires and cables in various applications, ensuring safety and efficiency in your electrical projects. With a user-friendly design and robust construction, the Pro'sKit crimping tool is essential for anyone working with AWG 22-10 wire sizes.

The benefits of the Eclipse Tools Pro'sKit 4-Way Crimping Tool are numerous. Its integrated design not only simplifies the process of creating secure electrical connections but also enhances productivity. Whether you're working on home improvement projects, automotive repairs, or electrical installations, this tool delivers precise and consistent crimping results. You'll appreciate how it reduces the chances of wiring errors, enhances safety, and helps you complete your projects with confidence.

Key features of the Eclipse Tools Pro'sKit 4-Way Crimping Tool include:

• **Versatile Crimping Capacity**: Suitable for AWG 22-10, this tool is capable of handling a variety of wire sizes, making it ideal for different wiring projects.
• **Multiple Functionality**: The 4-way design allows you to crimp uninsulated electrical splice caps and lugs, increasing your efficiency by eliminating the need for multiple tools.
• **Spring-Loaded Design**: Equipped with spring-loaded, cam-actuated plungers, the tool ensures smooth operation and minimizes hand fatigue during prolonged use.
• **Easy Adjustment**: The adjustable latch feature allows you to switch between splice caps and larger caps with ease, providing flexibility based on your project requirements.
• **User-Friendly Operation**: Detailed instructions for wire termination and splicing are provided, allowing both professionals and amateurs to achieve flawless results quickly.

In summary, the Eclipse Tools Pro'sKit 4-Way Crimping Tool is a must-have for anyone seeking reliability and flexibility in their wiring tasks. Its robust build, combined with its user-friendly features, makes this tool an indispensable addition to your toolkit. Enhance your electrical work with the precision and ease you deserve, and experience the difference that quality craftsmanship can make. Add the Pro'sKit 4-Way Crimping Tool to your arsenal today and take your projects to the next level!
