Electrical Specification

• Manufacturer Part Number: 23HE30-2804S
• Number Of Phase: 2
• Step Angle: 1.8deg
• Holding Torque: 1.9Nm(269oz.in)
• Rated Current/phase: 2.8A
• Phase Resistance: 1.13ohms± 10%
• Inductance: 5.4mH ± 20%(1KHz)

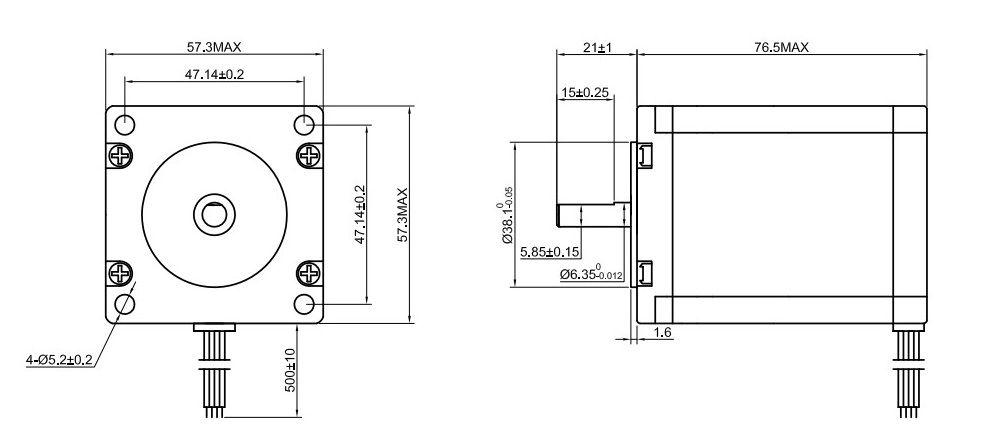

Physical Specification

• Frame Size: 57 x 57mm
• Body Length: 76mm
• Shaft Diameter: Φ6.35mm
• Shaft Length: 21mm
• D-CUT Shaft Length: 15mm
• Number of Leads: 4
• Lead Length: 500mm
• Weight: 1.2kg

Connection
