Description:

STM32F4DISCOVERY is launched one of ST company in the development of high performance STM32F4 series design.

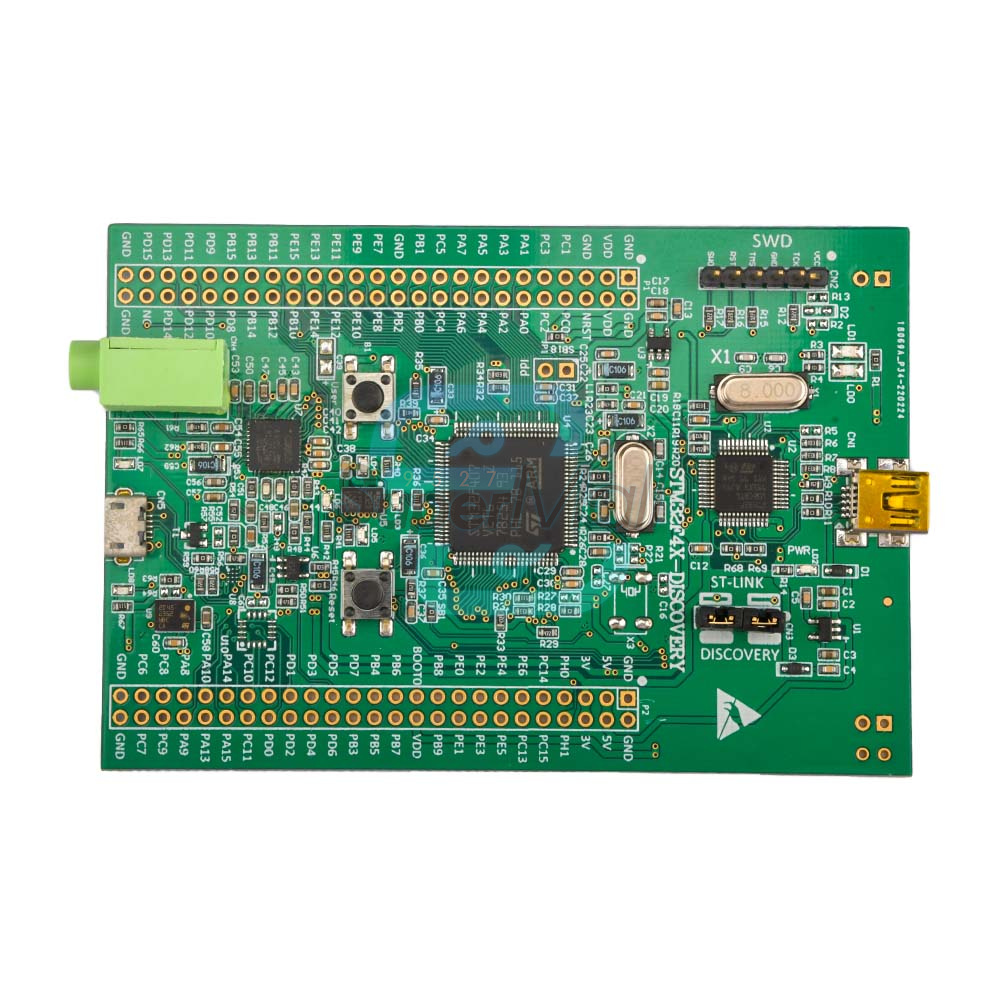

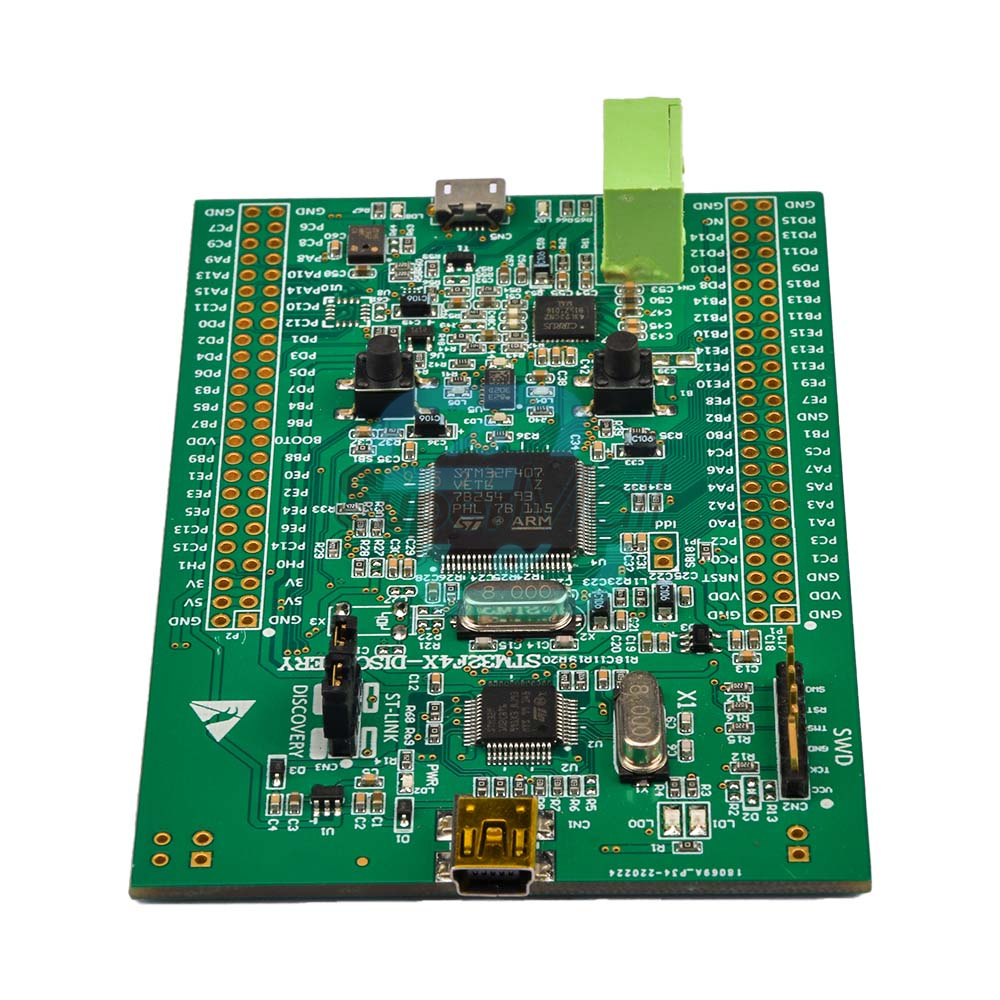

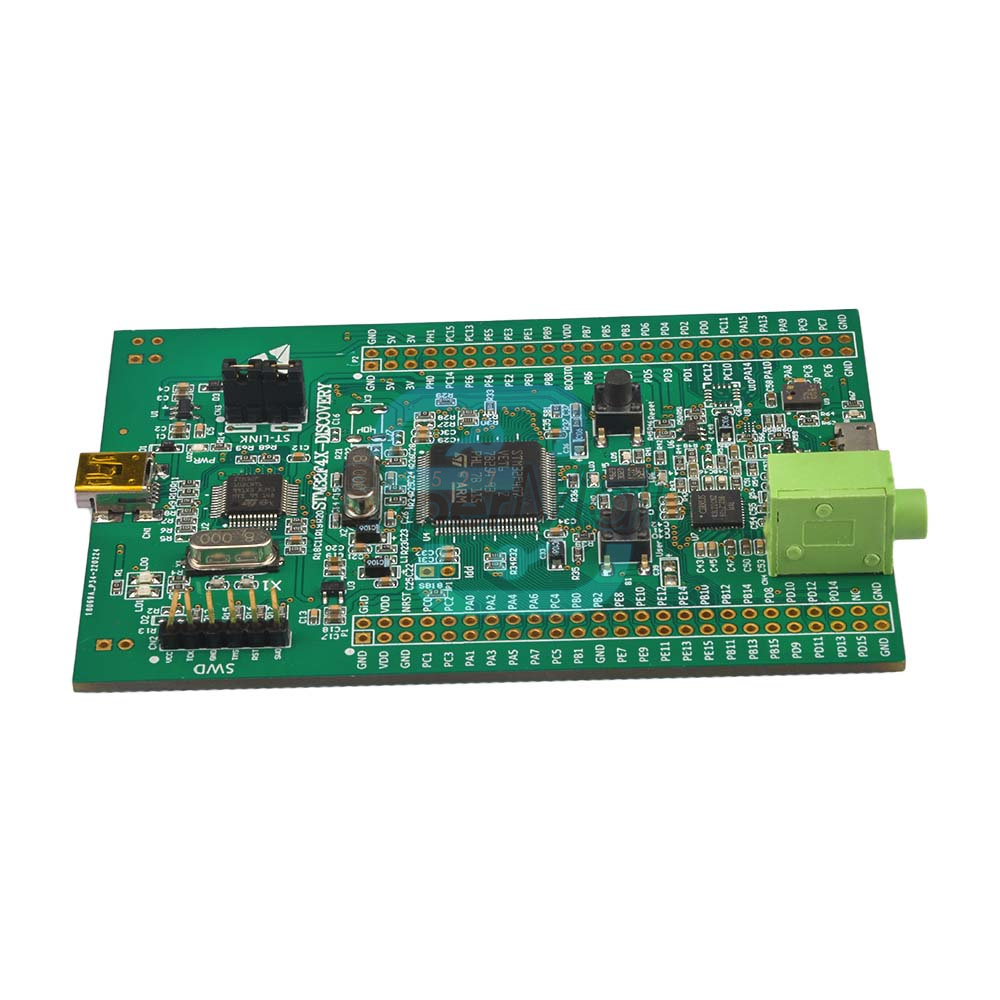

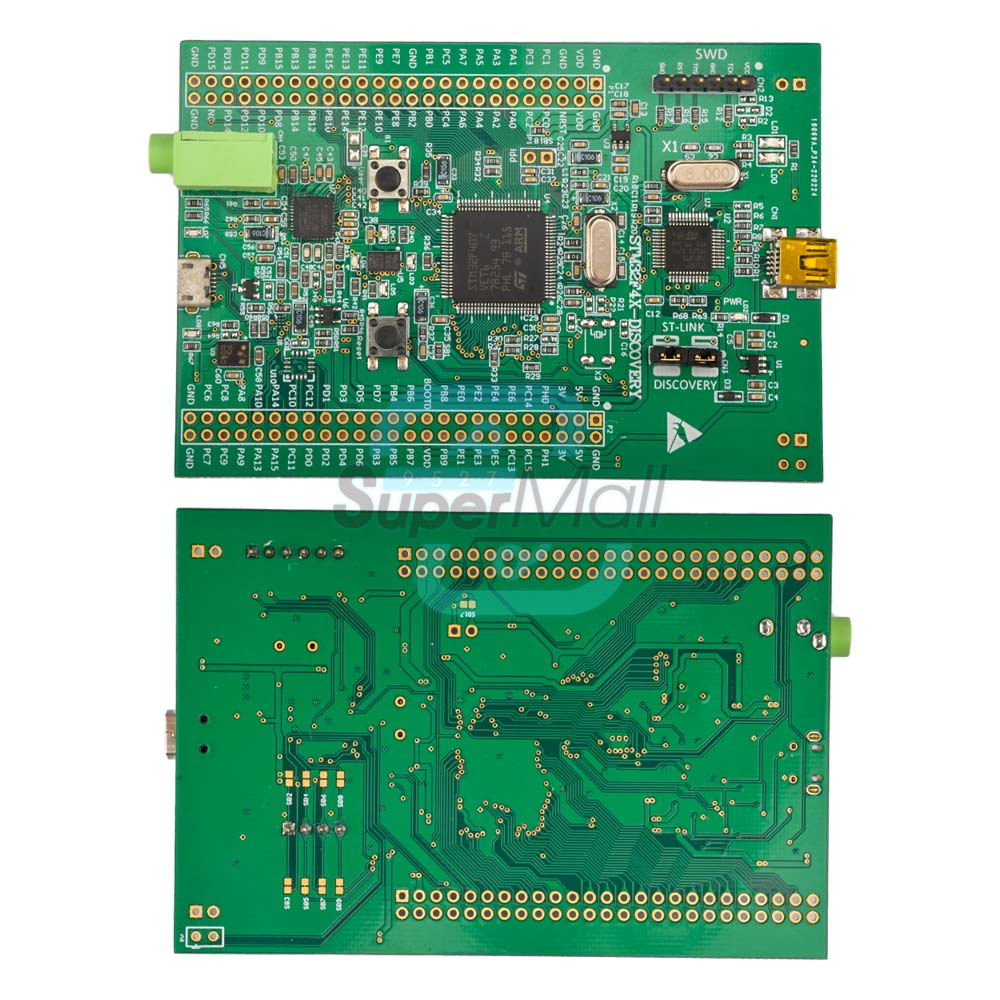

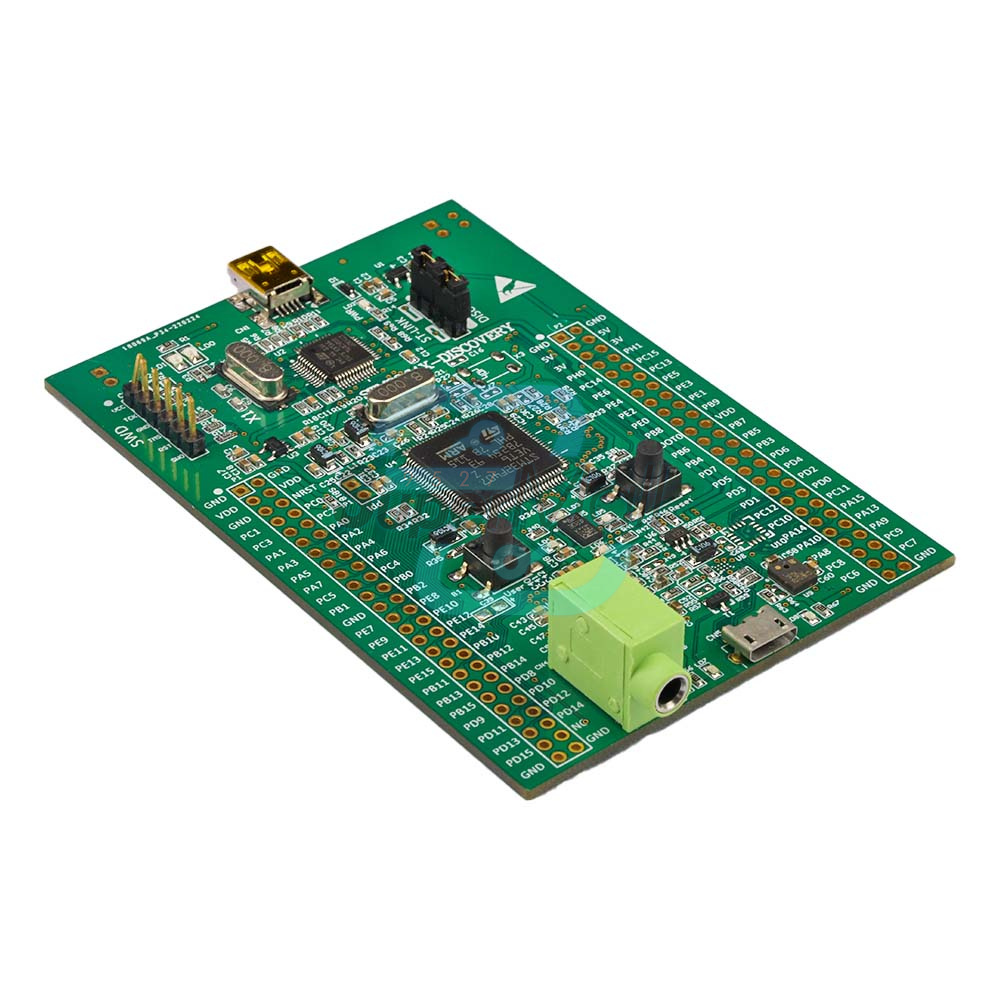

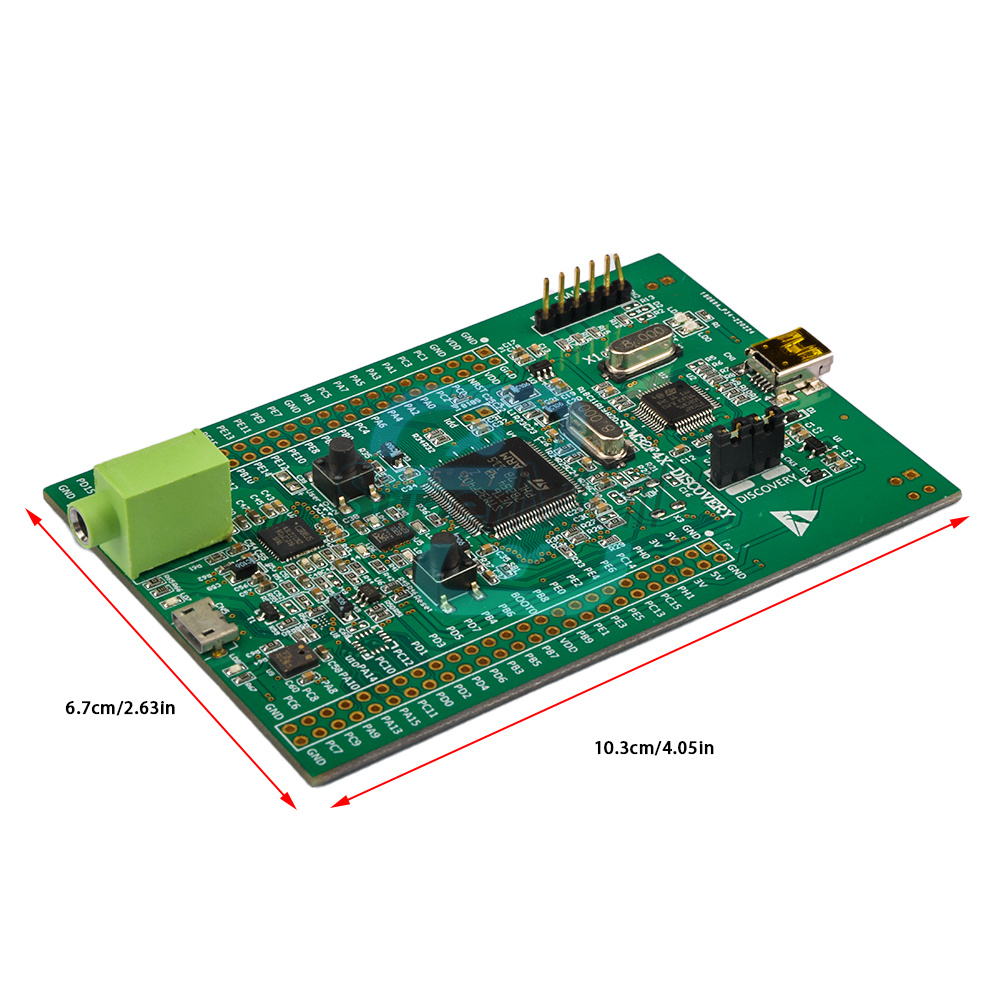

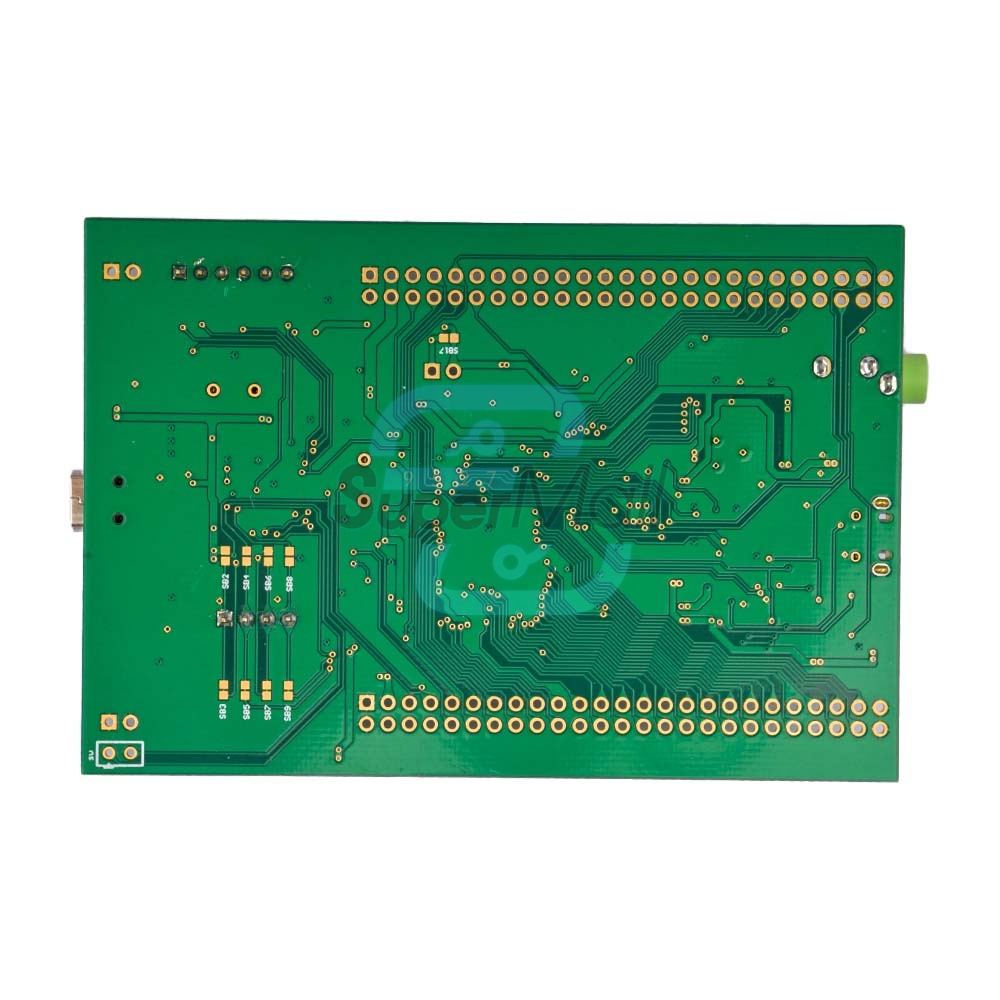

Development board based on STM32F407VGT6 development board design, integration with ST-LINK/V2 simulation downloader (but only provide SWD interface), remove youremulator or download it. Add more acceleration sensor LIS302DL, MP45DT02 digital microphone, loudspeaker drive and a micro-AB USB interface.
ST provides a wealth of examples of procedures, let you more quick start STM32F4 mcu. To unleash your creativity!

Characteristic:
STM32F407VGT6 micro controller
1024KB FLASH, 192 KB RAM
The 100 pin, LQFP package
Simulation of ST-Link/V2 integrated debugger development board (but only provide SWD interface)
The indicating lamp
LD1:USB communication indicator
LD2:3.3V power indicator
LD3: application of the indicating lamp
LD4: application of the indicating lamp
LD5: application of the indicating lamp
LD6: application of the indicating lamp
LD7:USB OTG LED (VBus)
LD8:USB OTG LED (over-current)

Key
Reset button
The Apply button
Power Supply
By USB 5V
External power supply 5V and 3V
USB OTG FS
Micro-AB

Sensor
LIS302DL (ST MEMS motion sensor, 3-axis digital output accelerometer)
MP45DT02 (ST MEMS audio sensor, omni-directional digital microphone)

Audio driver
CS43L22 (audio DAC with integrated class D speaker driver)
Rule out all the IO port, convenient to do experiments

Package included：

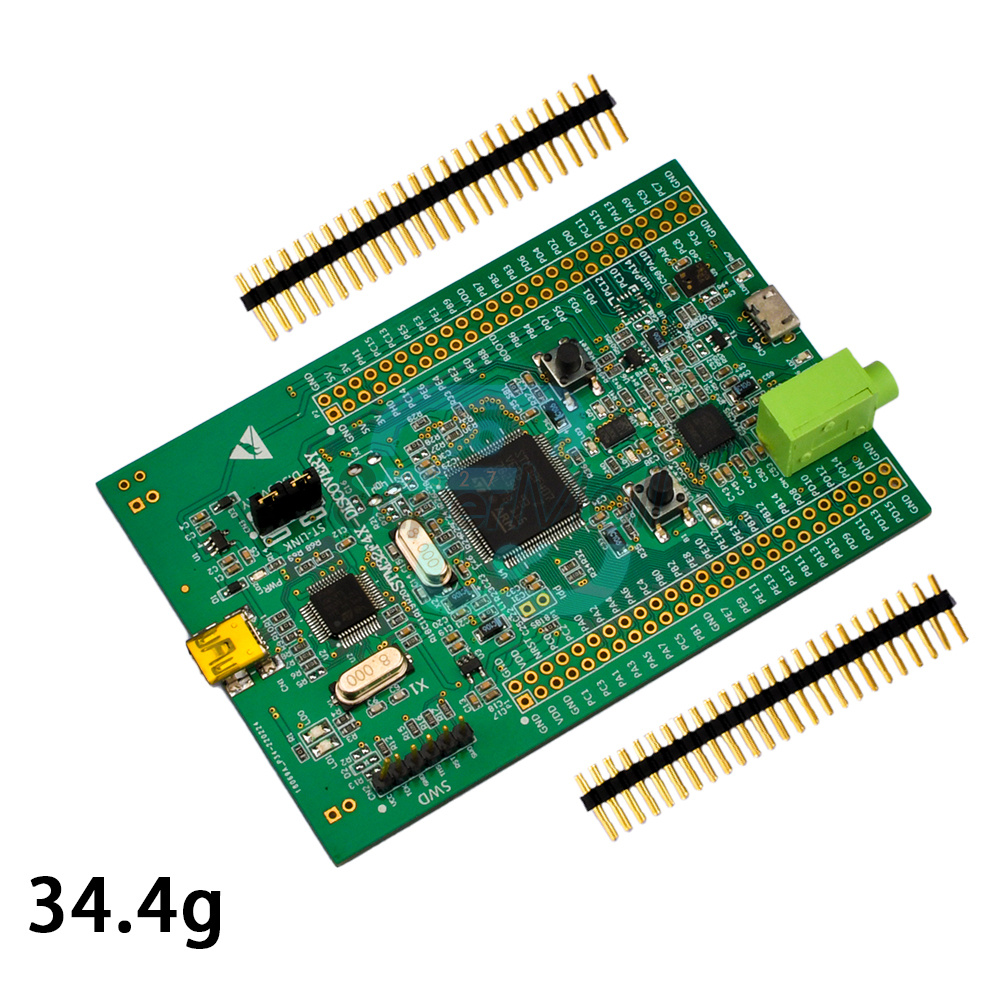

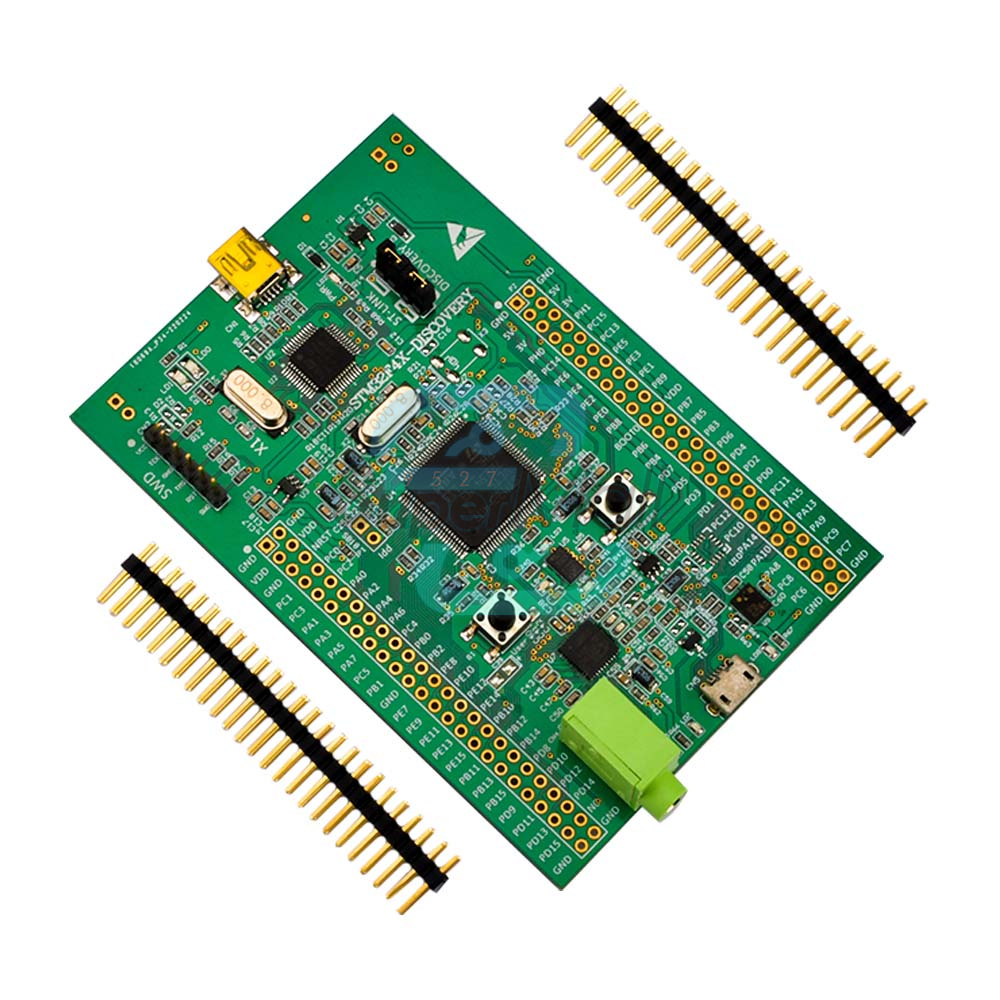

1 x  Stm32f4 Discovery Stm32f407 Cortex-m4 Development Board st-link V2
