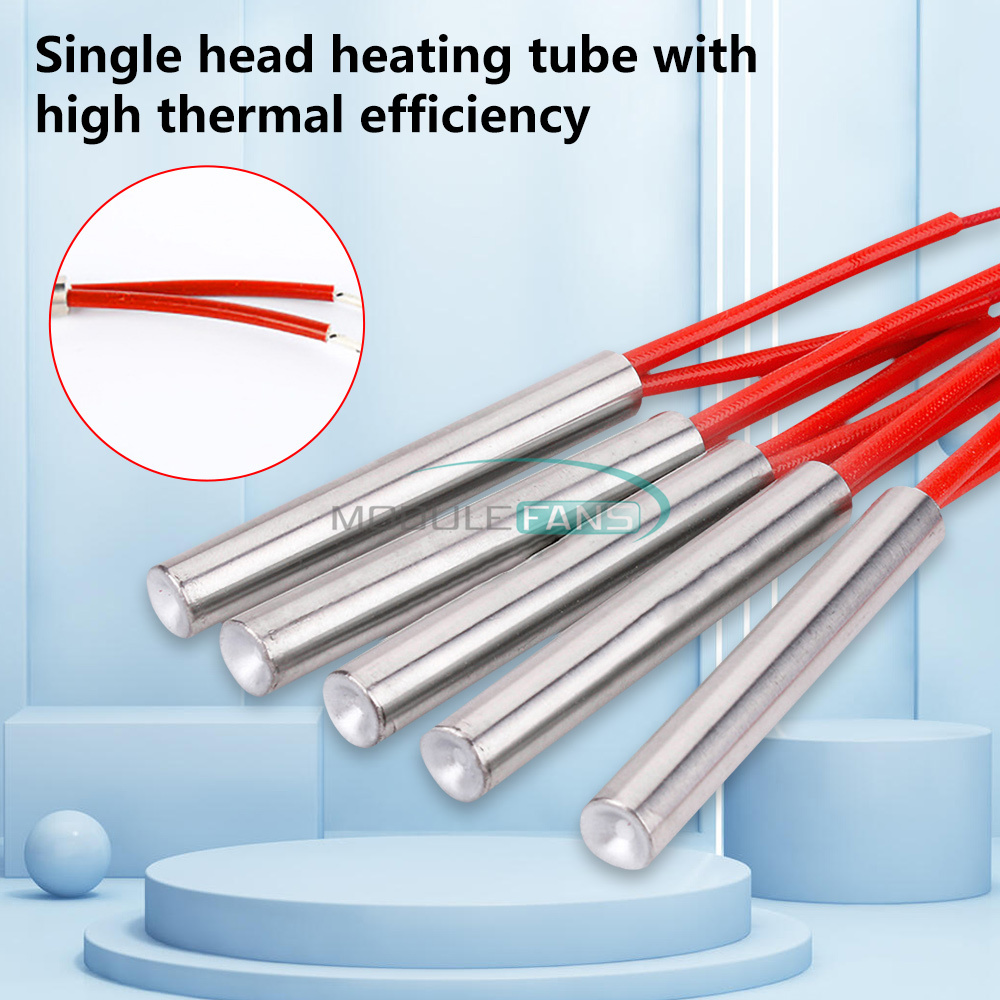

Mold Cartridge Heater Heating Element Cylindrical Tubular heat Rod 6~10mm AC220V


Product Feature:
1. The product is compact and easy to carry.
2. Easy to use and hands-on operation.

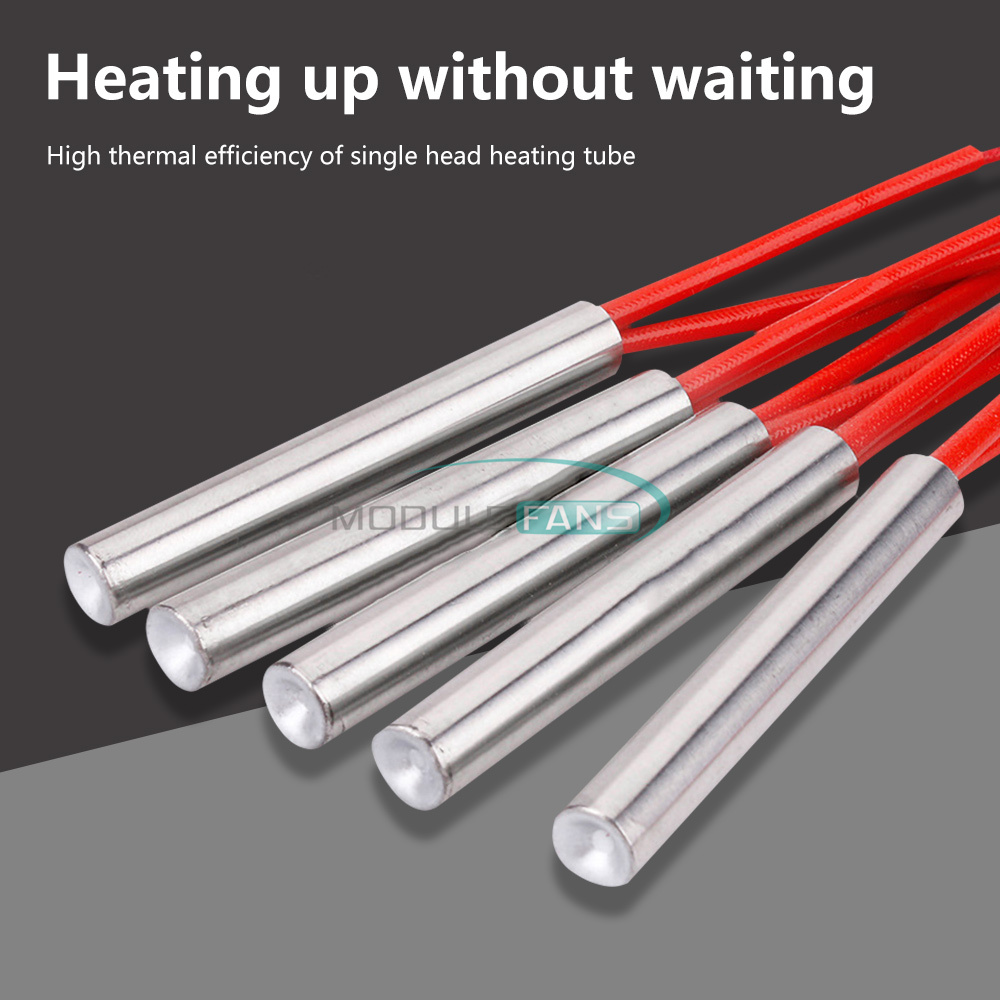

3. Characteristics: Single head heating tube with small volume and high power
4. Suitable for heating metal molds, combined with thermocouples, to achieve excellent heating and temperature control effects.
5. Application fields: stamping die, hot cutter, packaging machinery Injection mold construction, extrusion die, rubber molding mold, melt blown mold, hot pressing molding machinery, semiconductor processing, pharmaceutical machinery, uniform heating platform, liquid heating, etc


Product parameters:

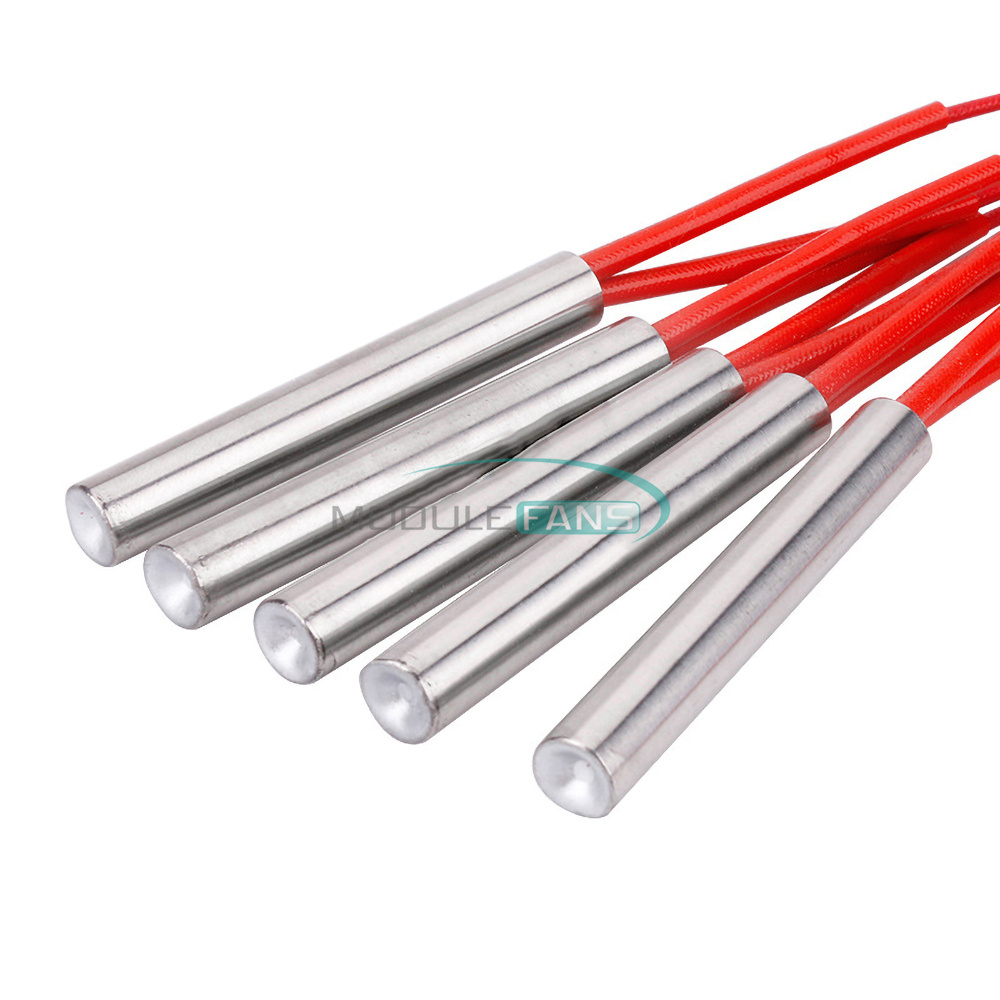

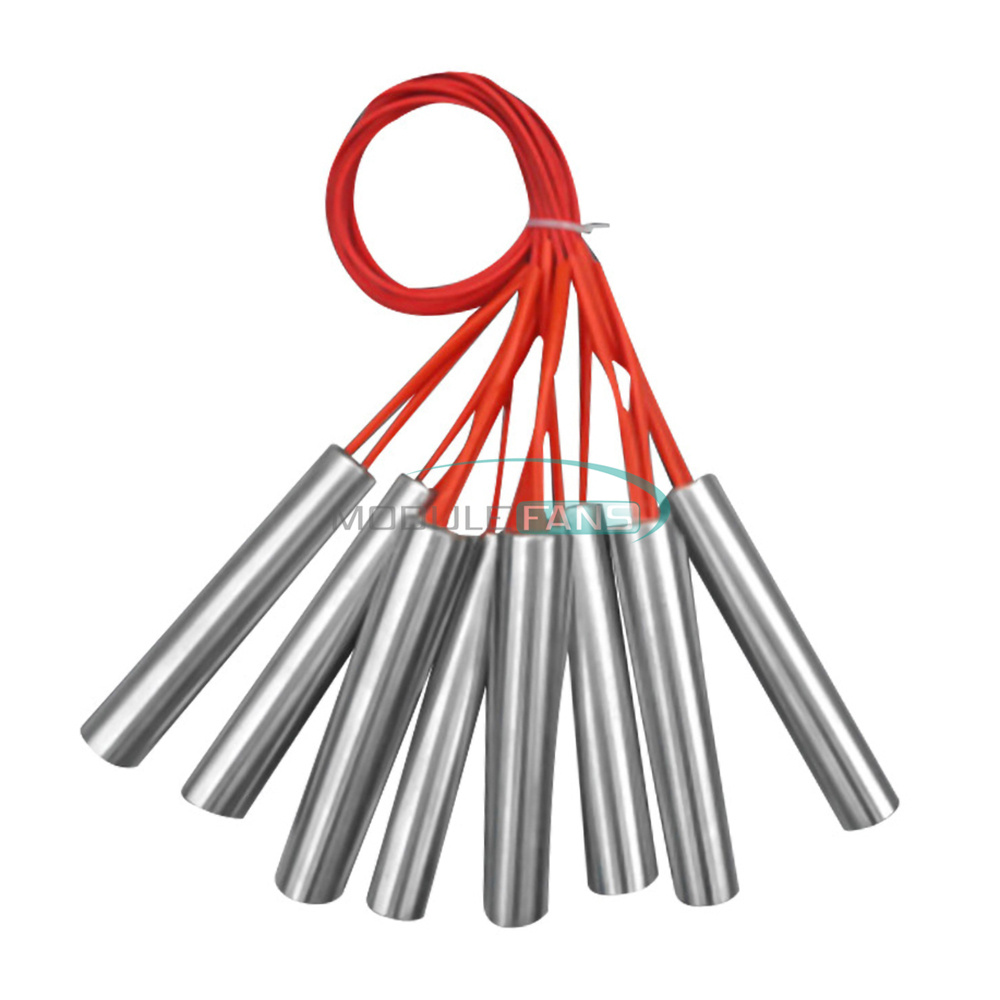

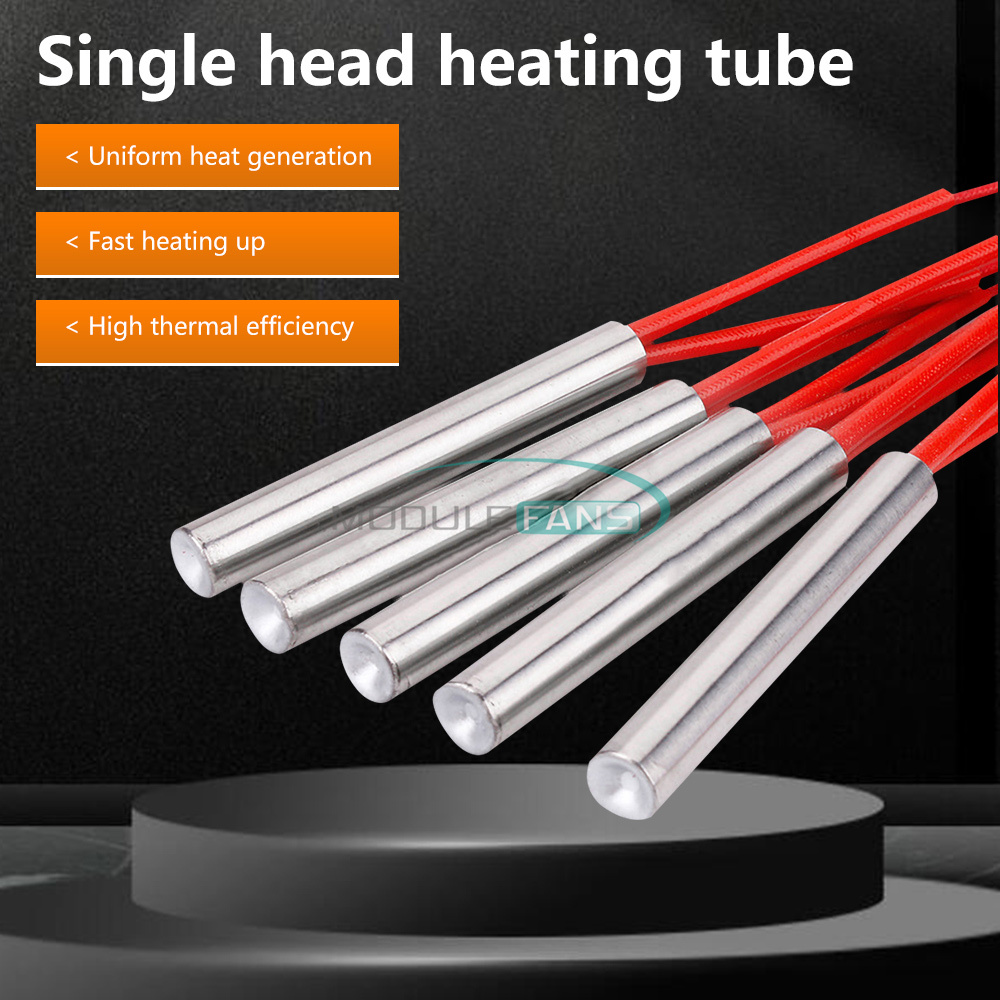

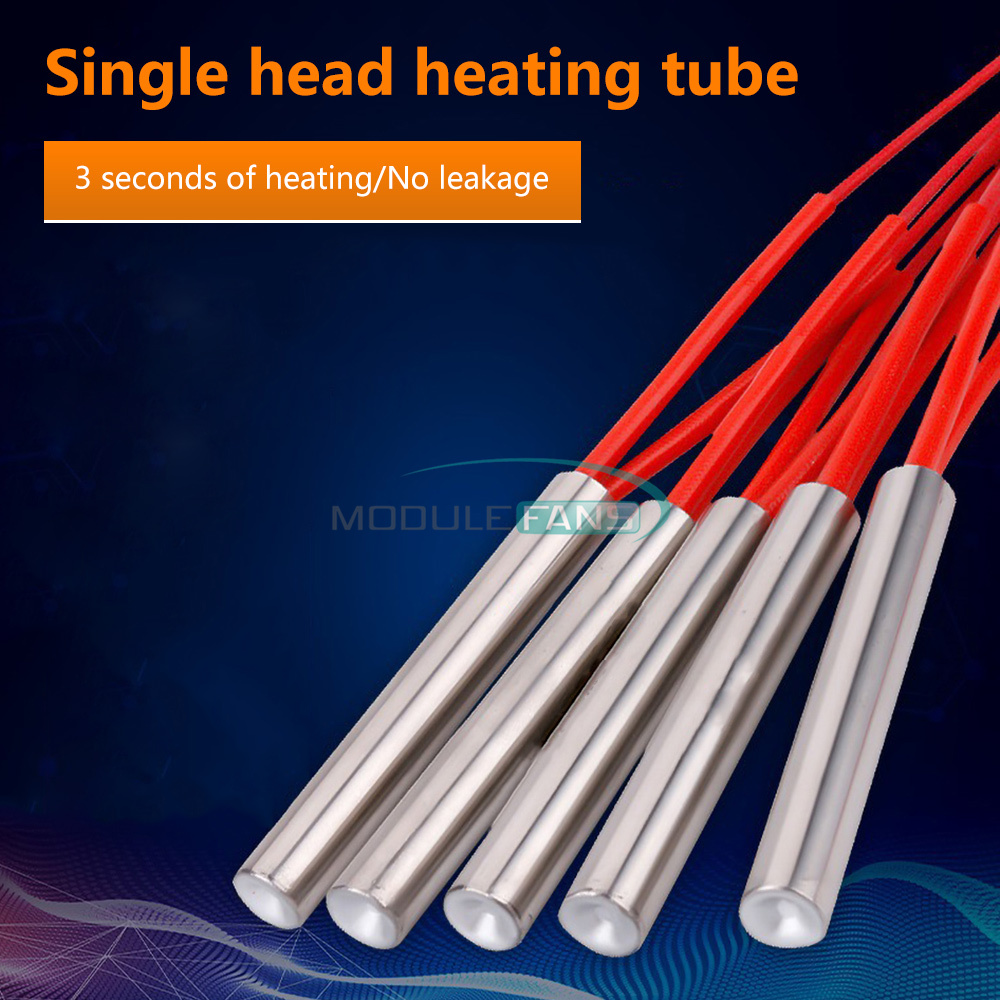

Product name: Single head heating tube
Product model: YD-M3
Usage conditions: ambient temperature -2 ℃~+60 ℃/relative temperature<80%
Leakage current:<0.5MA
Electrical strength: Cold state withstand voltage AC working 1500V 50HZ for 1 minute without breakdown phenomenon
Hot insulation: AC 1000V 50HZ for 1 minute without breakdown phenomenon
Insulation resistance: 30MQ
Leakage current:<0.5MA Power deviation:+5%, -10%: Anti inlet surface load up to 25W per square meter

Specifications:

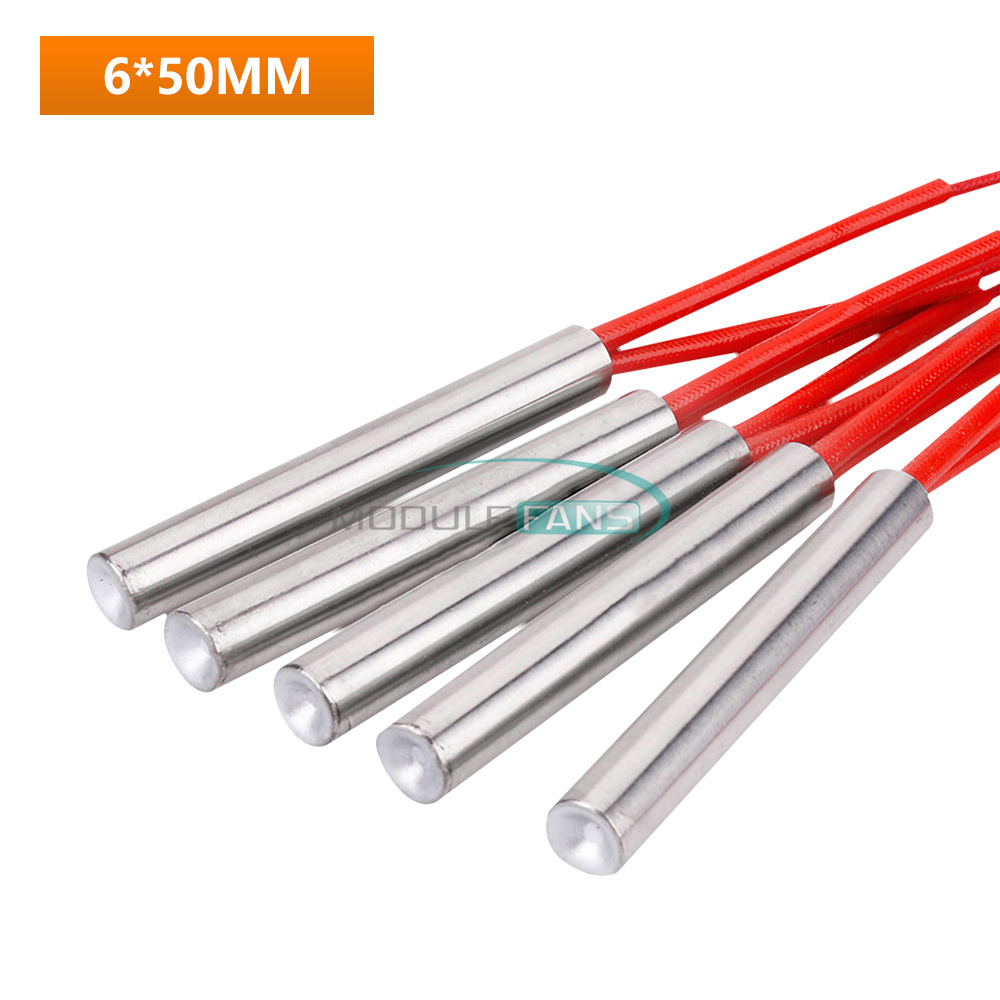

6mm * 50mm voltage 220V power 100W

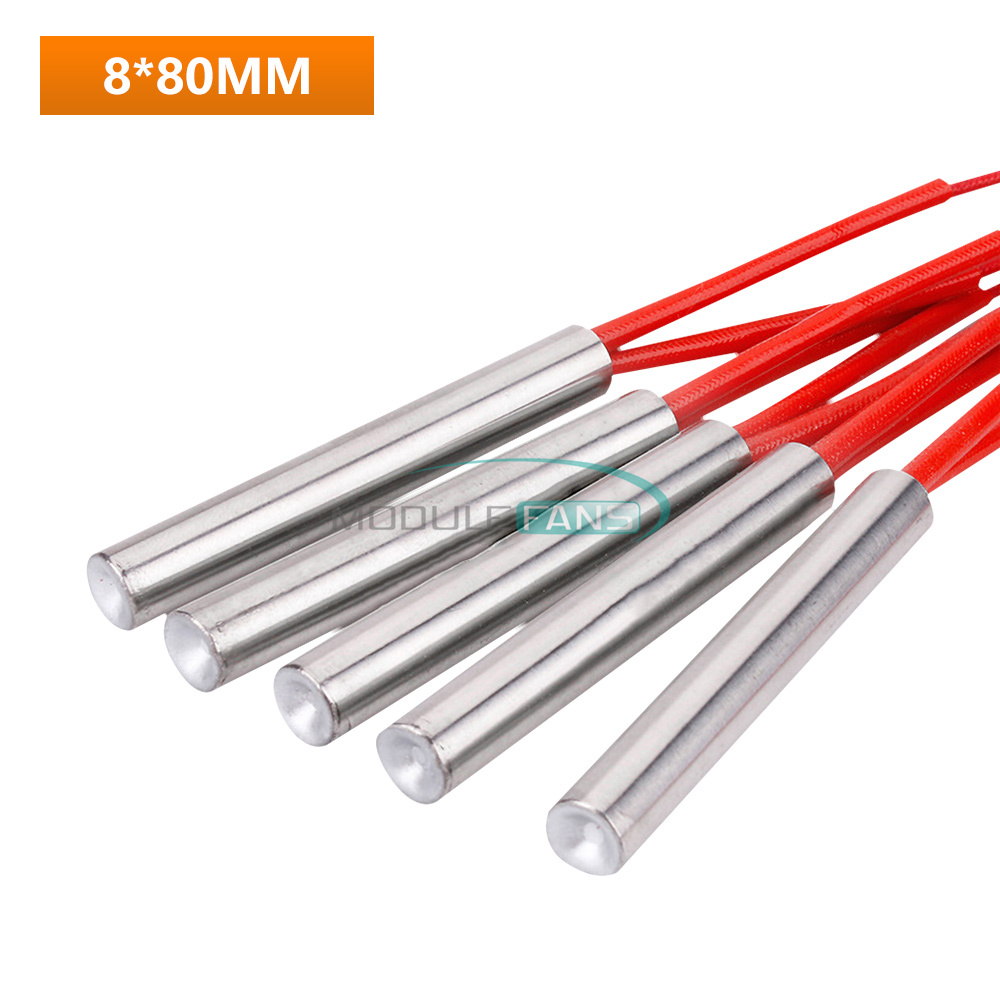

8mm * 80mm voltage 220V power 150W

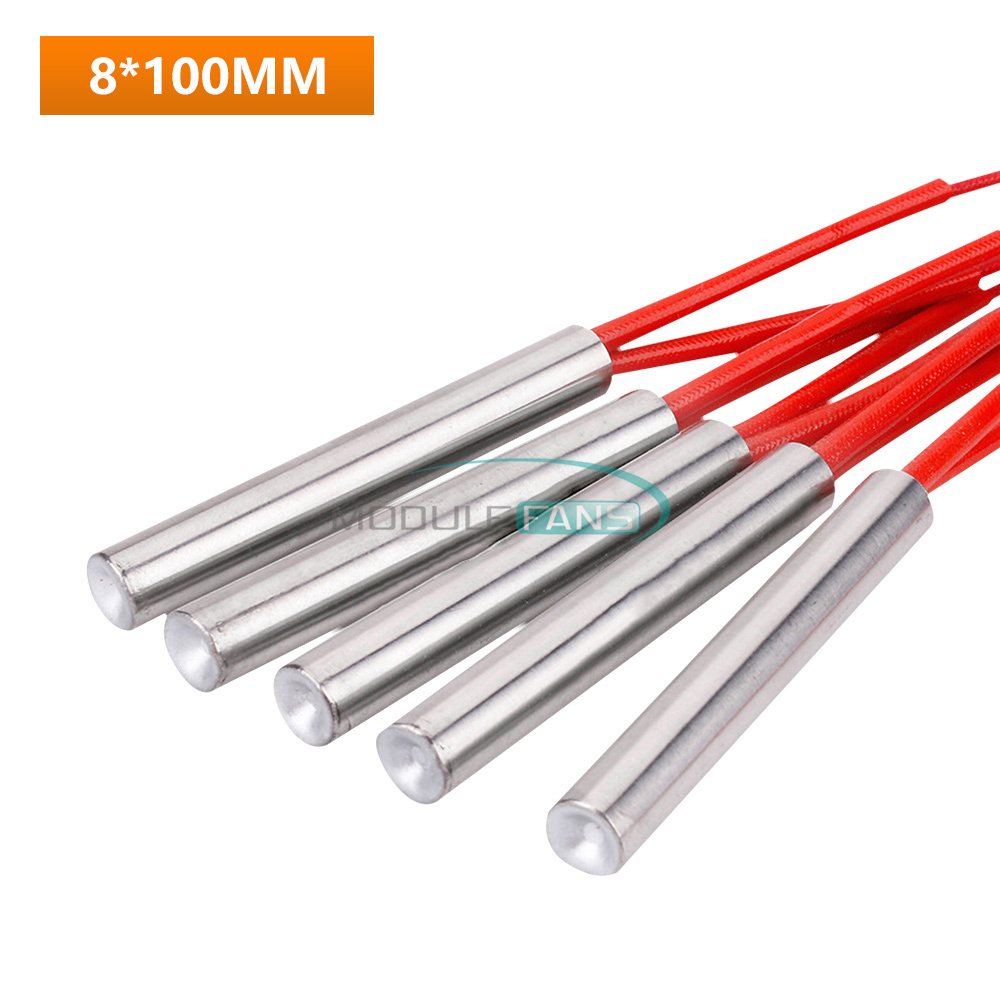

8mm * 100mm voltage 220V power 200W
10mm * 50mm voltage 220V power 150W
10mm * 60mm voltage 220V power 150W
10mm * 80mm voltage 220V power 180W
10mm * 100mm voltage 220V power 200W

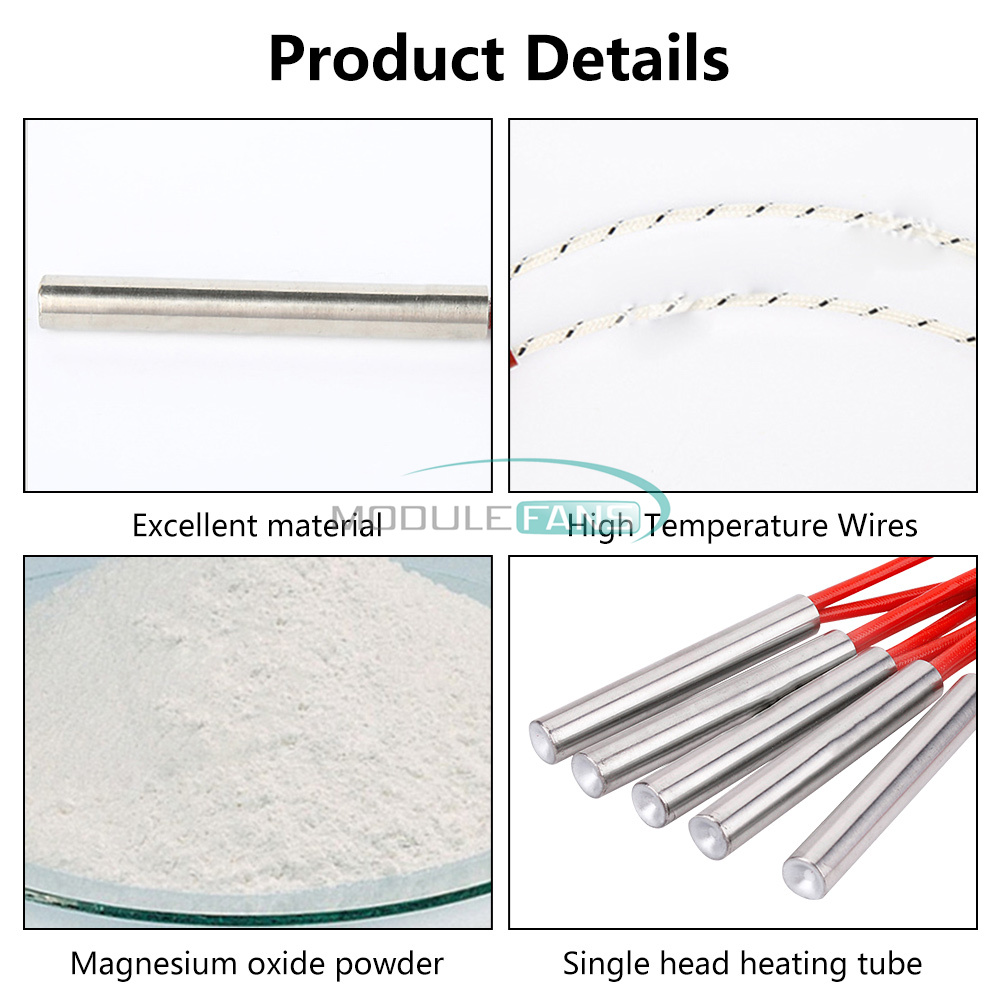

Main materials:
Heating wire: Ni80Cr20 nickel chromium wire
Insulation filling: high-purity magnesium oxide powder
Shell (protective sleeve): SS304, SS310S, SS316, TA1, Incoloy800 (NCF800)

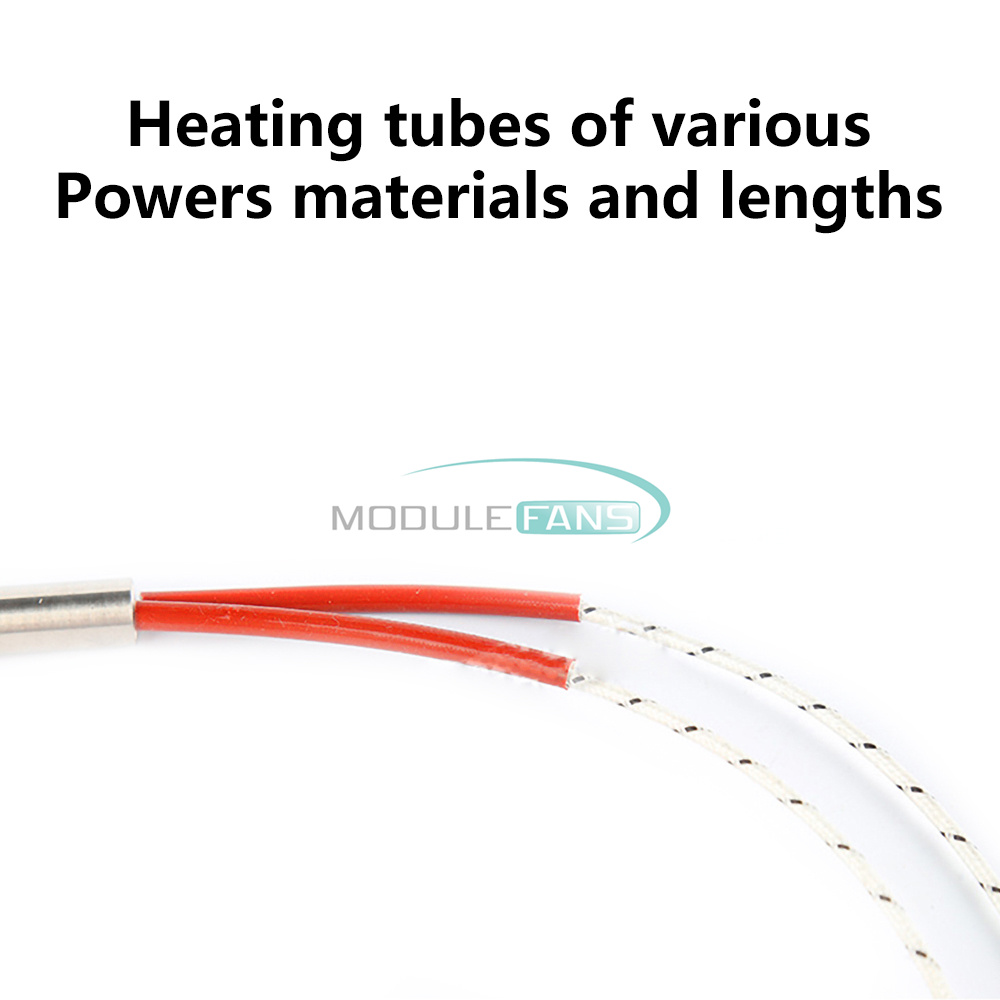

Lead wire: silicone glass fiber (temperature resistance of 250 ℃), Teflon (temperature resistance of 250 ℃), high-temperature glass fiber (temperature resistance of 400 ℃), ceramic bead (temperature resistance of 800 ℃)
Lead protection: silicone glass fiber sleeve, metal braided hose, metal corrugated hose
Sealing end (sealing): ceramic/ceramic adhesive (temperature resistance 800 ℃) silicone rubber (temperature resistance 180 ℃) resin (temperature resistance 250 ℃)


Packaging list:
Single head heating tube * 1
