1. The use of high-quality materials quality assurance
2. Stable performance, wide range of voltage
3. Easy to use, easy to understand wiring
4. Exquisite and compact appearance 5. Wide range of applications, suitable for all kinds of industrial occasions
Working voltage: DC 5-13V
Working current: 5V
Forward: 4ma; Reverse: 36ma
12V forward rotation: 6ma; reverse rotation: 44ma
Load voltage: DC1-48V or AC 85-265V
Load current: max. 2A
Max. forward rotation time: 5000 seconds (40,000 seconds can be reached by shorting the pad), in steps of 0.1 seconds
Reversing maximum time: 5000 seconds (40,000 seconds can be reached by shorting the pad), step 0.1 seconds

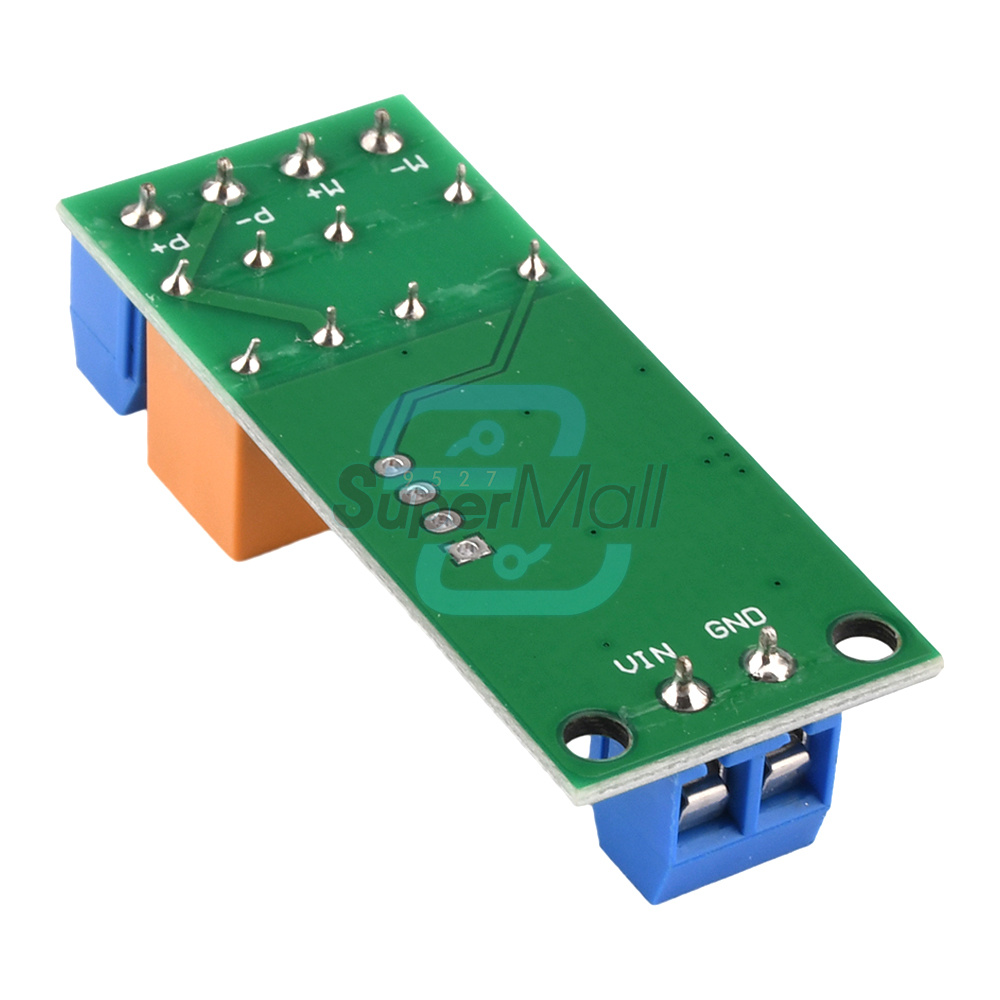

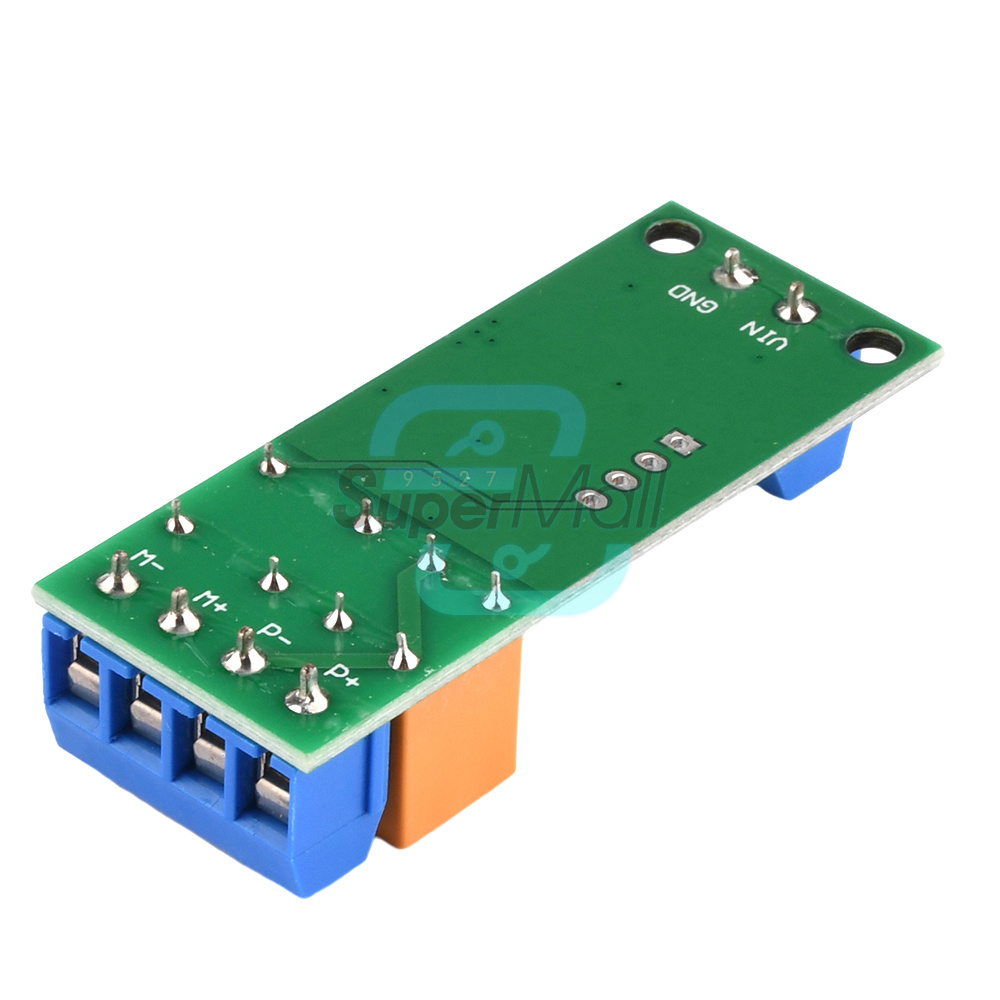

VIN connected to the positive terminal of the working power supply, GND connected to the negative terminal of the working power supply; P+ connected to the positive terminal of the motor power supply, P- connected to the negative terminal of the motor power supply. motor reverses; after delay T2 time, D2 goes out, M+ output positive, M- output negative, motor positive, and so on.

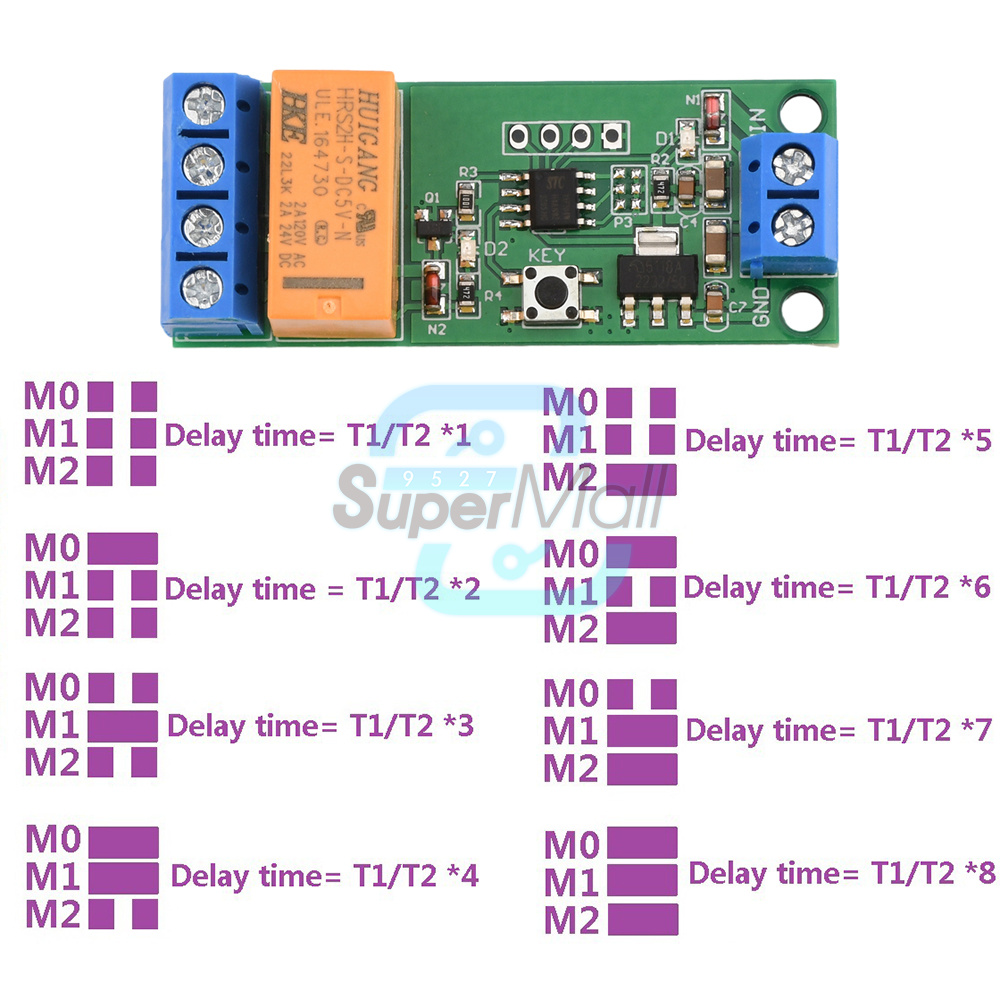

T1 : indicates positive delay time, default 0.1-5000 seconds adjustable (step 0.1 seconds), through the pad can be set 1-8 times the delay time (maximum 40000 seconds)
T2 : reverse delay time, the default 0.1-5000 seconds adjustable (step 0.1 seconds), through the pad can be set 1-8 times the delay time (up to 40000 seconds)

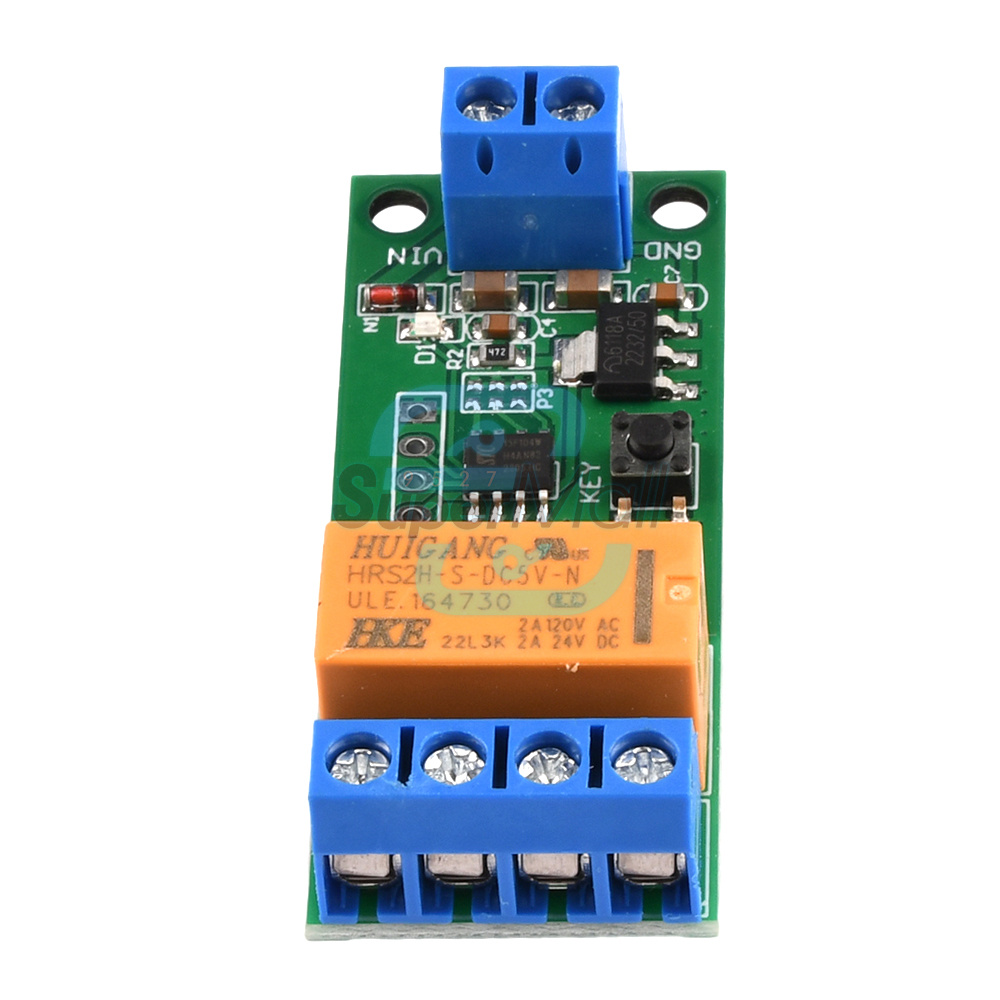

1 x delay module
