Electro-Voice SX300E 12" Speaker 300W PA

Visit Our eBay Shop

Check Our Feedback

Get in Touch

Product Description

Description:

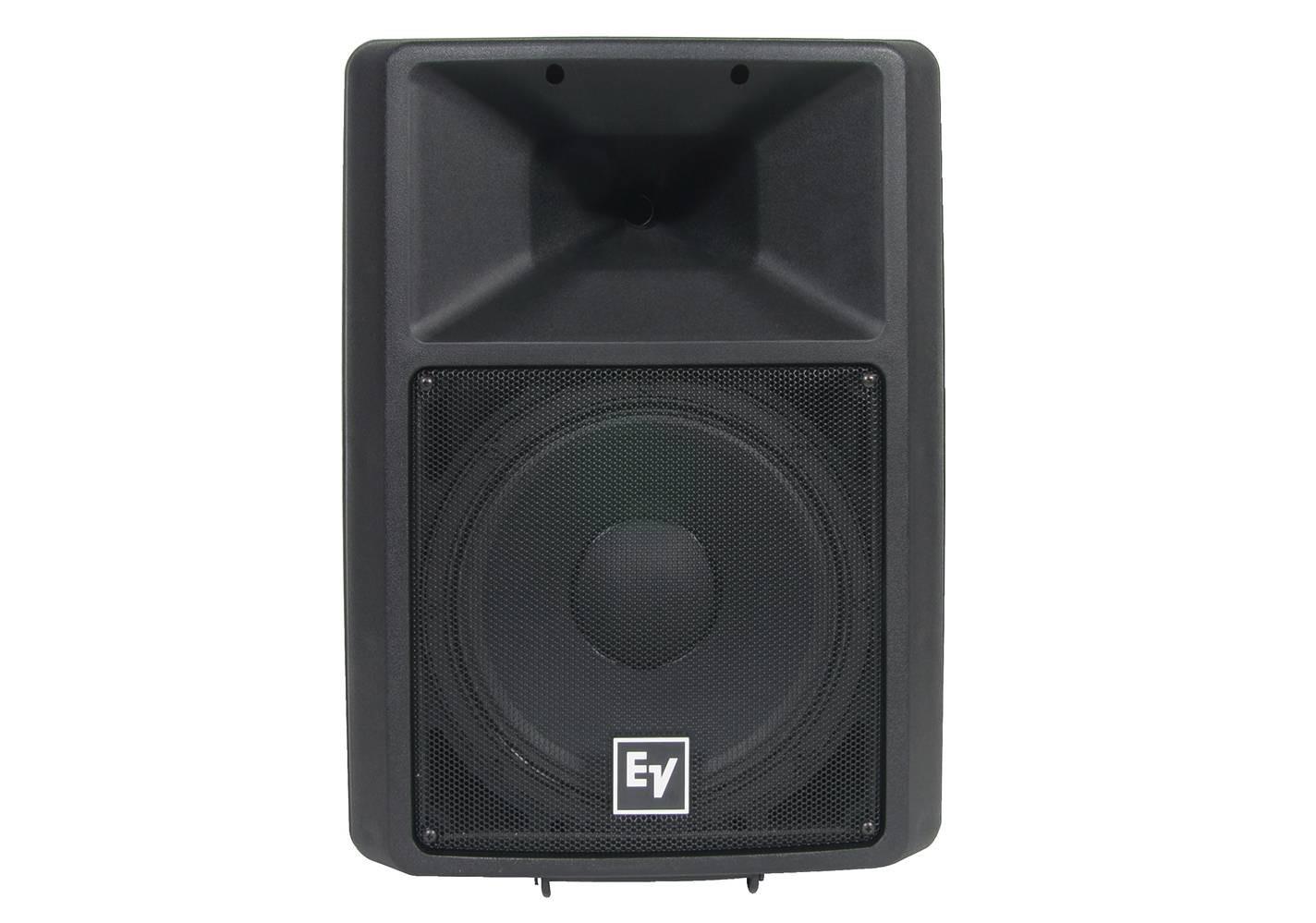

Electro-Voice's SX300E compact and portable sound reinforcement speaker for both PA and installed applications.

Features:

Compact, portable sound reinforcement
Designed for use alone or in arrays
Cast-frame DL12BFH woofer
1.25-inch DH3/2010A titanium HF compression driver
65º x 65º Constant-directivity Varipath™ horn
Ring-Mode Decoupling (RMD™) for increased intelligibility
Power handling: 300 W continuous, 1200 W peak
Dual Neutrik Speakon(R) high-current connectors
Trapezoidal black or white polypropylene enclosure
Rubber feet and mating sockets for stacking
Integral handles, pole mount

Specifications:

General
Frequency Range (-10 dB): 50 - 20000kHz
Axial Sensitivity (SPL, 1 W @ 1 m): 99dB
Chassis Size: 304.8 mm
Coverage (Nominal -6 dB) H: 65° (Const.-dir. horn)
Coverage (Nominal -6 dB) V: 65° (Const.-dir. horn)
Crossover Frequency: 1500Hz
Directivity Index: 11.1dB (+2.4/-4.1 dB)
Enclosure Material: Copolymer Composite
Family: Sx
Flying: Yes
HF Transducer: 1.25-inch DH3/2010A
Input Connections: 2 four-pin Speakon
Internal Crossover: Yes
LF Transducer: 12-inch DL12BFH
Max. SPL/1m (calc): 131/123dB (Low Z/100V)
Minimum Impedance: 5Ω
Nominal Impedance (Passive): 8Ω
Powered or Passive: Passive
Sensitivity 1 W/1 m: 99dB
Speaker Type: Full-Range, Mid-High, Two-Way
System Power Handling (Continuous/Program/Peak): 300/1200Watts (Long-Term/Short-Term)
Woofer Size: 12inch
Physical & Dimensions
Weight Net: 17.7kg (39.02 lbs)
Depth: 312mm (12.28")
Width: 429mm (16.89")
Height: 586mm (23.07")
Available Color: Black or white
Weatherized: No
