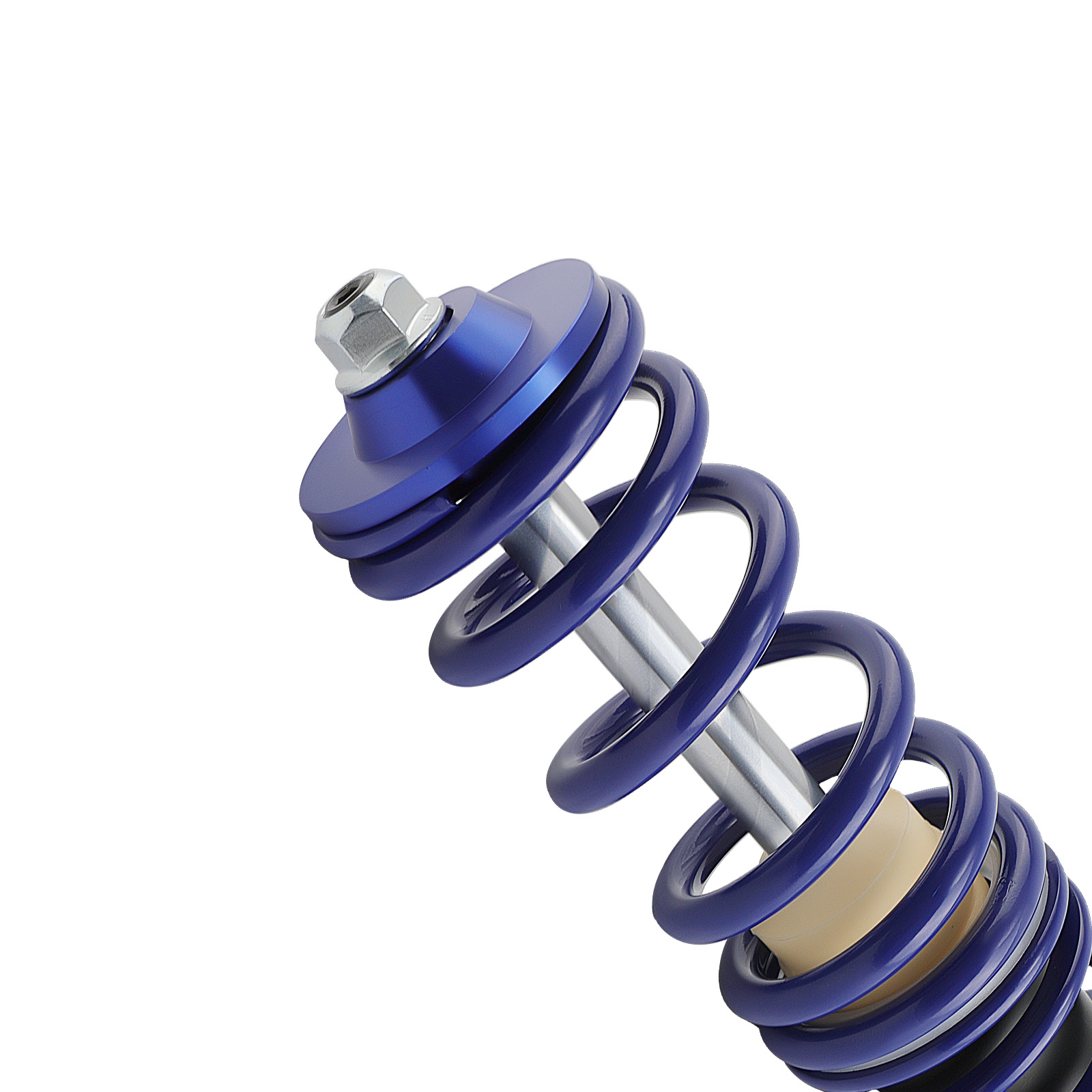

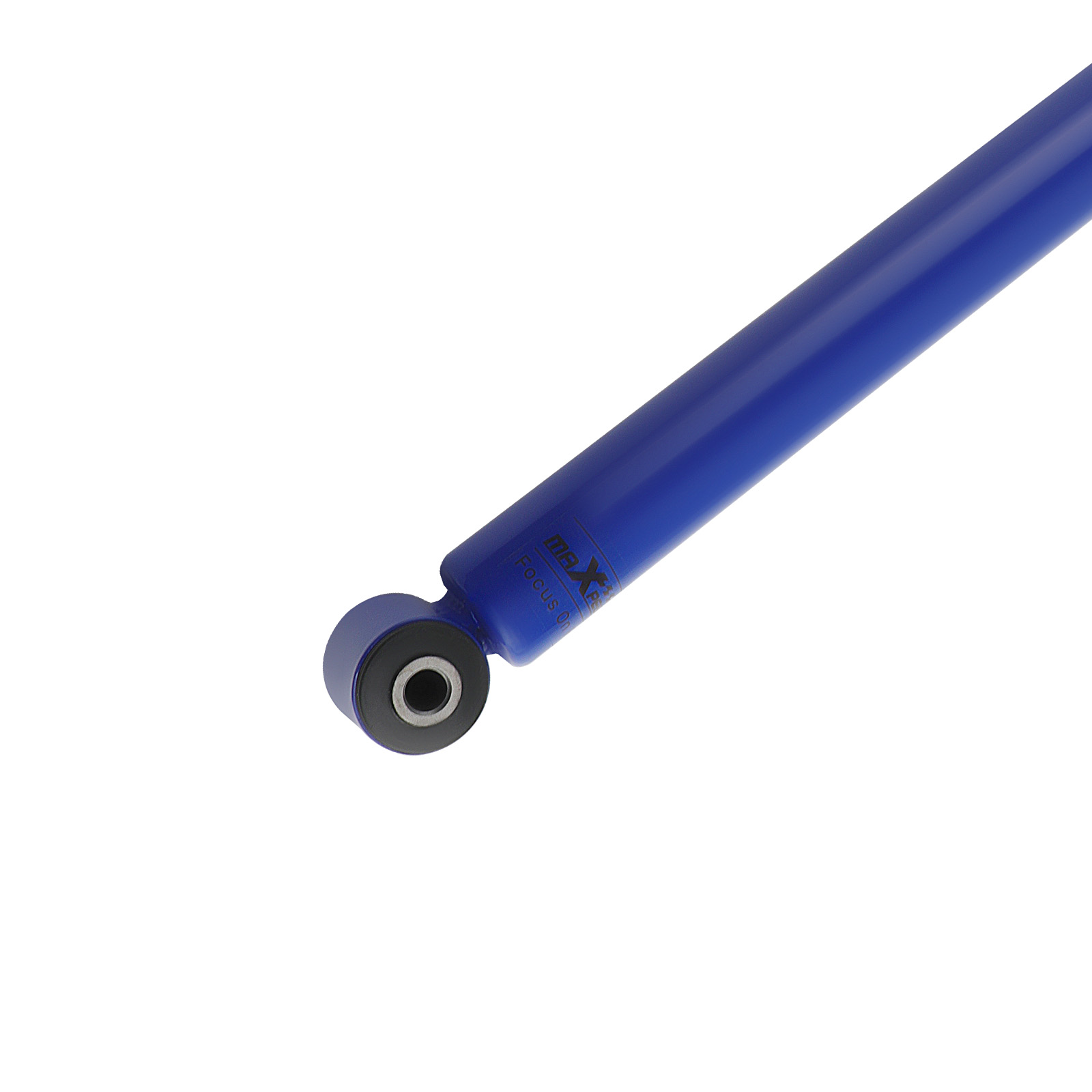

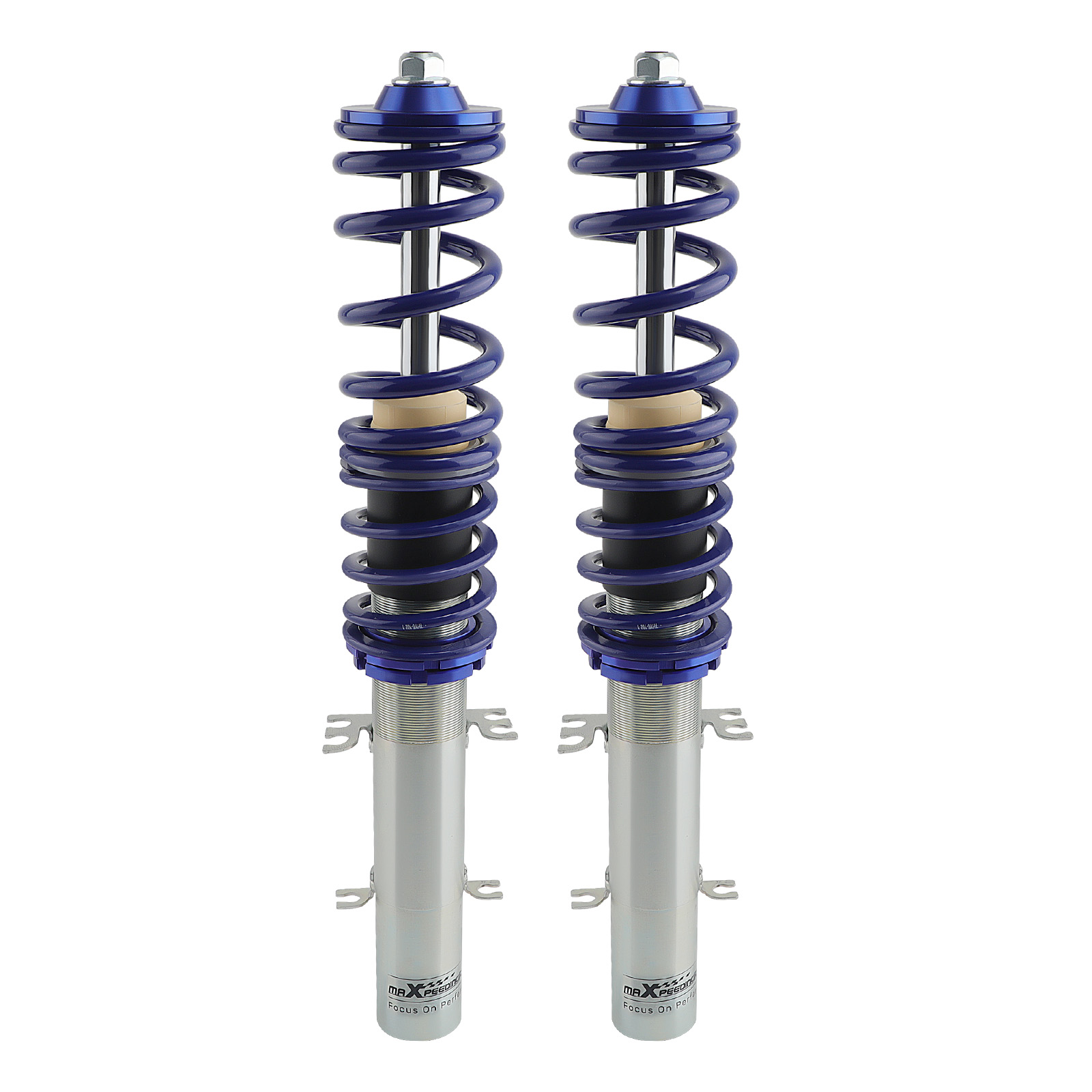

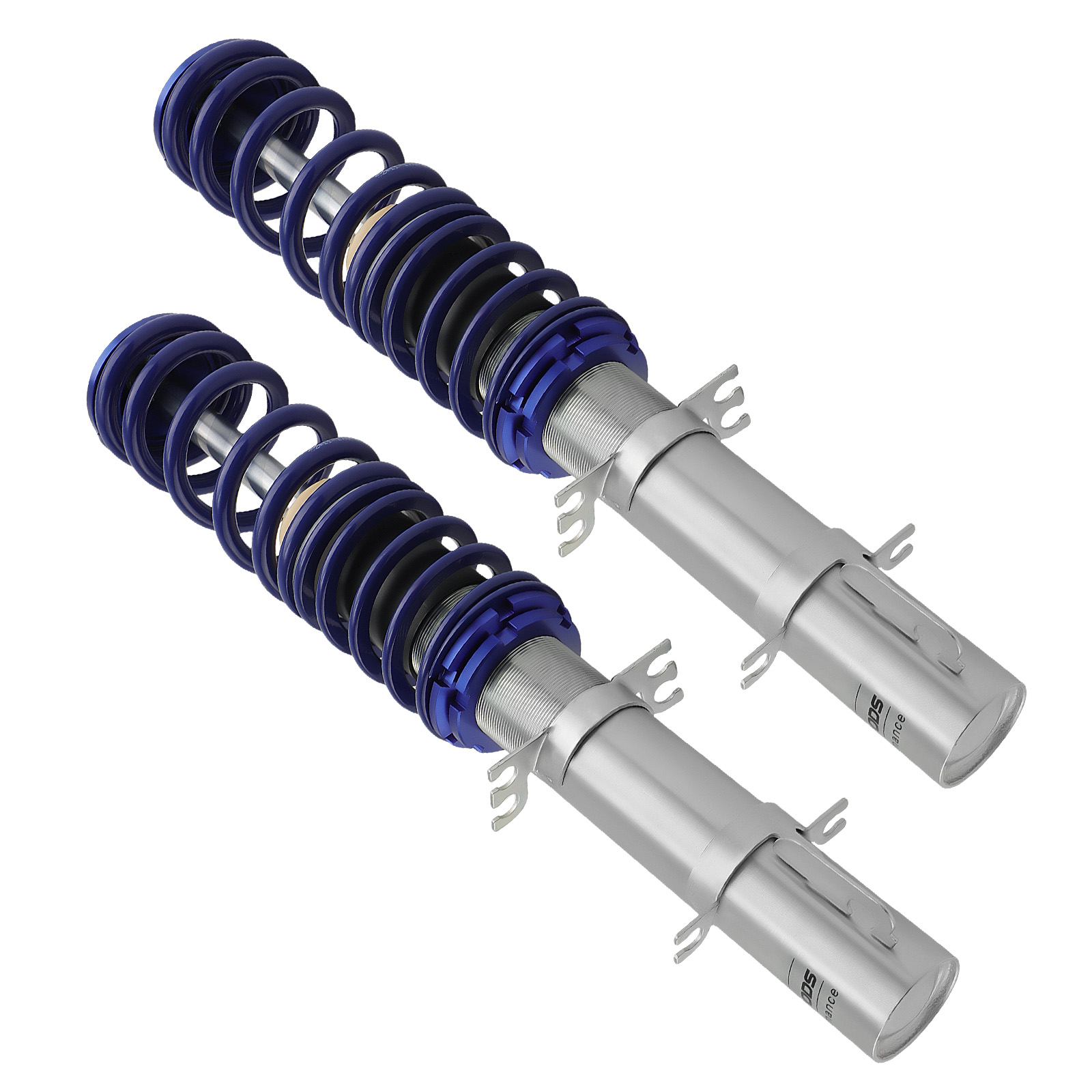

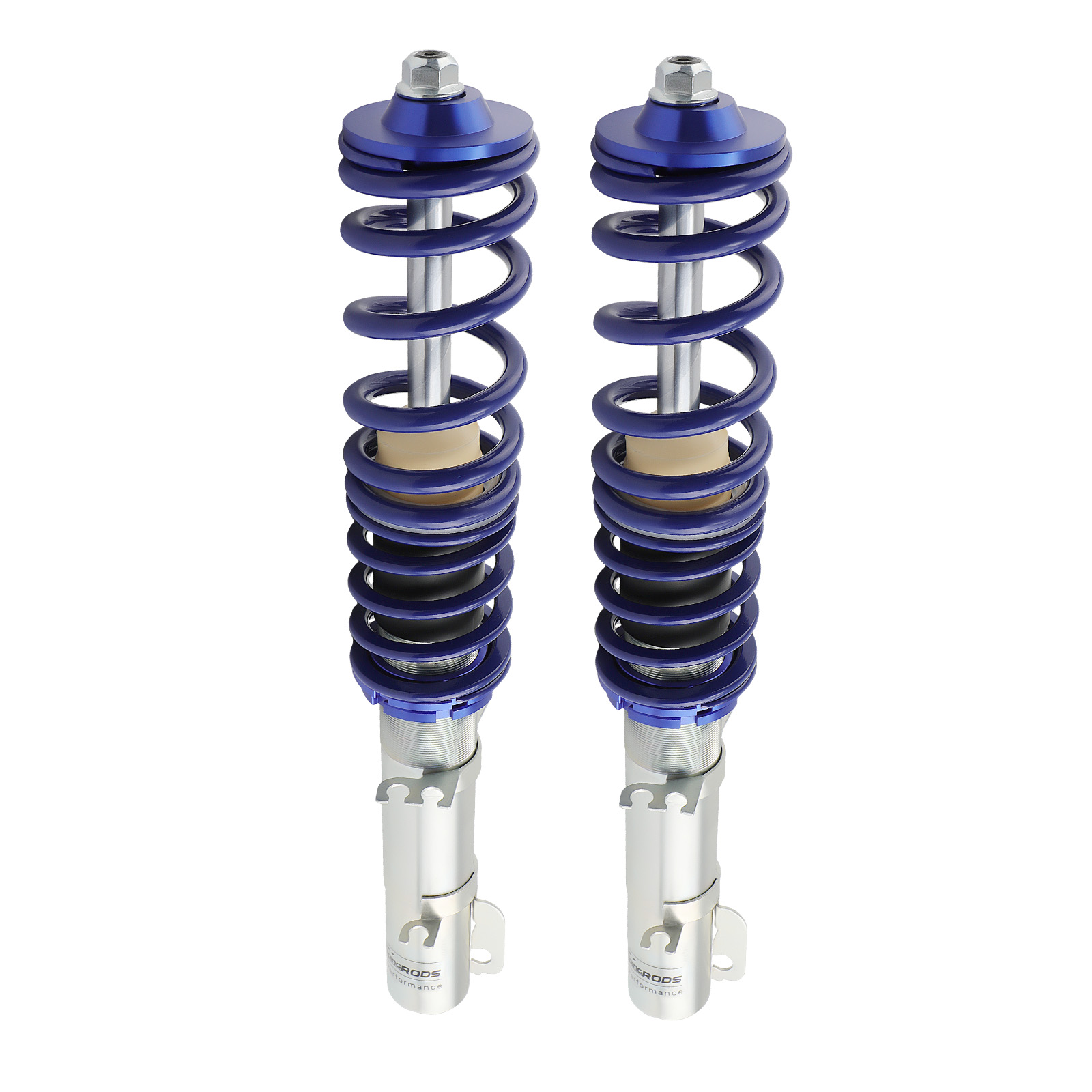

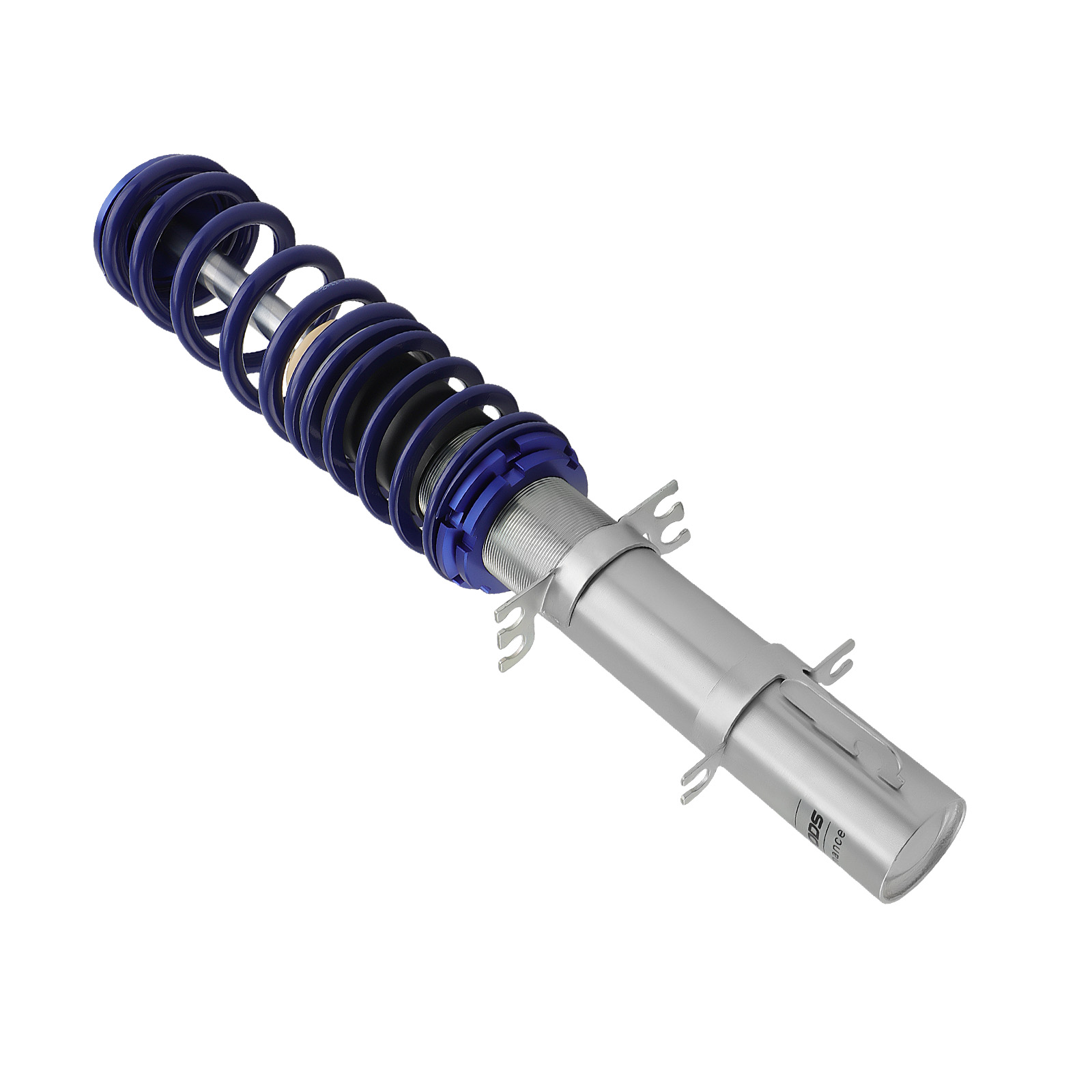

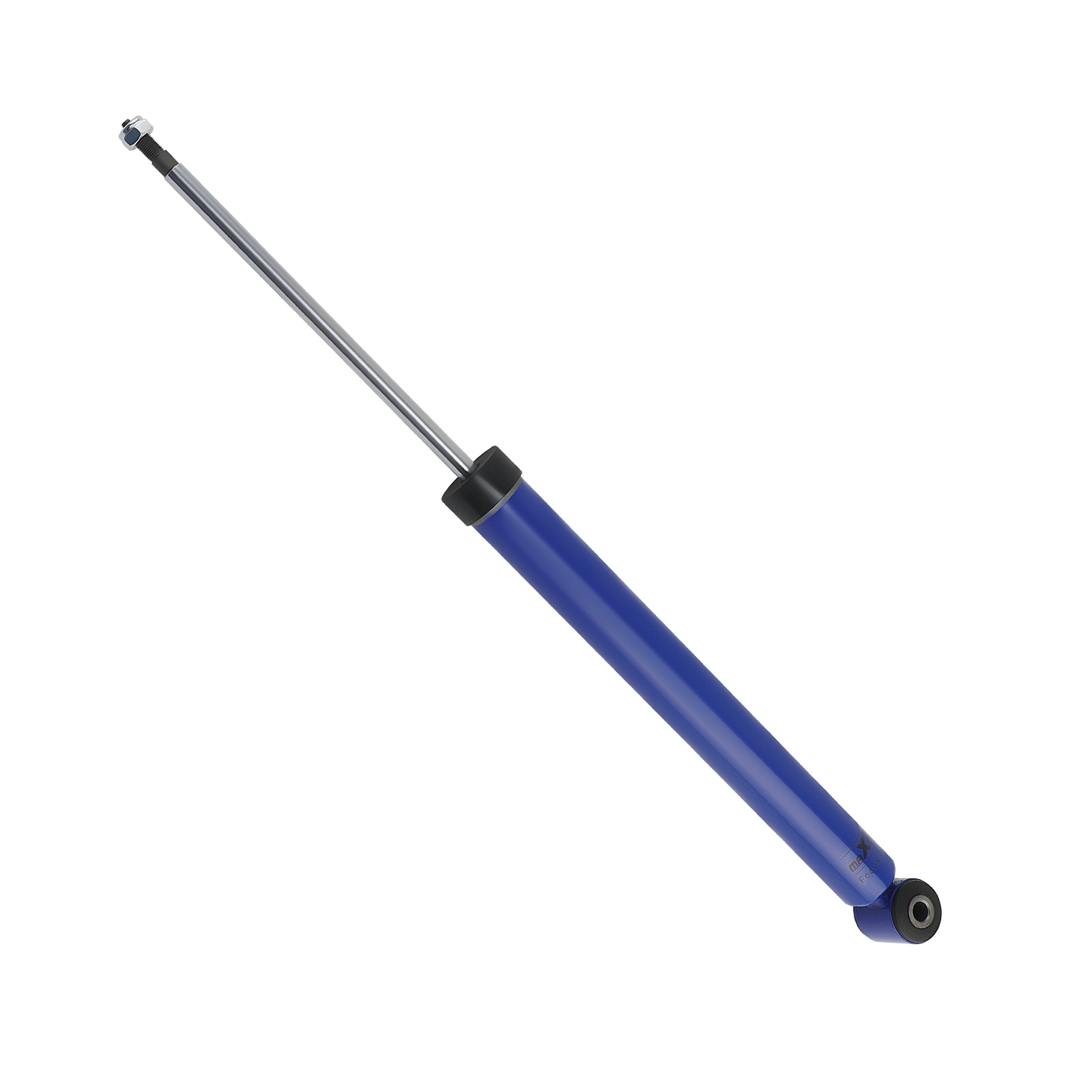

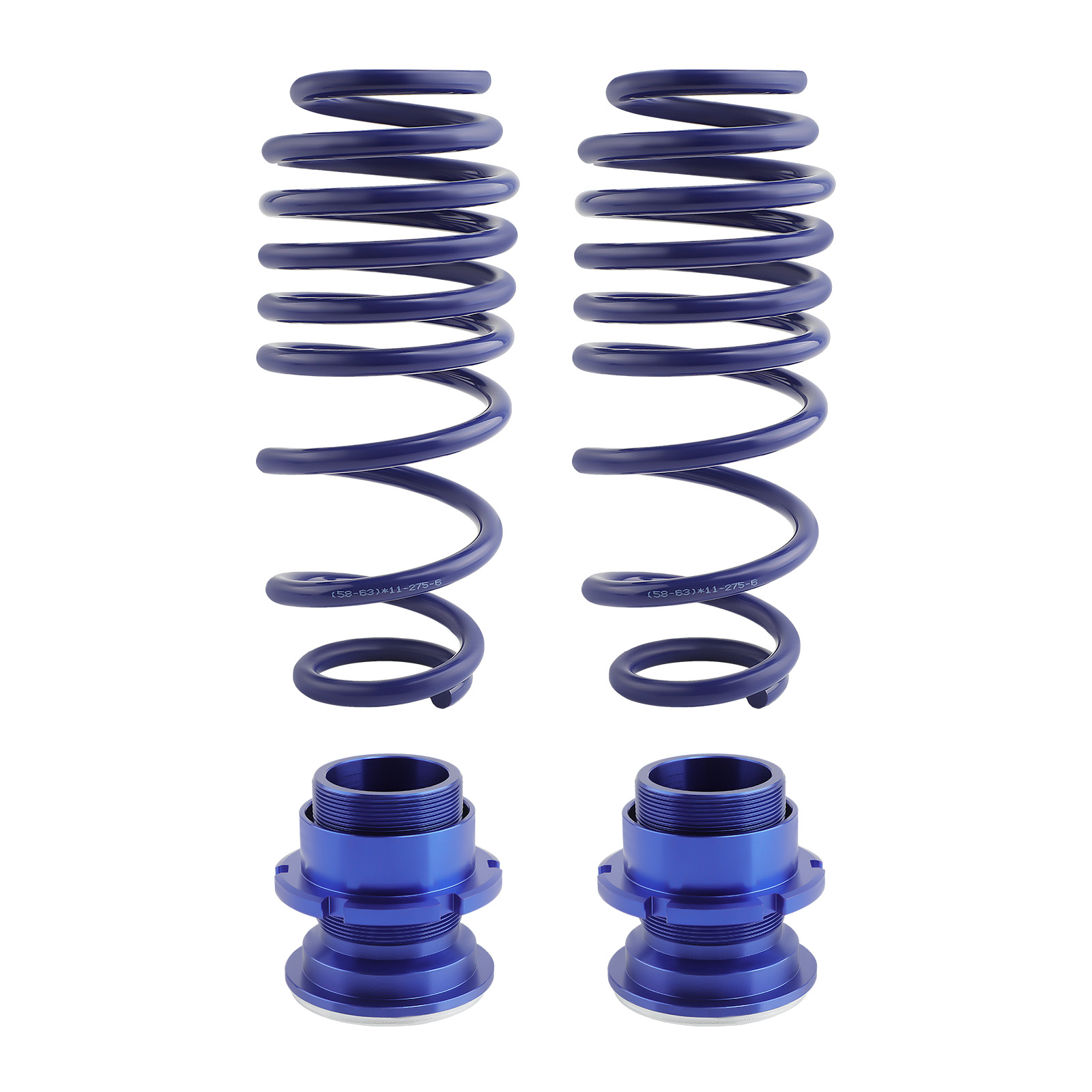

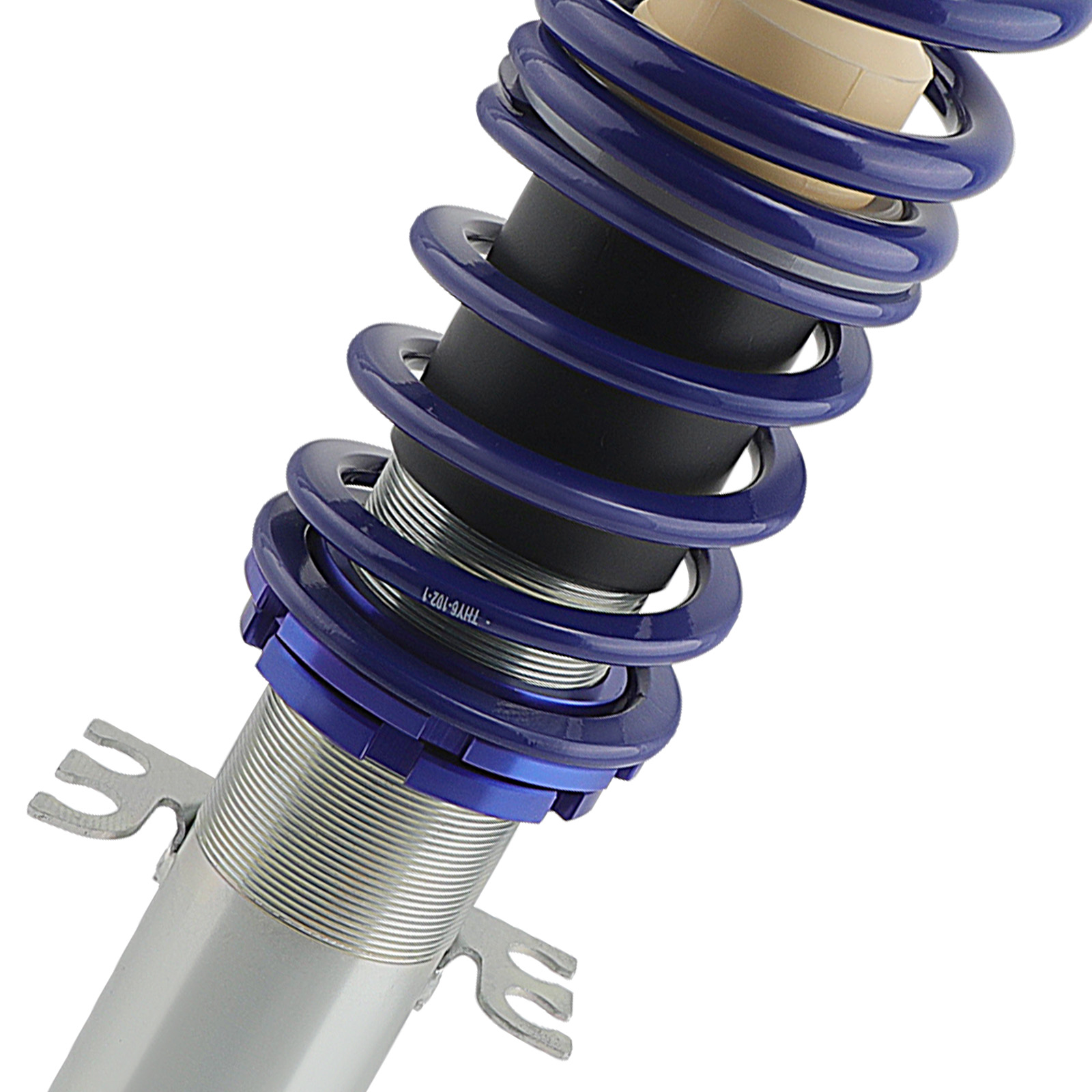

Maxpeedingrods COILOVERS SUSPENSION KIT For VW GOLF / GTI / JETTA MK4 99-05



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​




























Compatible Vehicles

For VW Beetle 1998-2010, FWD
For VW Golf MK4 1997-2007, FWD
For VW Jetta MK4 1999-2004, FWD

For SEAT LEON (1M1) 1999-2006, FWD


Not fit for 4-MOTION

Not fit for VW Golf MK4 R32

Not fit for Audi quattro models

Specifications


Height Adjustable Lowering 0-25mm depending on the vehicle models
Damping Preset Damping
Spring Rate Front 8 kg/mm (448 lbs/in)
Spring Rate Rear 6 kg/mm (336 lbs/in)
Spring Length Front 170 mm
Spring Length Rear 275 mm
Front Coilover overall length 370mm-540mm
Rear Coilover overall length 410mm-650mm
Front spring inner diameter 62 mm
Rear spring inner diameter 58-63 mm
Front Help spring rate 1 kg/mm (56 lbs/in)

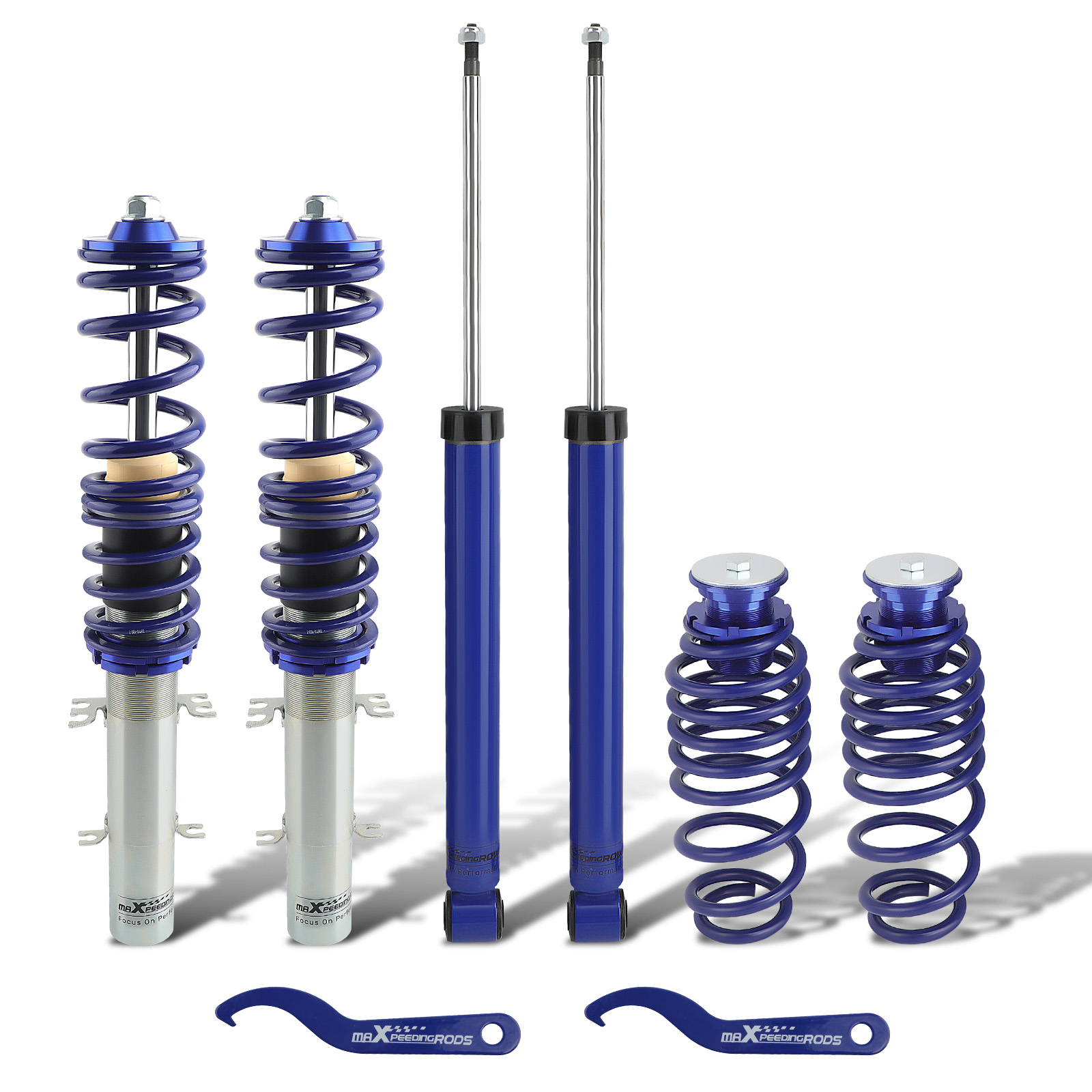

Packing List 2x Front + 2x Rear Coilovers + 2x Spanners
Advanced Twin-Tube Technology; Adjustable height lowering 35mm-75mm; High Rigidity 55CrSi Steel Cold-bent Coil Springs; Anodized Shock Body With Anti-Corrosion Coating; CNC Billet Aluminum Parts/Hardware; Full 1 Year Warranty From Date Of Purchase.


Other items you might also like

  • Coilover Lowering Kit for VW MK4 Golf GTI Jetta New Beetle FWD 98-07 Coilover Lowering Kit for VW MK4 Golf GTI Jetta New Beetle FWD 98-07
  • MaXpeedingrods Coilovers Fit Volkswagen MK4 Golf & Jetta 1998-2004 GTI MaXpeedingrods Coilovers Fit Volkswagen MK4 Golf & Jetta 1998-2004 GTI

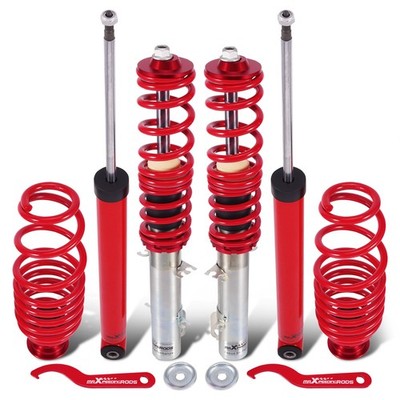

  • MaXpeedingrods Street Coilovers Struts Kit For VW Golf GTi MK4 NEW BEETLE 98-07 MaXpeedingrods Street Coilovers Struts Kit For VW Golf GTi MK4 NEW BEETLE 98-07
