DOT Compliant

Yes

Compatibility

• FITMENTS: Motorcycles w/ H4, 5.75in, or 7in Round
• HID SYSTEMS: Hi/Lo Capable HID/Projectors
• TIME DELAY: No

Whats Included

• Wiring: 1x Morimoto MotoCycle Relay Harness (H4 / Single Output)
• Warranty: 2 Years

Tech Specs

• INPUT TRIGGER: 1x H4 Male
• BALLAST OUTPUT: 1x 9006 Female
• HIGH BEAM OUTPUT: 1x 9006 Female
• 12V POWER: 1x Nickel-Plated Ring-Type
• GROUND: 1x Nickel-Plated Ring-Type
• FUSE: Inline 25A

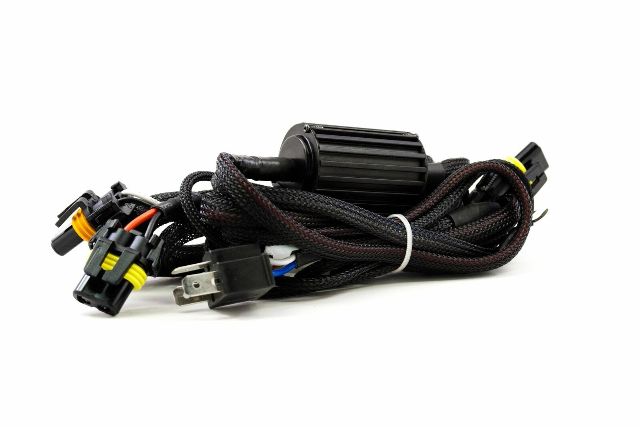

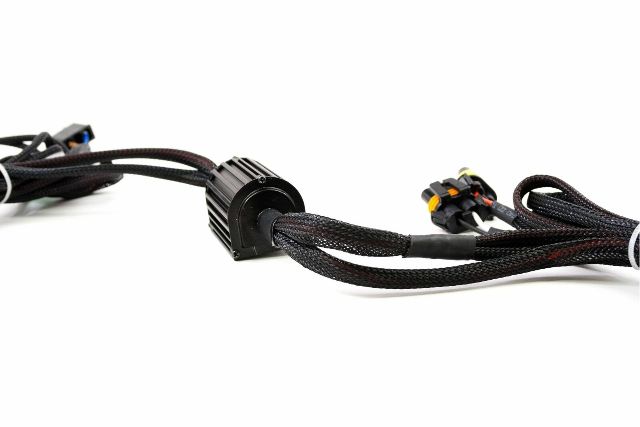

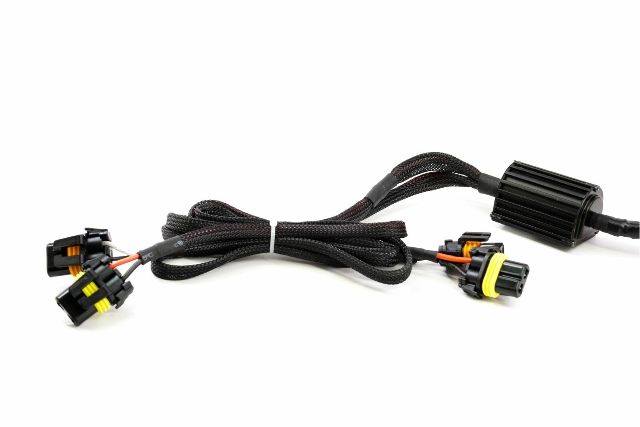

Power Delivery: The MotoCycle relay harness is designed to deliver steady voltage to your HID system directly from the bike's battery. Factory headlight outputs are really only designed to power a halogen light bulb and with the not-so-stable electrical systems on motorcycles - that could mean bad news for the longevity of your upgraded headlights without a harness. One of a Kind: The Morimoto H4 Single-Lamp Motorcycle specific harness is the first and only high-quality harness on the market that's designed for retrofitting HID's into the headlights on motorcycles. It's been a staple in our product line for years as the right go-to for the job. In Comparison: To any other harness we offer, the MotoCycle spec's wire lengths are ideal for the layout on a motorcycle. It is not designed for a car's engine bay and has to be modified or rigged to work on a bike - this one should be ready to go out of the box. Light Up: Each harness will power one HID ballast and one high beam function (solenoid) from one input trigger. Perfect for retrofitting either a single bi-xenon (hi/lo) projector or HID bulb in your headlight. Work of Art: Aside from being a technical masterpiece that works like a charm, it's also a work of art. With its braided TechFlex insulation and sleek-looking black anodized relay - it will surely look factory-fresh when routed through your fairings.
