Product Name:

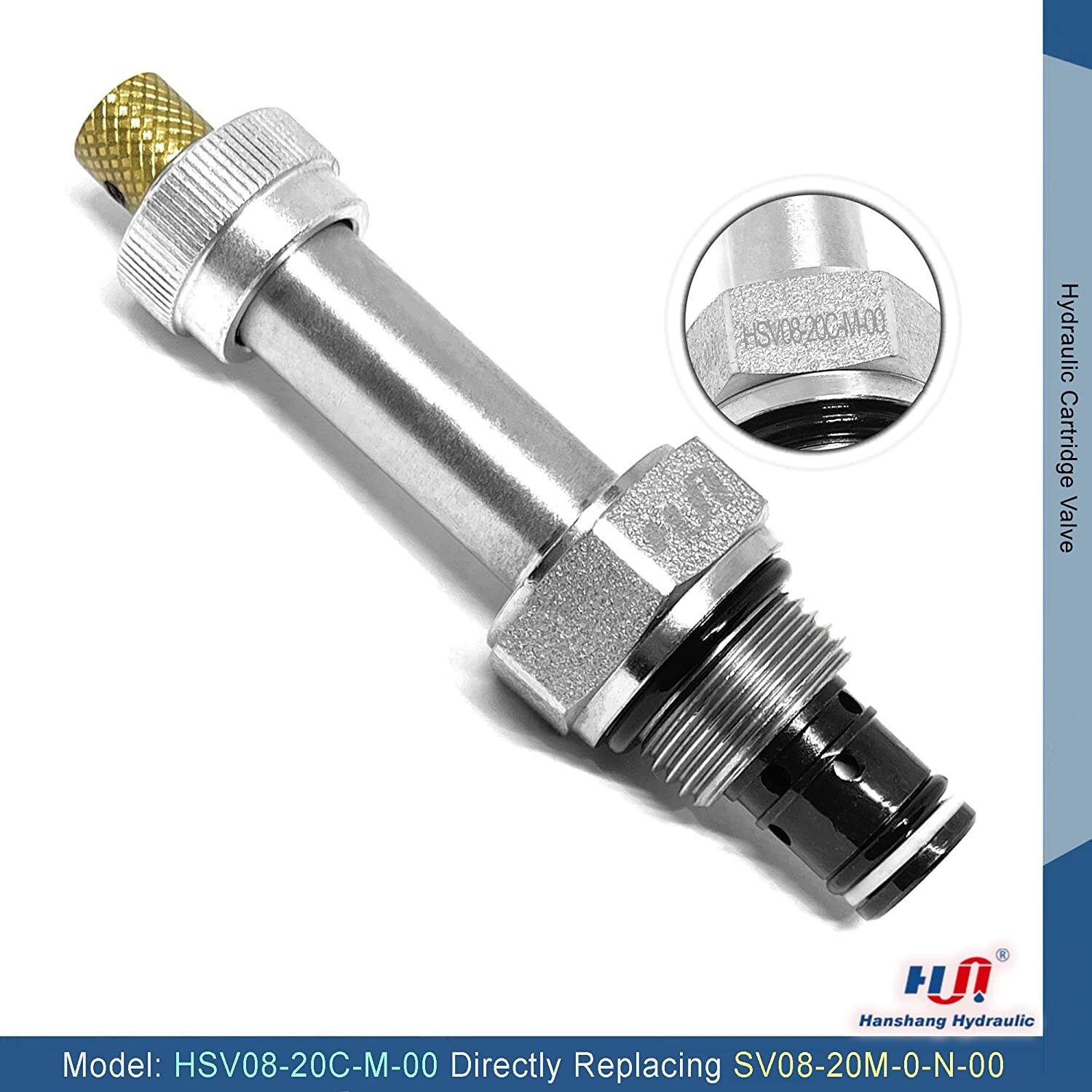

• HSV08-20C-M-00, Normally-Closed, Two-Way, Two-Position, Pilot-Operated Cartridge Solenoid Valve
• Direct Replacement for SV08-20 ( SV08-20M-0-N-00 )

Features:

• Continuous-duty solenoid.
• Efficient wet-armature construction.
• Optional coil voltages and terminals
• Manual override option
• Industry standard cavity ( size 08, 1/2" common cavity )
• Compact size

Specifications:

• Maximum Pressure 3000 PSI
• Maximum Flow Rate 5.3 GPM
• Diameter 1/2" ( Use Size 08 Solenoids )
• Anodized 6061-T6 Aluminum Alloy Body
• Suitable media: Mineral-based fluids, Fuel, Oil, Water
• Filtrations: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14

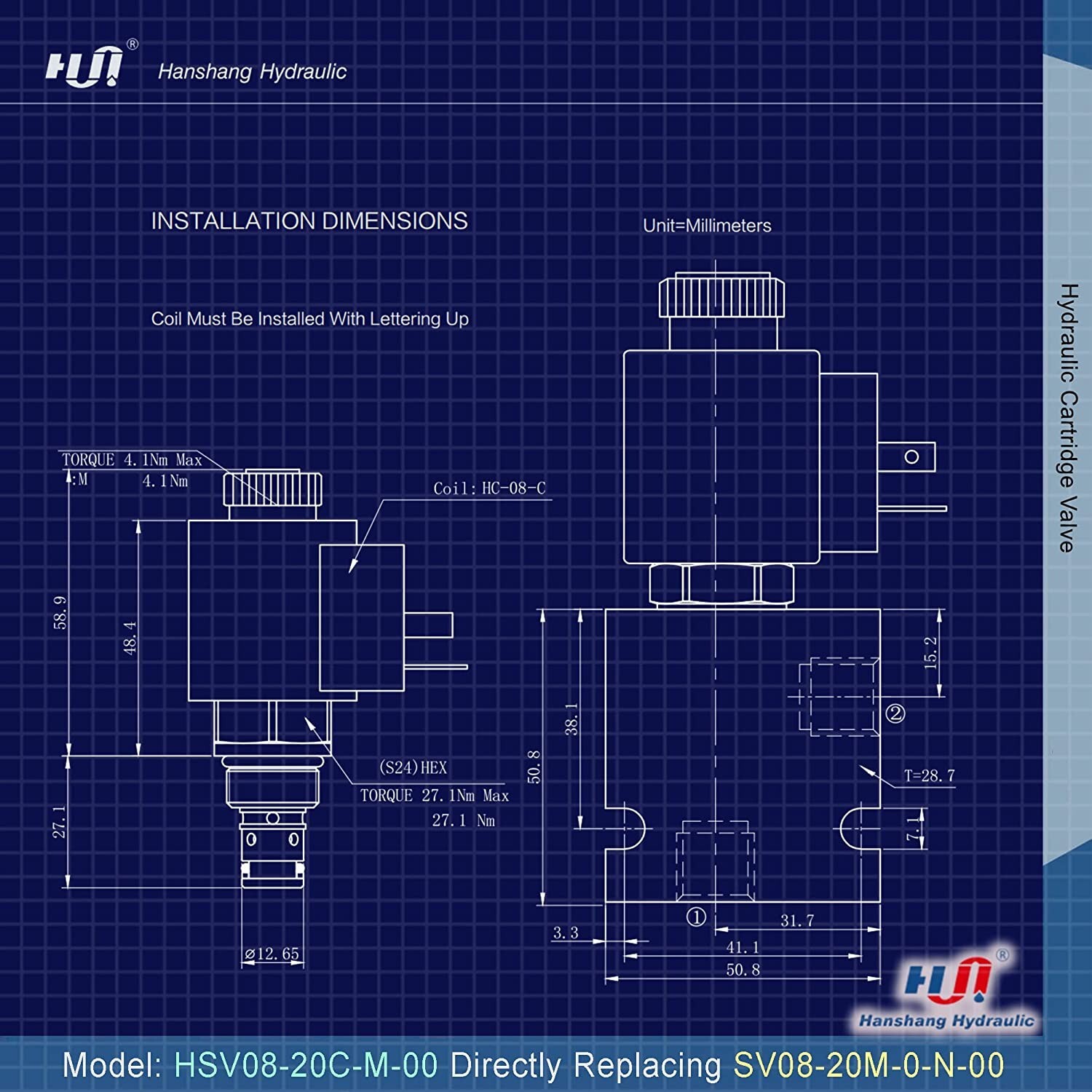

Dimensions:

• 3" x 1" x 1"
• 1/2" Diameter ( Size 08 )

Weight:

• 3.8 oz

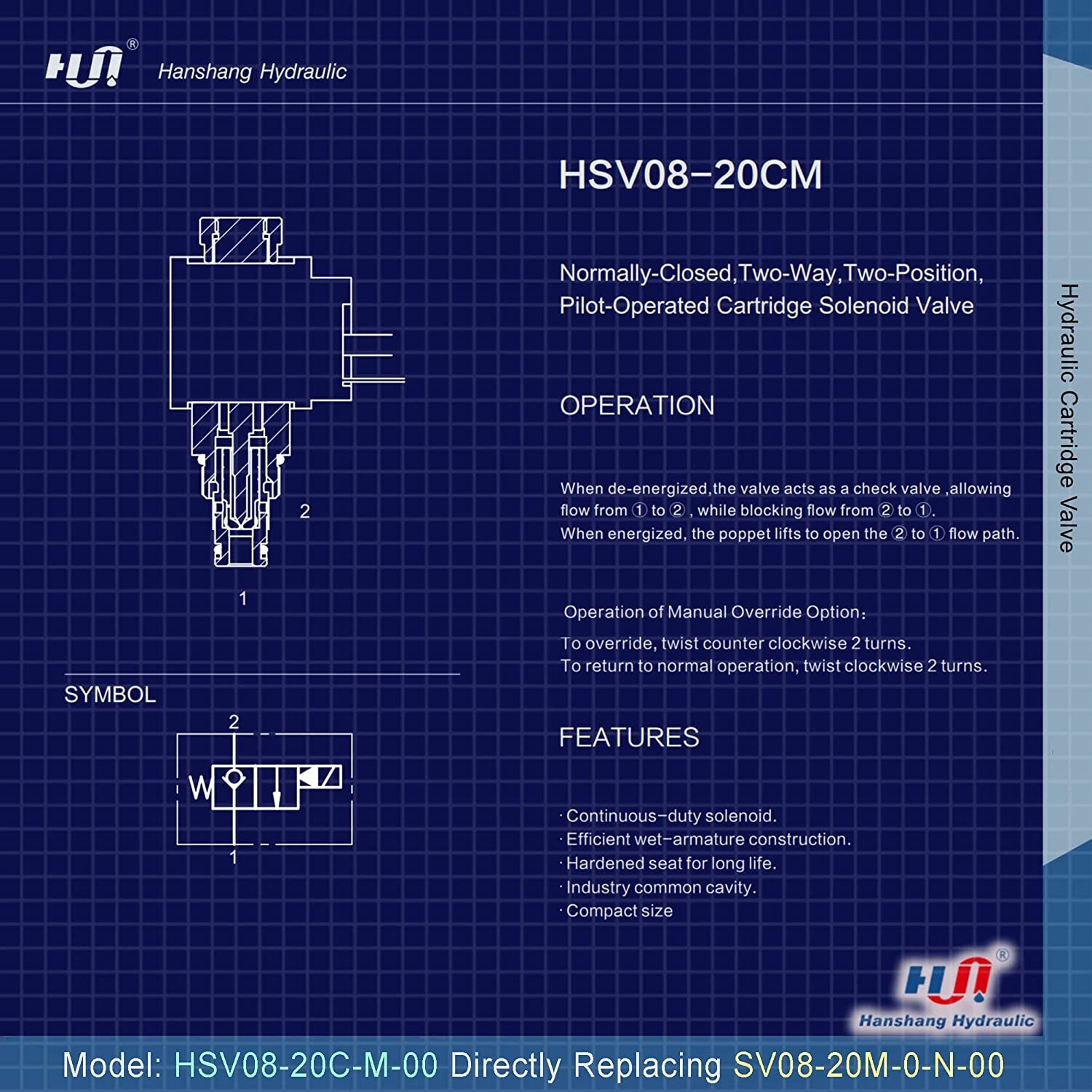

OPERATION ( See Listing Diagram Image ) :

• When de-energized, the cartridge valve acts as a check valve, allowing flow from (1) to (2) , while blocking flow from (2) to (1).
• When energized, the poppet lifts to open the (2) to (1) flow path.

Operation of Manual Override Option:

• To override, twist counter clockwise 2 turns.
• To return to normal operation, twist clockwise 2 turns.
