Feature Products

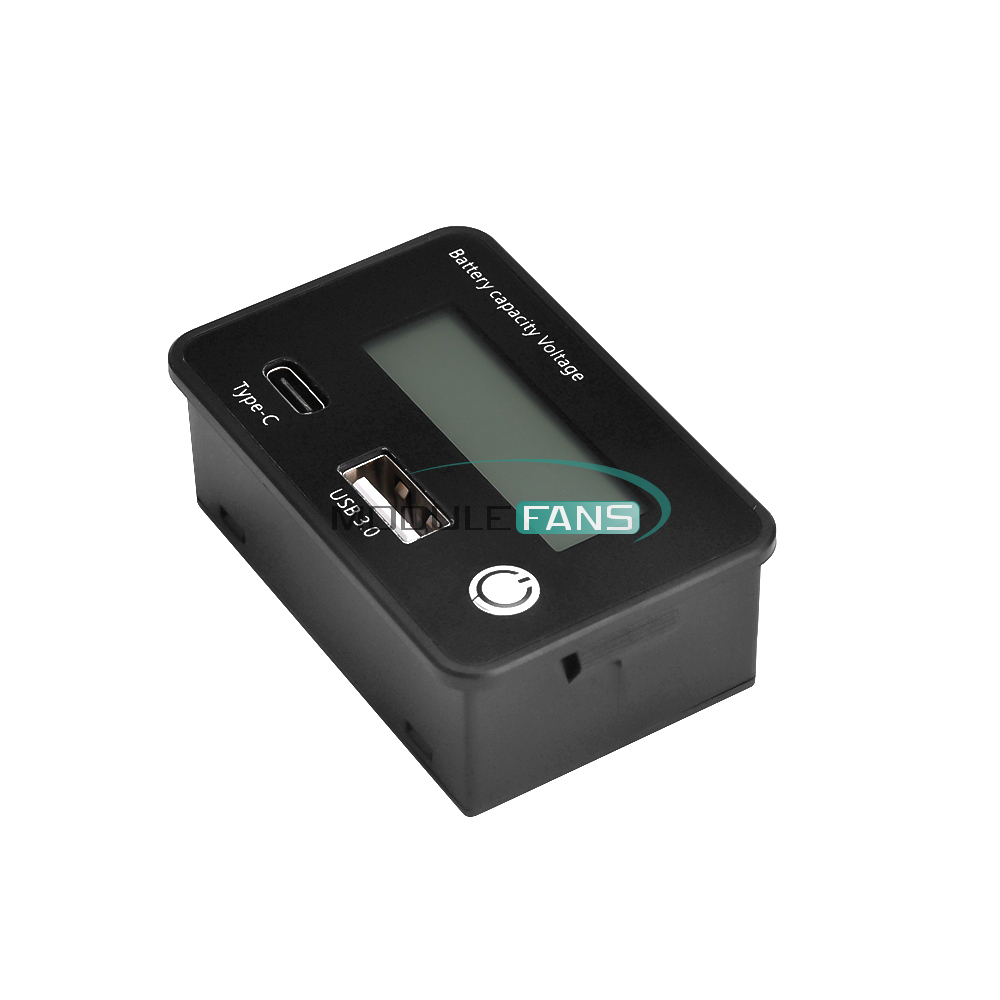

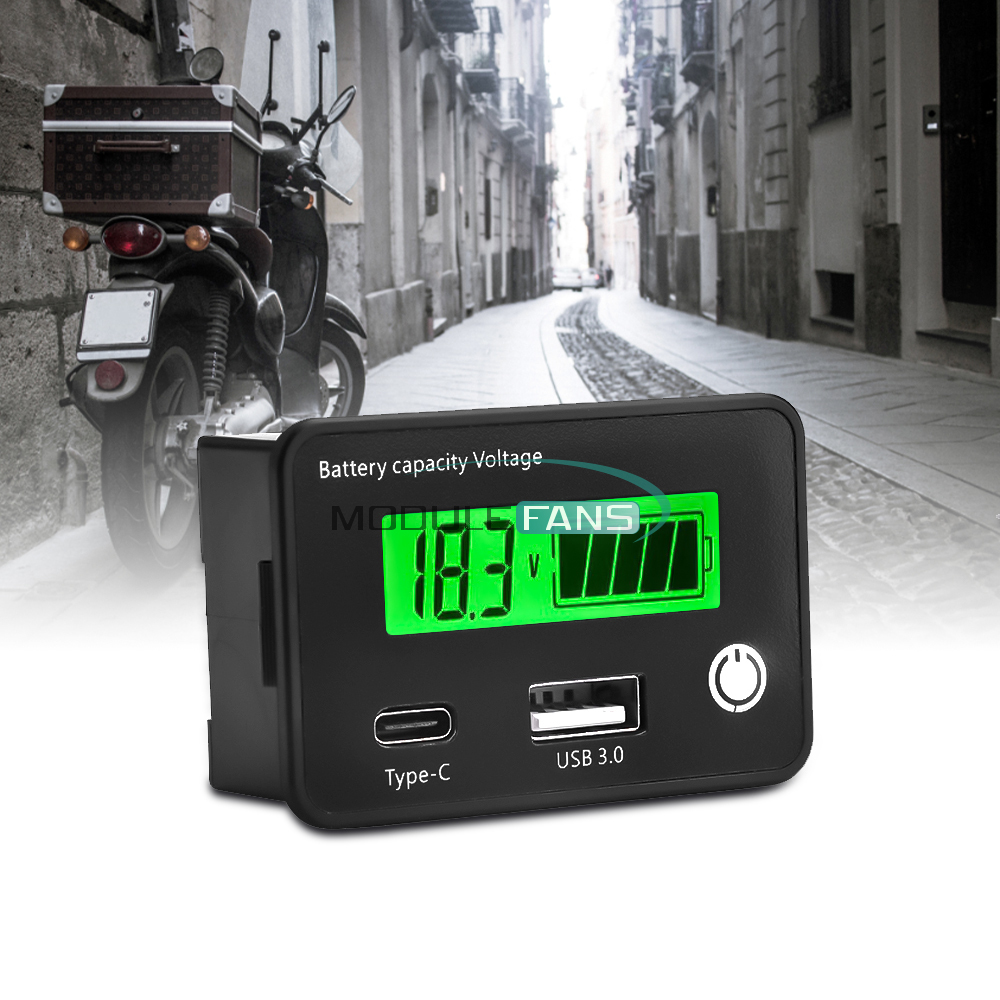

DC8-30V Battery Capacity Voltage Indicator LCD Display Car Battery Level Meter


Features:
1. Ternary lithium battery L measurement: L03 series to L07 series (power-off memory)
2、Lead-acid battery P measurement: DC12V, DC24V (power failure memory)
3、LiFePO4 battery F measurement: F03 series to F08 series (power failure memory)
4、Custom set high and low voltage range: DC8-30V

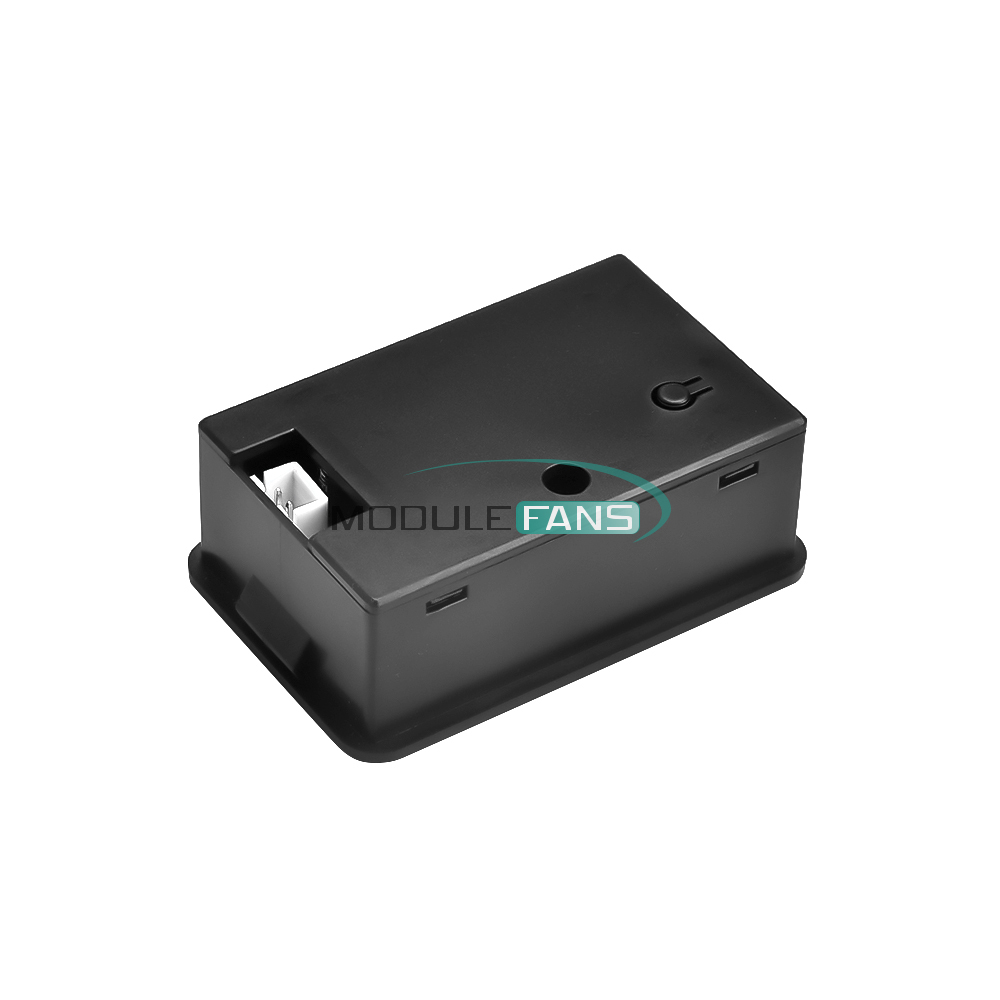

5、The front is the on/off button, the back is the setting button, please set the parameters first before installing and using

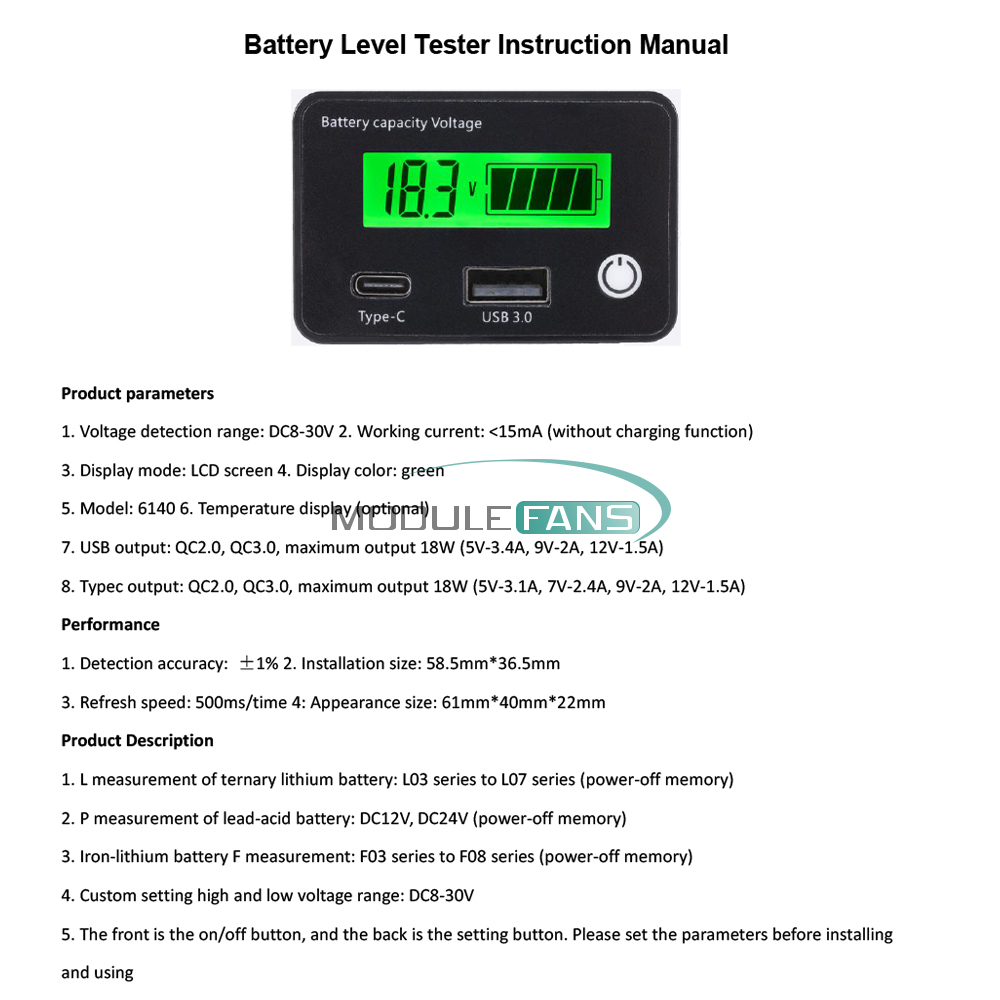

Product parameters:
1、Voltage detection range: DC8-30V
2、Working current: <15mA (without charging function)
3、Display mode: LCD screen

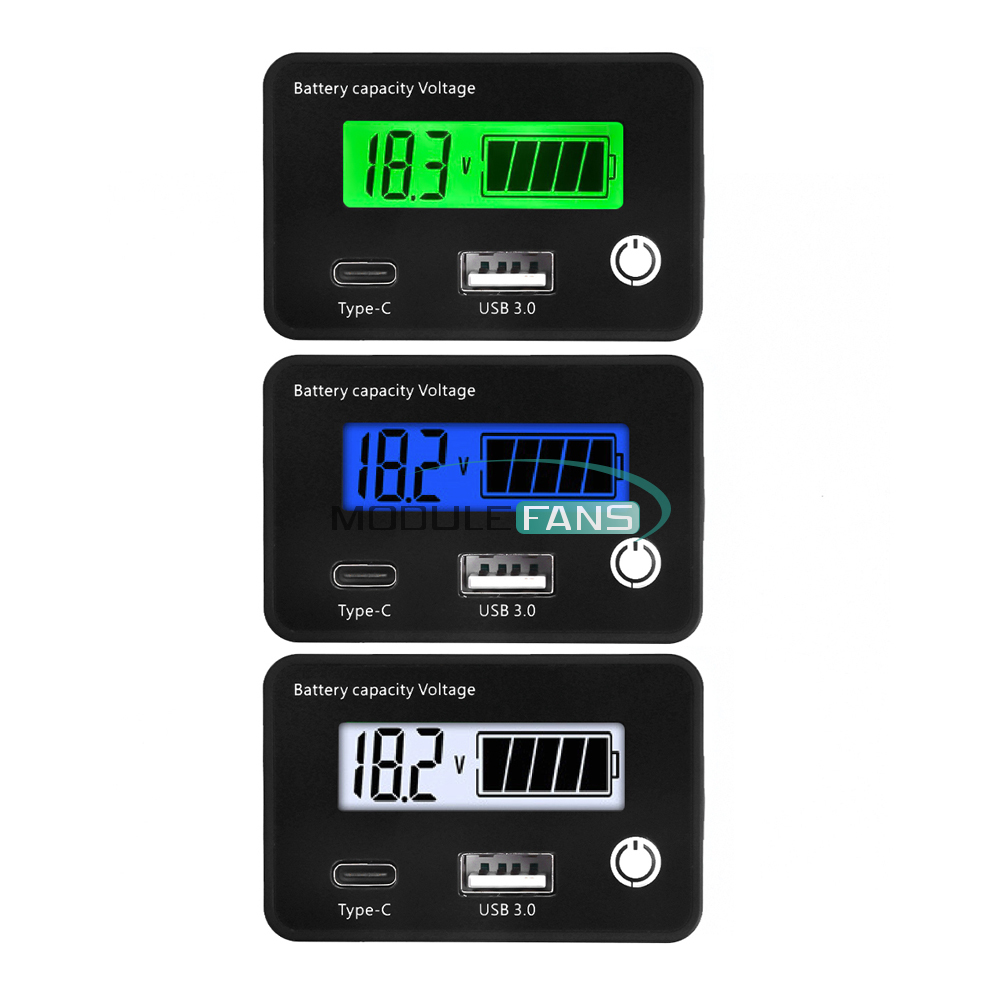

4、Display colour: green/blue/white
5、Model number: 6140
6、Temperature display (optional)
7、USB output: QC2.0, QC3.0, maximum output 18W (5V-3.4A, 9V-2A, 12V-1.5A)
8. Typec output: QC2.0, QC3.0, max output 18W (5V-3.1A, 7V-2.4A, 9V-2A, 12V-1.5A)
9. Detection accuracy: ±1%
10. Refresh speed: 500ms/time

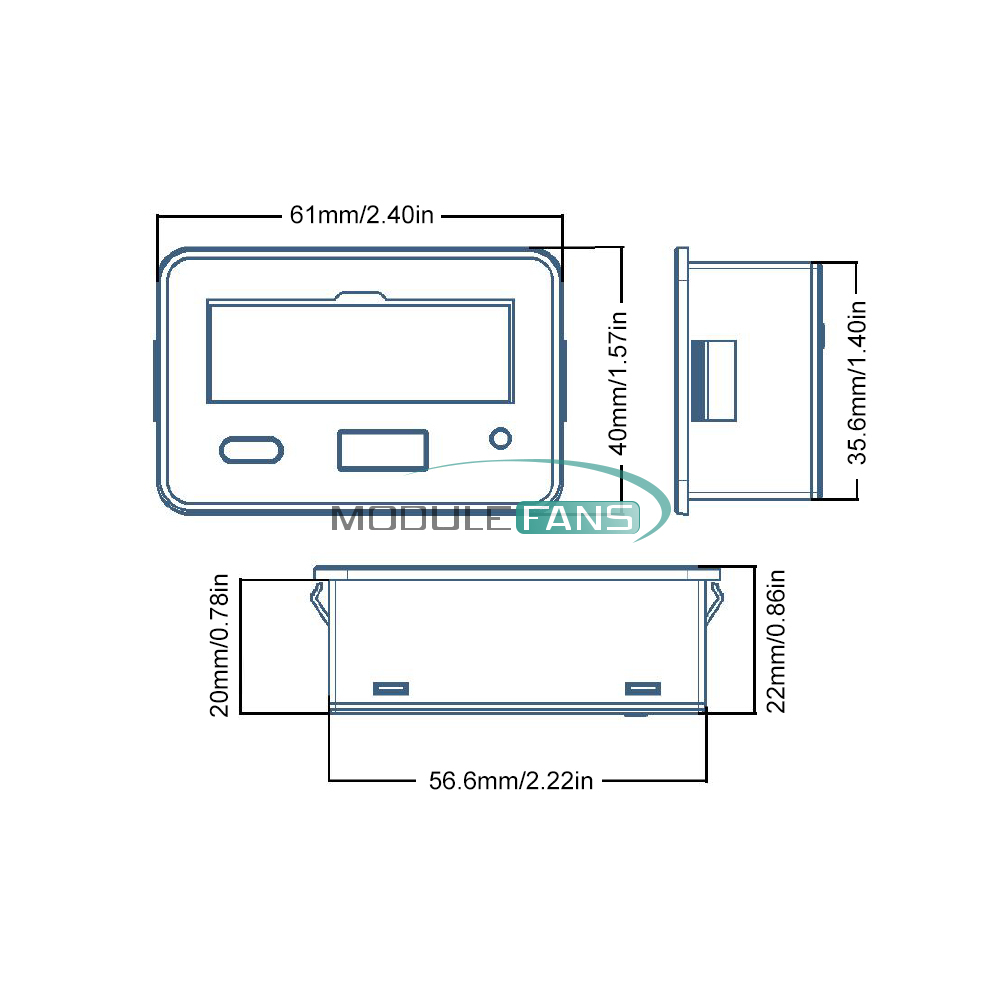

11.Installation size: 58.5mm*36.5mm
12.Appearance size: 61mm*40mm*22mm

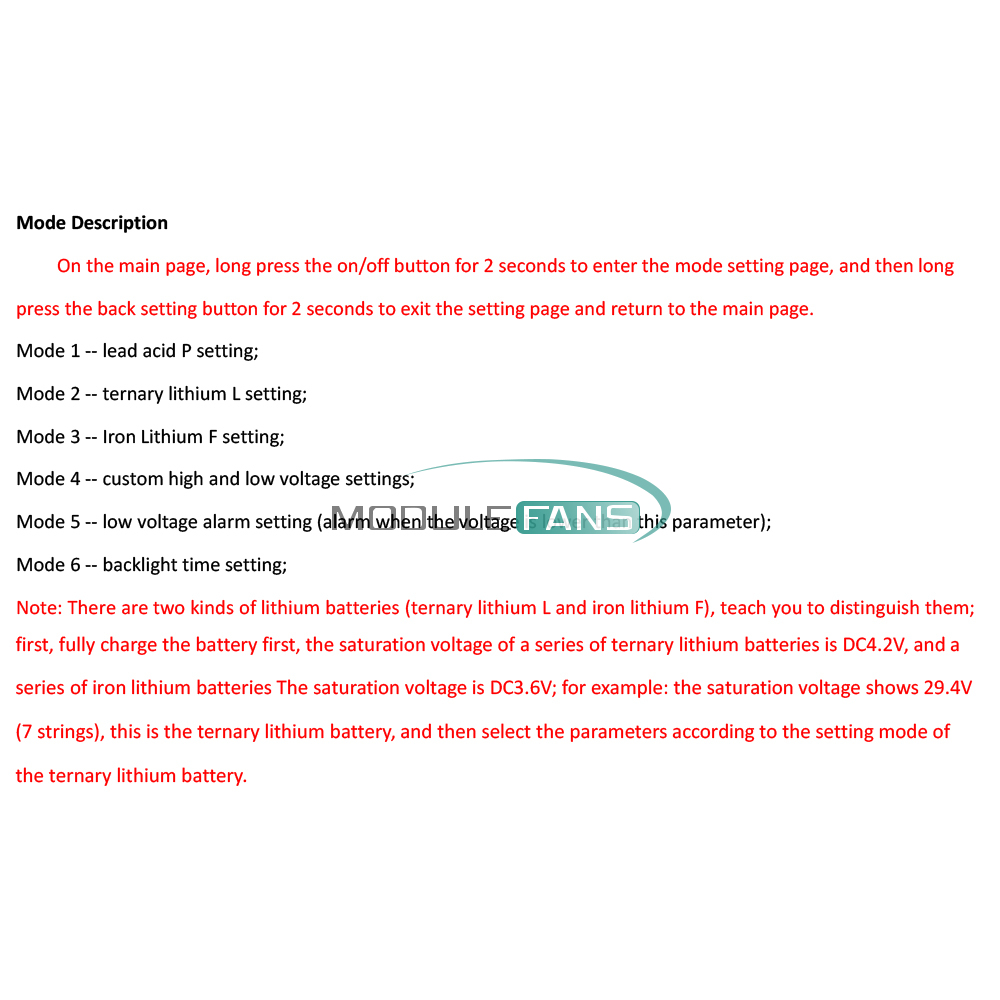

Mode Description Press and hold the On/Off button for 2 seconds on the main page to enter the mode setting page, then press and hold the back setting button for 2 seconds to exit the setting page and return to the main page.
Mode 1 -- Lead acid P setting;
Mode 2 -- Trithium L setting;
Mode 3 -- Lithium iron F setting;
Mode 4 -- custom high and low voltage settings;
mode 5 -- low voltage alarm setting (alarm if voltage falls below this parameter)
mode 6 -- backlight time setting;
Caution:
There are two types of lithium batteries (Lithium Ternary L and Lithium Iron F), so we can teach you to differentiate them; firstly, charge the batteries to full capacity, the saturation voltage of a string of Lithium Ternary batteries is DC4.2V, the saturation voltage of a string of Lithium Iron batteries is DC3.6V; for example: the saturation voltage shows 29.4V (7 strings), this is a Lithium Ternary battery, then select the parameters according to the setting mode of Lithium Ternary batteries.

Packaging and list:

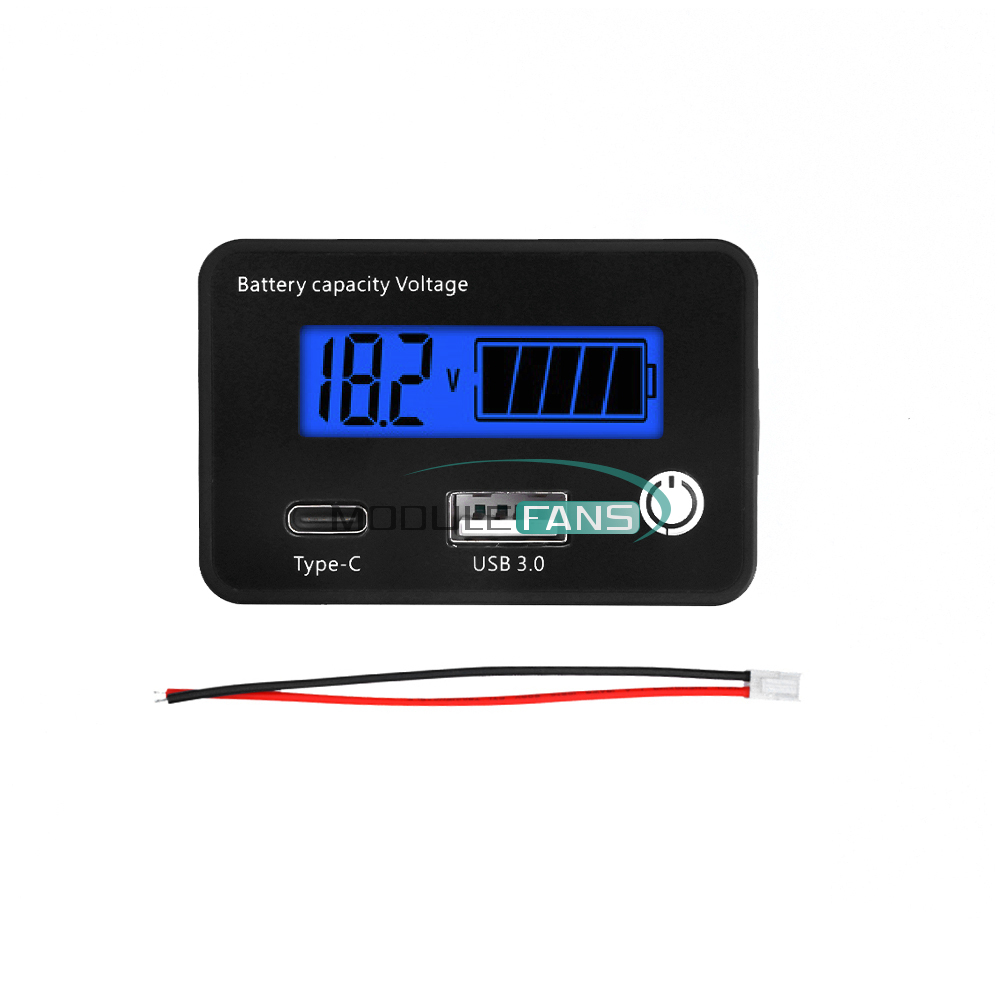

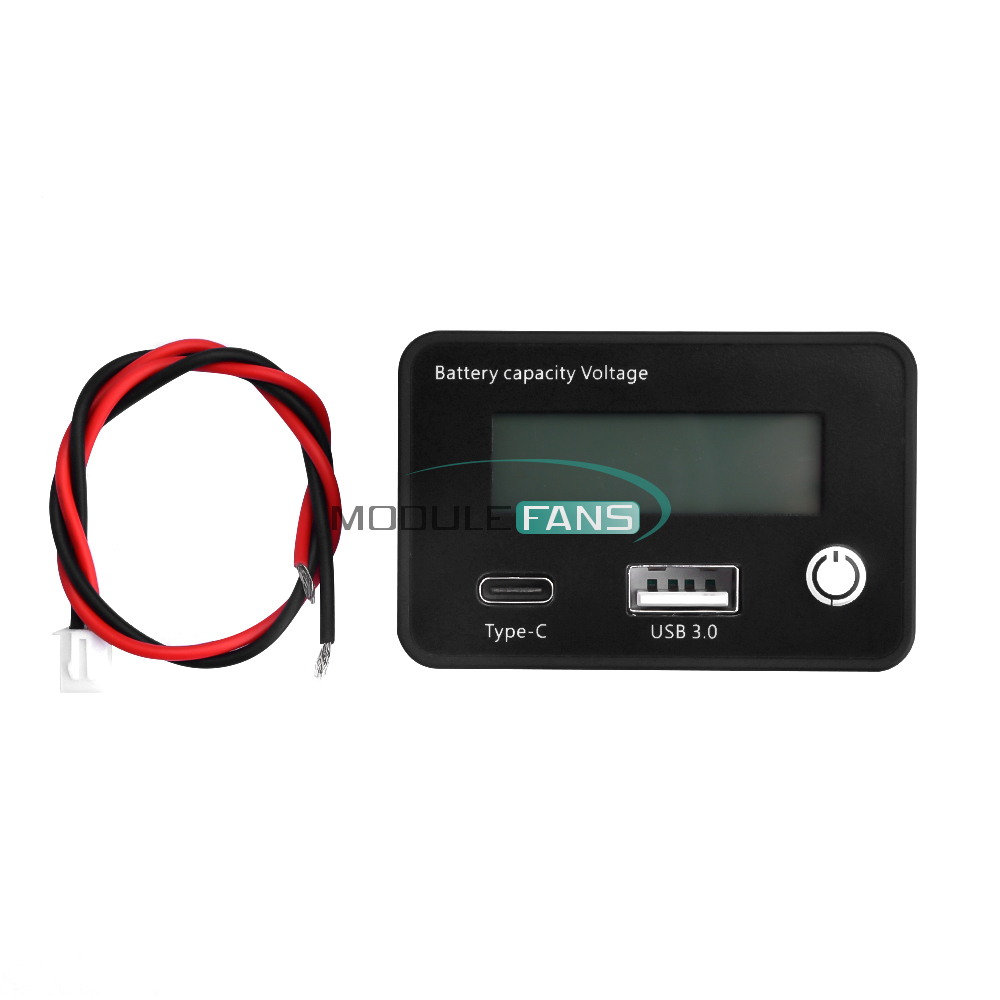

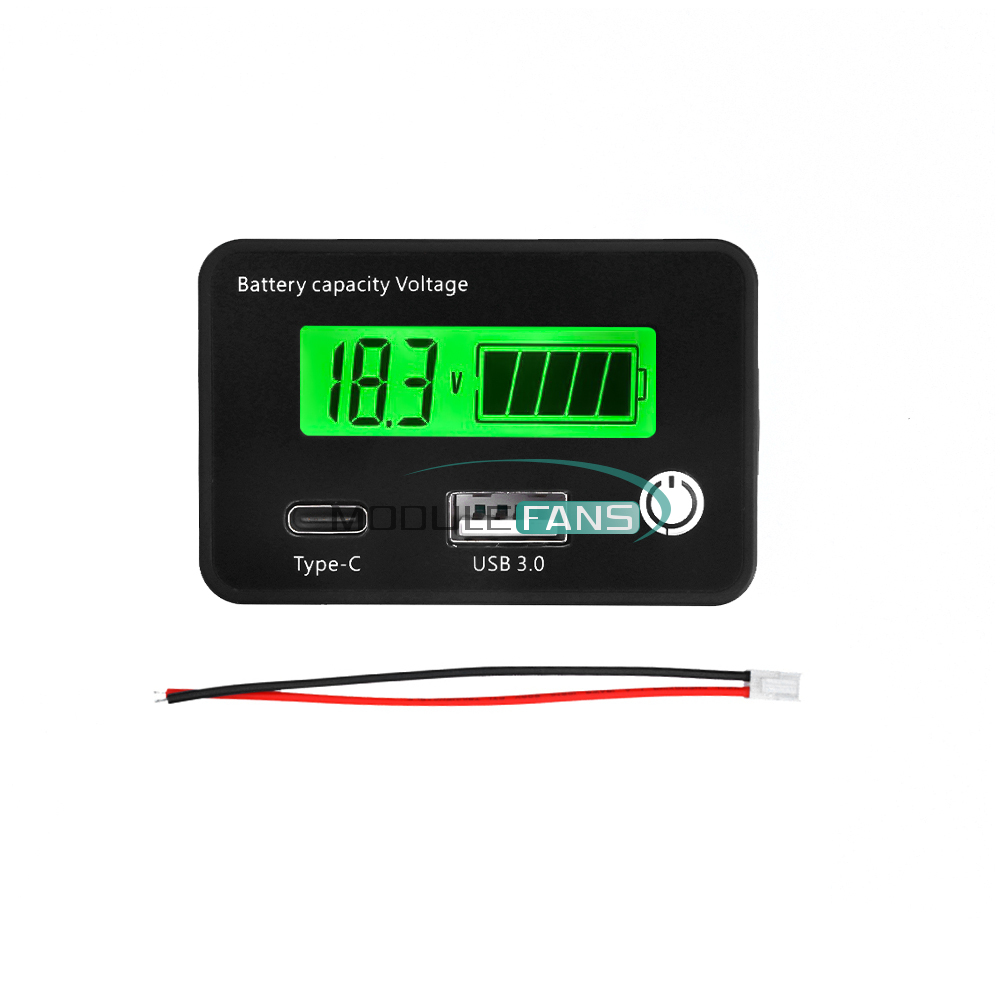

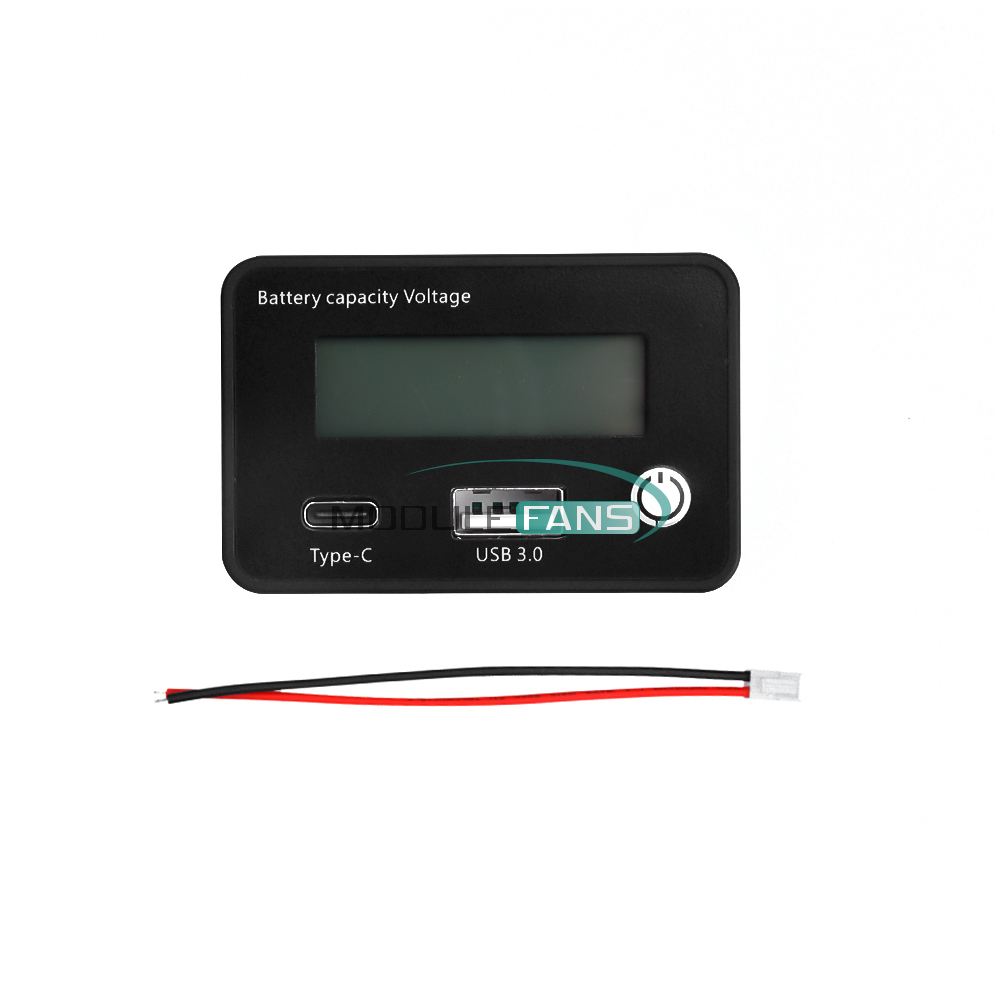

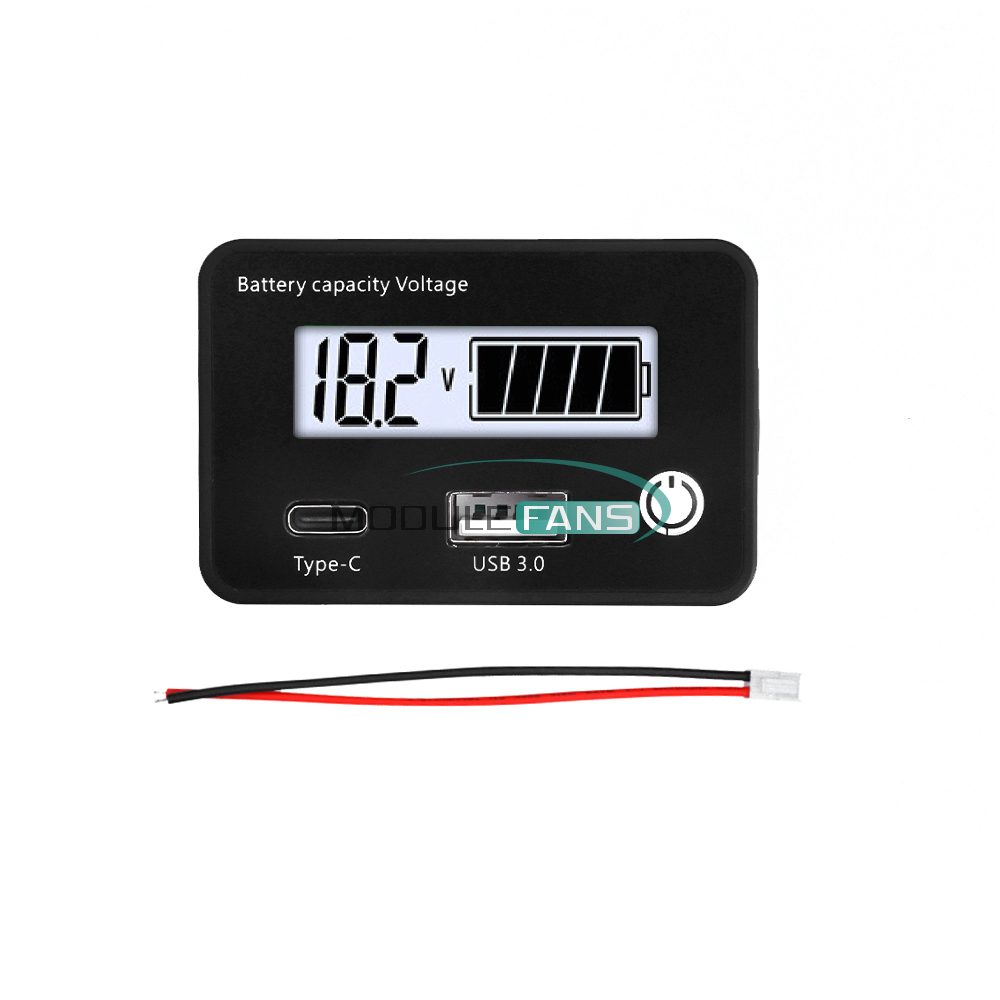

Battery level tester*1 + cable*1
