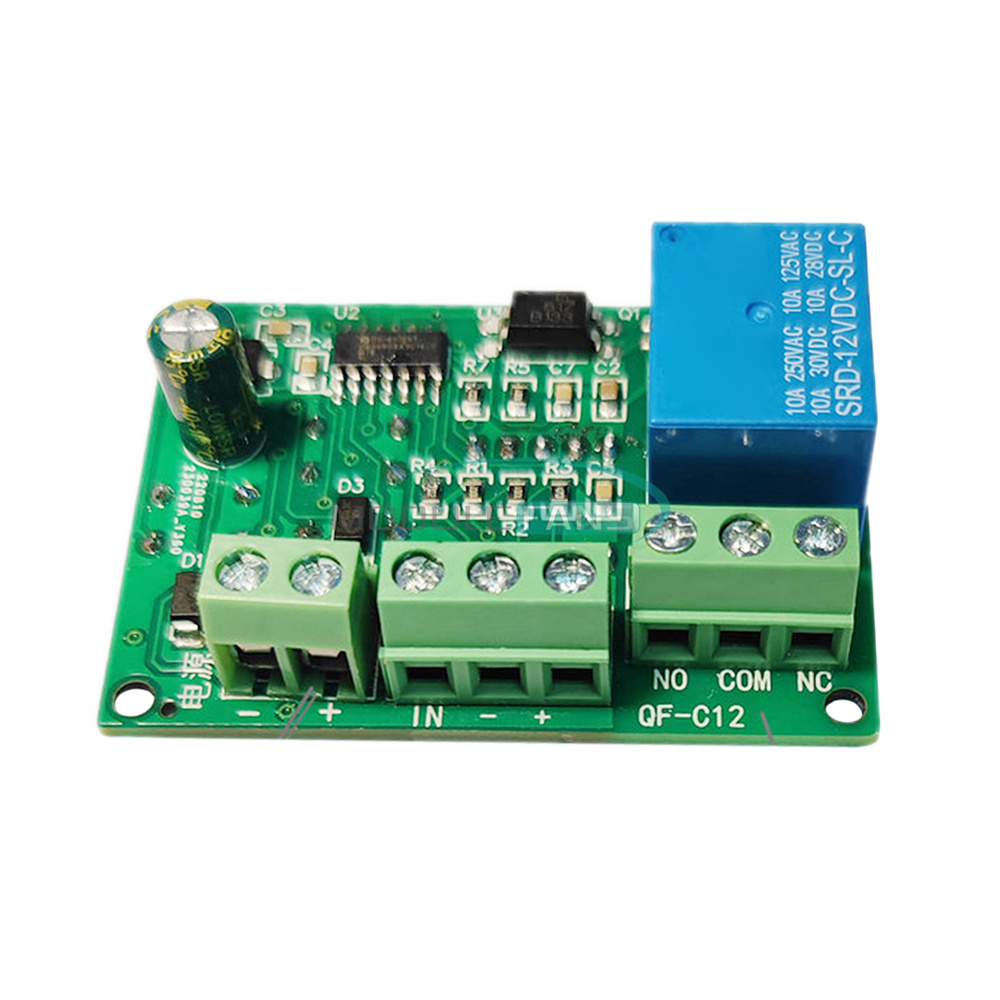

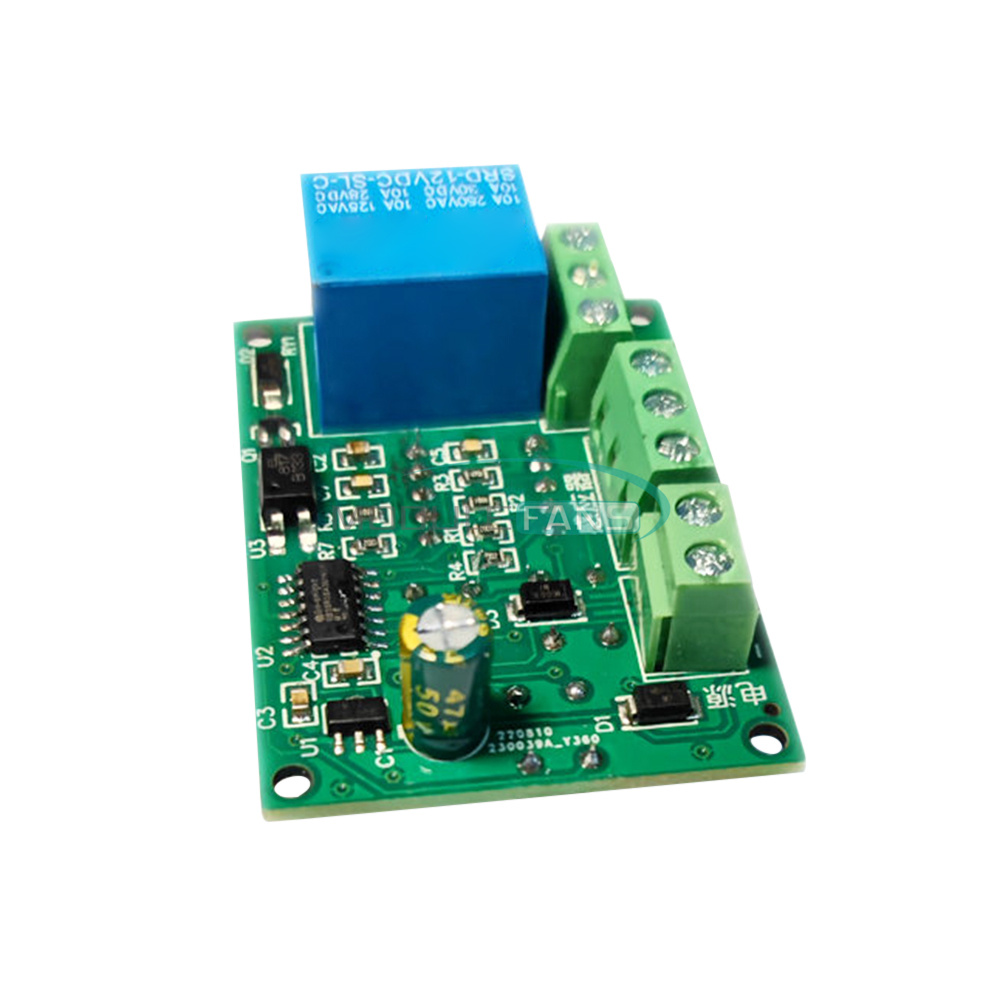

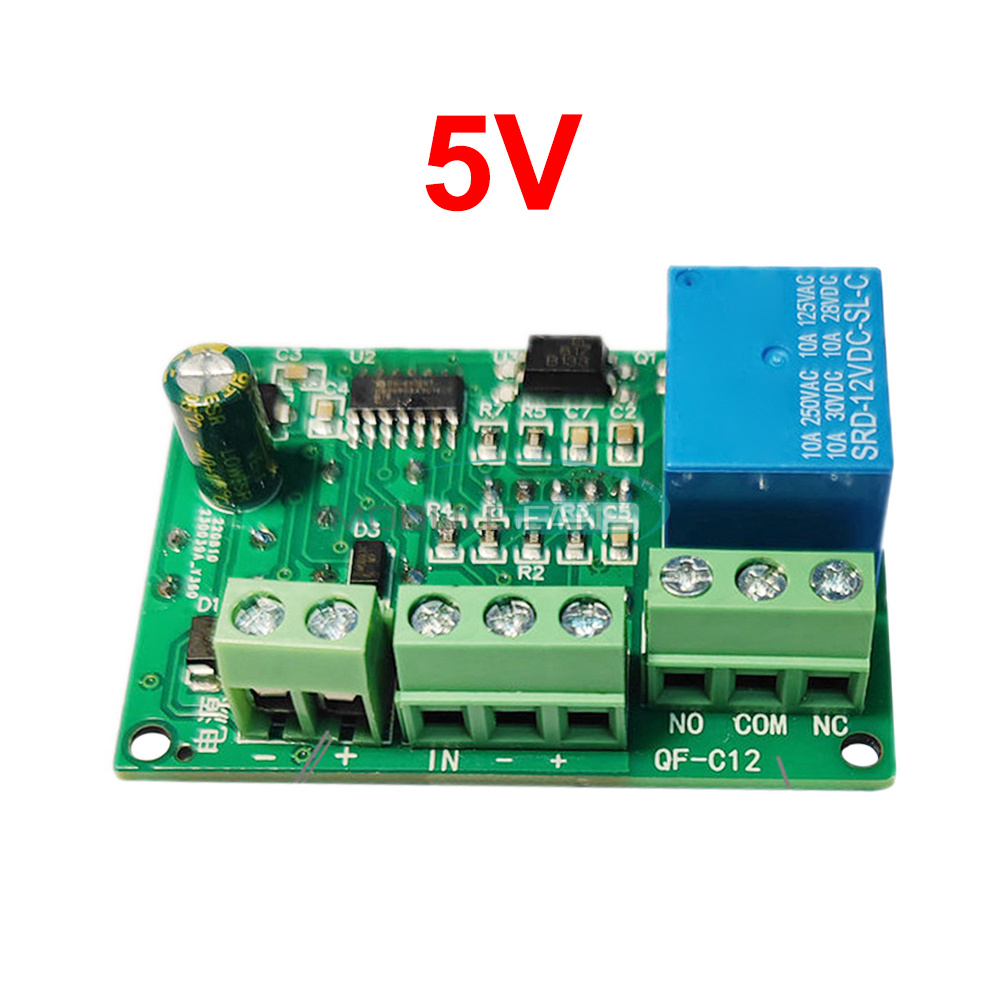

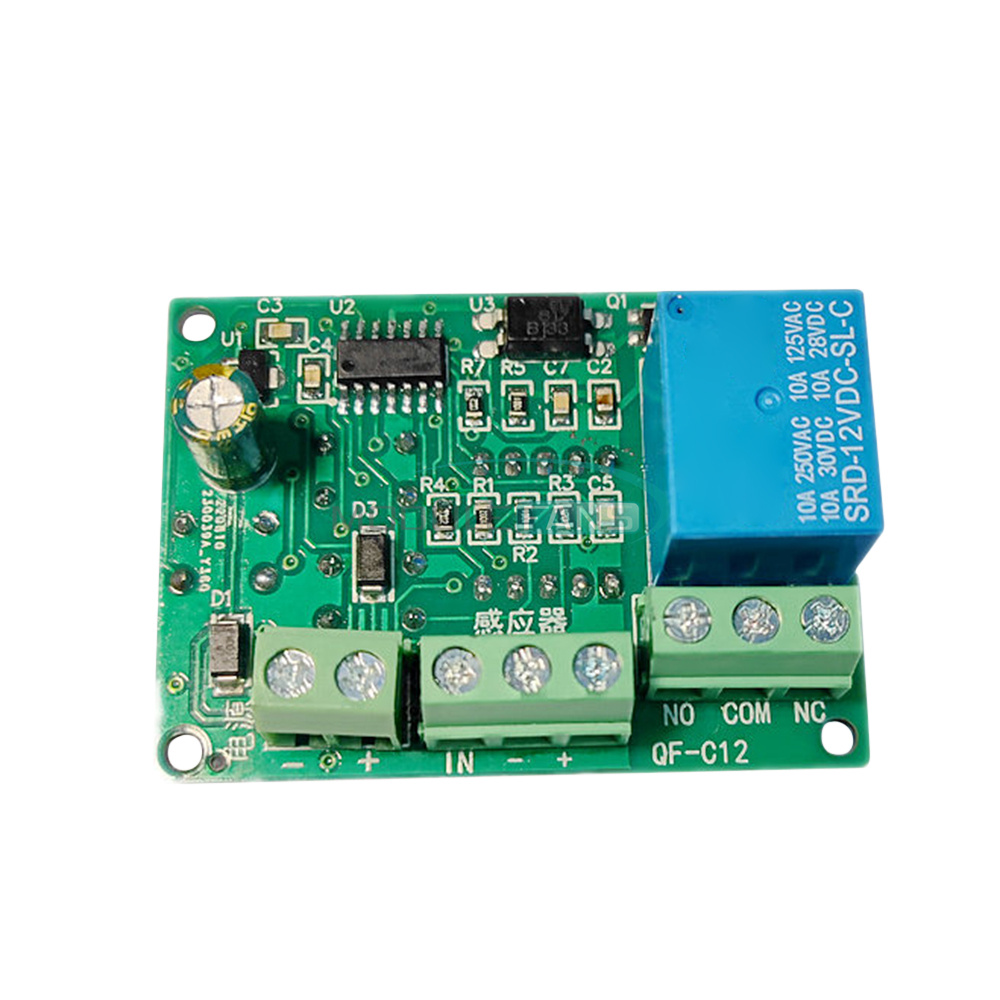

DC 5V 12V 24V 10A 2-digit Counter Module With Relay Output 0.36" Digital Display


Features
Counting range 1-99, with memory, the next power up will be tuned into the last set number of settings
Stable circuit to ensure stable and reliable power supply
Low level / NPN input, low level valid
With 0.36-inch 2-digit red light digital display, easy to use
It can adapt to various environments and temperatures in electrical appliances and can work in environments from -25°C to +85°C.

Specification

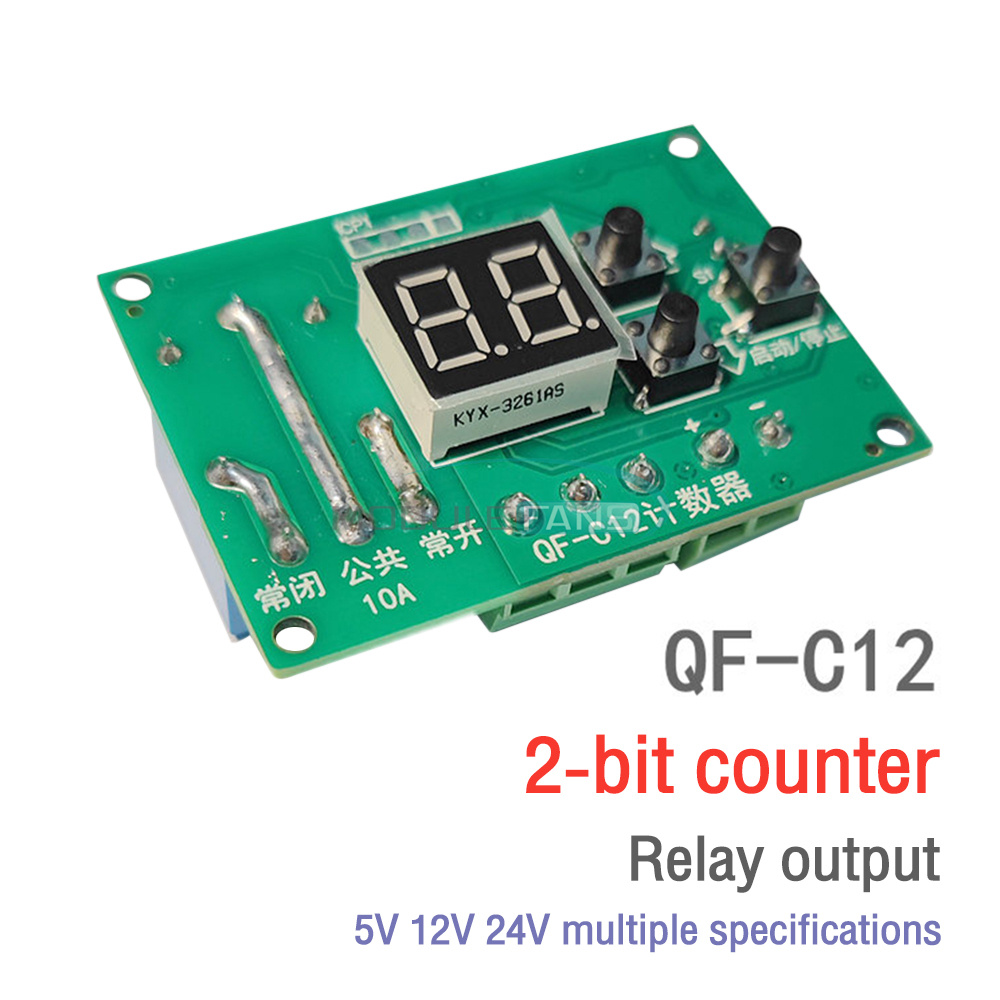

Name: 2-digit counter (relay output type)

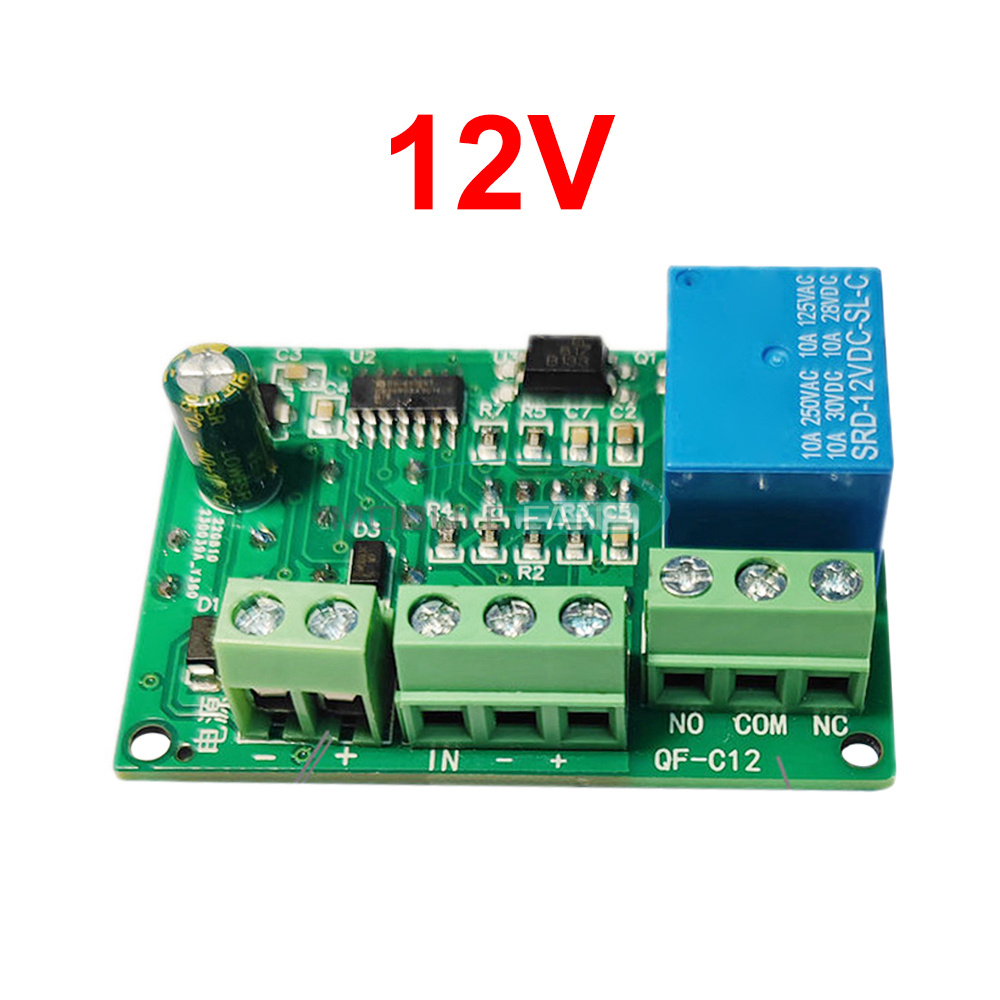

Voltage: 5V, 12V, 24V and other voltages are available
Operating current: 60mA (12V version), 40mA (24V version), 20mA (5V version)
Signal mode: low level / NPN input, low level valid (connected to NPN-NO sensor, or ordinary button switch)
Response speed: 10mS
Counting speed: 10 times per second
Output mode: 10A normally open + normally closed, isolated from the power supply side

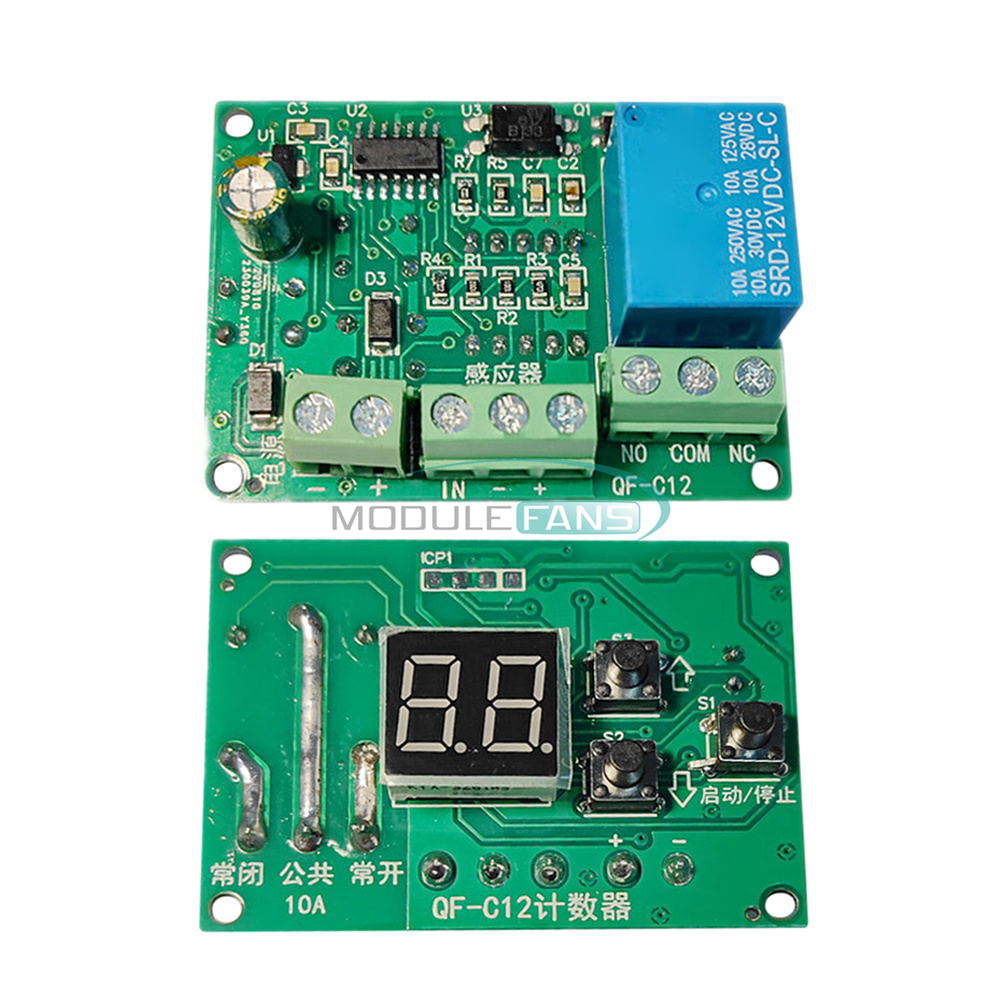

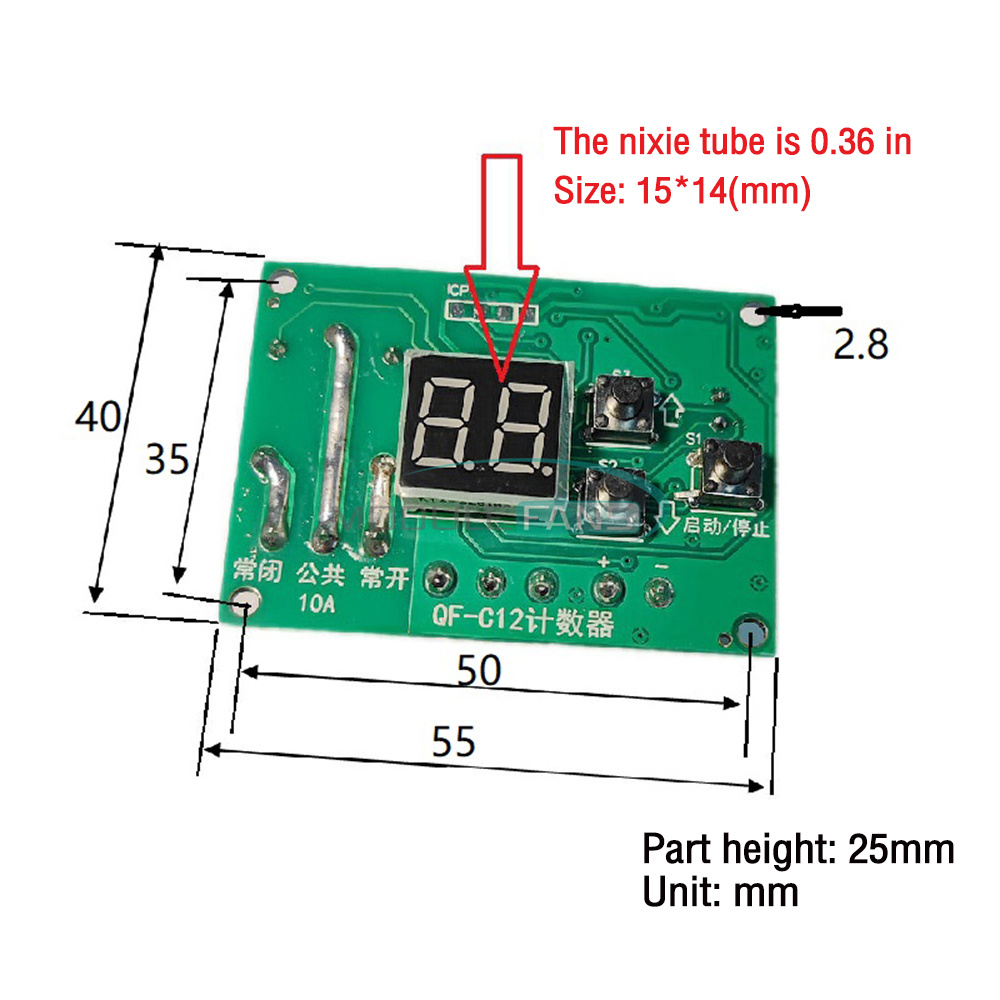

Display: 0.36 inch 2-bit red light

Function description

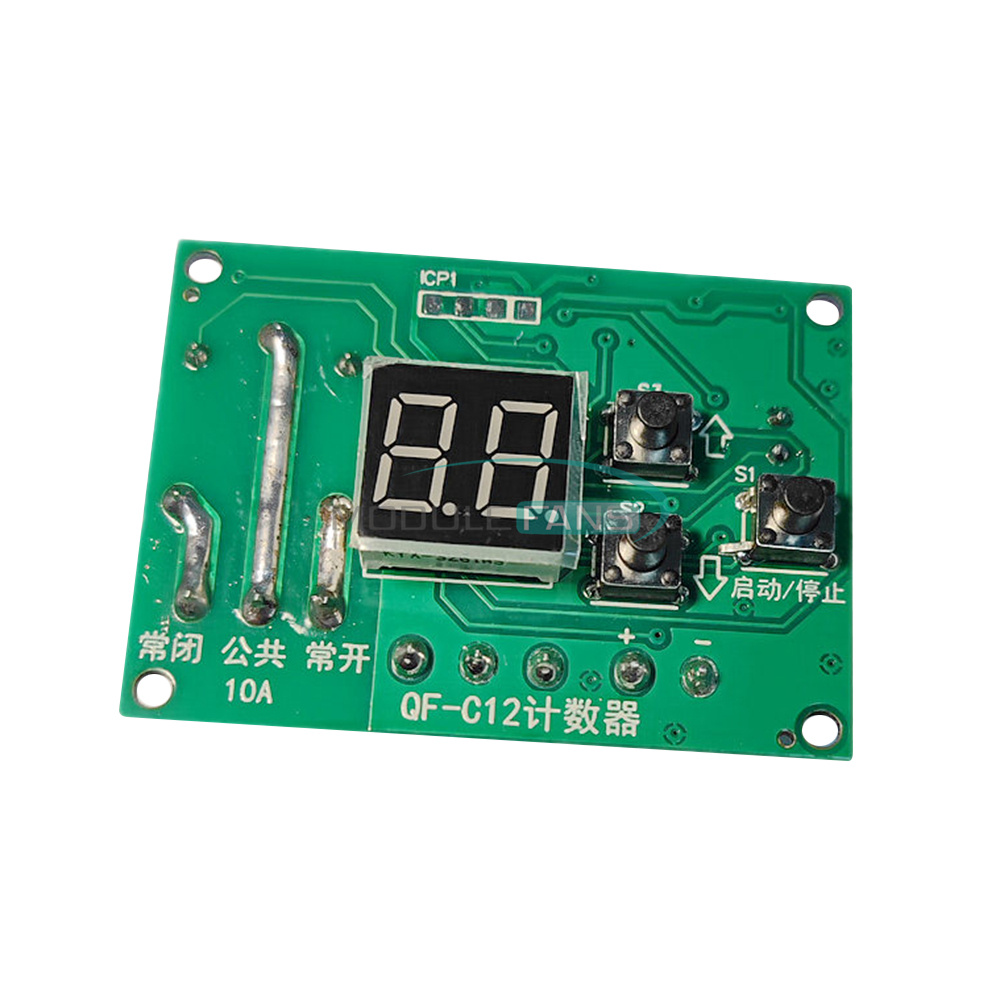

When not working, use <Up> and <Down> keys to set the count, range 1-99.
-- The set value will take effect immediately and be saved.
--With memory, the next power up will be set to the last set count setting. --Values can be set only in the stopped state.
The <Start/Stop> key is used to start and stop counting. Pressing it once will start the operation, at this time:--Relay will turn on immediately.
-- will start counting from 0 and wait for signal input, each signal input will be value +1 -- when the count reaches the set value, the relay is disconnected.
During the counting process, pressing this key will enter the pause state (relay disconnected) and will not respond to the count.
In the pause state, pressing this key will enter the continue operation state (relay back on), responding to the count.
Long press this key, the count value will return to 0

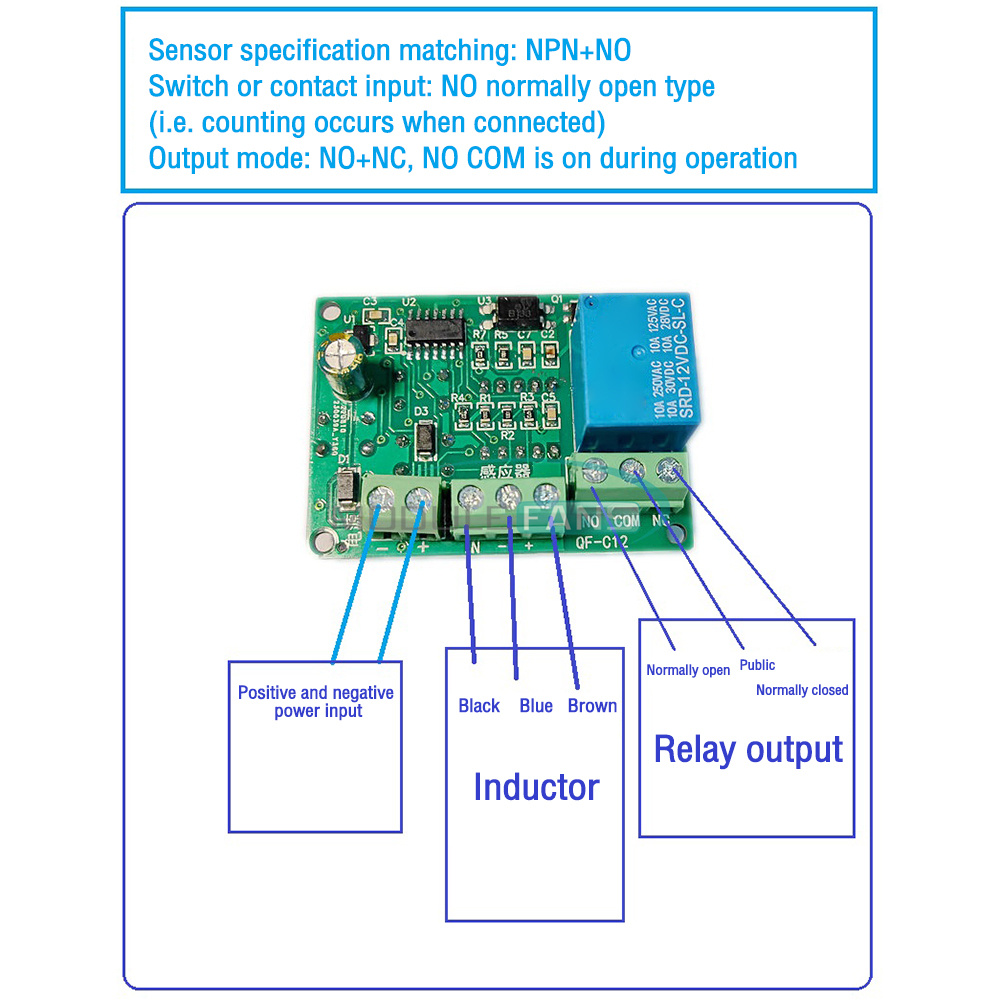

Sensor specification matching: NPN+NO (this product does not include sensor)
Switch or contact input: NO normally open type ((i.e. generating count when on))

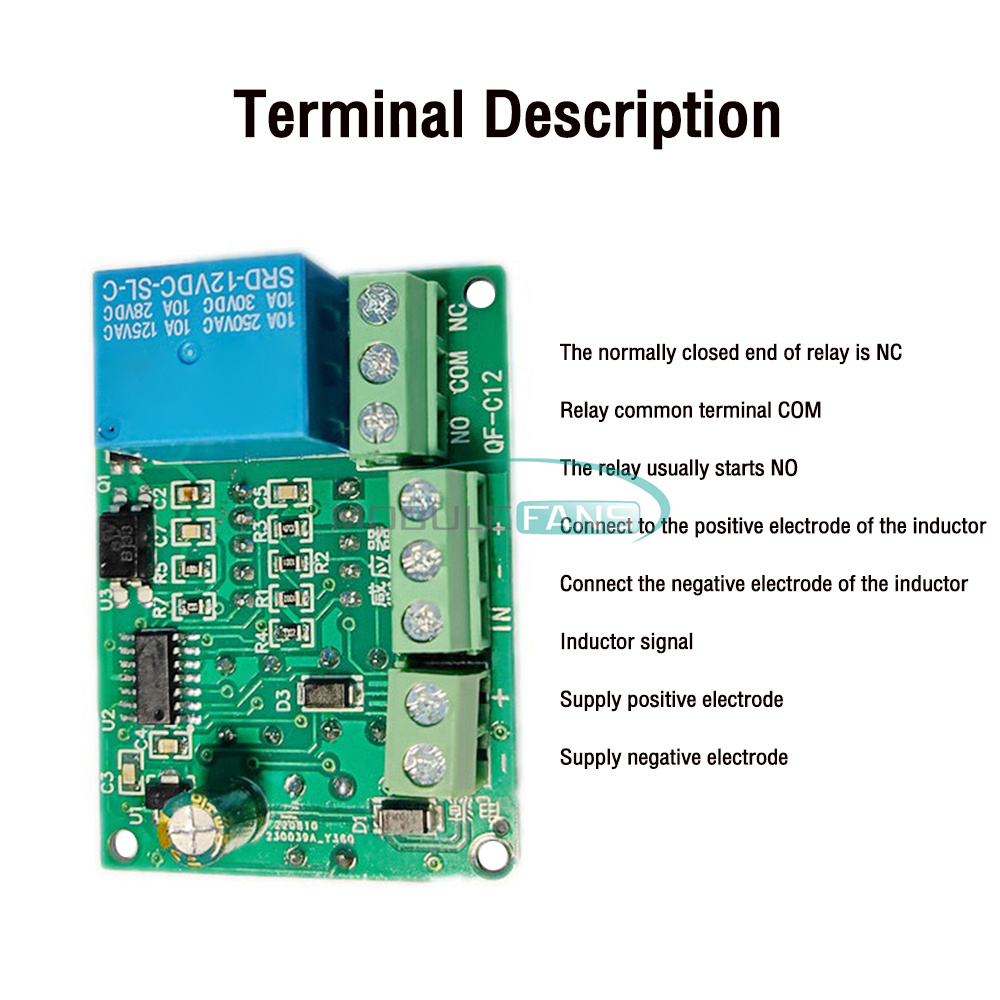

Output type:NO+NC, NO-COM on when working

List
1 x Relay Module
