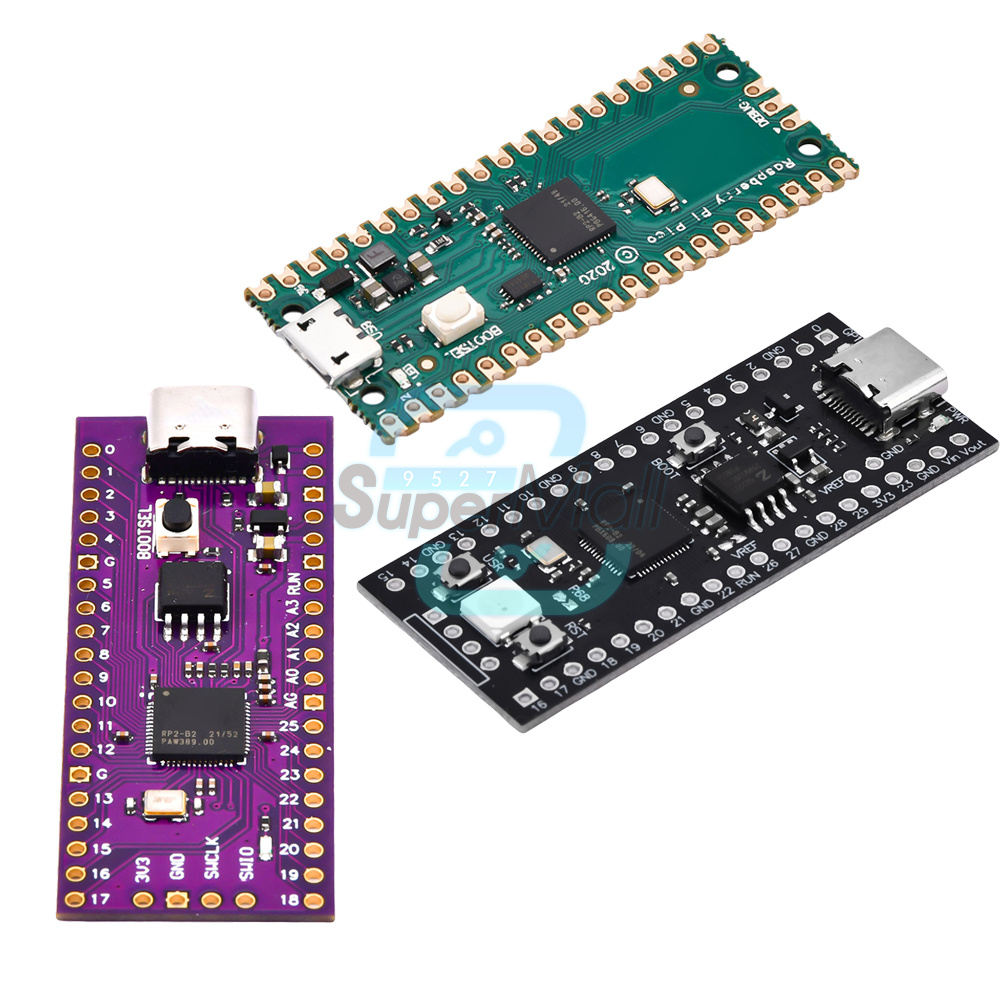

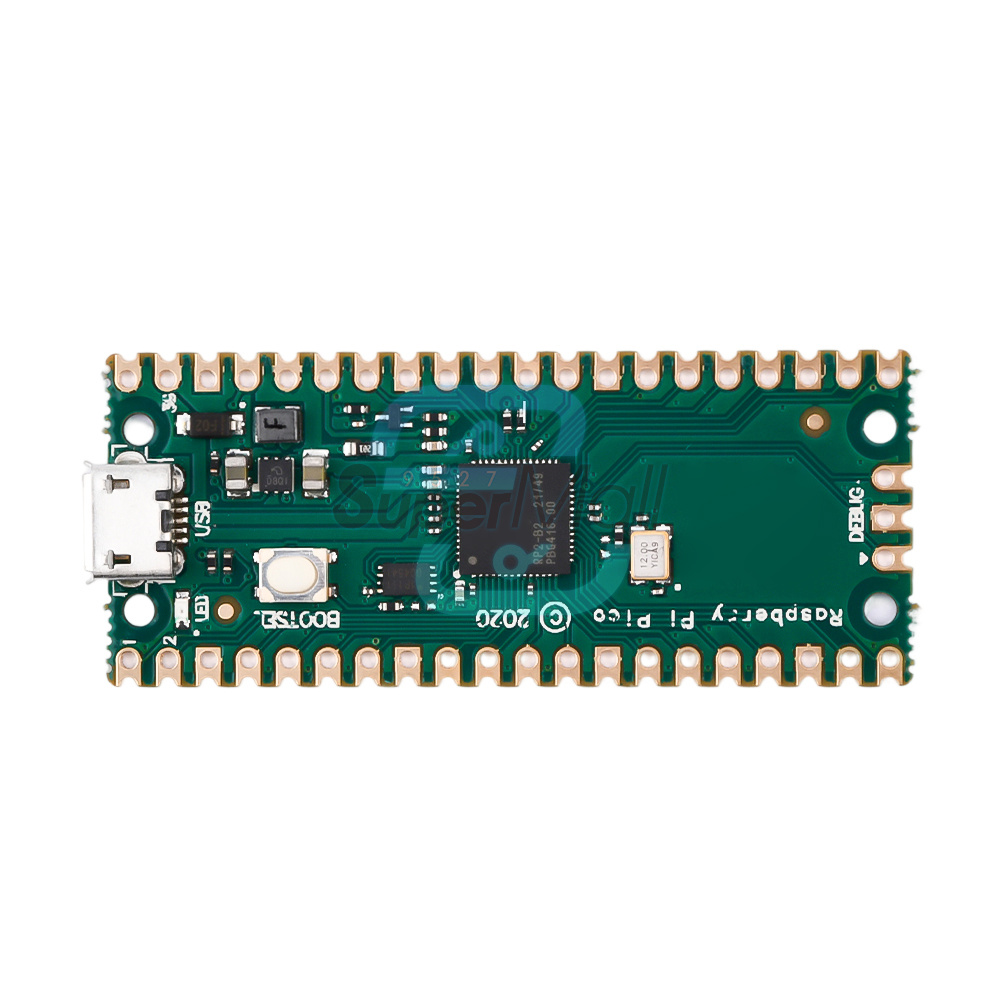

Style 1: Green microcontroller development board
Product Description:
Product Name: Raspberry Pi Pico
Control chip: RP2040 (ARM Cortex MO+ dual-core 133MHz processor, 264KSRAM)
Flash: 2MByte
USB port: Micro-USB
Power supply: USB-5V, vSYS-1.8V-5.5V
Power supply voltage: 5V
Output power: 5V/3.3V
GPIO level: 3.3V
Operating current: no more than 300mA
Operating temperature: -20℃-80℃
Number of pins: 40Pin
ADC precision:12-bit 500KPS ADC
Development language: MicroPython, C, C++
Burning method: identified as large content memory palletized download
Development environment: Visual Studio Code, Eclipse
Product size: 51mm*21mm
Product Name: Raspberry Pi Pico
Control chip: RP2040 (ARM Cortex MO+ dual-core 133MHz processor, 264KSRAM)
Flash: 2MByte
USB port: Micro-USB
Power supply: USB-5V, vSYS-1.8V-5.5V
Power supply voltage: 5V
Output power: 5V/3.3V
GPIO level: 3.3V
Operating current: no more than 300mA
Operating temperature: -20℃-80℃
Number of pins: 40Pin
ADC precision:12-bit 500KPS ADC
Development language: MicroPython, C, C++
Burning method: identified as large content memory palletized download
Development environment: Visual Studio Code, Eclipse
Product size: 51mm*21mm
Package includes.
1X development board
1X development board

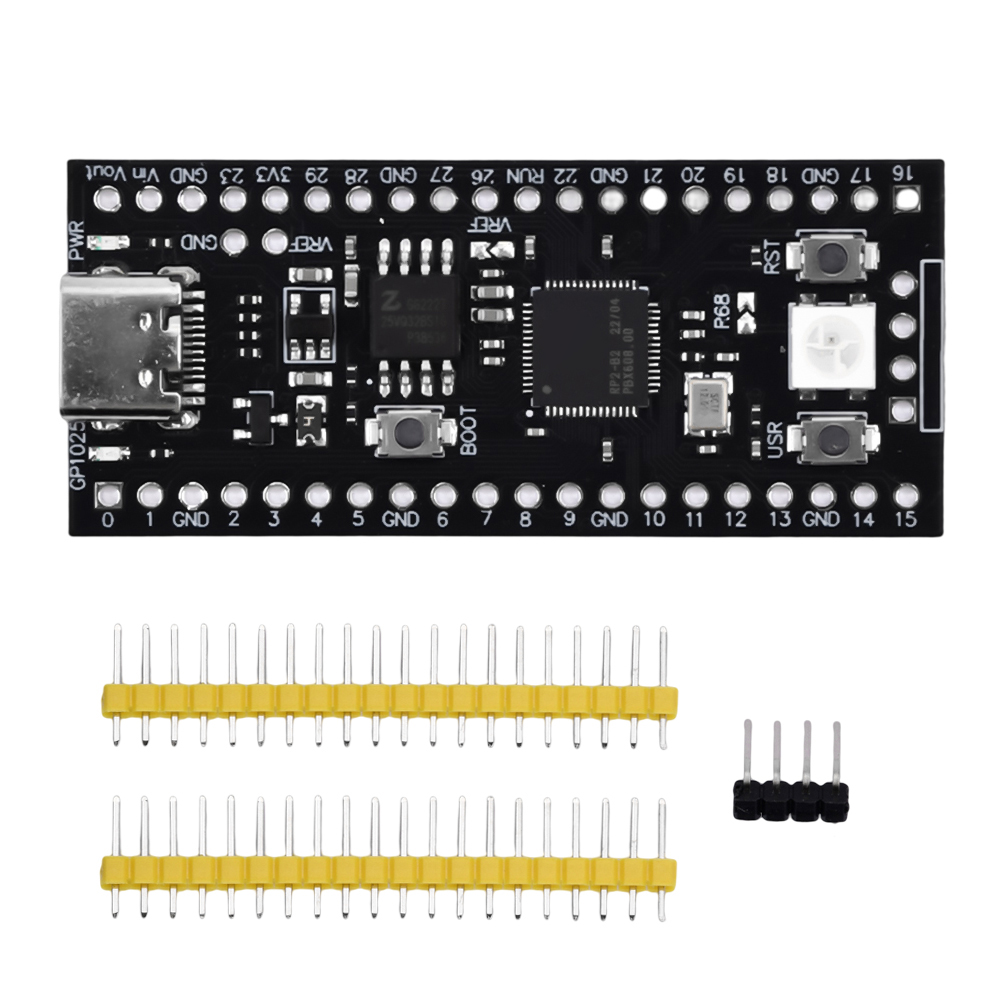

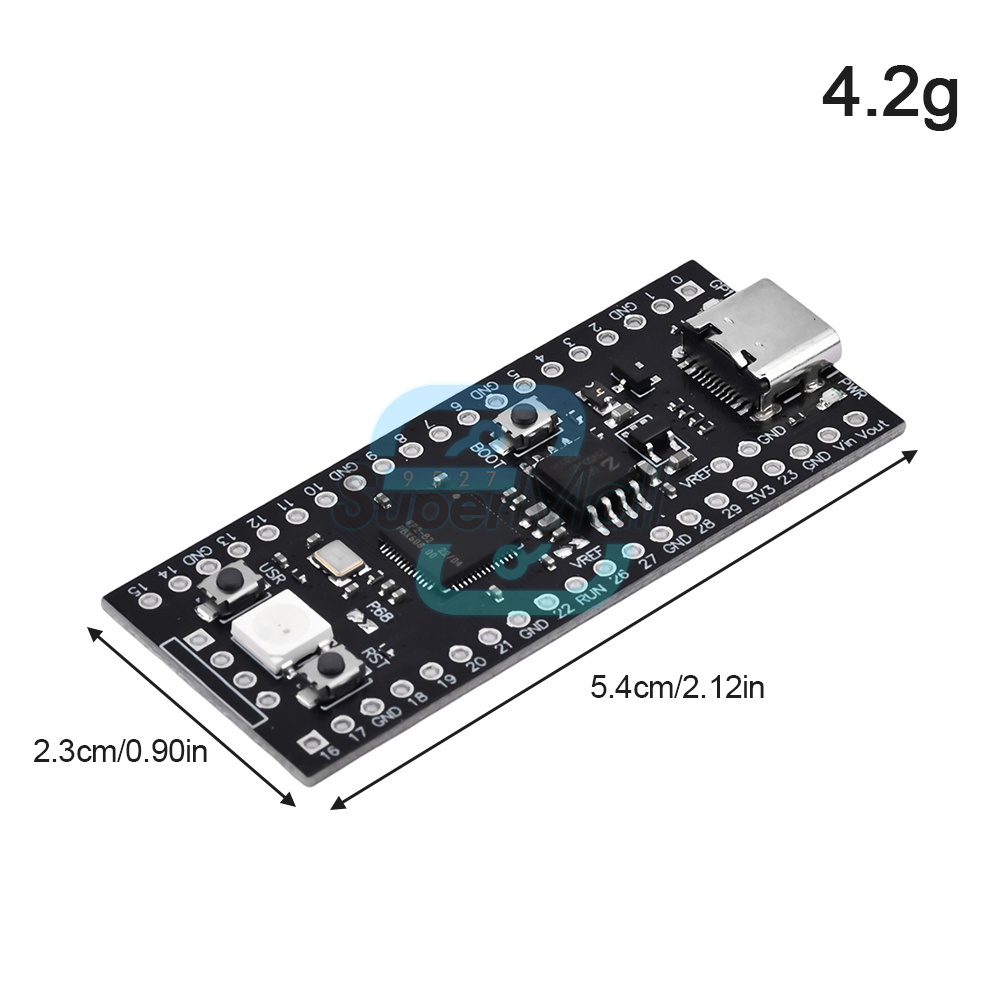

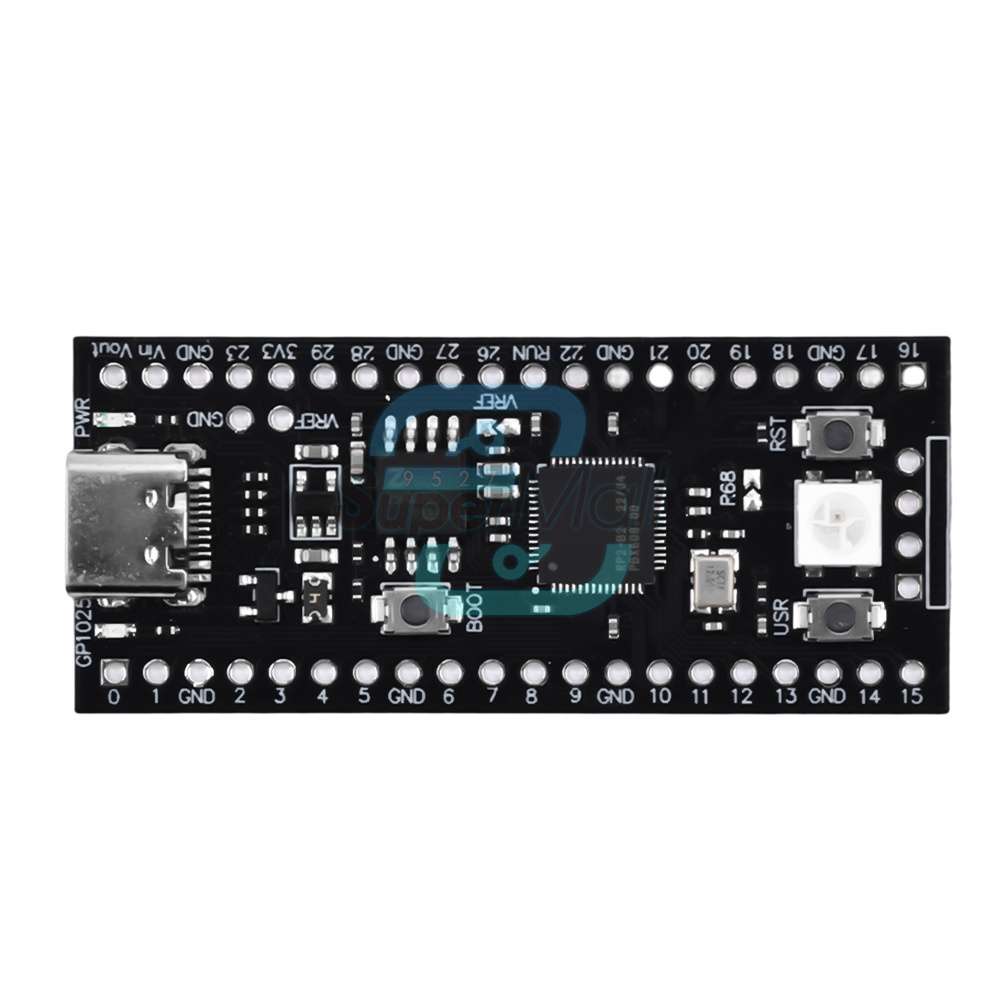

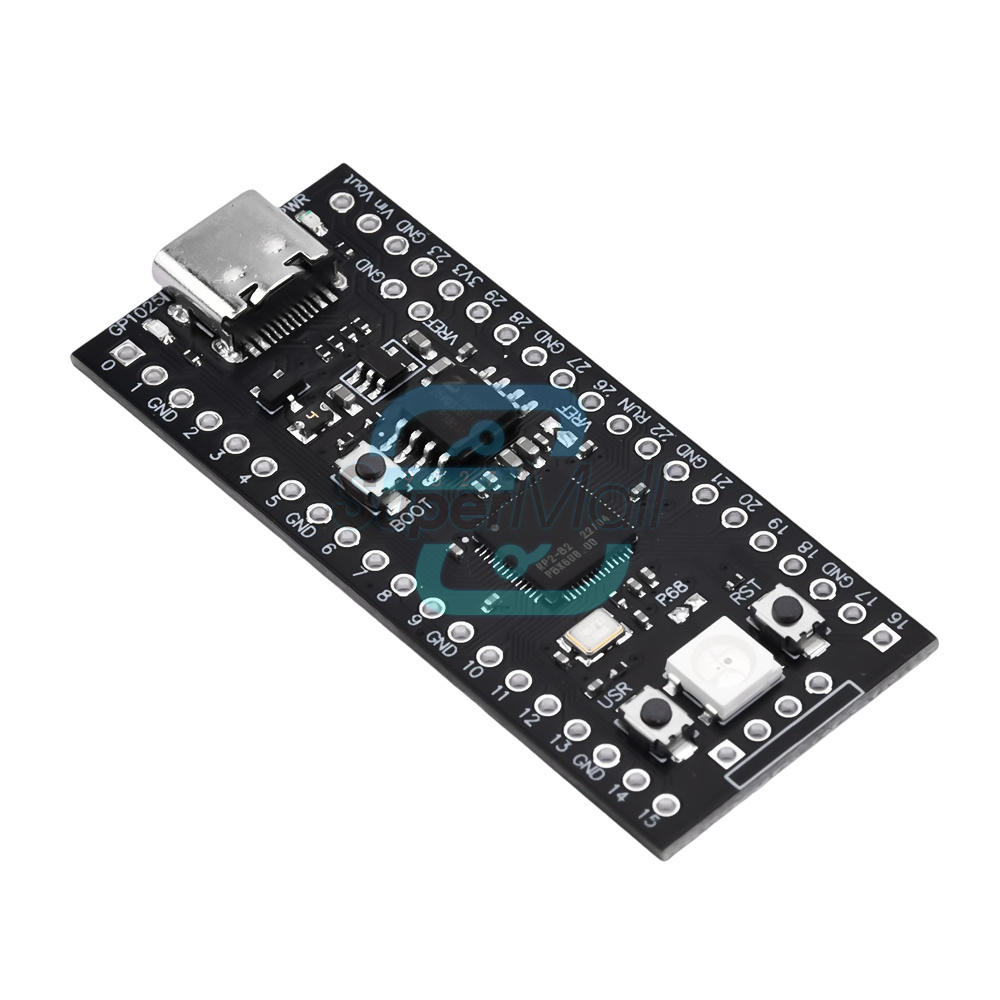

Style 2: YD-RP2040 core board: 4MB, 16MB
Product Features:
Can python fast programming C programming language
Dual-core Cortex-MO+ low power consumption, high performance
Type-C interface
WS2812-RGB light set, PWR power indicator
User button key
Can python fast programming C programming language
Dual-core Cortex-MO+ low power consumption, high performance
Type-C interface
WS2812-RGB light set, PWR power indicator
User button key
Parameter Description:
RP2040 microprocessor (MCU) integrated with dual-core ARM architecture Cotex-MO+ core, internal integrated 264KB RAM, support up to 16M QSPI external expansion Flash, highly flexible I/O settings, including l2C, SPI, PIO (programmable l/O).
RP2040 microprocessor (MCU) integrated with dual-core ARM architecture Cotex-MO+ core, internal integrated 264KB RAM, support up to 16M QSPI external expansion Flash, highly flexible I/O settings, including l2C, SPI, PIO (programmable l/O).
Key Specifications.
Dual-core ARM Cortex-MO+ 133MHz
264kB internal SRAM distributed in 6 independent blocks
Max 16MB external QSPI Flash expansion with 4M/8M/16M selectable DMA manager
Directly connected AHB bus with full interpolator and integer divider
On-chip programmable LDo to generate core voltage
2 on-chip PLL phase-locked loops for USB and core clock generation

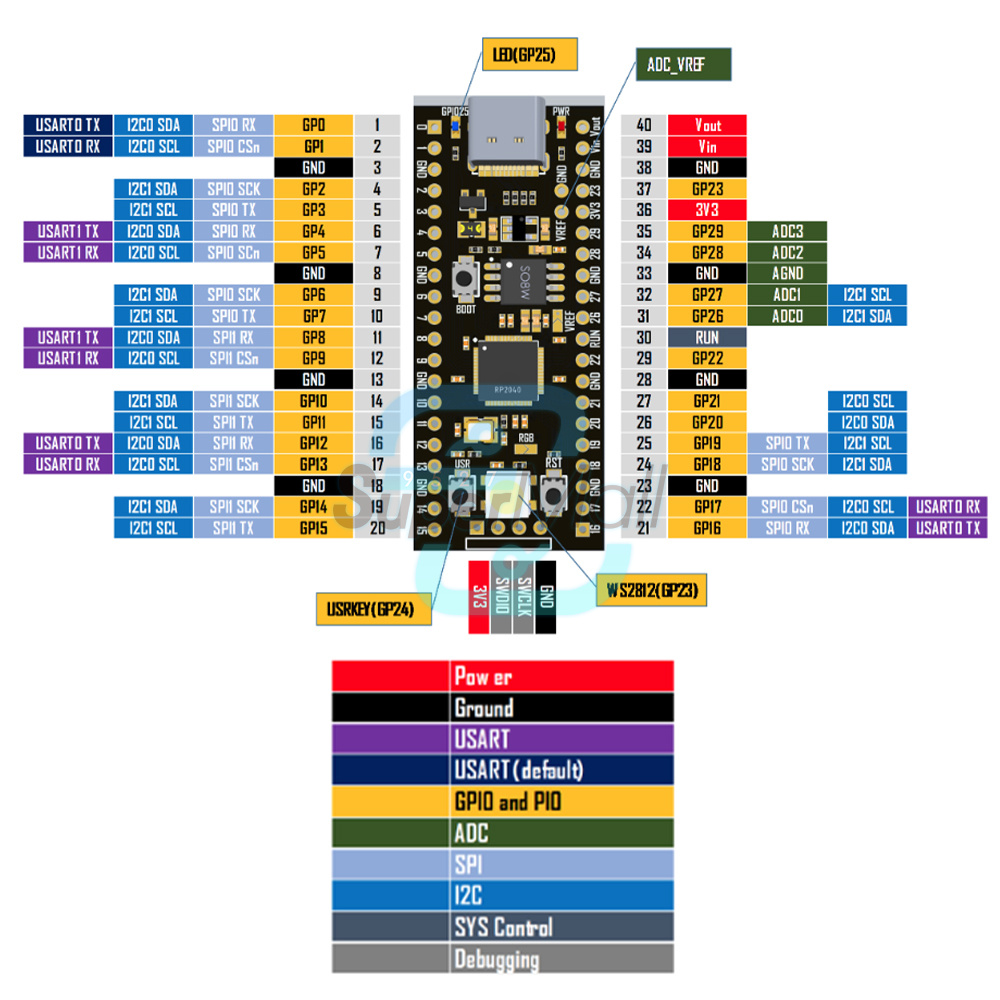

30 GPIO pins, 4 of which can be used as analog inputs
Peripherals: 2 serial ports/2 SPI/2 l2C/16 PWM channels/USB 1.1 controller and PHY, host mode and slave mode support/8 PIO state machines
USB cable usage instructions
YD-RP2040 core board on-board USB port for Type-C interface and computer can communicate and power supply
Cable can be used: USBA type to Type-c cable or CC cable
Dual-core ARM Cortex-MO+ 133MHz
264kB internal SRAM distributed in 6 independent blocks
Max 16MB external QSPI Flash expansion with 4M/8M/16M selectable DMA manager
Directly connected AHB bus with full interpolator and integer divider
On-chip programmable LDo to generate core voltage
2 on-chip PLL phase-locked loops for USB and core clock generation
30 GPIO pins, 4 of which can be used as analog inputs
Peripherals: 2 serial ports/2 SPI/2 l2C/16 PWM channels/USB 1.1 controller and PHY, host mode and slave mode support/8 PIO state machines
USB cable usage instructions
YD-RP2040 core board on-board USB port for Type-C interface and computer can communicate and power supply
Cable can be used: USBA type to Type-c cable or CC cable

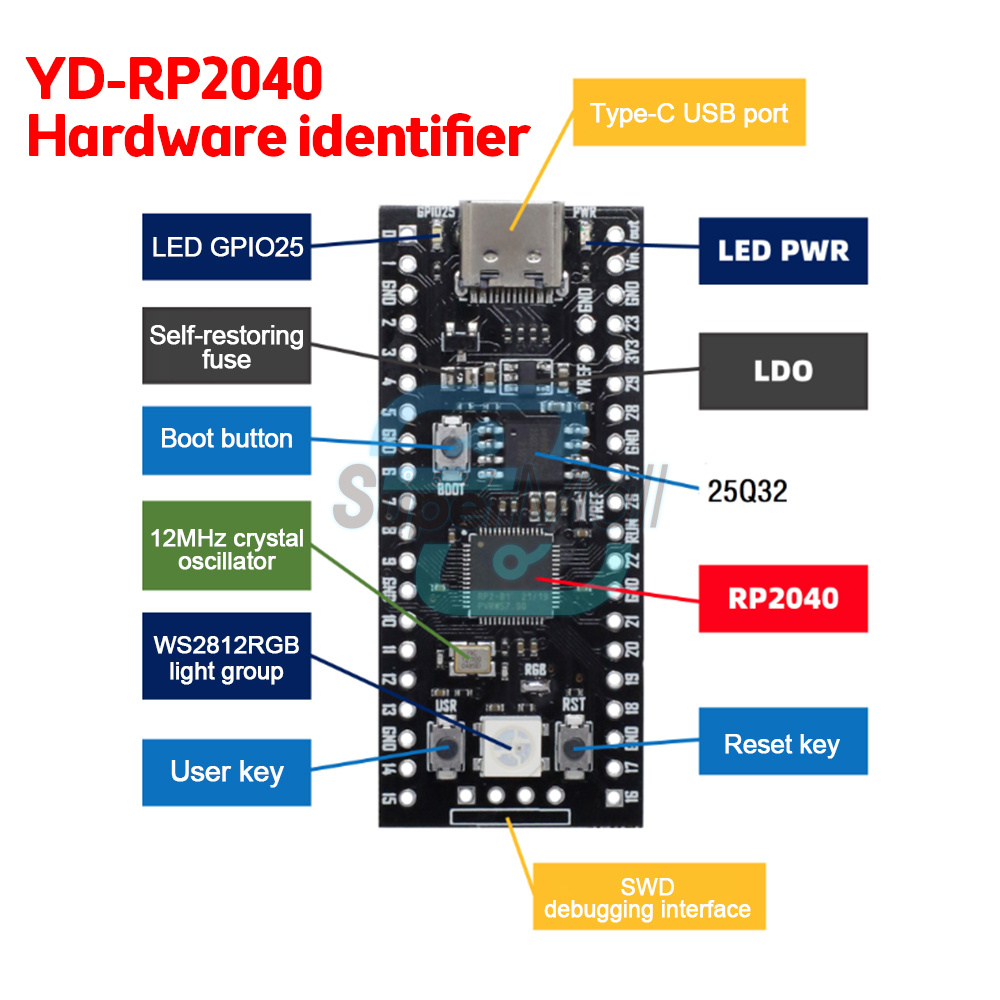

Functional description;
Added PWR power indicator to improve the human-computer interaction experience in the case of plugging in USB power supply.
Change the microUSB interface of Pi Pico to Type-cUSB interface of YD-RP2040 core board to facilitate users to find the relevant USB cable more conveniently.

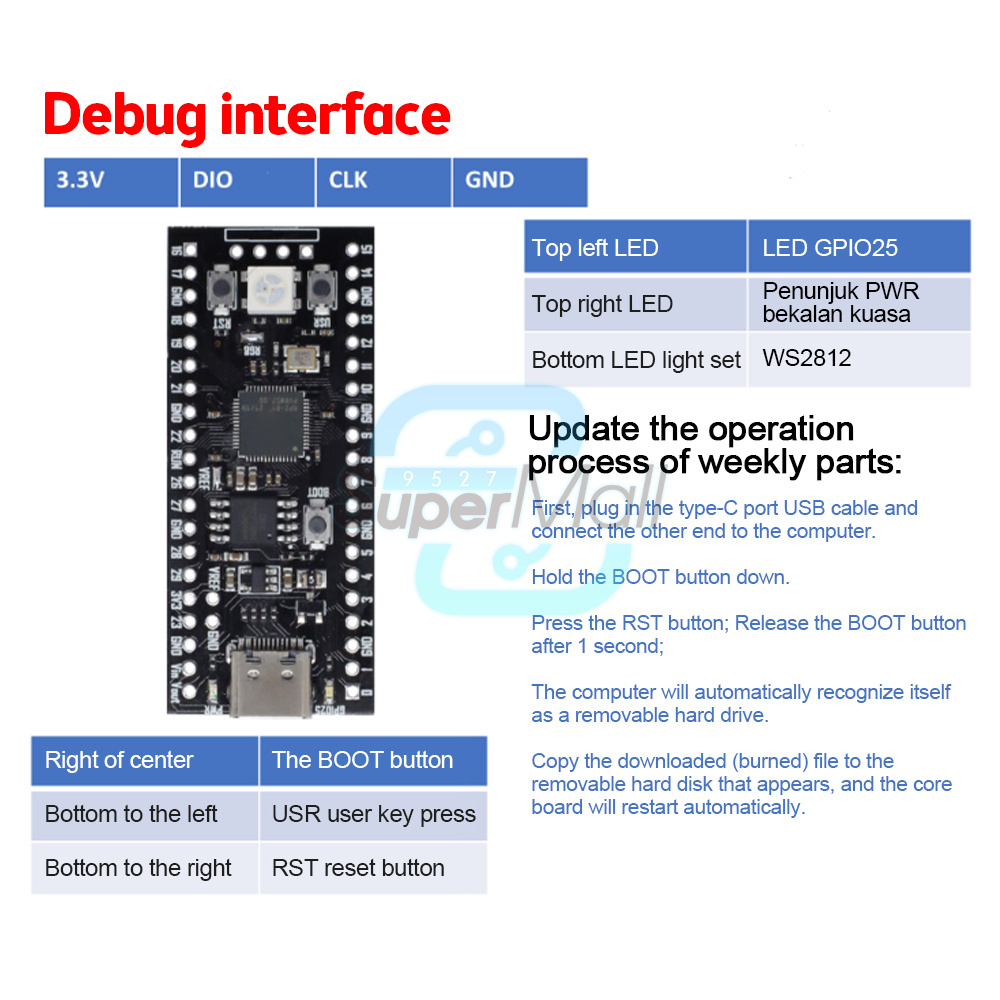

Add the reset button to facilitate users to reset and update the firmware in the power-on state. Add USRkey user button to facilitate users to verify and use simple input functions.
Add RGB light set, convenient for users to operate the RGB light set to reflect various information through the brightness and brightness of red, green and blue lights.
Added PWR power indicator to improve the human-computer interaction experience in the case of plugging in USB power supply.
Change the microUSB interface of Pi Pico to Type-cUSB interface of YD-RP2040 core board to facilitate users to find the relevant USB cable more conveniently.
Add the reset button to facilitate users to reset and update the firmware in the power-on state. Add USRkey user button to facilitate users to verify and use simple input functions.
Add RGB light set, convenient for users to operate the RGB light set to reflect various information through the brightness and brightness of red, green and blue lights.
Product list;
1X core board
2X single row straight pins
1X single row of curved pins
1X core board
2X single row straight pins
1X single row of curved pins

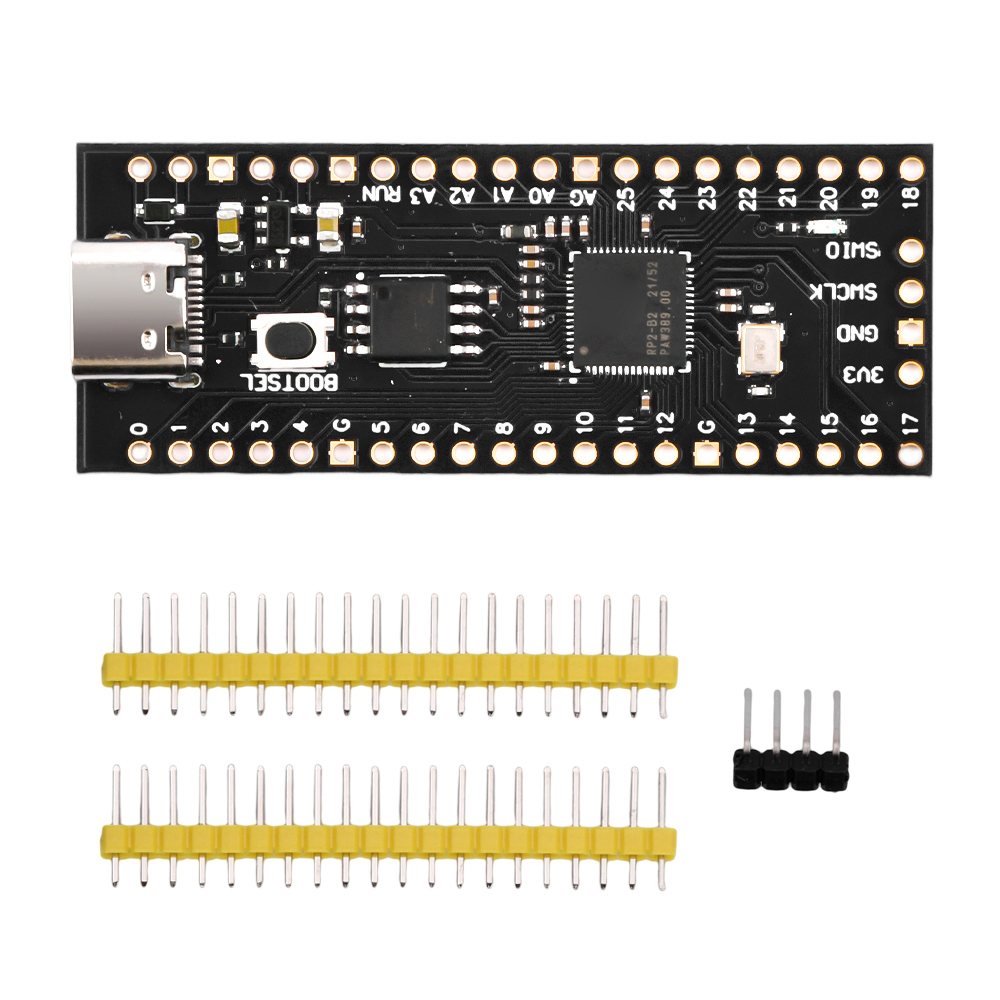

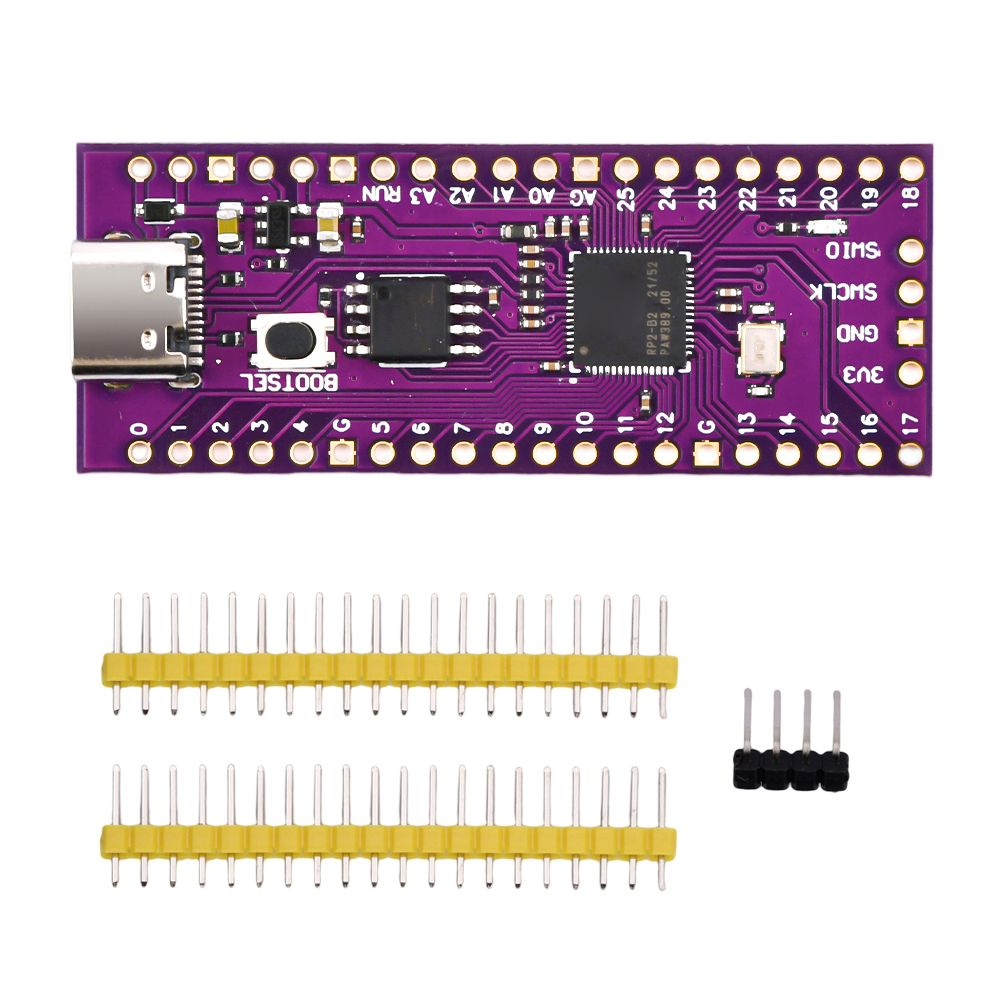

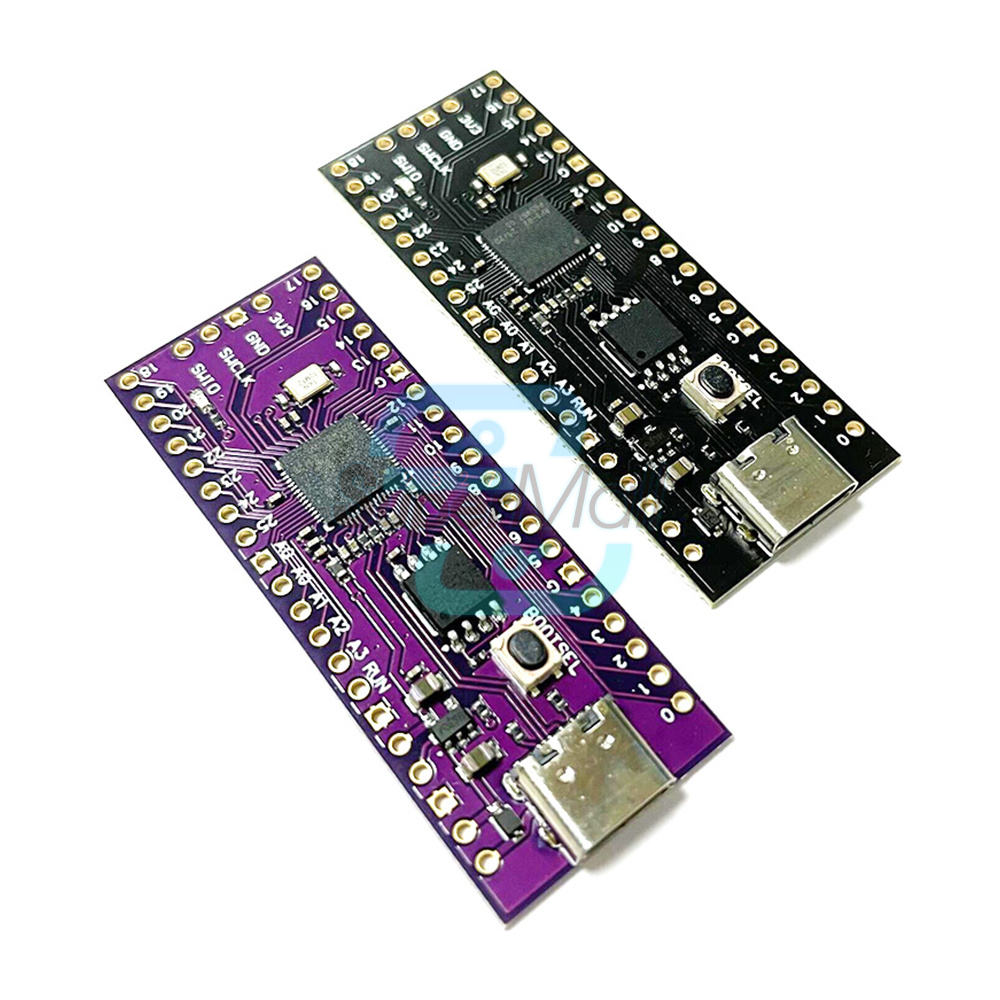

Style 3: RP2040
Product Description:
This product is a low cost, high performance microcontroller development board with flexible digital interface. Hardware, RP2040 microcontroller chip, equipped with ARM Cortex MO + dual-core processor, up to 133MHz running frequency, built-in 264KB SRAM and 2MB memory, and up to 26 multi-function GPIO pins on board. The software can be developed with C/C++ SDK or MicroPython, and there is a complete development material tutorial to facilitate quick introduction to development and embedding into the product.
This product is a low cost, high performance microcontroller development board with flexible digital interface. Hardware, RP2040 microcontroller chip, equipped with ARM Cortex MO + dual-core processor, up to 133MHz running frequency, built-in 264KB SRAM and 2MB memory, and up to 26 multi-function GPIO pins on board. The software can be developed with C/C++ SDK or MicroPython, and there is a complete development material tutorial to facilitate quick introduction to development and embedding into the product.
The main features are.
1. the use of Raspberry Pi official design RP2040 microcontroller chip
2. Equipped with dual-core ARM Cortex M0+ processor, running at 133MHz flexible clock
3. Built-in 264KB SRAM and 16MB on-chip Flash
4. USB1.1 host and device support
5. Supports low-power sleep and hibernation modes
6. Drag-and-drop program download via USB recognition for mass storage
7. Up to 30 multi-functional GPIO pins
8. 2 SPI, 2 12C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
9. Precise on-chip clock and timer
10. temperature sensor
11. On-chip accelerated floating point library
12. 8 programmable I/0 (PIO) state machines for custom peripheral support
13. MicroPython firmware already burned for direct development with MicroPython
1. the use of Raspberry Pi official design RP2040 microcontroller chip
2. Equipped with dual-core ARM Cortex M0+ processor, running at 133MHz flexible clock
3. Built-in 264KB SRAM and 16MB on-chip Flash
4. USB1.1 host and device support
5. Supports low-power sleep and hibernation modes
6. Drag-and-drop program download via USB recognition for mass storage
7. Up to 30 multi-functional GPIO pins
8. 2 SPI, 2 12C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
9. Precise on-chip clock and timer
10. temperature sensor
11. On-chip accelerated floating point library
12. 8 programmable I/0 (PIO) state machines for custom peripheral support
13. MicroPython firmware already burned for direct development with MicroPython

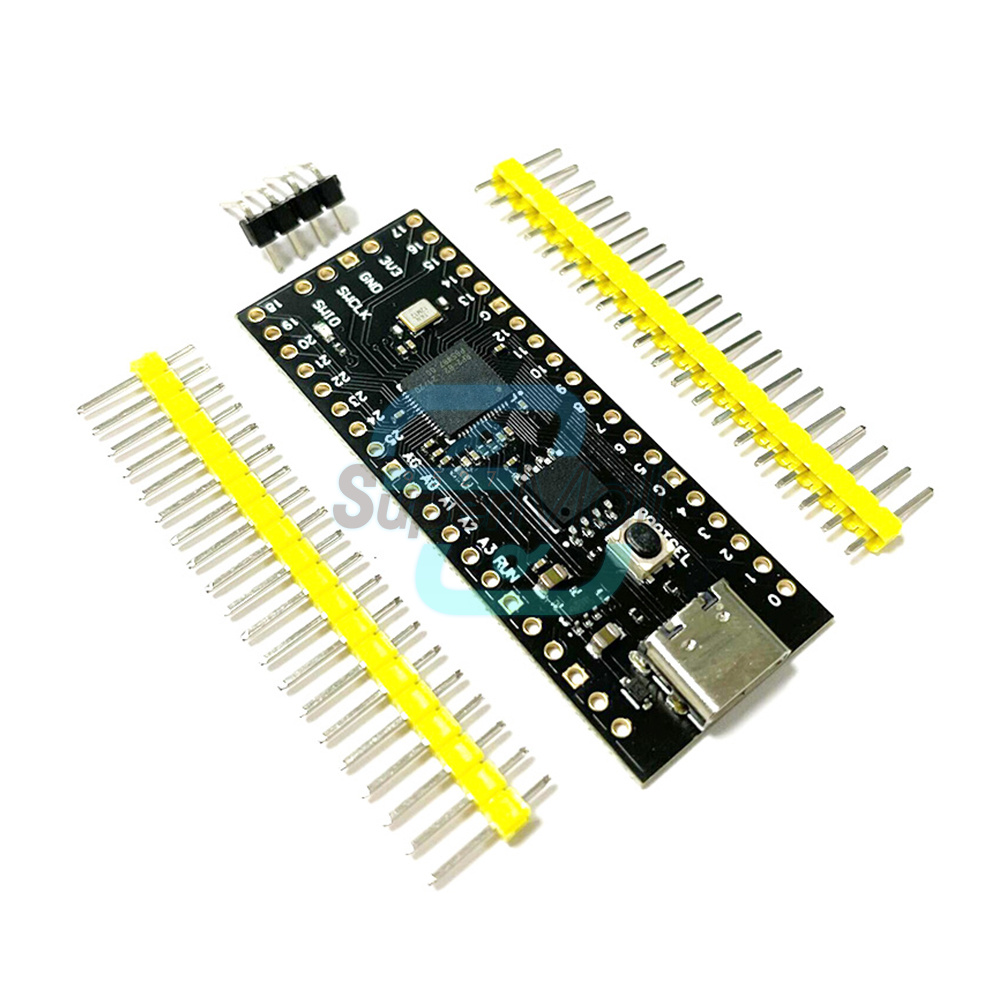

Product list;
1X core board
2X single row of straight pins
1X single row of curved pins
1X core board
2X single row of straight pins
1X single row of curved pins
