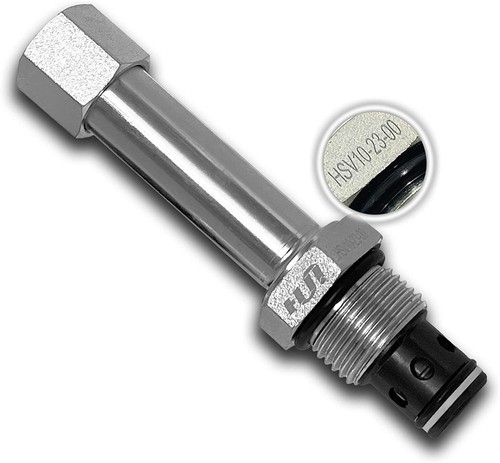

SV10-23 Cartridge Solenoid Valve, Normally-Closed, Two-Way, Two-Position, Pilot-Operated Cartridge Solenoid Valve With Reverse Flow Energized
- USA Inventory, Ship within 1 day of handling time.
- Solenoid Operated Two-Way Two-Position Poppet Type Cartridge Solenoid Valve With Reverse Flow De-energized
- SV10-23 ( SV10-23-0-N-00 ) or HSV-23 Direct Replacement
- Efficient wet-armature construction, continuous-duty solenoid
- Industry common cavity, use size 10 Solenoids (5/8″ Hole)
- Hardened seat for long life, anodized 6061-T6 aluminum alloy rated at 207 bar Steel rated at 350 bar
- Suitable fluid media: Mineral-based fluids, Fuel, Oil, Water
- Filtration: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14
- Maximum Pressure 3000 PSI, Maximum Flow Rate 18 GPM
Features and further details
Features:
- Continuous-duty solenoid.
- Efficient wet-armature construction.
- Hardened seat for long life.
- Industry common cavity.
- Compact size
Specifications:
- Maximum Pressure 3000 PSI
- Maximum Flow Rate 18 GPM
- Diameter 5/8" ( Use Size 10 Solenoids )
- Anodized 6061-T6 Aluminum Alloy Body
- Suitable media: Mineral-based fluids, Fuel, Oil, Water
- Filtrations: Critical Application - ISO 18/16/13 and Non-Critical Application - ISO 19/17/14
Dimensions:
- 4.1" x 1" x 1"
- 5/8" Diameter ( Size 10 )
Weight:
- 6.9 oz

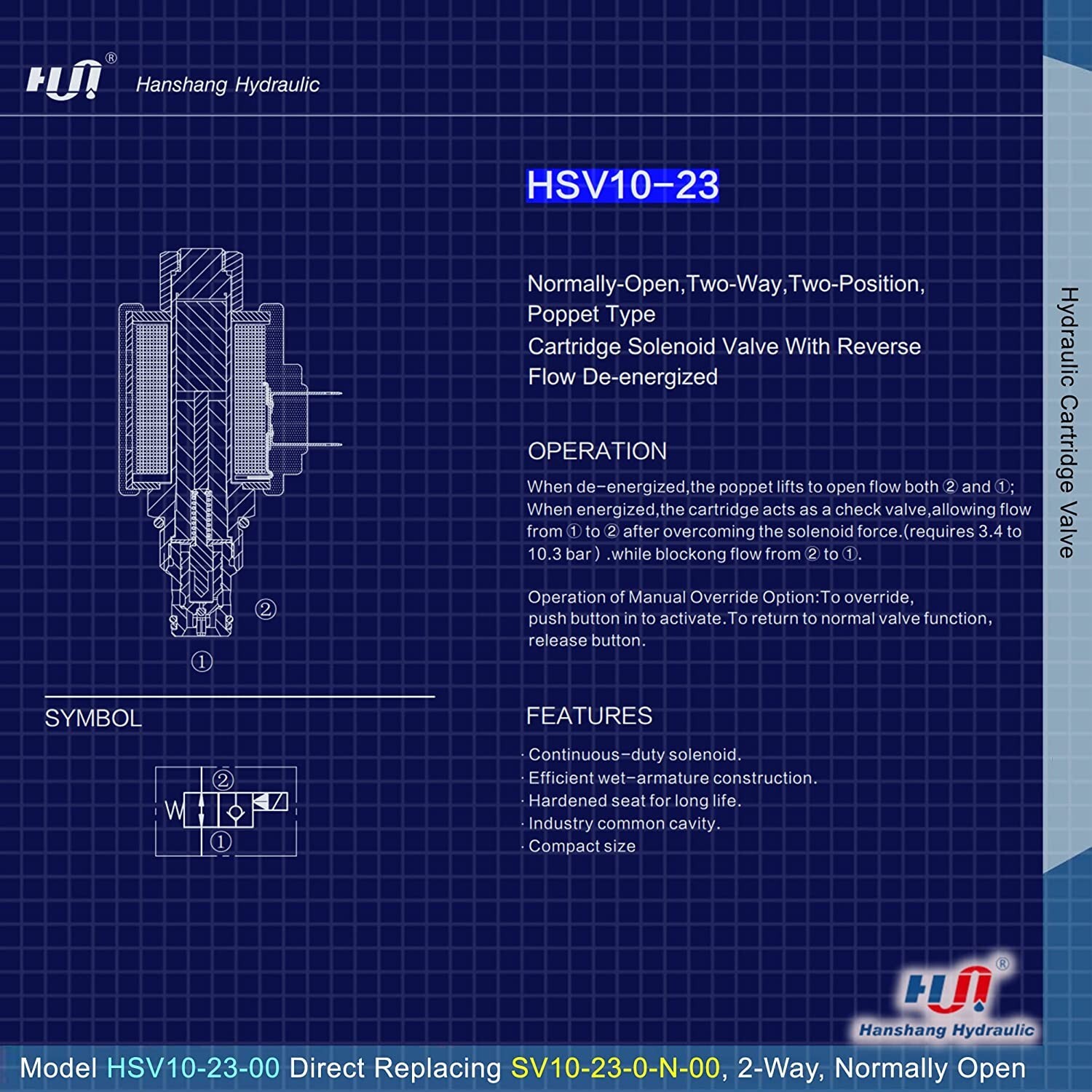

OPERATION ( See Listing Diagram Image ) :
- When de-energized, the poppet lifts to open flow both 2 and 1;
- When energized, the cartridge acts as a check valve, allowing flow from 1 to 2 after overcoming the solenoid force.(requires 3.4 to 10.3 bar). while blocking flow from 2 to 1.
Operation of Manual Override Option:
- To override, push button in to activate. To return to normal valve function, release button.
