MaXpeedingrods Racing Coilover Lowering Kit Adj. Damper for Honda CRV CR-V 02-06



Rebound Damping Force Adjustable

24 Step To Adjust Soft / Hard Adjustment According To Your Preference.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Matt Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

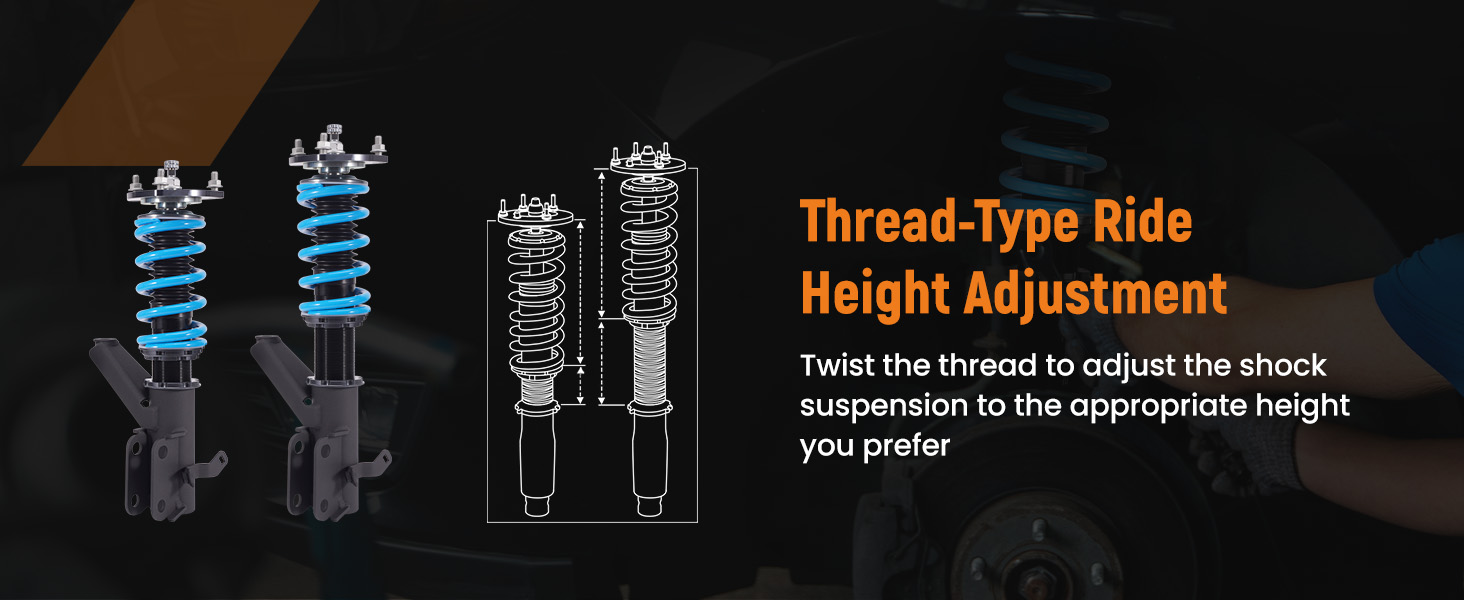

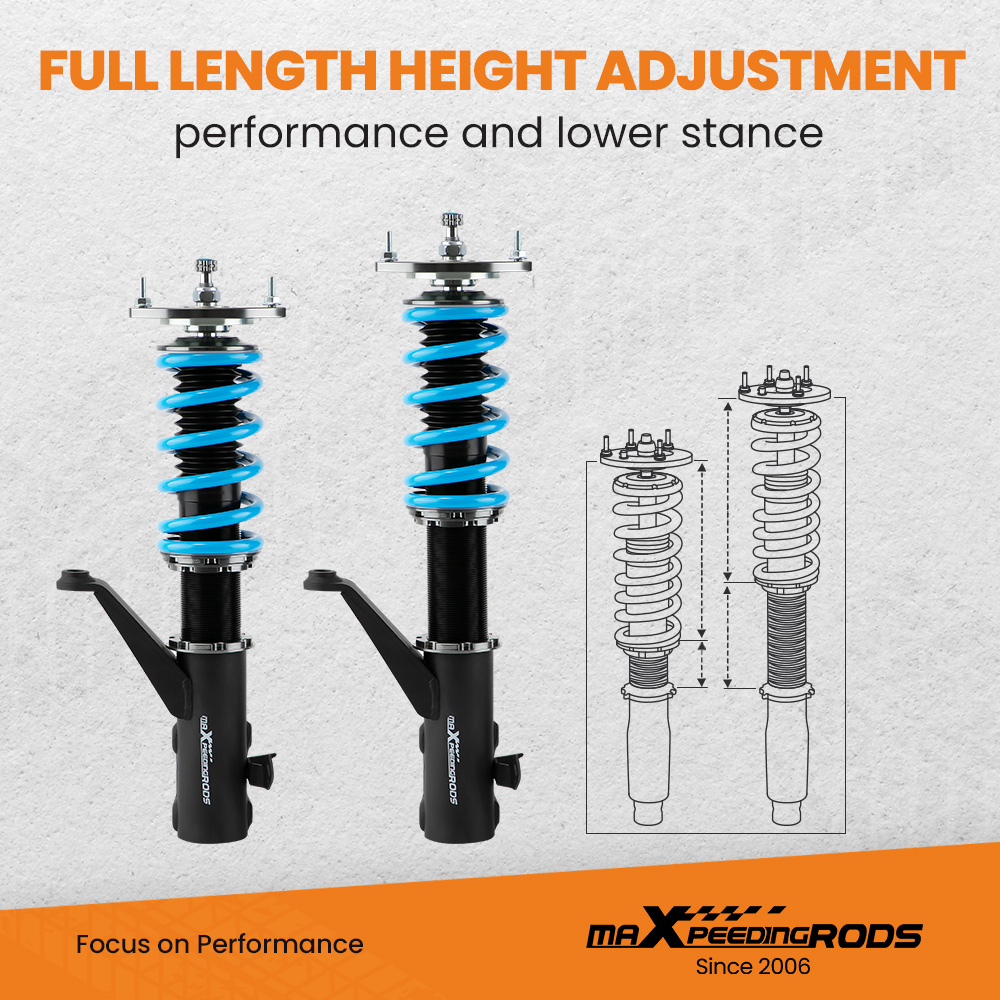

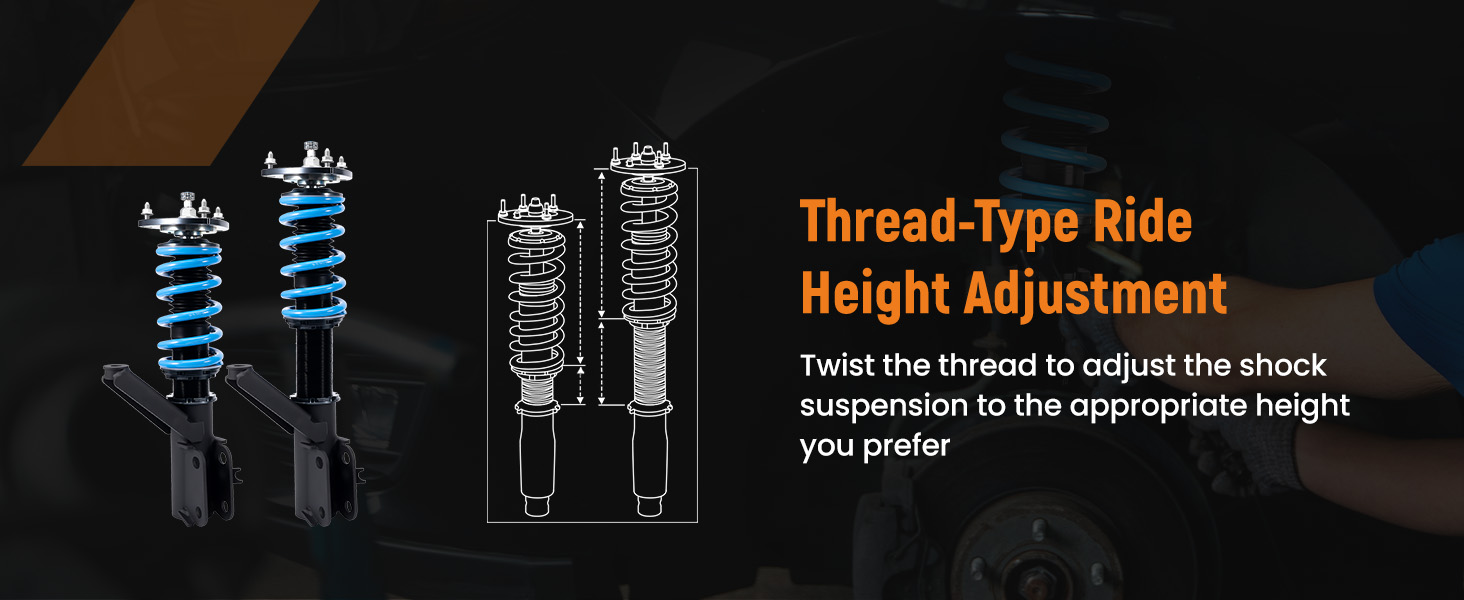

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

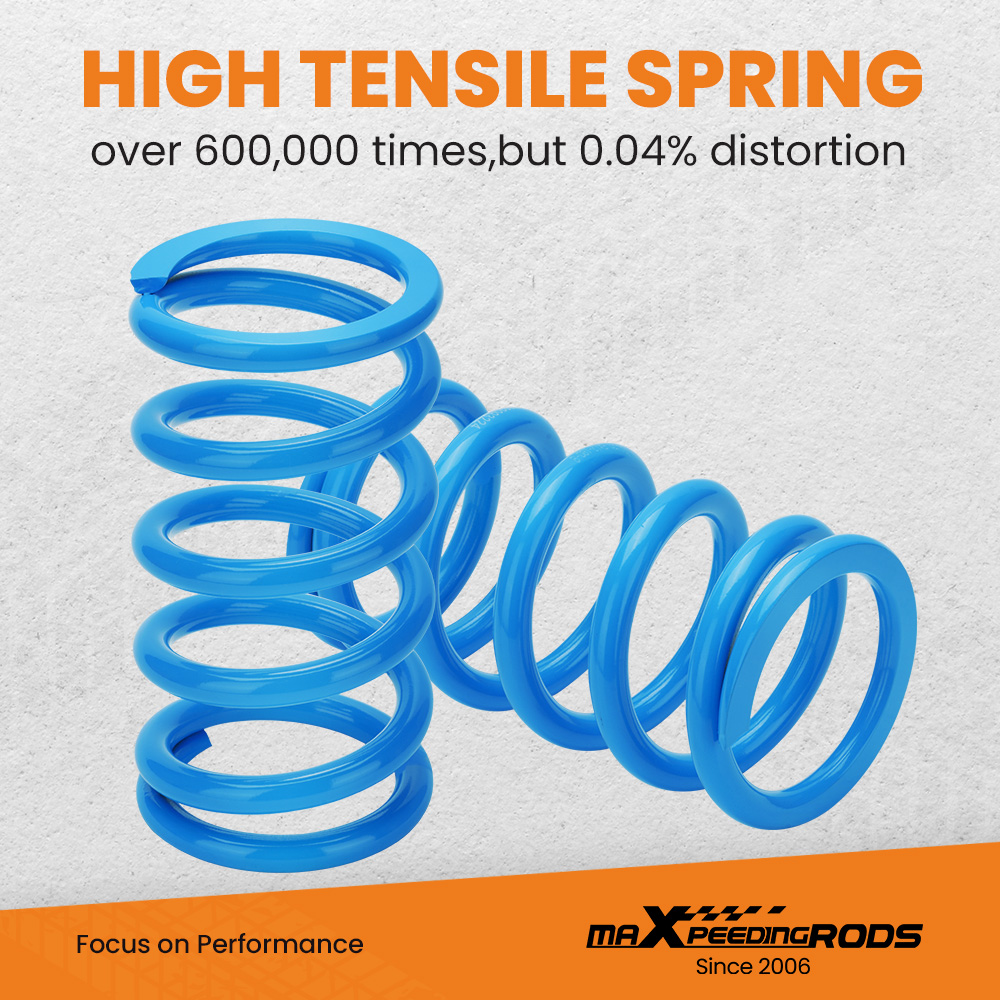

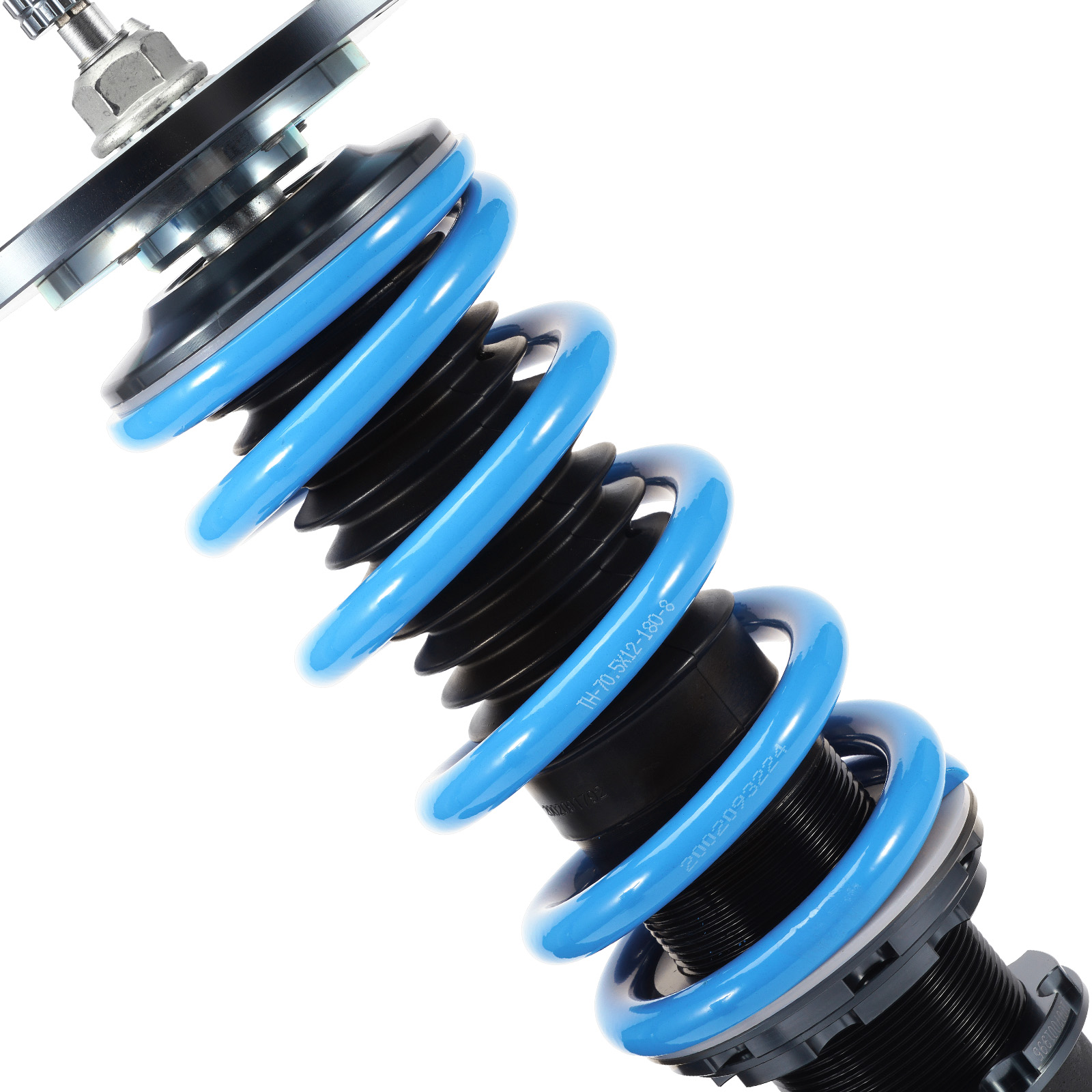

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Damping adjustable Yes, 24 levels of rebound damping force
Height adjustable Yes, Lowering 1-3 inch
Front Spring length 180 mm
Rear Spring length 140 mm
Front spring length 8 kg/mm (448 lbs/in)
Rear spring length 9 kg/mm (504 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 2 Years

Features


1. Lowered height adjustment from 1" - 3" (depends on vehicle models)which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

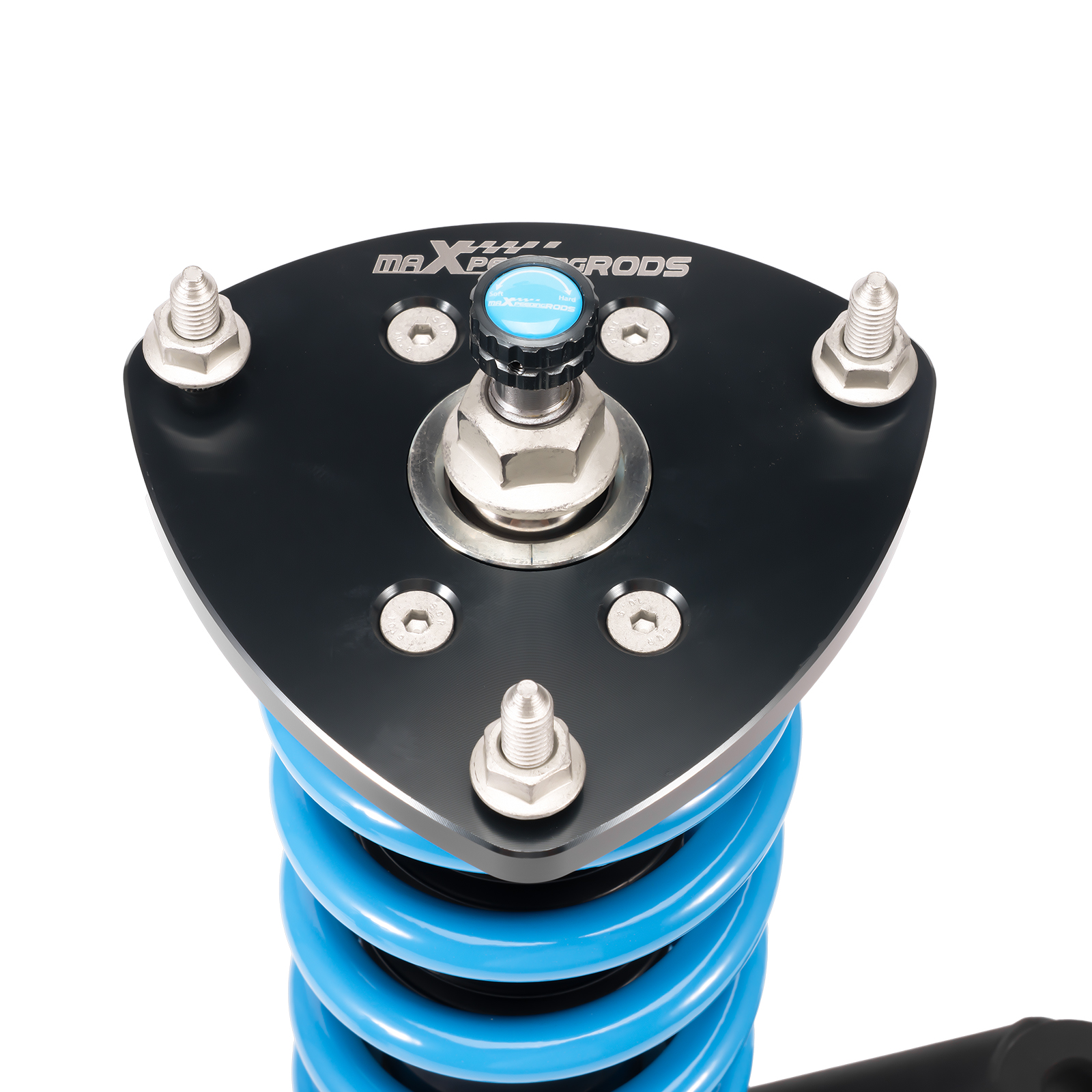

3. Pillow-Ball Top Mount Provides Sharp And Precise Handling

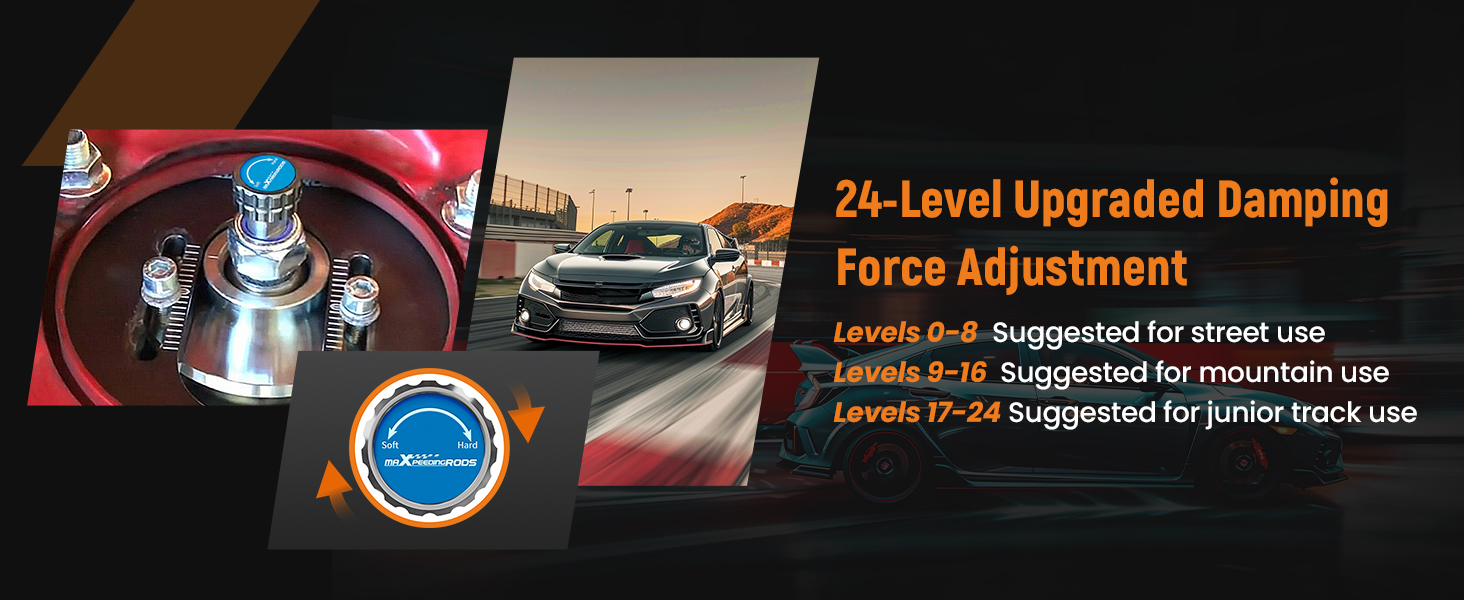

4. 24 precise levels of damper adjustment-- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

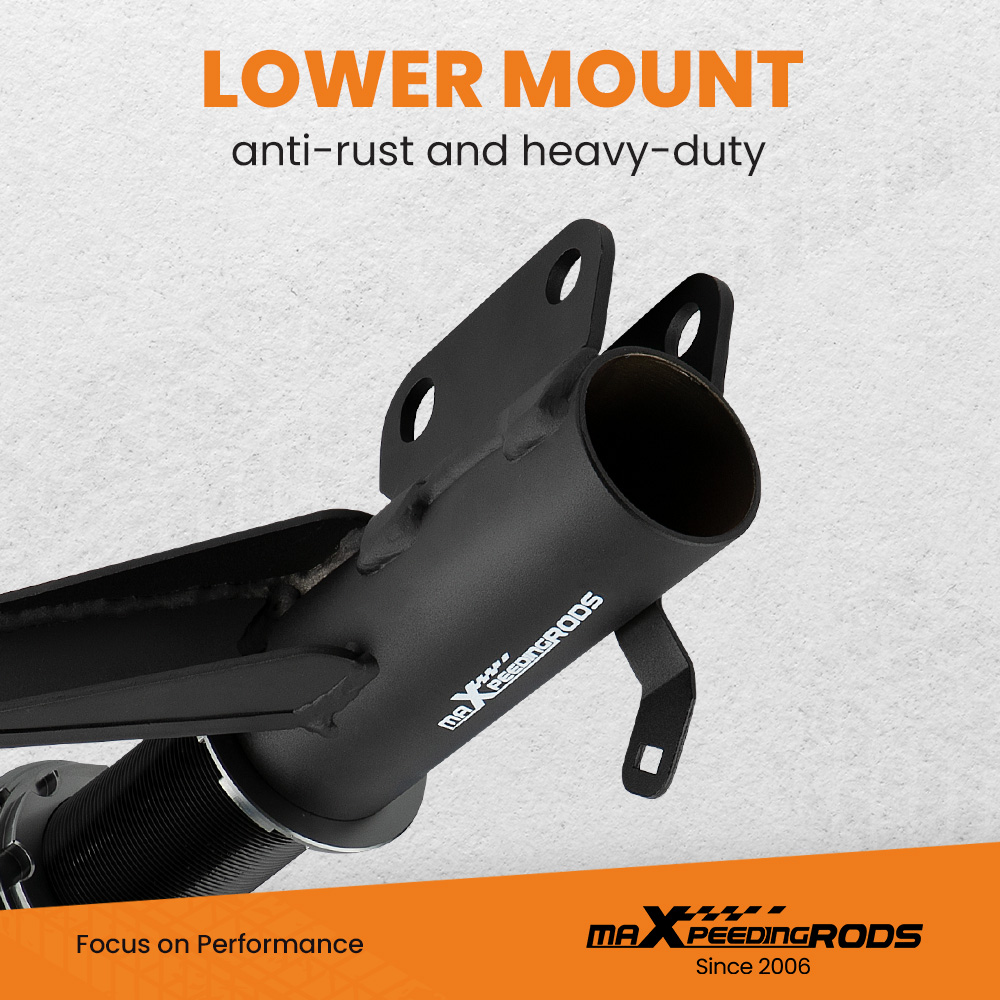

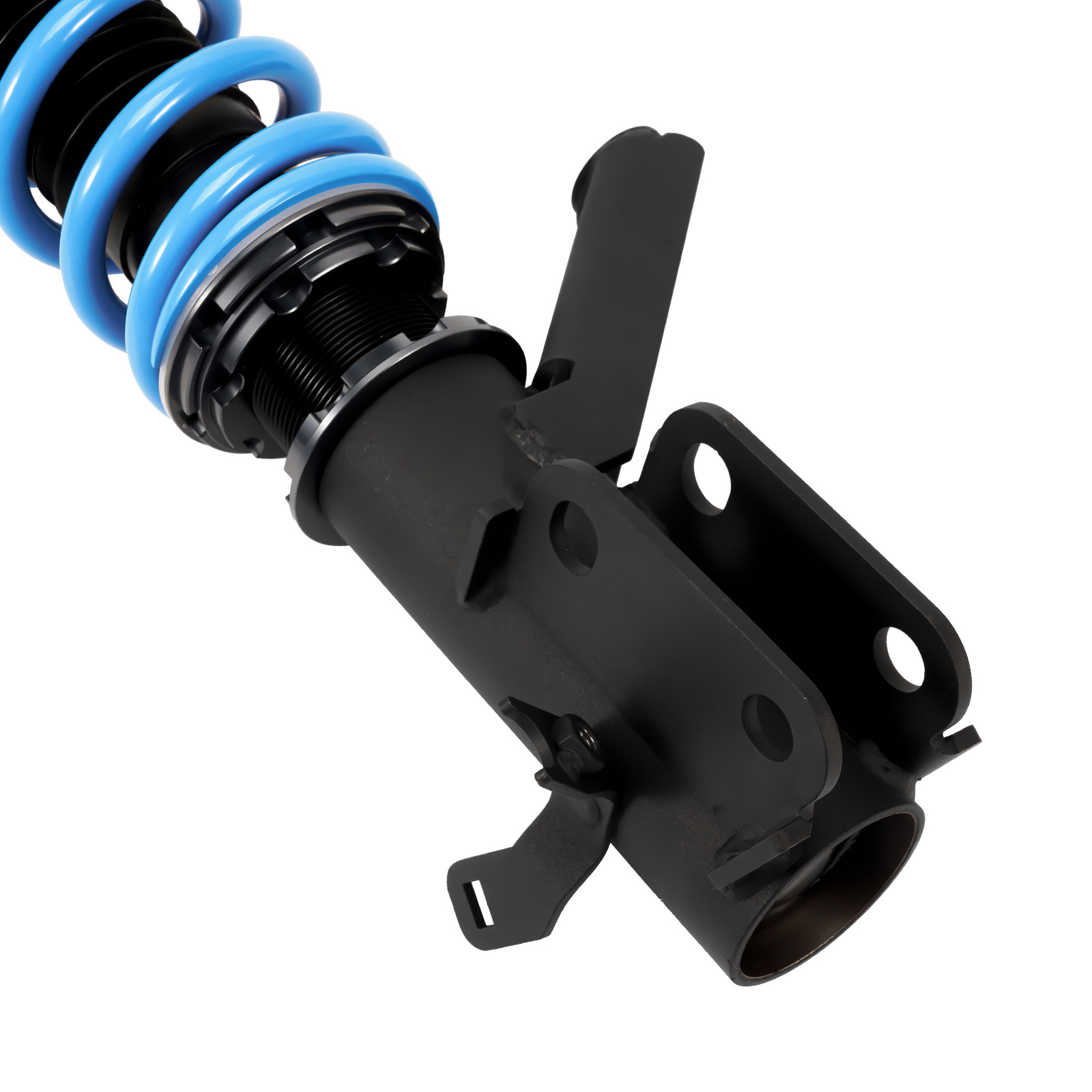

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
7. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.
8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
9. With better damping setting, you will get better performance and comfort at the same time.
10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
11. Anti-Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
12. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
13. Clean room assembled---maintain higher level of accuracy and reliability.
14. Upgraded damper oil---make damping more stable and smooth in wide temperature range.


Fitment


For HONDA CR-V 2002-2006


Specification


- Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 8 kg/mm (448 lbs/in)
- Spring Rate Rear: 9 kg/mm (504 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 180 mm
- Spring length Rear: 140 mm
- Spring Preload advised: 7-10 mm
- Color: Black body with blue spring


Package included

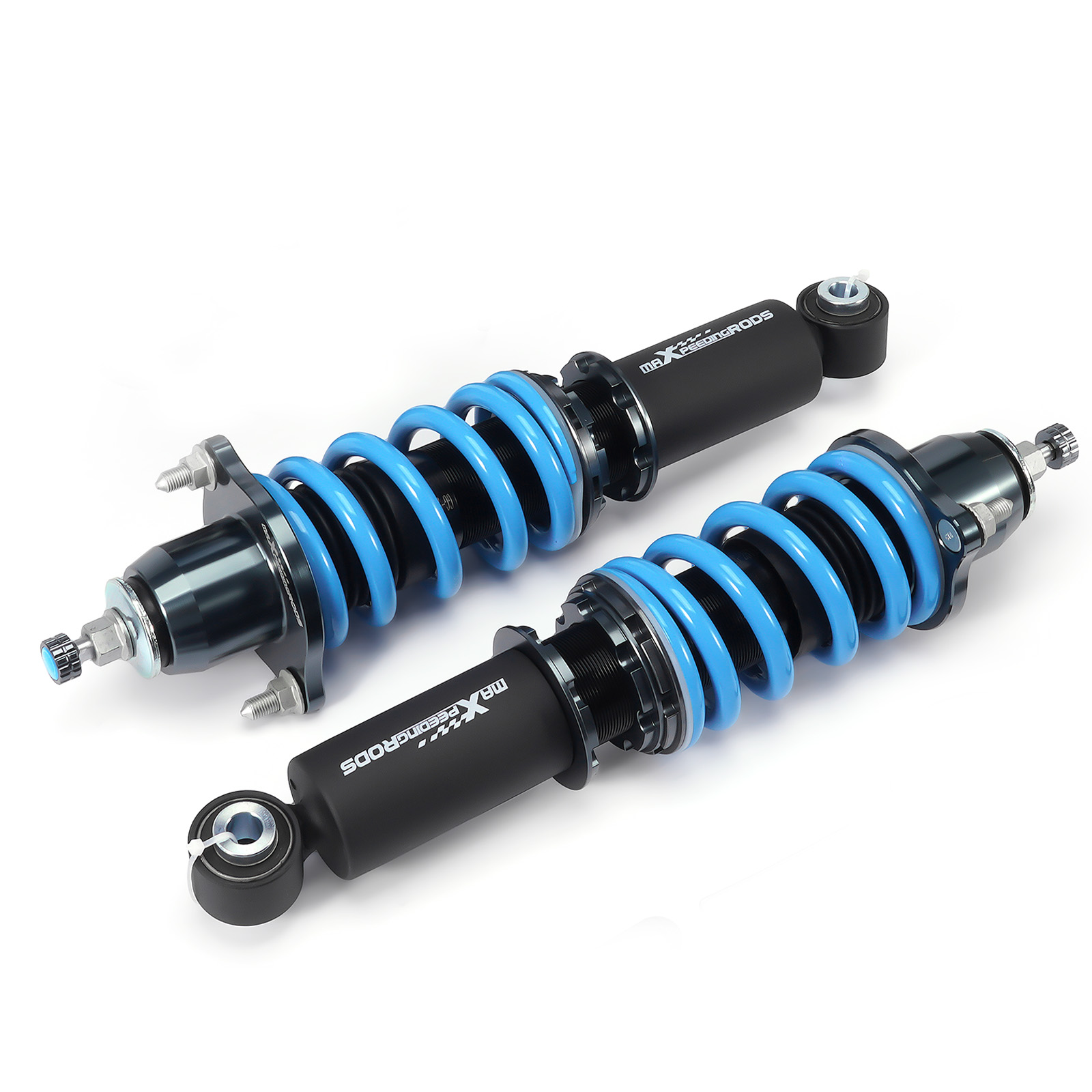

2x Front coil-overs
2x Rear coil-overs
2x C spanners
2x Allen wrench
1x Sticker


★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.

24 precise levels of damper adjustment; Pillow-Ball Top Mount Provides Sharp And Precise Handling; Independent ride height and spring preload adjustments; Lightweight aluminum shock body and 6061-T6 forged aluminum / carbon steel brackets; Twin-Cylinder Design - Allows Sufficient Stroke Within The Shock Absorber; 1 Year Warranty from Date of Purchase.


Other items you might also like

  • H Beam Rods For Acura TSX CRV ELEMENT ACCORD K24 K24A K24A4 K24A2 K24A1 K24Z1 H Beam Rods For Acura TSX CRV ELEMENT ACCORD K24 K24A K24A4 K24A2 K24A1 K24Z1
  • Front Left CV Axle For Honda CR-V 2002-2006 Honda Accord 2003-2007 2.4L Front Left CV Axle For Honda CR-V 2002-2006 Honda Accord 2003-2007 2.4L
  • Air Conditioning Compressor For Honda CR-V 2.4L 2002-2006 38870PNB006 CO10663AC Air Conditioning Compressor For Honda CR-V 2.4L 2002-2006 38870PNB006 CO10663AC
  • 1pc Engine Intake Camshaft for Honda Accord 2008-2012 CR-V K24Z 14110-R40-A00 1pc Engine Intake Camshaft for Honda Accord 2008-2012 CR-V K24Z 14110-R40-A00
  • Timing Chain Kit Fit Honda CRV Element Accord 2.4L K24A1 K24Z1 K24A4 K24A8 Timing Chain Kit Fit Honda CRV Element Accord 2.4L K24A1 K24Z1 K24A4 K24A8
  • 2PCS Up & Downstream Oxygen O2 Sensor For Honda CR-V 2.4L 2005 2006 234-4352 2PCS Up & Downstream Oxygen O2 Sensor For Honda CR-V 2.4L 2005 2006 234-4352
  • CV Half Shaft Axle For Honda Accord CR-V Acura TL 03-07 Front Right Side 604207 CV Half Shaft Axle For Honda Accord CR-V Acura TL 03-07 Front Right Side 604207

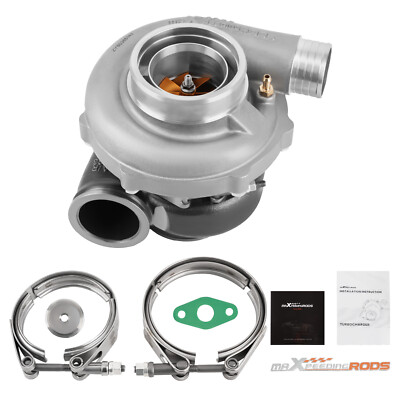

  • Upgrade Dual Ball Bearing 0.83 A/R Billet Turbo Turbocharger V-Band 550-900HP Upgrade Dual Ball Bearing 0.83 A/R Billet Turbo Turbocharger V-Band 550-900HP
