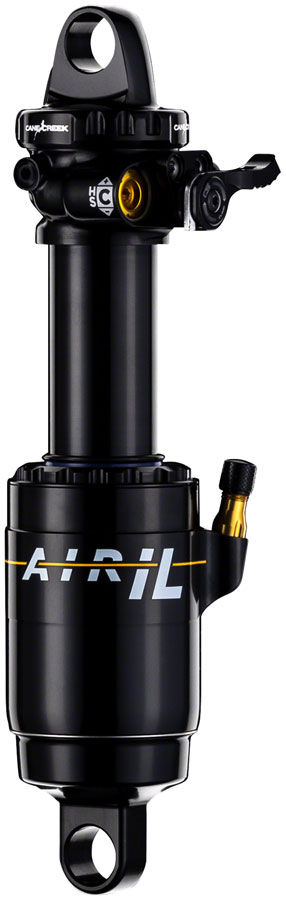

Cane Creek Air-IL G2 Rear Shock 190x45mm, Standard Shaft & Body Eyelets
Reference Number: 3CV8CD
The Cane Creek Air-IL G2 Rear Shock (190x45) features a thicker inner damper tube for added strength and a more compact valve body width reduced from 68mm to 50.5mm, allowing it to fit more frames with tighter tolerances. The Gen 2 model also has a smaller air can diameter, reduced by 6mm from 57mm to 51mm, further improving frame compatibility.
This shock offers four-way independent adjustment: high-speed compression, low-speed compression, high-speed rebound, and low-speed rebound. It includes a Climb Switch that simultaneously adjusts compression and rebound damping to reduce chassis motion during climbs, enhancing traction.
The Air-IL G2 is rated for a maximum pressure of 350 psi, an increase from 300 psi in the previous generation, enabled by a 6mm reduction in the outer diameter of the air spring. It uses twin-tube damping technology for superior small bump compliance.
Additional features include a standard shaft eyelet and body eyelet with 12.7mm diameter, coil preload adjustment, and air pressure adjustment. The shock is hand-assembled, individually dyno-tested, and has a stroke length of 45mm with an eye-to-eye length of 190mm. It comes in black and weighs 280 grams.
- Compatible with 190x45mm metric sizing and features shaft and body eyelets with standard dimensions.
- Equipped with a thicker inner damper tube for enhanced strength and a reduced valve body width of 50.5mm.
- Includes a Climb Switch that adjusts compression and rebound damping simultaneously to improve climbing performance.
- Offers 4-way independent damping adjustments: high and low speed compression, and high and low speed rebound.
- Capable of withstanding up to 350 psi with a 6mm reduced air can diameter for better frame fitment.
| Item Specifications | |
|---|---|
| Stroke (mm) | 45 |
| Lockout Switch | Climb Switch |
| Metric | Yes |
| Weight | 280 |
| Eyelet Diameter (mm) | 12.7 |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| External Adjustments | Coil Preload |
| Positive Spring | Air |
| Eye to eye length (mm) | 190 |
| Damping | Twin Tube |
| Damping Adjustments | Four-way independent |
| Eye to eye length (mm) | 190x45 |
| Defined Color | Black |
| External Adjustments | Air pressure |
| Positive Spring | Air |
| Shaft Eyelet | Standard |
| Body Eyelet | Standard |
| Stroke | 45mm |
| Model Name | DB Air IL G2 |
| Eye-Eye | 190mm |
