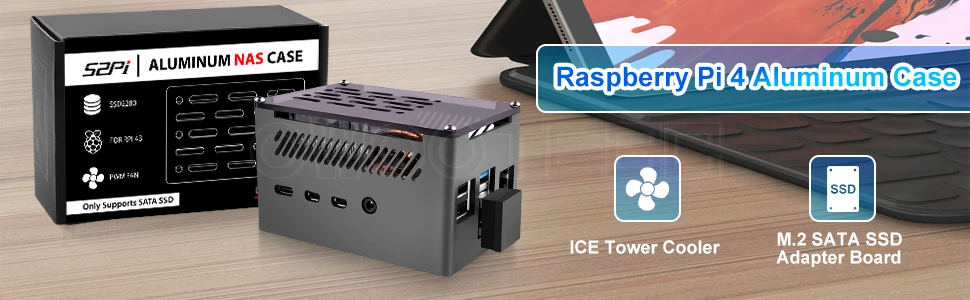

Aluminum NAS Case with Low- Profile ICE Tower Cooling Fan for RPi 4B

Product Description

It is aluminum NAS Case which is supporting Raspberry Pi 4 model B ONLY. It can protect the Raspberry Pi well and dissipate heat well through adjustable-speed fan.

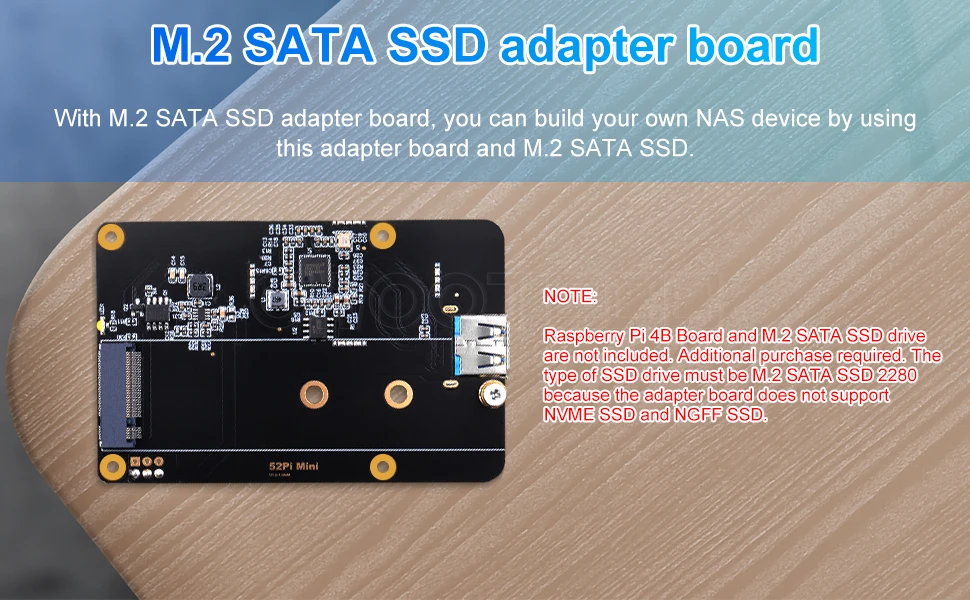

At the same time, there is a M.2 SATA SSD adapter board inside the package, you can build your own NAS device by using this adapter board and M.2 SATA SSD.

We strongly recommend using the official Raspberry Pi operating system, which can directly configure the fan to adjust the speed according to the CPU temperature through the raspi-config command.

Other operating systems may require you to write software yourself and send PWM signals to the fan through GPIO pins to control fan’s speed.

NOTE:

The RGB light in Fan and mood light will not light up unless installed driver, and OLED will not display any information untill you have enabled it !!! Please read the manual carefully and follow the steps to enable it. Raspberry Pi 4B and M.2 SATA SSD drive are not included in the package, require additional purchase. Please purchase M.2 SATA SSD 2280 mass storage device, It dose NOT support NVME SSD!!!

Product Features

• Easy to assemble

• Acrylic Top Cover

• ICE Tower Cooler

• Adjustable Speed Fan

• Precise Positioning

• Beautiful and Stable

•     Support M.2 SATA SSD Only

•     Support Raspberry Pi 4 model B Only

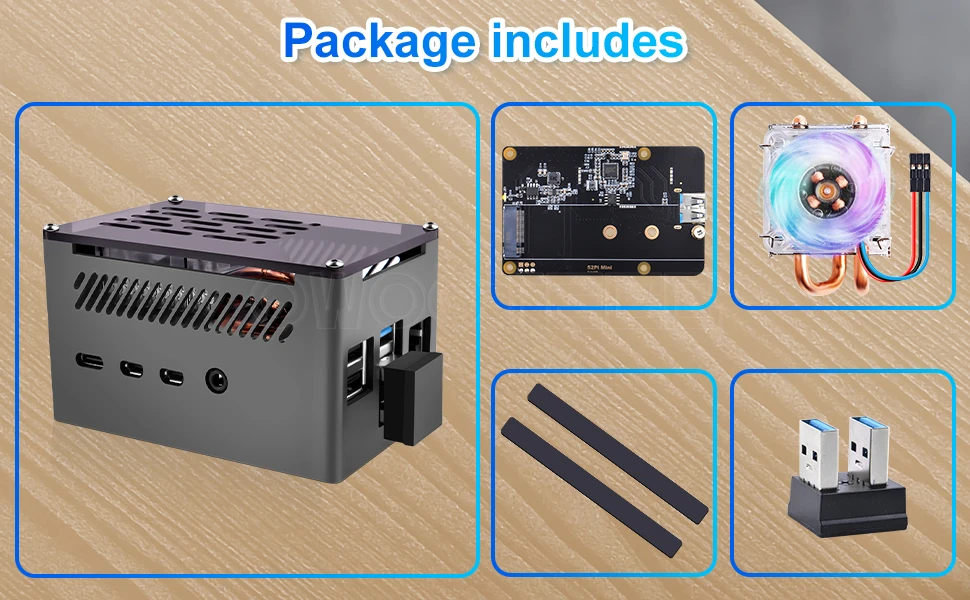

Package Includes

• Note: Raspberry Pi Board is NOT included

• 1 x Aluminum NAS case

• 1 x Acrylic Top cover

• 1 x Aluminum bottom cover

• 1 x 52Pi Mini M.2 SATA SSD Adapter board

• 1 x USB adapter for SSD adapter board

• 1 x ICE Tower cooler

• 2 x ICE Tower bracket

• 4 x Copper pillar

• 2 x M2.5 screws for ICE tower brackets

• 4 x M2.5 Flat head screw

• 2 x Thermal Pad

• 1 x hex wrench

• 4 x Hexagon socket head screw for Top cover

• 2 x Rubber anti-slipper pad

• 1 x Instructions
