Features
  • Powering multiple cameras could not be easier! Our line of Professional CCTV Power Supplies give installers what they expect when it comes to power supplies, quality and reliability. Every channel is protected with Auto-Reset PTC fuses, which means these fuses will not blow. This box can be mounted to any surface, plugged into an AC outlet, and up in seconds.
  • 12VDC -15 amp supply current
  • Multiple outputs (9 channel)
  • Auto-reset PTC fuse protected output
  • Power on/off switch
  • Key protection
  • DC regulated, over current and voltage protected
  • Individual LED indicator for each output
  • For indoor use only
Specification
Input Voltage AC100-120V / AC220-240V (Selectable) Output 12VDC, 15 A Terminal Connection
Output power 145W Support Up to 9 Cameras
Dimensions Approx. 208(W)x305(H)x52(D)mm / 8.19"(W)x12"(H)x2(D) Weight 1.6kg / 3.5lb
Note
  • AC110V/220V is selected by switch before power on. Please check input voltage avoiding damage

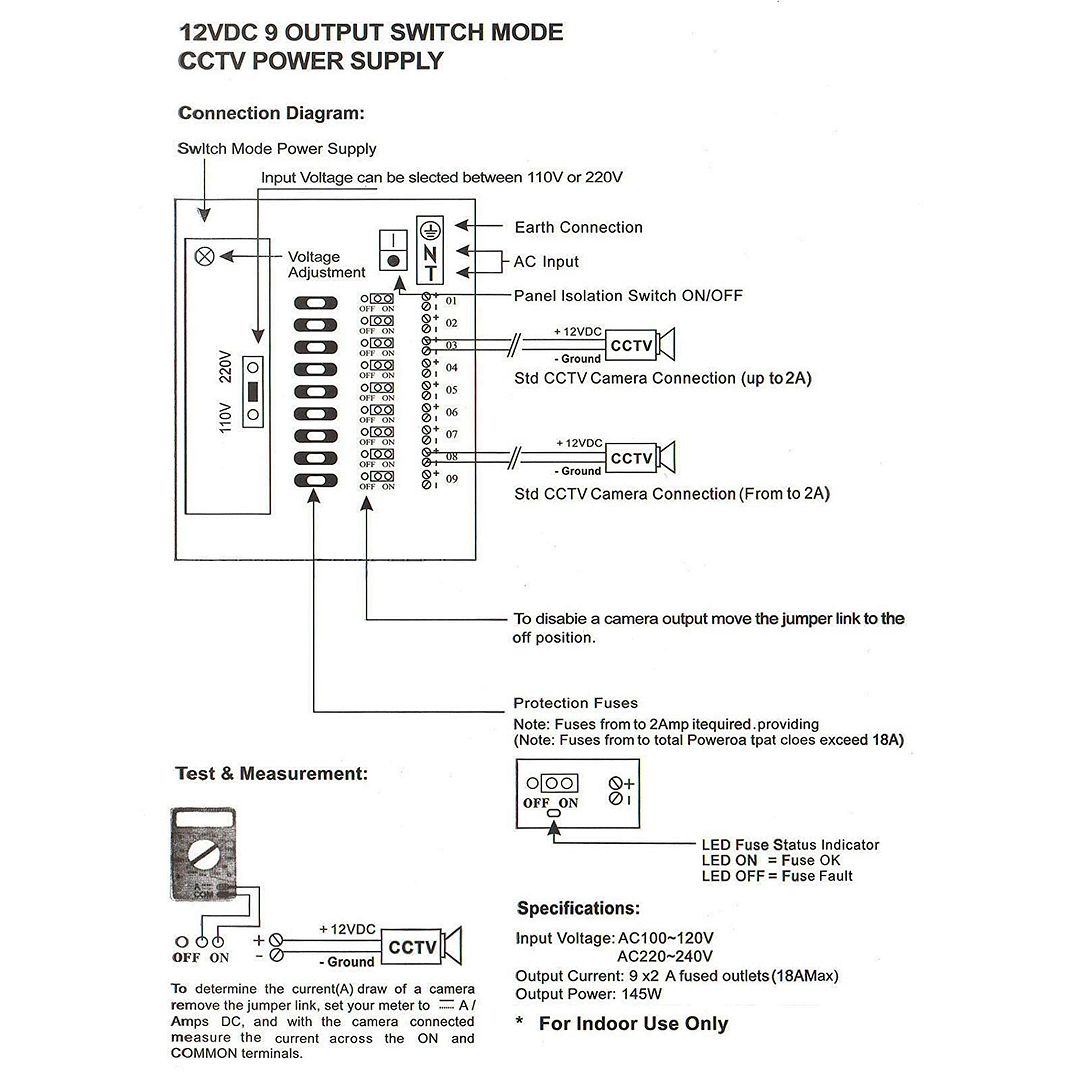

Wiring
Package
  • 1 x Power Box
  • 9 x Power Pigtail Cable
  • 1 x Installation Kit
