Features
  • Support one-door
  • The RFID lock kit access controller can provide users with more convenience by connecting to terminals
  • This Reader Access Control Keypad can update the safety of your home and office. This electronic access control systems is perfect for Homes, Office, Factory and many other fields!
  • The kit offers a method for controlling access safely and automatically, qualifying it as ideal equipment for businesses, offices, factories, and communities. Get the full set of door security system to update your home security!
  • This Door Access Control 125KHz RFID ID Card Reader with Elegant design, can be use to increase home / office / factory security! It's easy to use!
Details

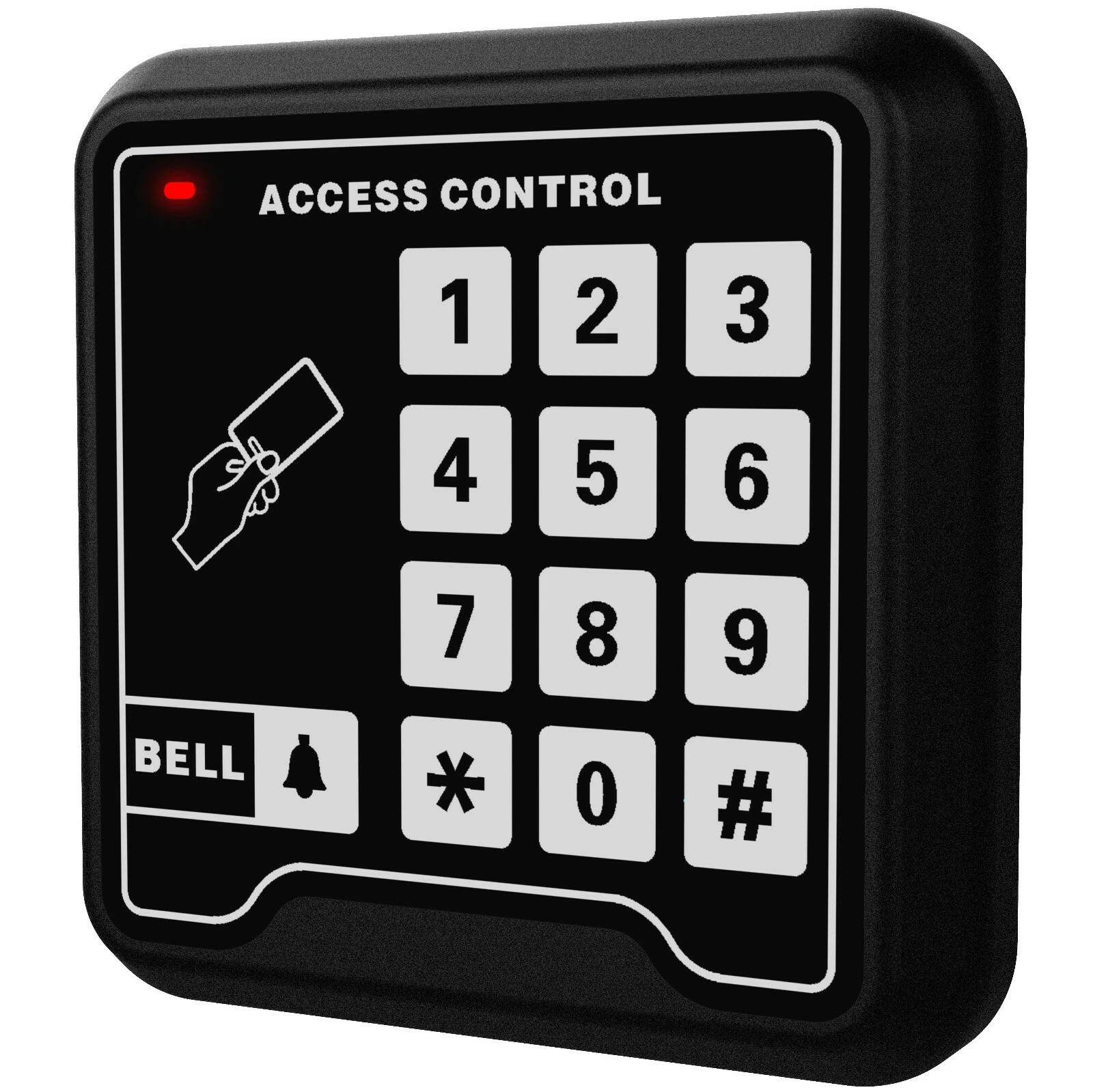

  • Access Keypad:
  • Operating Voltage: 12VDC
  • Idle Current: 50mA
  • RFID Card Capacity: 500
  • User PIN Capactity: 500
  • PIN Digits: 4-8 digits
  • Card Type: Standard 125KHz EM
  • Door Relay Time: 0-99 seconds
  • Compatible Cards: EM compatible card (Can't support some encrypted cards,such as HID, Indala, Cobra, APCiK ,Paradox, Radio, Honeywell, etc.)
  • External Reader: Not support
  • Waterproof: Not support
  • Keypad Backlight: Not support
  • Shell Material: Plastic
  • Product Weight: 100g / 3.5oz
  • Card Reading Distance: Max. 6cm (2-23/64")
  • Shell Size: 100x100x18.5mm (3-15/16" x 3-15/16" x 47/64")
  • Door Open Options (admin user selectable): Card Only / Password
  • Only / Card + Password / Card or Password
  • Working Temperature: -30°C-60°C / -22°F-140°F
  • Working Humidity: 10%-90%RH, non-condensing
  • Wiring Connections: Electric Lock, Exit Button, External Bell

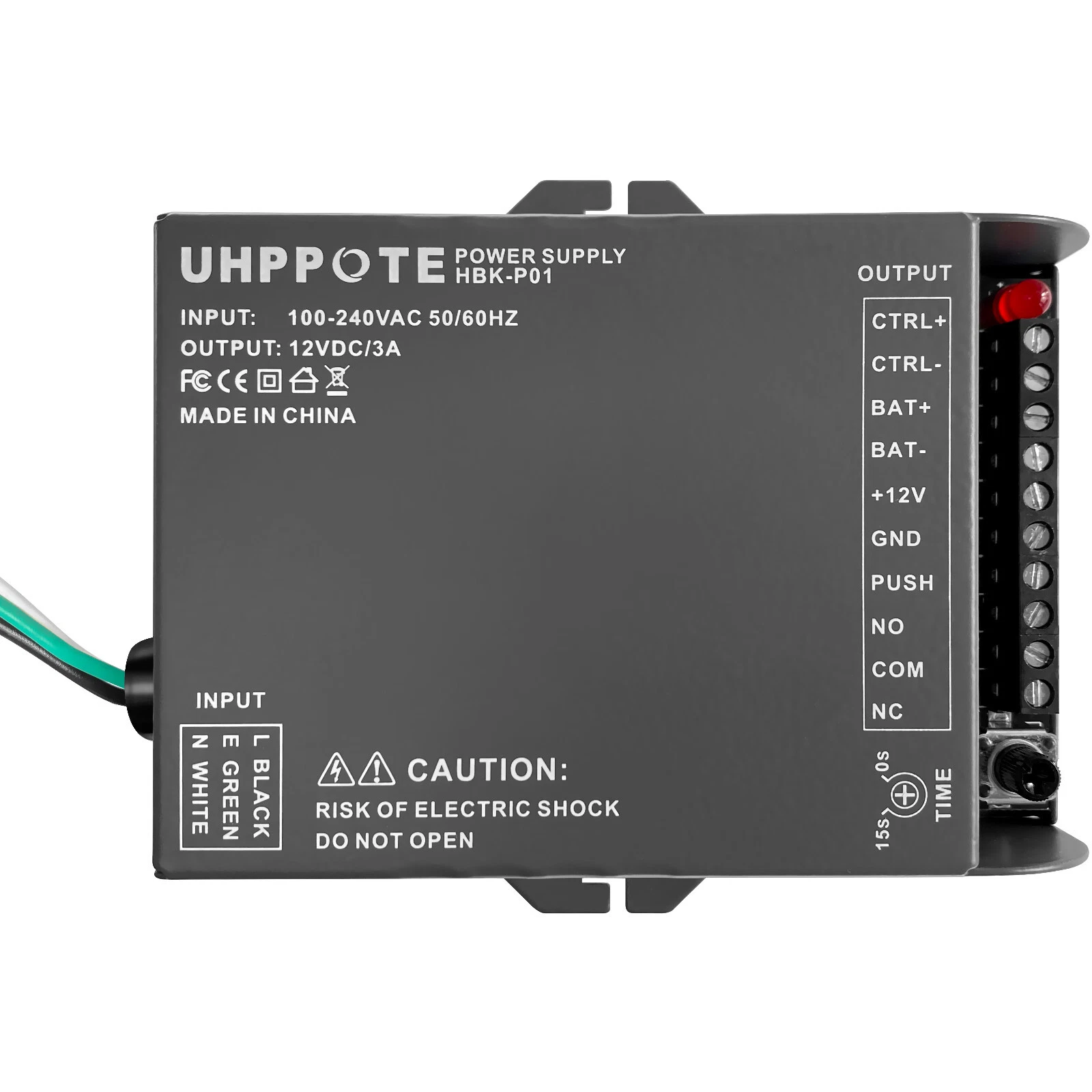

  • Power Supply:
  • Input Voltage: AC110-240V
  • Input Frequency: 50-60Hz
  • Output Voltage: DC12V/3A
  • Output Power: 36W
  • Time Delay: 0-15 seconds
  • Operating Temperature: -20℃~60℃ / -4℉~140℉
  • Operating Humidity: 10%-90%RH
  • Material of Enclosure: Aluminum Alloy
  • Finish: Spray
  • Support external 12V backup battery. Backup Battery Type: 12V storage battery. Recommend 12V 7AH battery.
  • Enclosure Dimensions: 4-29/64"x3-5/64"x1-17/64" / 113x78x32mm
  • Product Weight: 207g / 7.3oz

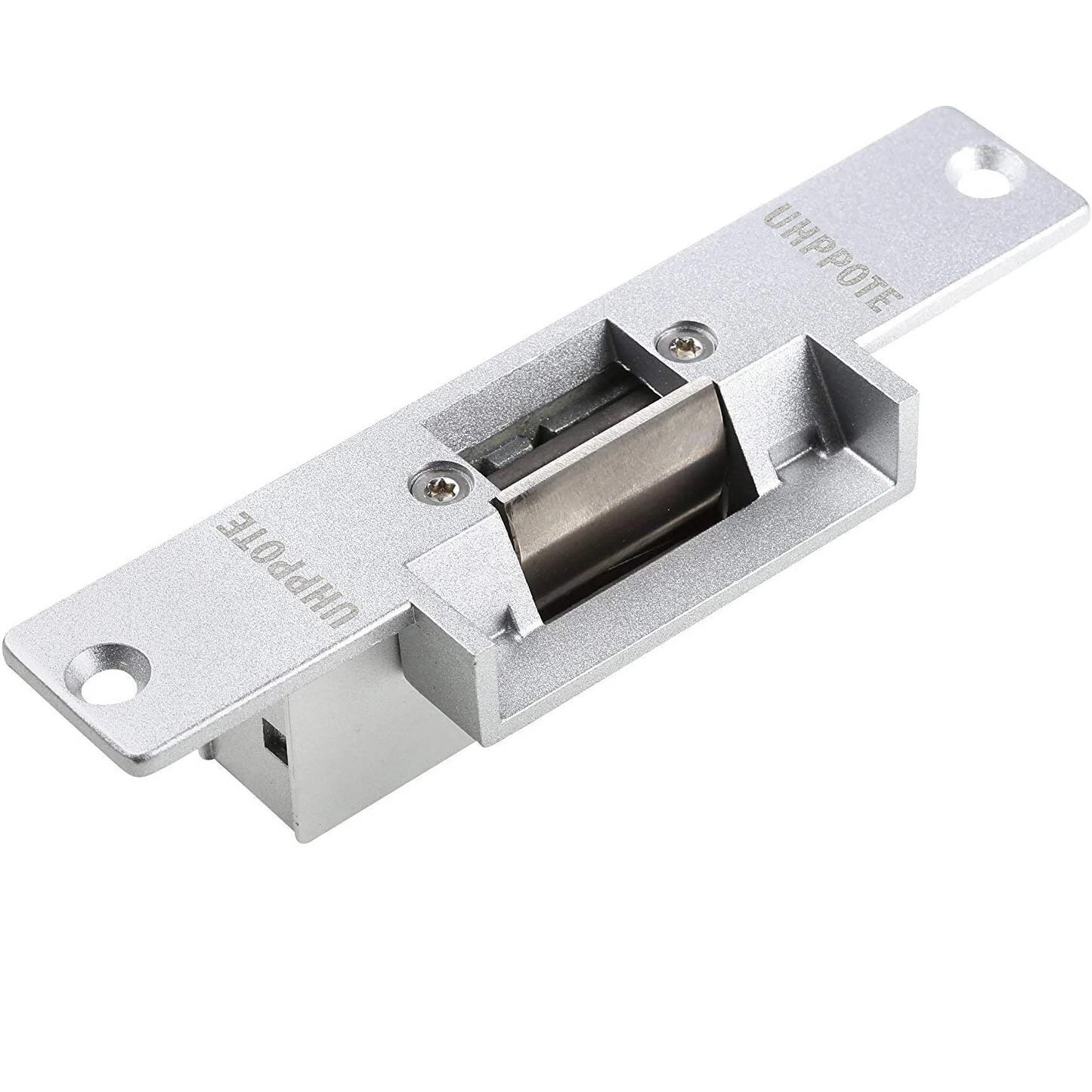

  • Electric Strike Door Lock:
  • Material: Stainless Steel.
  • Signal Output: Not
  • Testing to 1000000 cycles.
  • Fail secure, NO mode (Locked when power is removed)
  • Uses 2-wire, non-polarized connection to access control or egress device
  • Suitable For: Wooden Door, Metal Door, Fireproof Door.
  • Voltage: DC 12V
  • Current: 200mA
  • Holding Strength: 500kg / 1102lb
  • Opening Mode: 90 degree swinging door
  • Dimension: 150Lx39.5Wx34H(mm)

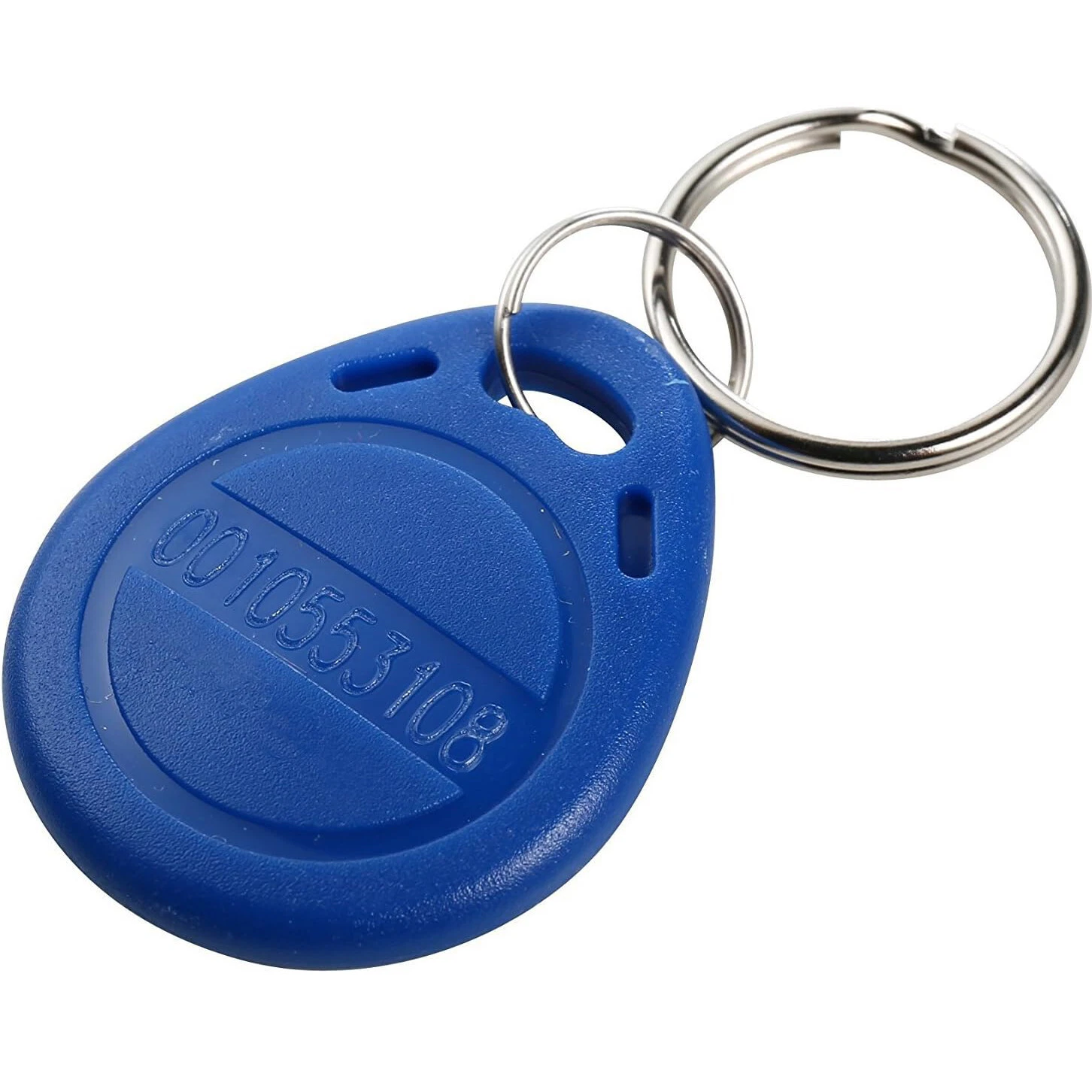

  • 125 KHz RFID Card / Key Fob :
  • Waterproof
  • Operation Frequency: 125KHz
  • Thickness: 0.8mm
  • Detecting distance: 3-10cm
  • Compatible with all RFID ID card reader to gain access.
  • Perfect for attendance system, access control system, identification, low frequency tag card, etc.
  • Exit button:
  • Dimensions(LxWxH): 90x35x26.5(mm) / 3-35/64"x1-3/8"x1-3/64"
  • Standard Structure: Stainless steel Panel, Steel Button
  • Current Rating: 3A@36VDC Max
  • Output Contact: NO/COM
  • Mechanical Life: 500000 tested
  • Suitable for Door: Hollow Door
  • Operating temp: -10℃～+55℃(14℉-131℉)
  • Operating Humidity: 0-95% ( relative humidity)
  • Panel Material: Stainless steel Panel, Wire Drawing Finished
  • Weight: 0.06kg / 2.12oz
  • Remote Control:
  • This kit com with a remote control which can open door remotely
  • The wireless signal can pass through walls, floors and doors
  • Encoding Mode: Intelligent-learning code
  • Output type: Passive output
  • Operating Type: Momentary / Toggle / Latched
  • Default setting is Momentary
  • Operating Frequency: 433MHz
Demo Video
Package
  • 1 x RFID Access Control
  • 1 x Electric Strike Lock (NO mode, Fail Secure)
  • 1 x Power Supply
  • 1 x Exit Button
  • 1 x Remote Control
  • 5 x ID Cards
  • 5 x ID Key Fobs
  • 1 x User Manual
