Features
- Dual Voltage 12V/24V DC (optional)
- IP-68 waterproof design, for indoor or outdoor use
- With LED indicator for door status and lock signal output contact
- With integrated design, the anti-impact strength is three times higher than the traditional one
- The speed of installation is three times faster than the traditional one
- Patented product, counterfeiting is not permitted
- Suitable for: Wooden door, metal door, fireproof door
Specification
| NC mode | (unlocked when power is removed), fail safe mode | Size | 210Lx26.5Wx36H(mm) / 8.27Lx1.04Wx1.42H(in) |
| Input Voltage | DC12V or DC24V | Current | 12V/400mA;24V/200mA |
| Holding Force | 180kg(350Lbs) | Signal Output | Lock signal(NO/COM) |
| LED | Red shows locked, Green shows not locked properly | Operating Temp | -10℃~+55℃ / 14℉~131℉ |
| Weight | 1.5KG / 3.3lb |

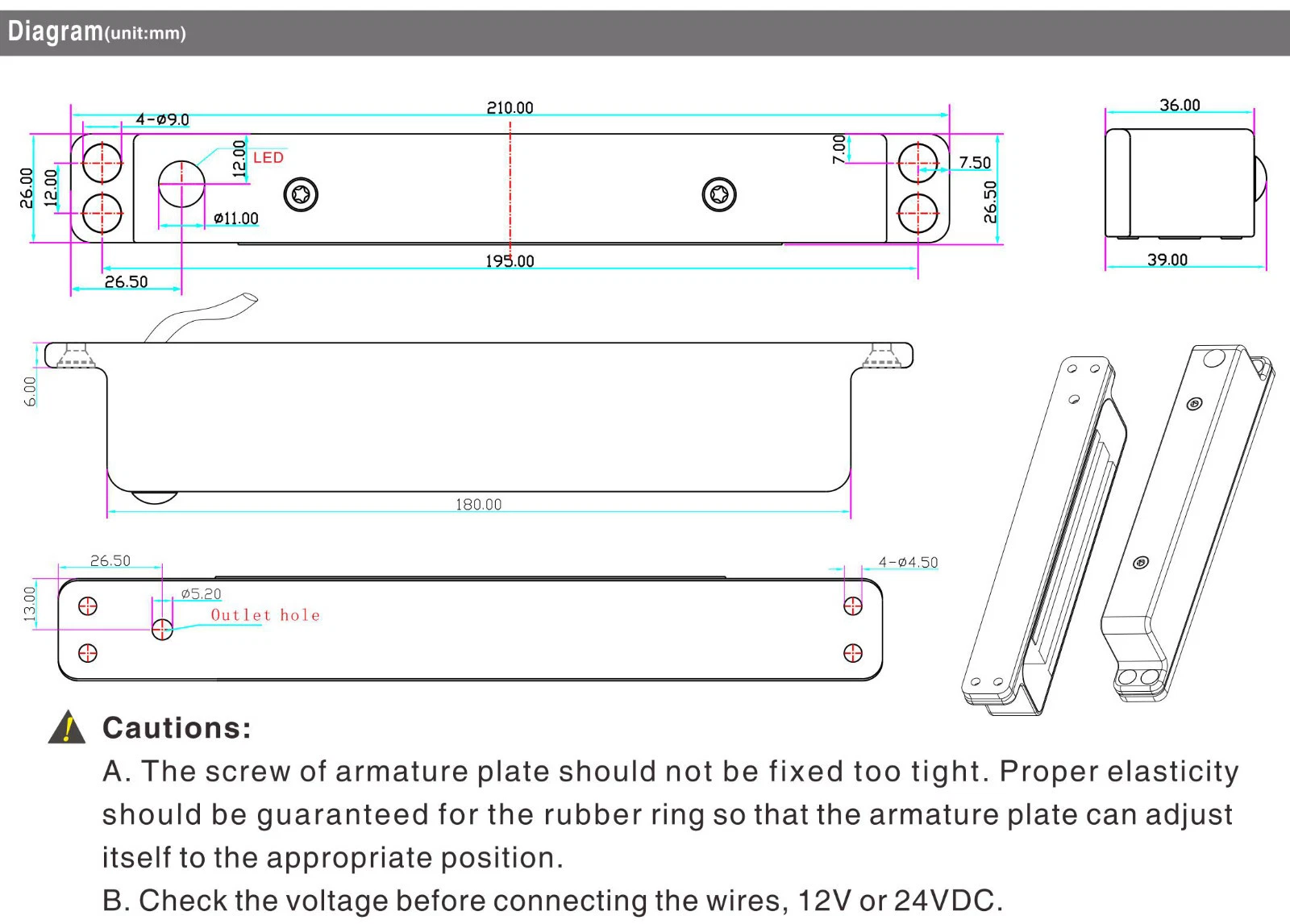

Size
Wiring
Package
- 1 x Magnetic Lock
- 1 x User Manual
