Product Description
  • Field-selectable for fail-safe or fail-secure operation
  • 1100-lb (500kg) Jaw strength, Tested to 500,000 cycles
  • Complete mounting hardware included, Screw terminals for ease of wiring
  • This Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system
  • Attention: Before placing order, please check the size of door’s frame to avoid wrong purchase
  • Advantage
  • Converts cylindrical locusts into an electronic access-controlled locking system
  • Field-selectable for fail-safe or fail-secure operation on the back
  • Can be used with virtually any cylindrical door locking system
  • Reversible non-handed design fits either right hand or left-handed doors
  • Shallow design for use with most metal doors
  • Powered by a solenoid, not a buzzer coil
  • Stainless-steel keeper for strength and long life
  • Door indoor use only
  • Special design,easy to adjust the distance of the Lock-tongue
  • Testing to 1000000 cycles
  • High-Temperature Painted, Durable and Beautiful Article
  • Designed for Metal Frame drill a hole, then install it directly
  • Attention
  • Strike lock need work with cylindrical lockset which need buy separately.
  • Before placing order, please check the size of door’s frame to avoid wrong purchase.
  • In order to protect the lock, please connect the diode during installation.
  • This strike is not weatherproof and should only be installed indoors.
  • Specifications
  • Input Voltage: 24VDC
  • Current: 160mA

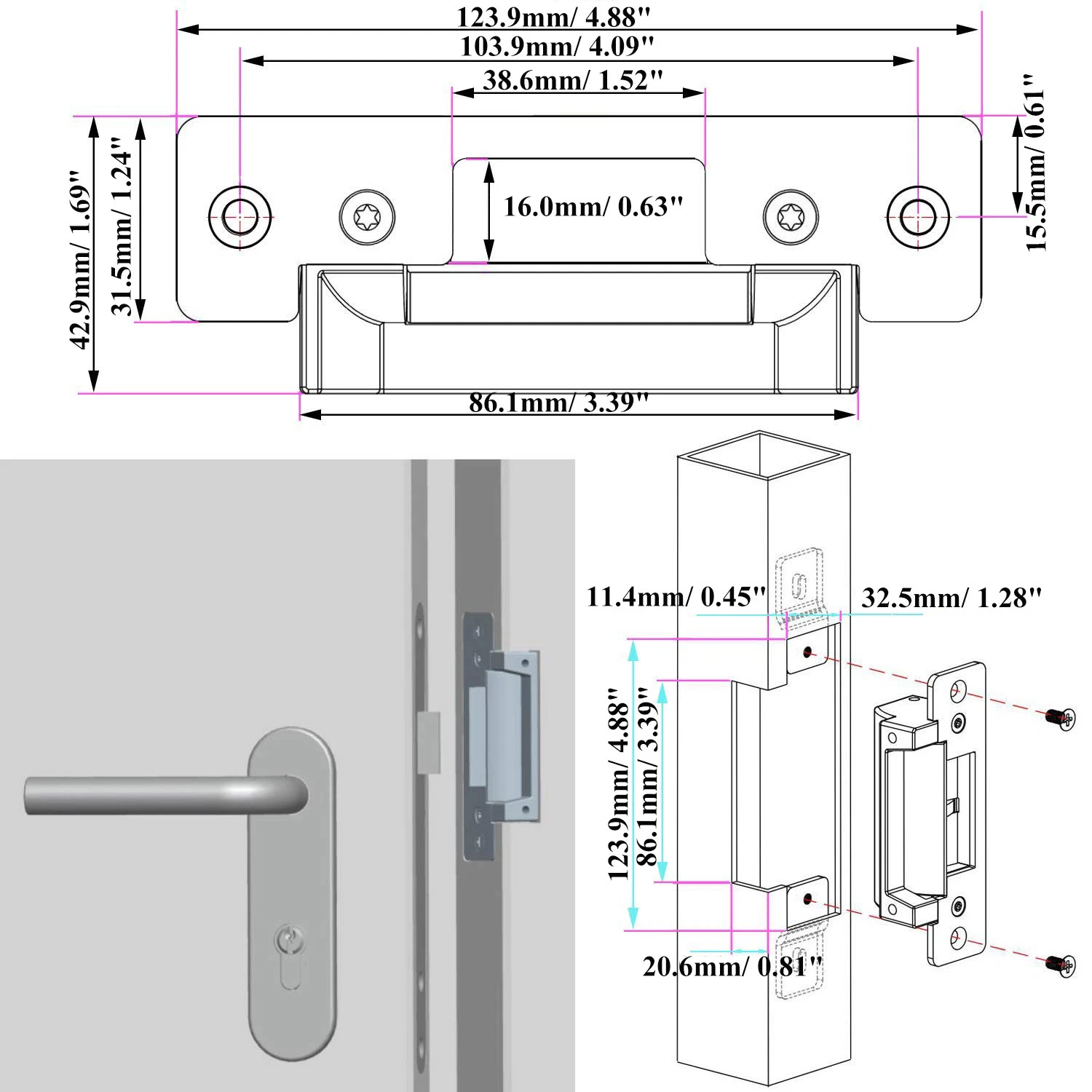

  • Faceplate Size (LxW): 4-7/8" x 1-15/64" / 124x31.5mm
  • Case Size: 1-7/32" x 3-11/32" x 1-17/64" deep [31mm x 85mm x 32mm deep]
  • Strike Opening: 11/16" x 1-61/64" x 3/4" deep [17.5mm x 49.5mm x 19mm deep]
  • Holding Force: 500kg / 1100lb
  • Face plate Housing: Painted Steel
  • Function: Built-out MOV
  • Weight: 0.38kg / 0.84lb
Package
  • 1 x Electric Lock
  • 1 x Install Kit
  • 1 x Diode
  • 1 x Manual
  • 2 x Mounting Tabs
