DC-DC 2~60V to 2~34V Step Down Buck Voltage Power Regulator Converter Module


Features:
High efficiency synchronous buck, current up to 3A, low ripple
Multiple models available, fixed voltage version and potentiometer adjustable version
Automatic switching bypass linear power supply to improve high voltage light load efficiency
Adopt high frequency low internal resistance long life capacitor
Wide voltage input, good output stability and consistency, fast dynamic response

Specification:
60V 3A automotive grade power supply module

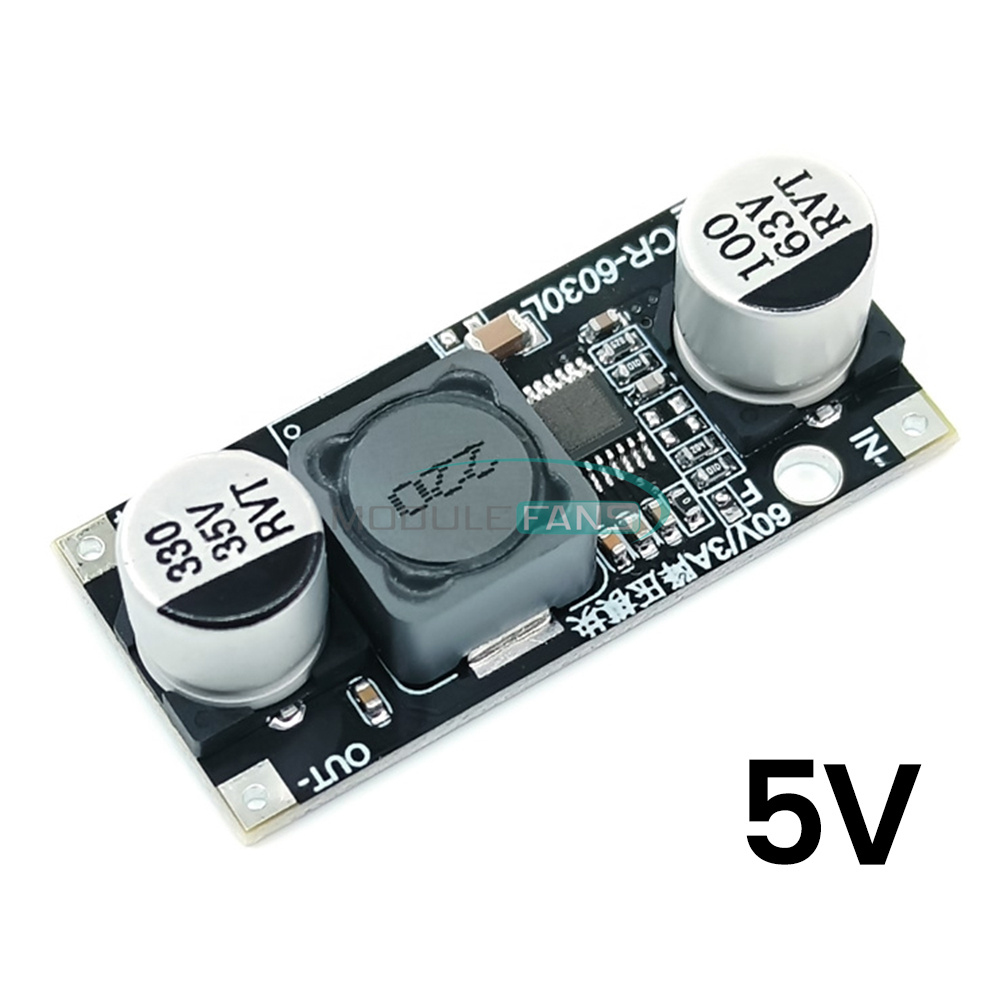

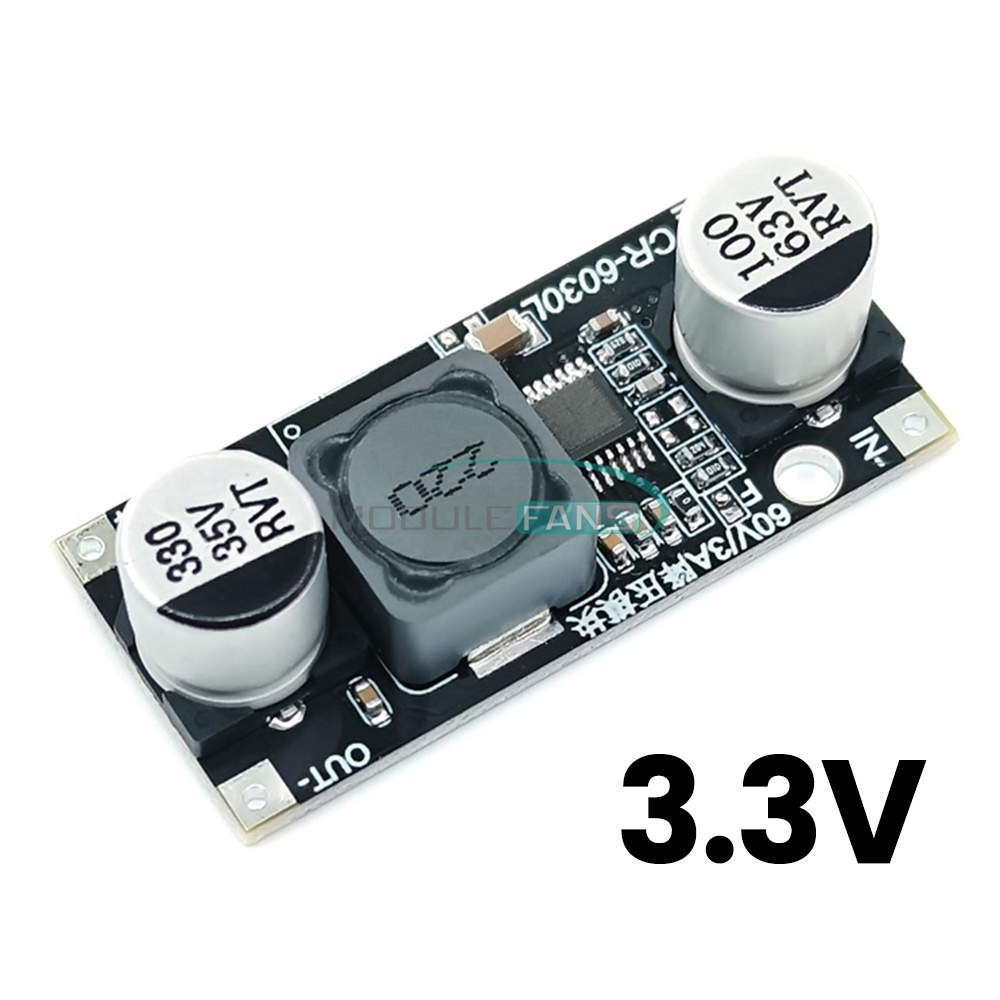

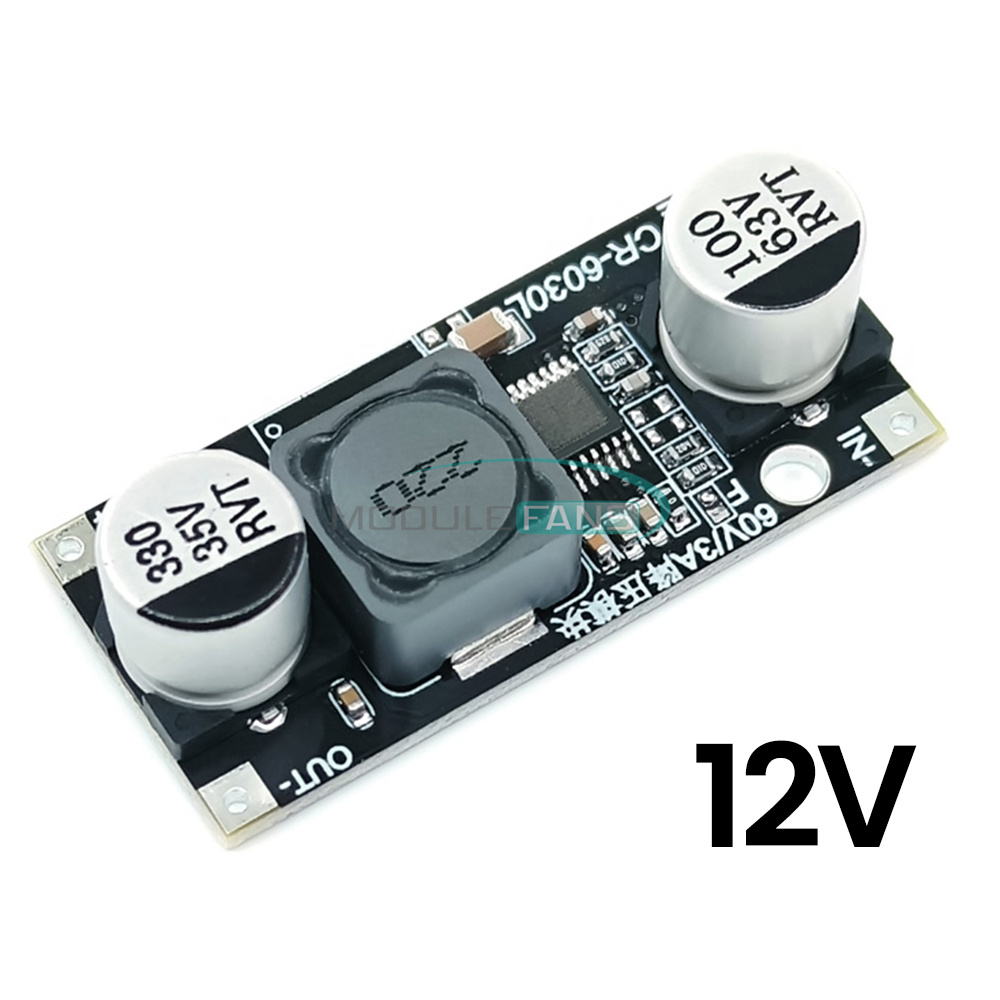

Specifications: Long version: fixed voltage 3.3V/5V/12V/24V

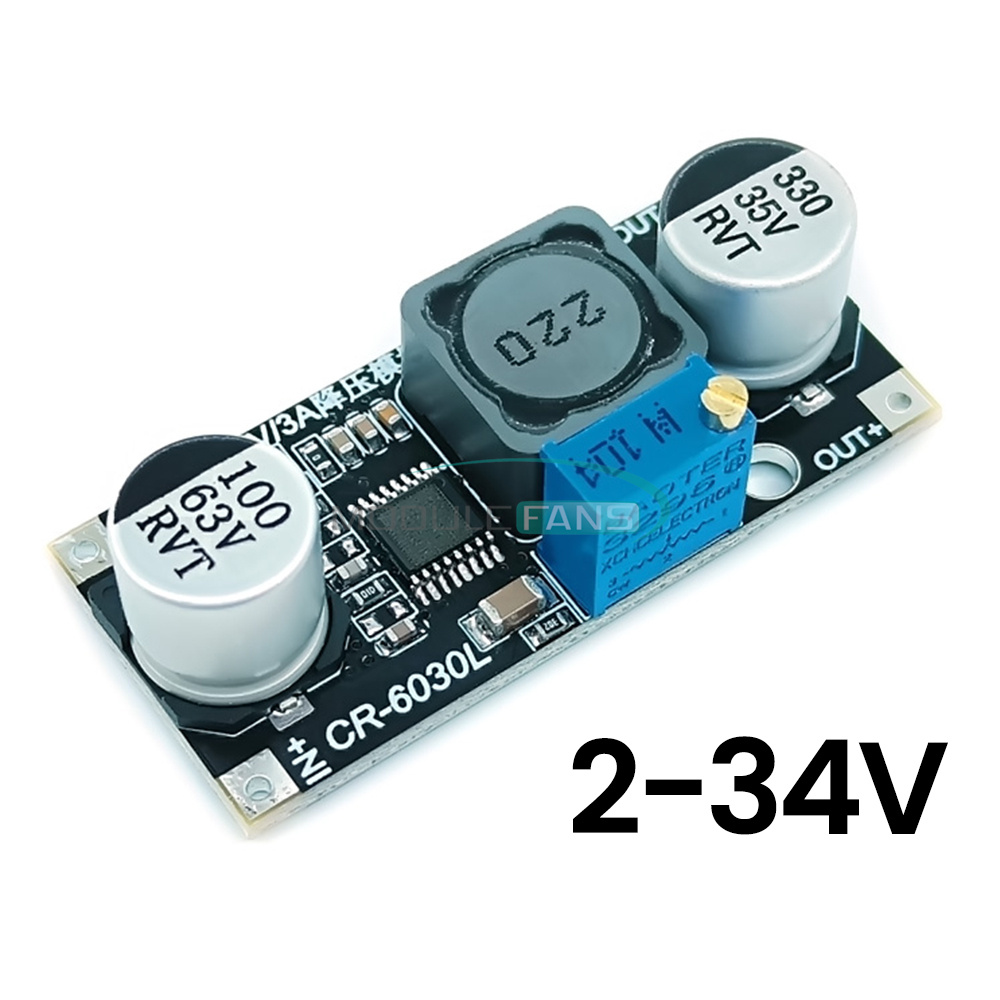

Long version: adjustable voltage 2-34V adjustable

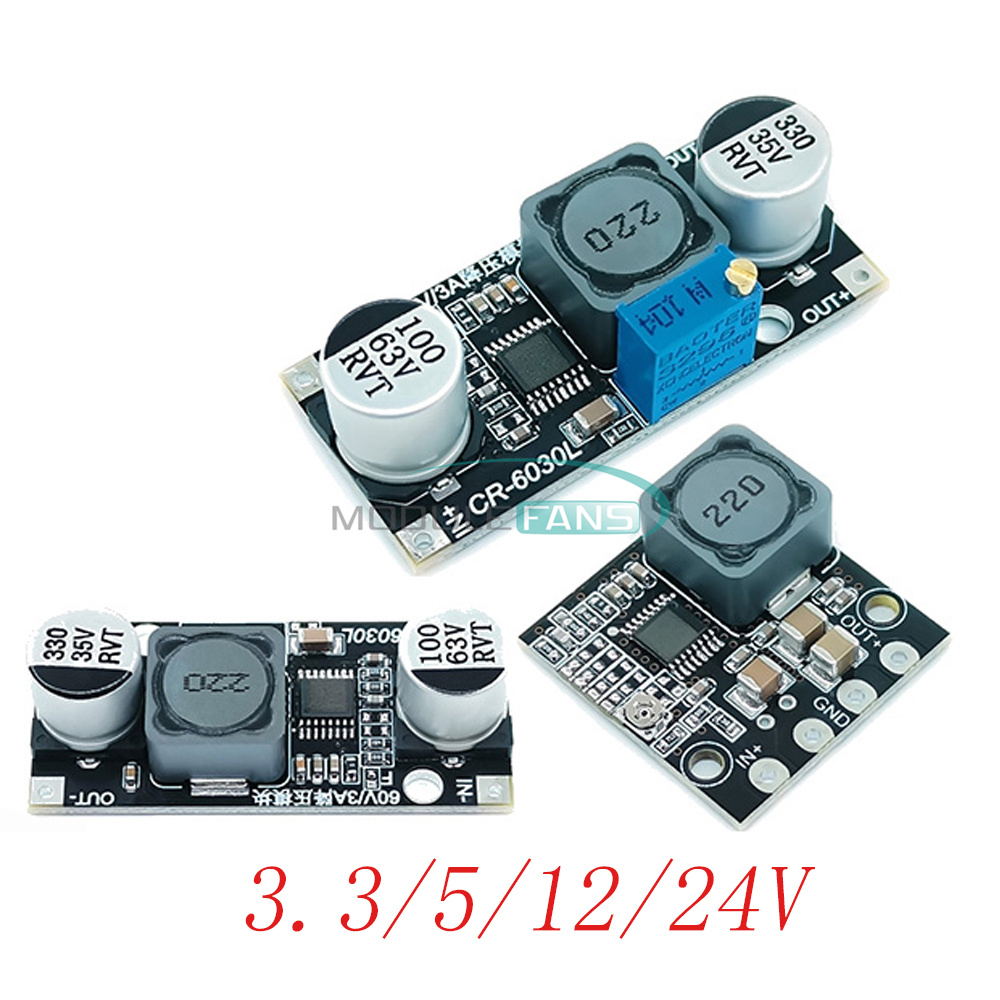

Square model: 60V3A short set output support 3.3/5/12/24V

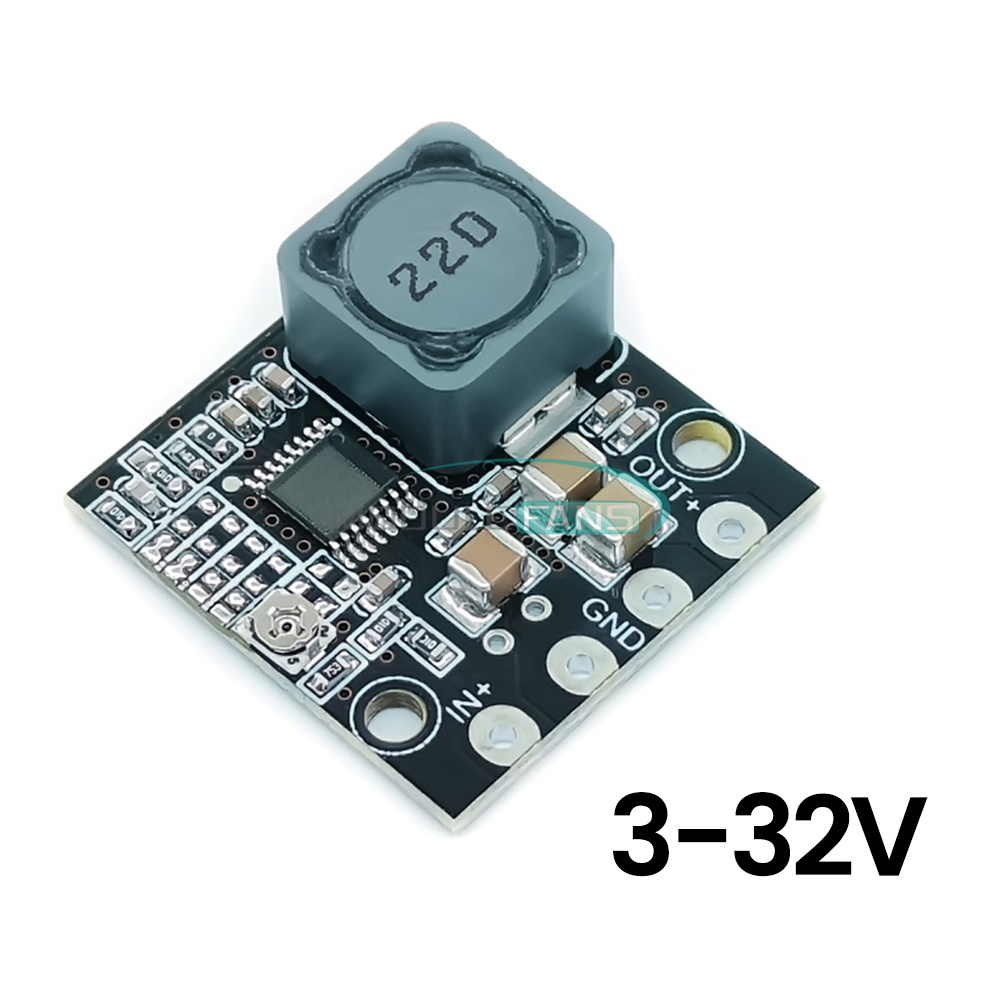

Square model: 60V3A adjustable output 3-32V adjustable
Ultra-low 20uA quiescent current
High efficiency synchronous buck, current up to 3A, low ripple
Input voltage range: 4.2V-60V but the current needs to be more than 1V above the output
Output voltage range: 1V to VIN (leave 1V differential when the current is large)
All adopt high frequency low internal resistance long life capacitor
Equipped with soft-start and output voltage tracking capability
Automatic switching bypass linear power supply to improve high voltage light load efficiency
Support large load capacitor start, wide applicability, can be flushed super capacitor
Multiple protection functions: UVLo/OCP/SCP/0TP/OVP
Junction temperature range of -40℃ to +125℃ (extreme environment selection square model)
Wide voltage input, good output stability and consistency, fast dynamic response
Support frequency conversion, reserved working frequency configuration, default 400kHz, 1M after shorting

Applications:
Industrial control system power supply
Low ripple and low noise power supply
Automotive electronics power supply
Wide voltage input range power supply

Model Description:

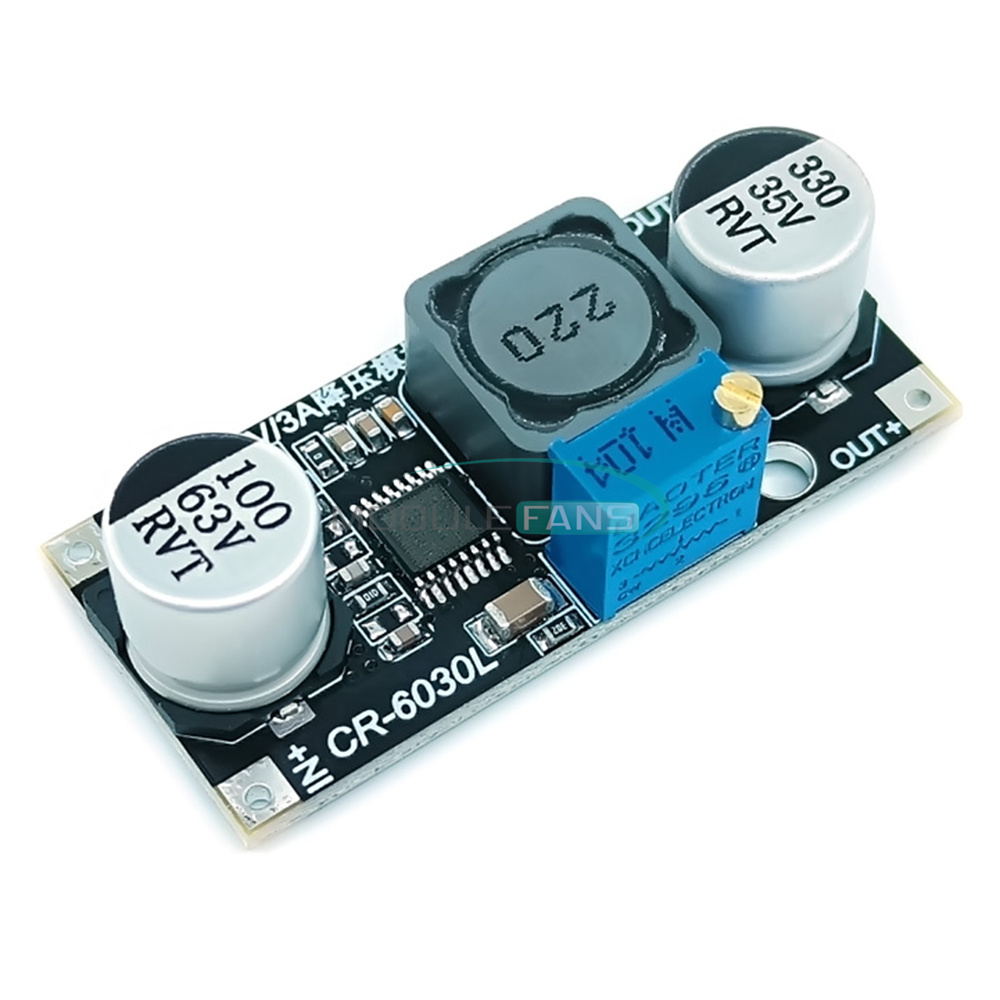

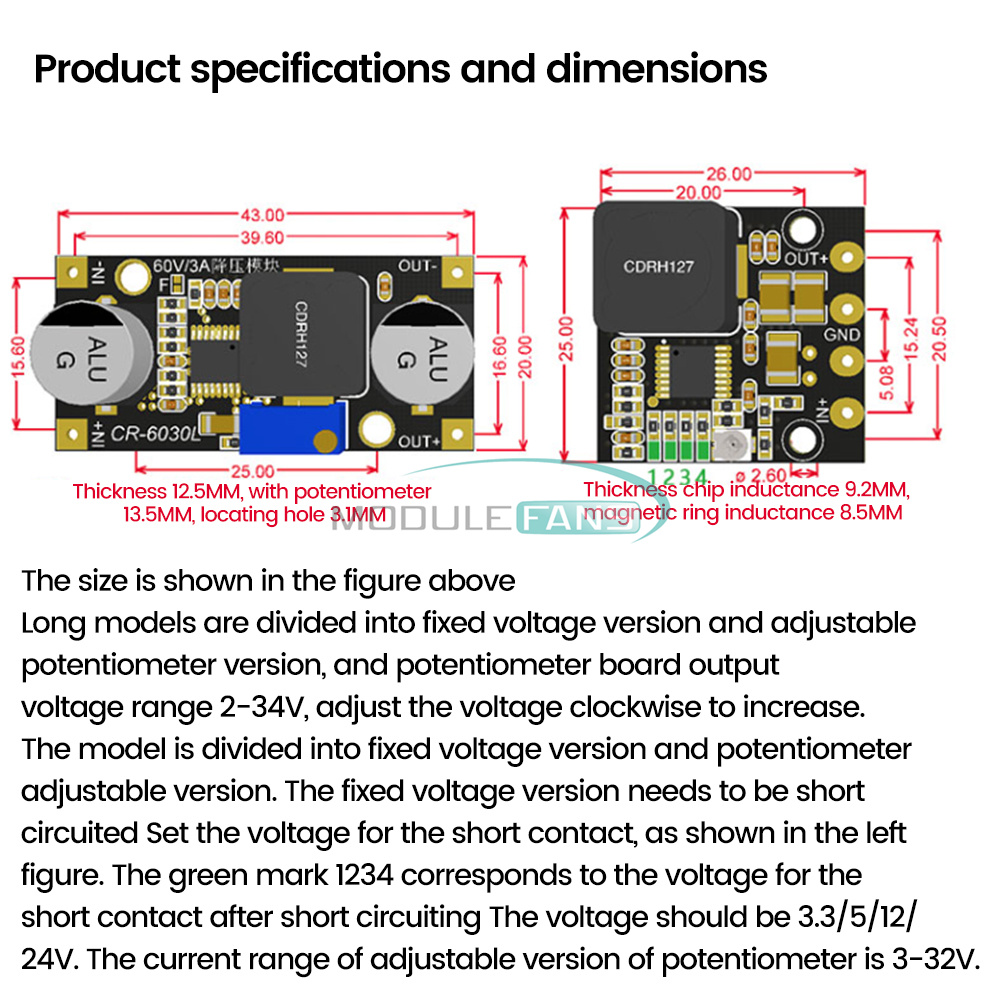

The long version is divided into fixed voltage version and potentiometer adjustable version, potentiometer board output voltage range 2-34V, clockwise adjustment of voltage increases.

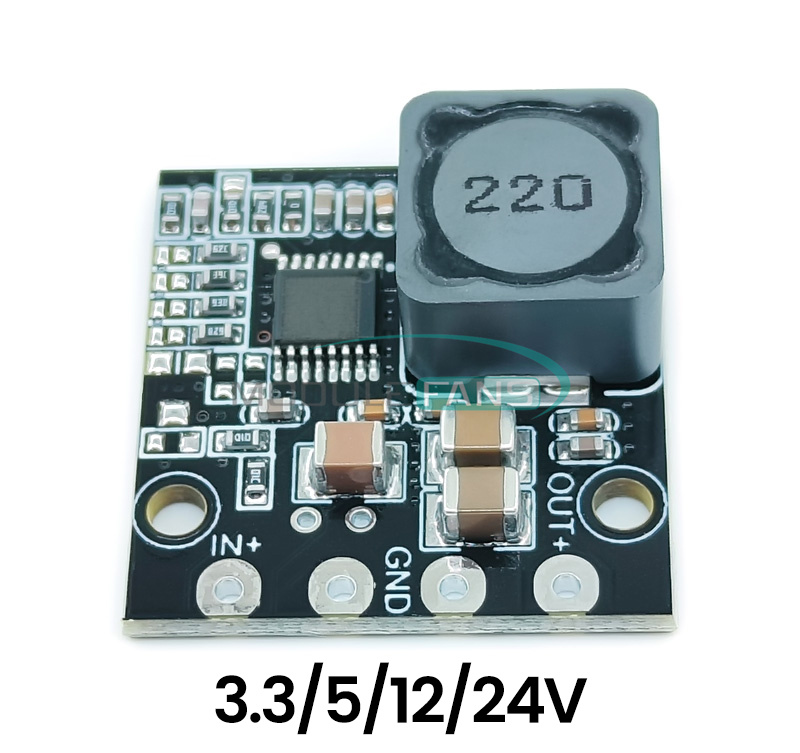

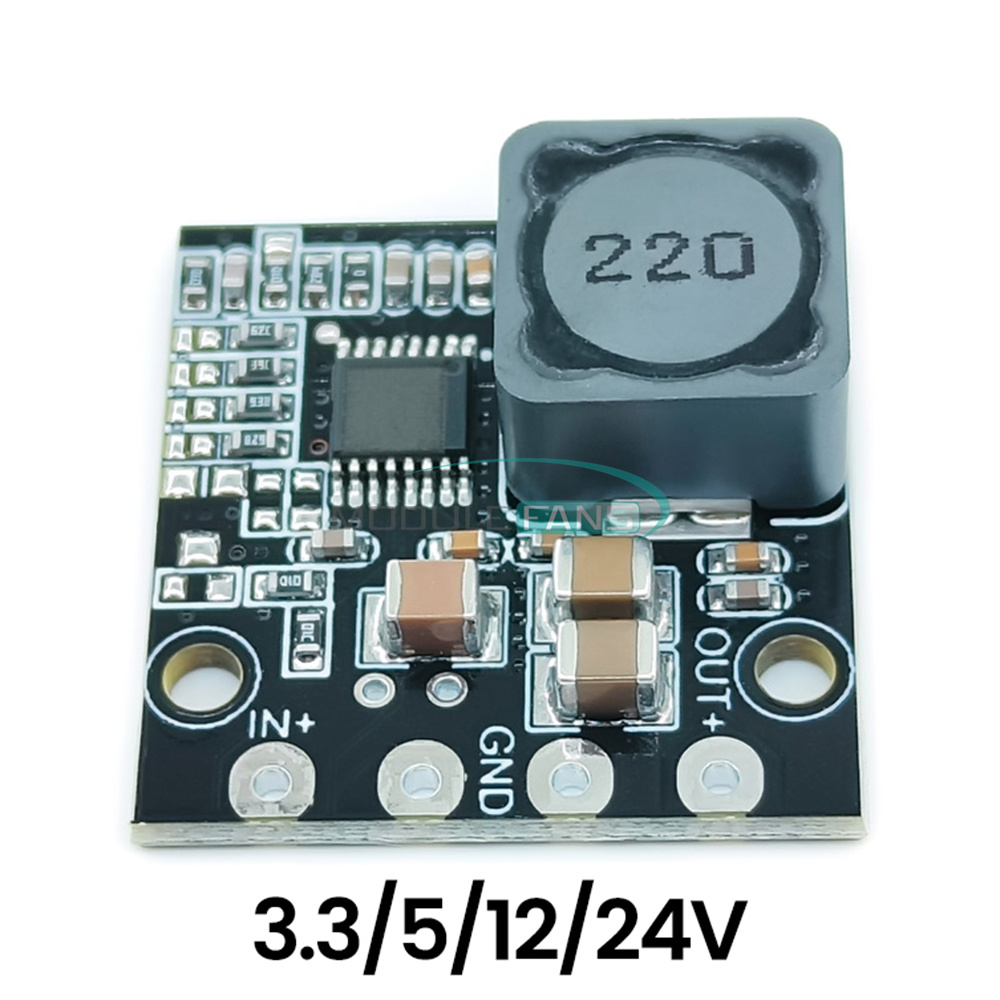

Square version is divided into fixed voltage version and potentiometer adjustable version, the fixed voltage version needs to be shorted to short contact point to set the voltage, the green mark 1234 corresponds to short contact point after shorting the corresponding voltage is 3.3/5/12/24V. potentiometer adjustable version is currently the range of 3-32V.

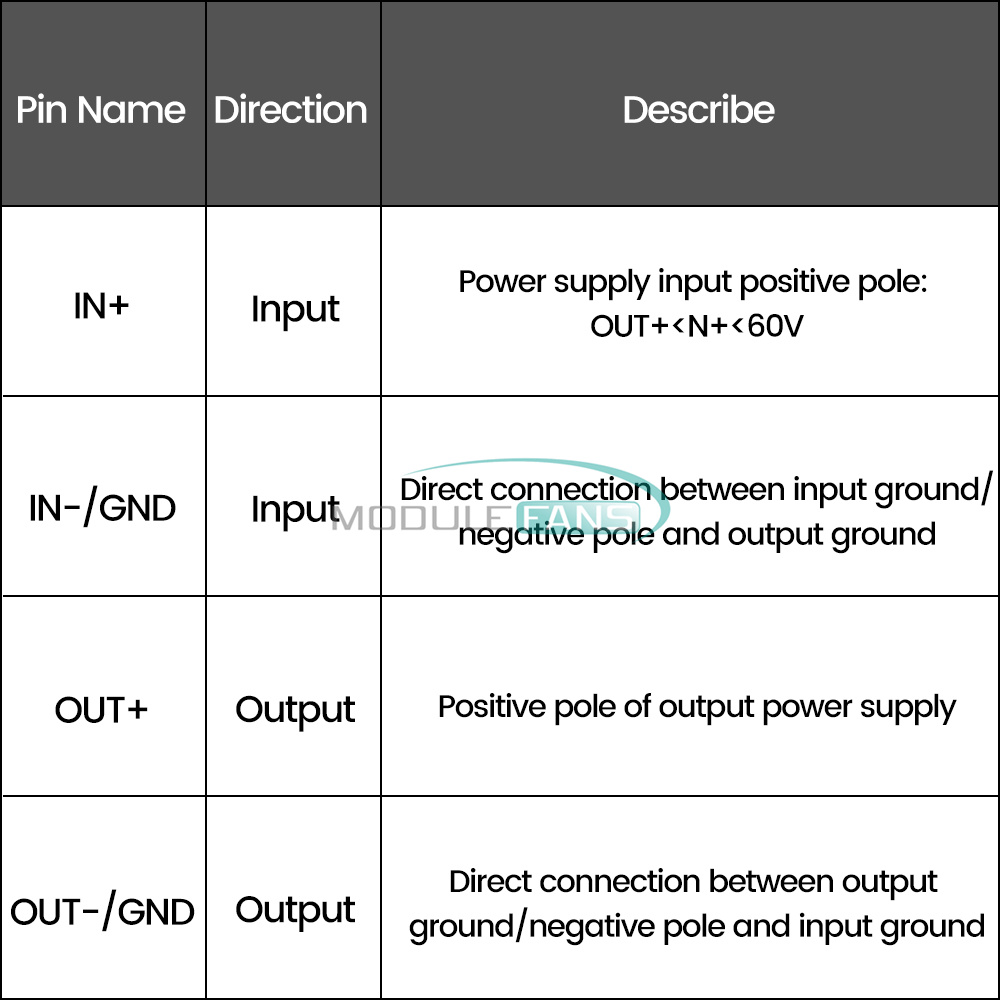

Pin Description:
IN+ -Input- Power supply input positive:OUT+<IN+<6ov
IN-/GND-input - input ground/negative, and output ground straight through
OUT+ -Output - Positive output power supply
OUT-/GND-Output-Output ground/negative, and input ground straight through

List:
1 x Power Module
