Adjustable CNC Regulated Power Supply Module Constant Volt&Current DC Step-down


Product features:
1. Use of high-quality materials, quality assurance

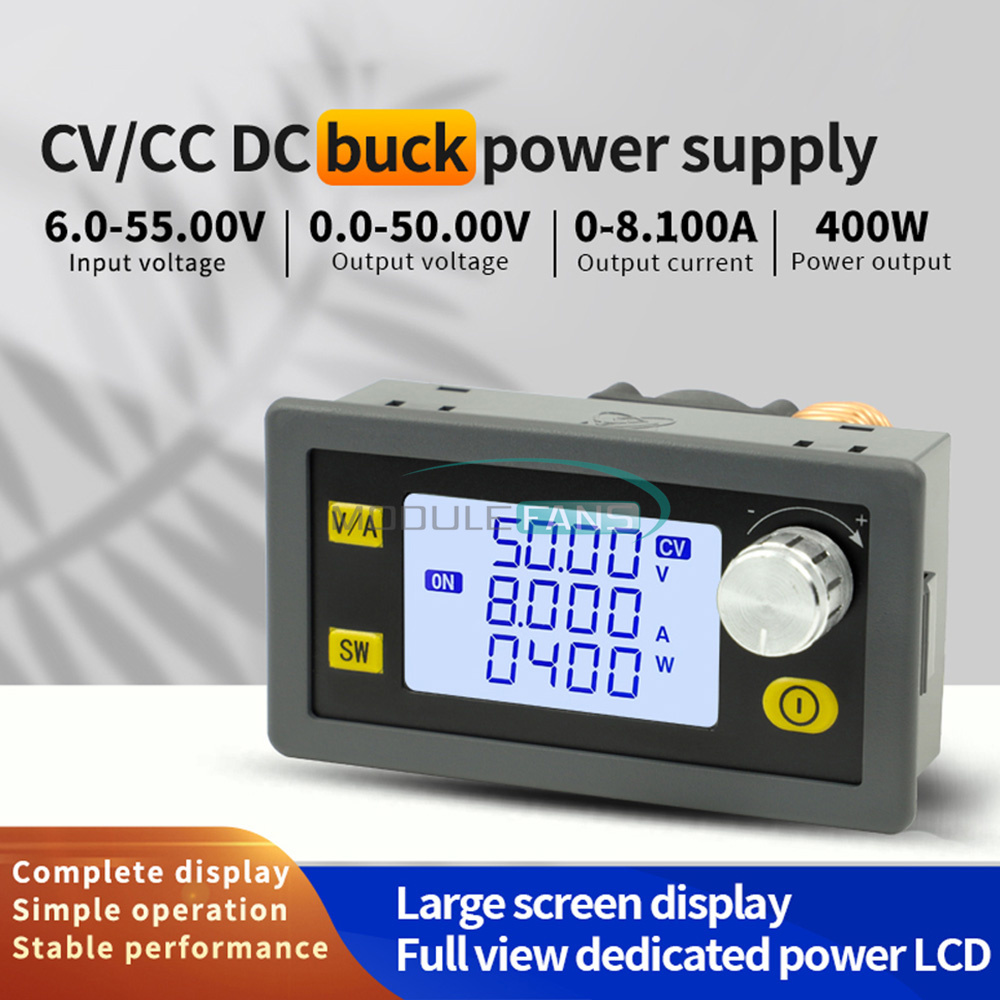

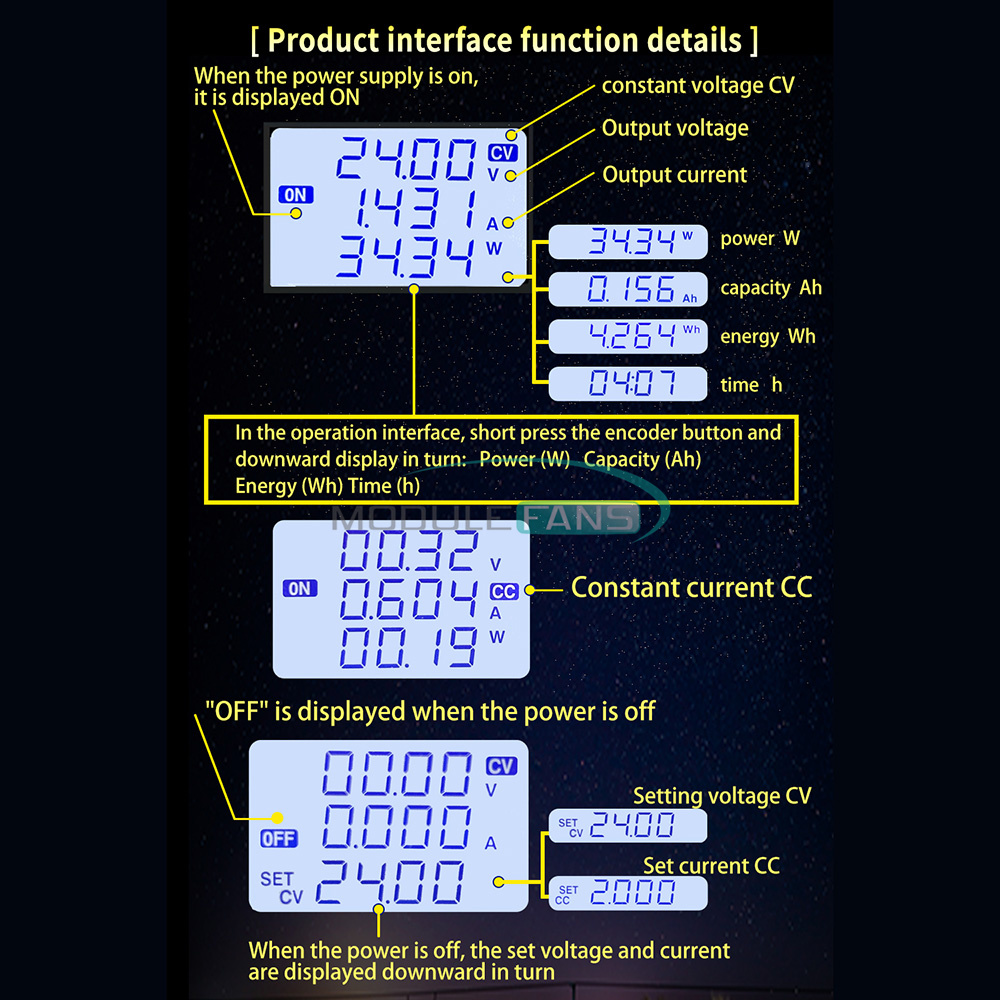

2. Large screen display, the state is clear at a glance, simple operation, smooth experience

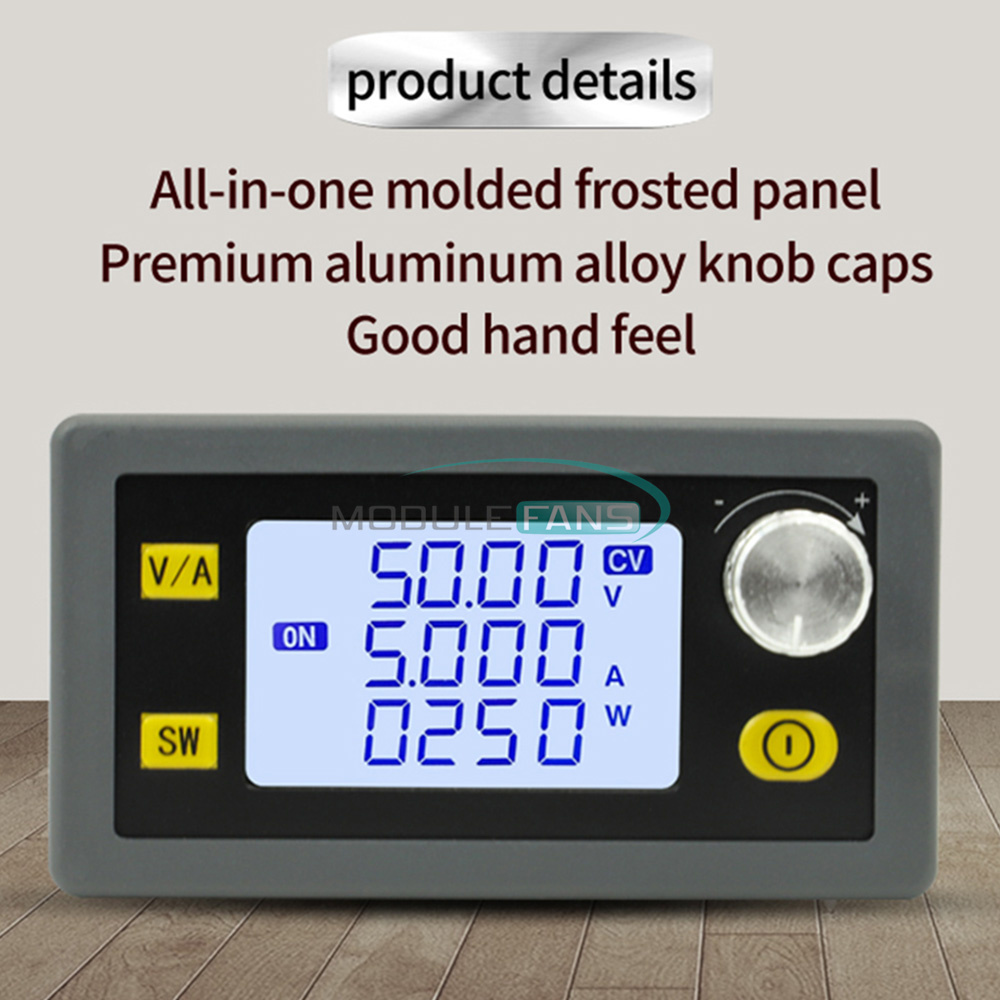

3. One-piece molding frosted panel, high-quality aluminum alloy knob cap

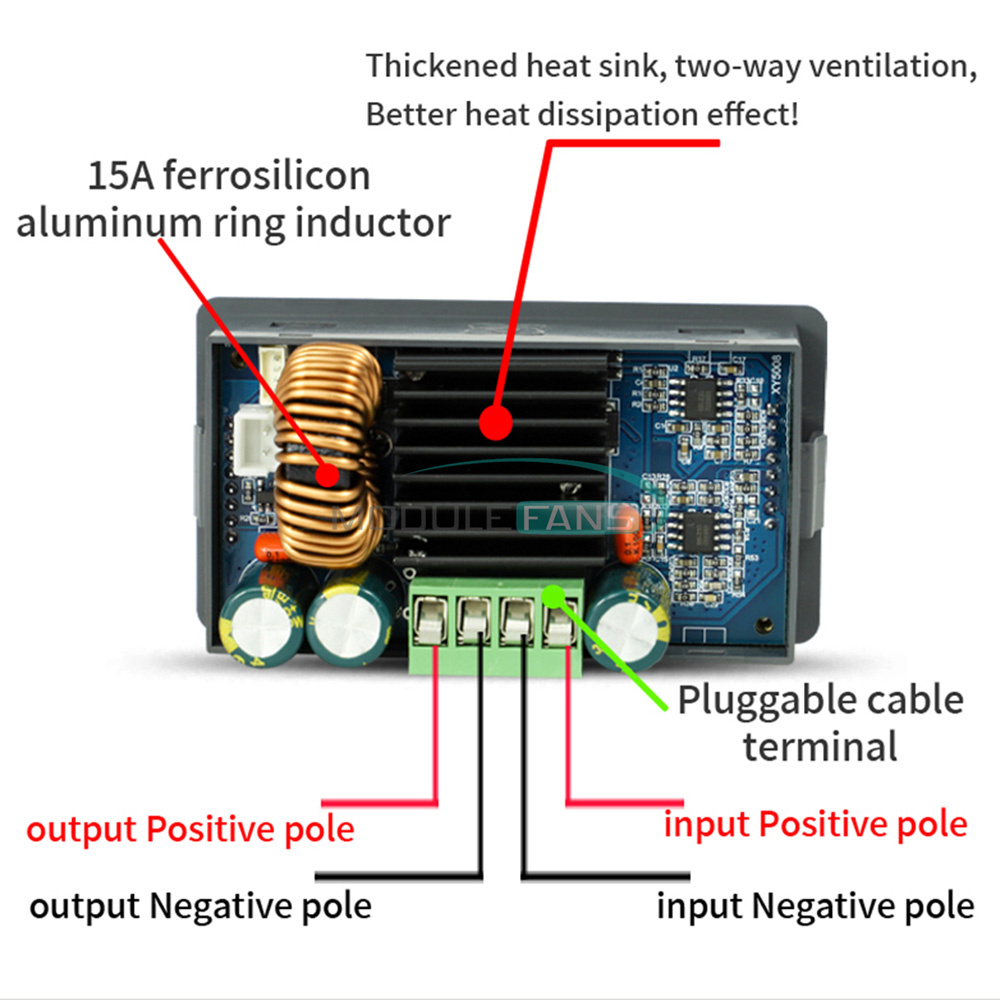

4. Intelligent temperature control fan, automatic start and stop; thickened heat sink, two-way ventilation
5. Exquisite appearance, easy to use

Product name: CNC DC buck power supply

Parameters:

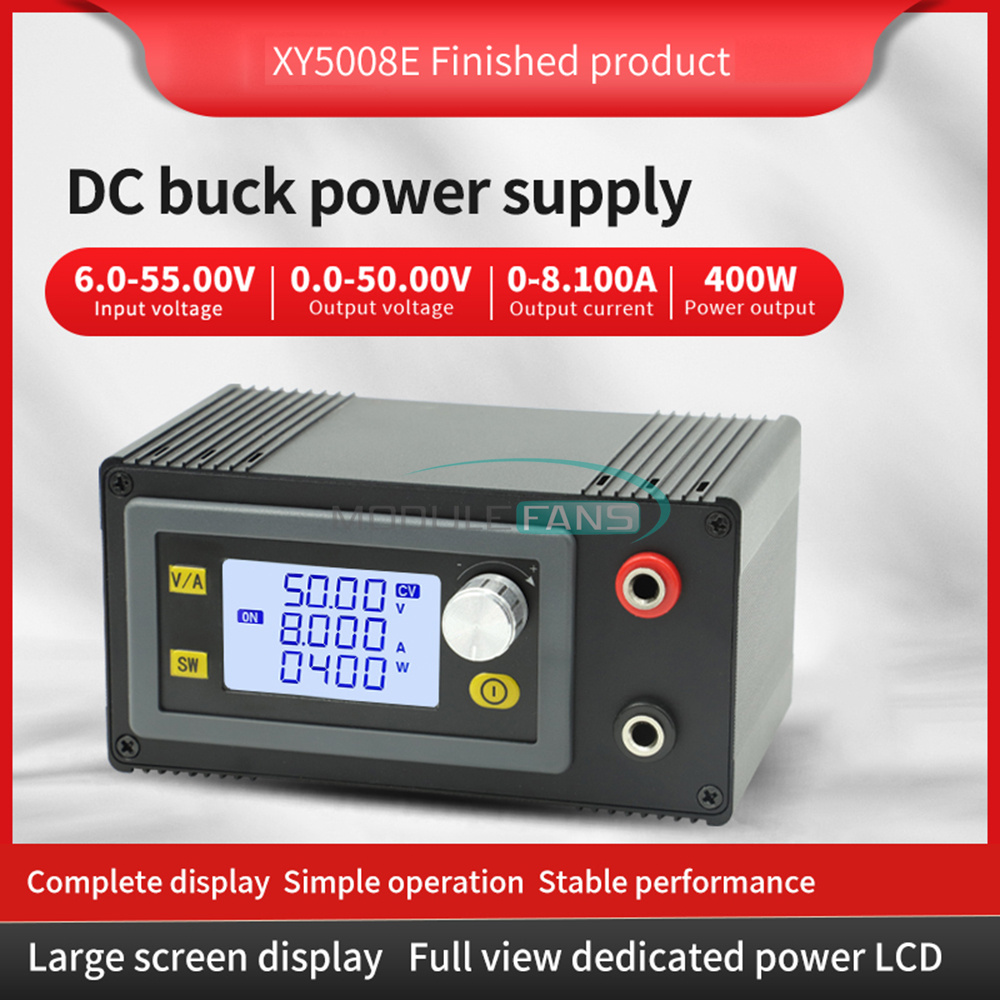

Product Model: XY5008E
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~8.100A
Voltage accuracy: +0.4% + 1 word
Output power: 0~400W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V .
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
About protection mechanism.
Input anti-reverse connection: Yes
Output short-circuit protection: Yes

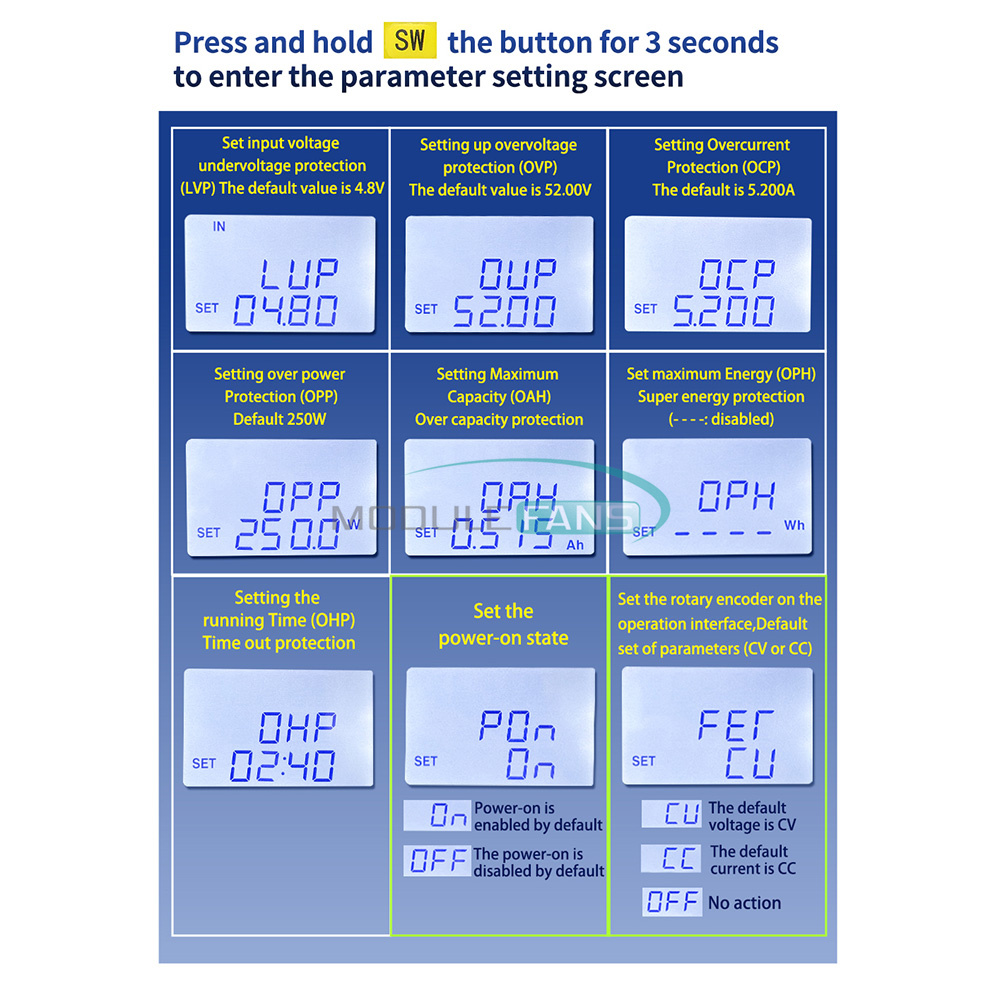

Input undervoltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-8.2A, default 8.2A)
Output over power protection: (0-410W, default 410W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)

Parameters:

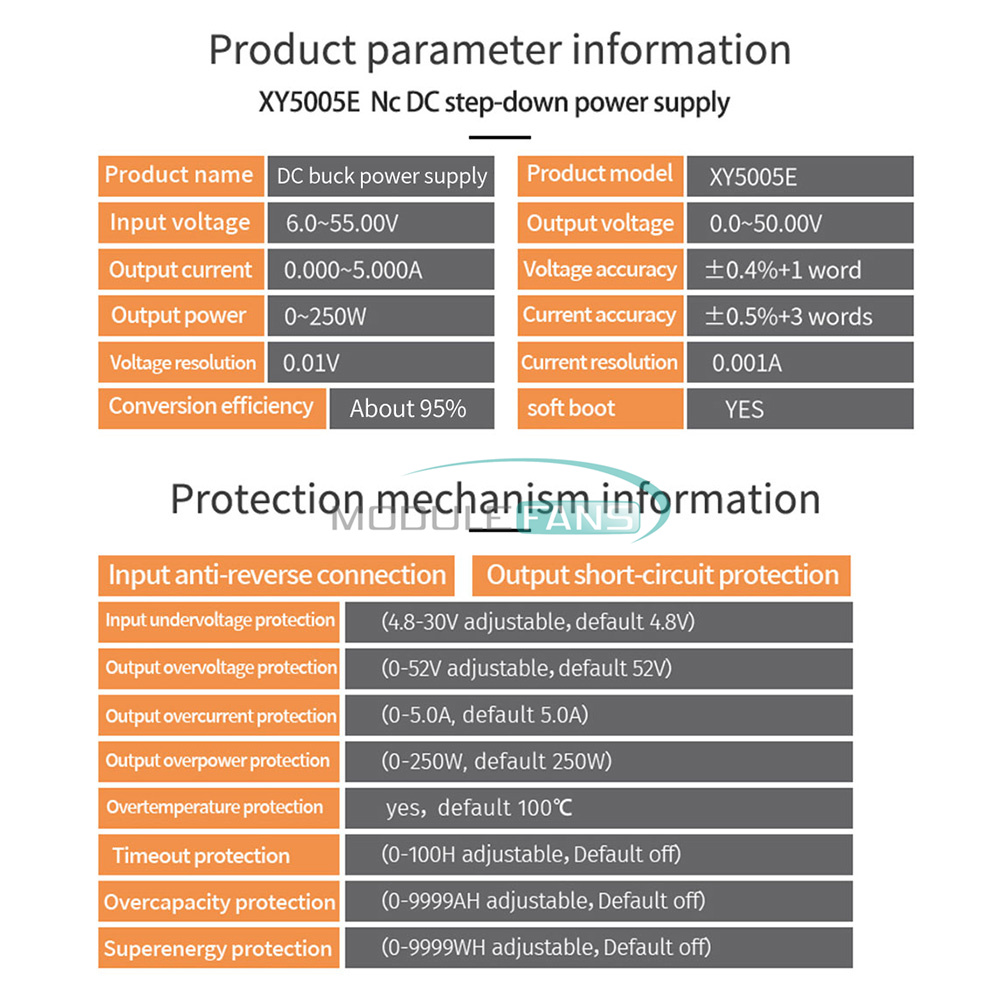

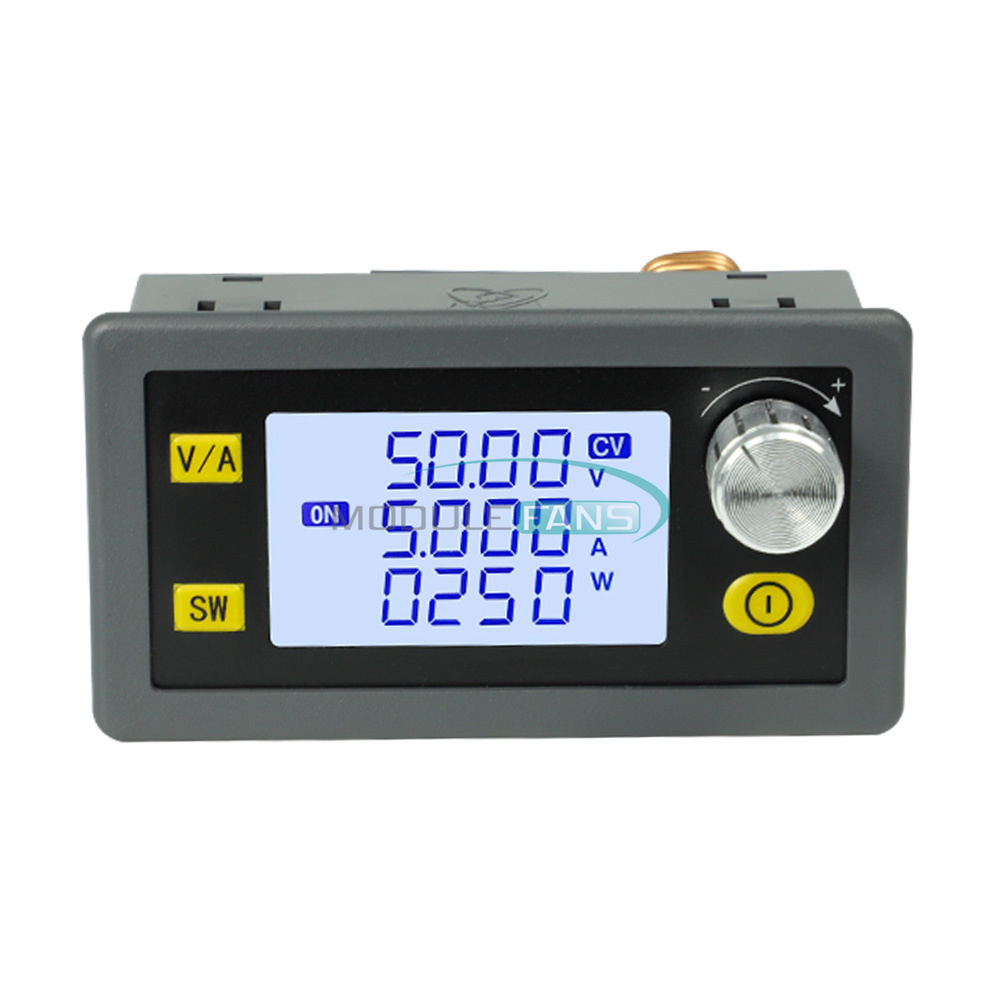

Product Model: XY5005E
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~5.000A
Voltage accuracy: +0.4% + 1 word
Output power: 0~250W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V .
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
About protection mechanism.
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input undervoltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-5.0A adjustable, default 5.0A)
Output over power protection: (0-250W adjustable, default 250W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)

Parameters:
Product Model: XY5008E Upgraded
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~8.100A
Voltage accuracy: +0.4%+1 word
Output power: 0~400W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
Product Model: XY5005E Upgraded
Input voltage: 6.0~55V
Output voltage: 0.0~50V
Output current: 0.000~5.000A
Voltage accuracy: +0.4% + 1 word
Output power: 0~250W
Current accuracy: +0.5%+3 words
Voltage resolution: 0.01V
Current resolution: 0.001A
Conversion efficiency: about 95%
Soft start: Yes
About protection mechanism:
Input anti-reverse connection: Yes
Output short-circuit protection: Yes
Input under-voltage protection: (4.8-30V adjustable, default 4.8V)
Output over-voltage protection: (0-52V adjustable, default 52V)
Output overcurrent protection: (0-8.2A, default 8.2A)
Output over power protection: (0-410W, default 410W)
Over temperature protection: Yes, default 100°C
Timeout protection: (0-100H adjustable, default off)
Over-capacity protection: (0-9999AH adjustable, default off)
Super energy protection: (0-9999WH adjustable, default off)
Add rich input interface, but prohibit two or more interfaces at the same time access
The front of the shell with invisible air inlet, a reasonable air cooling structure, can effectively take away the heat inside the shell, so that the power supply efficient and reliable operation

Package list:
Adjustable voltage regulator * 1
