1: 600W high power boost constant current
2: Overcurrent protection: Yes (input exceeds 17A, automatically reduces output voltage with a range of errors.)
3: Short-circuit protection: Yes (input 20A fuse) Double short-circuit protection, safer to use.
4: Output anti-reverse irrigation: Yes, for charging without adding anti-reverse diodes.
5: Easy to install and use
2: Overcurrent protection: Yes (input exceeds 17A, automatically reduces output voltage with a range of errors.)
3: Short-circuit protection: Yes (input 20A fuse) Double short-circuit protection, safer to use.
4: Output anti-reverse irrigation: Yes, for charging without adding anti-reverse diodes.
5: Easy to install and use

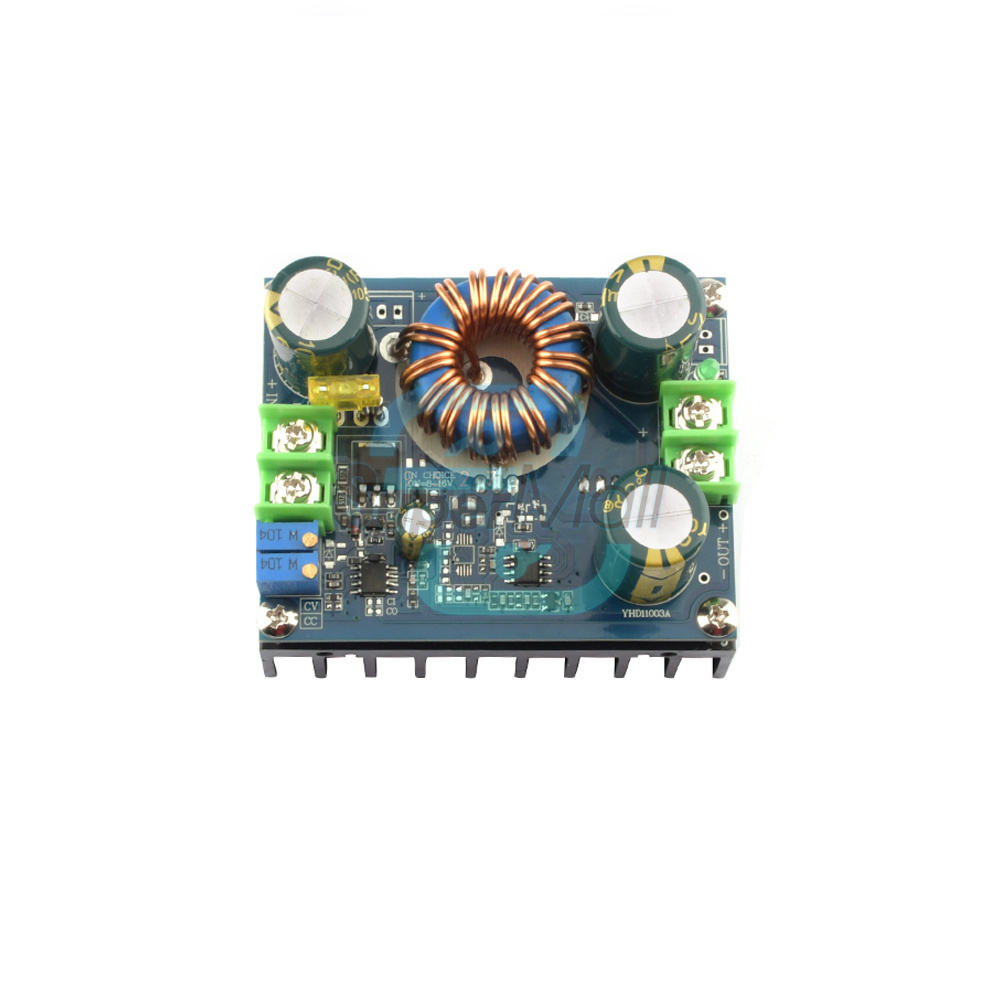

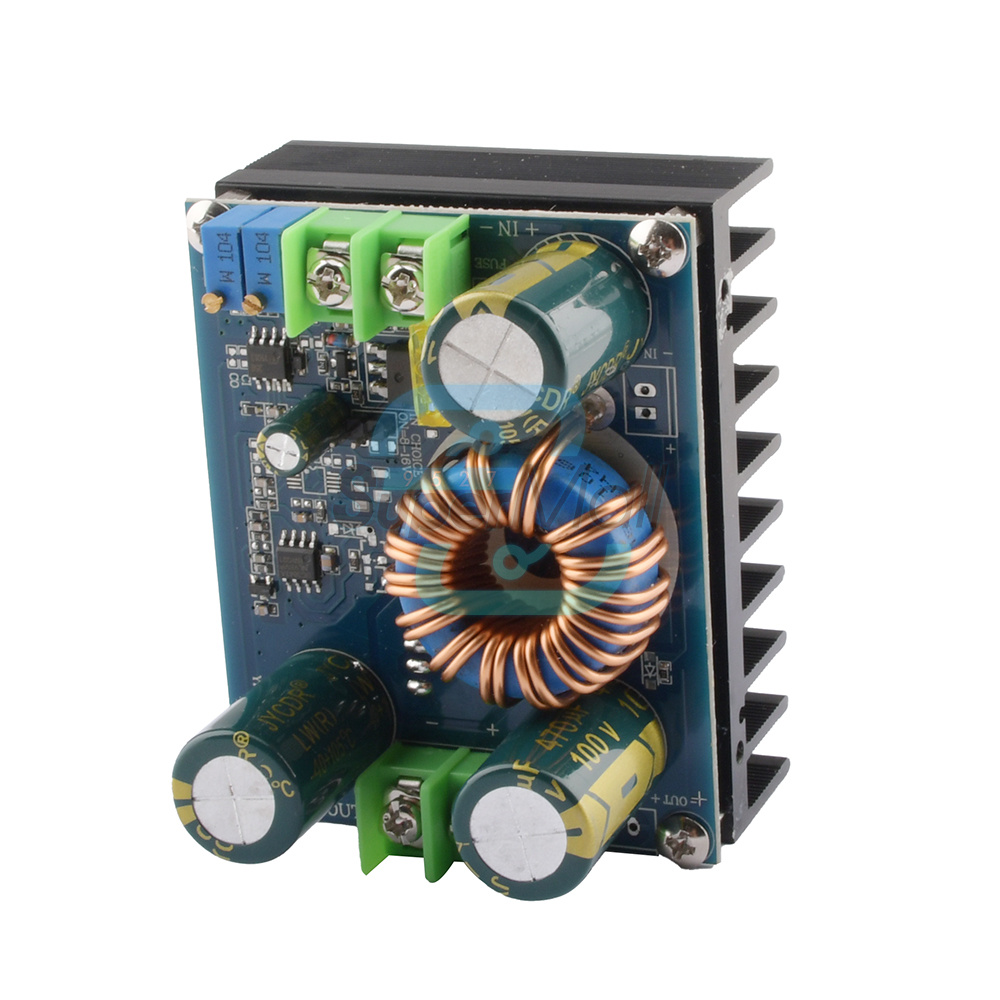

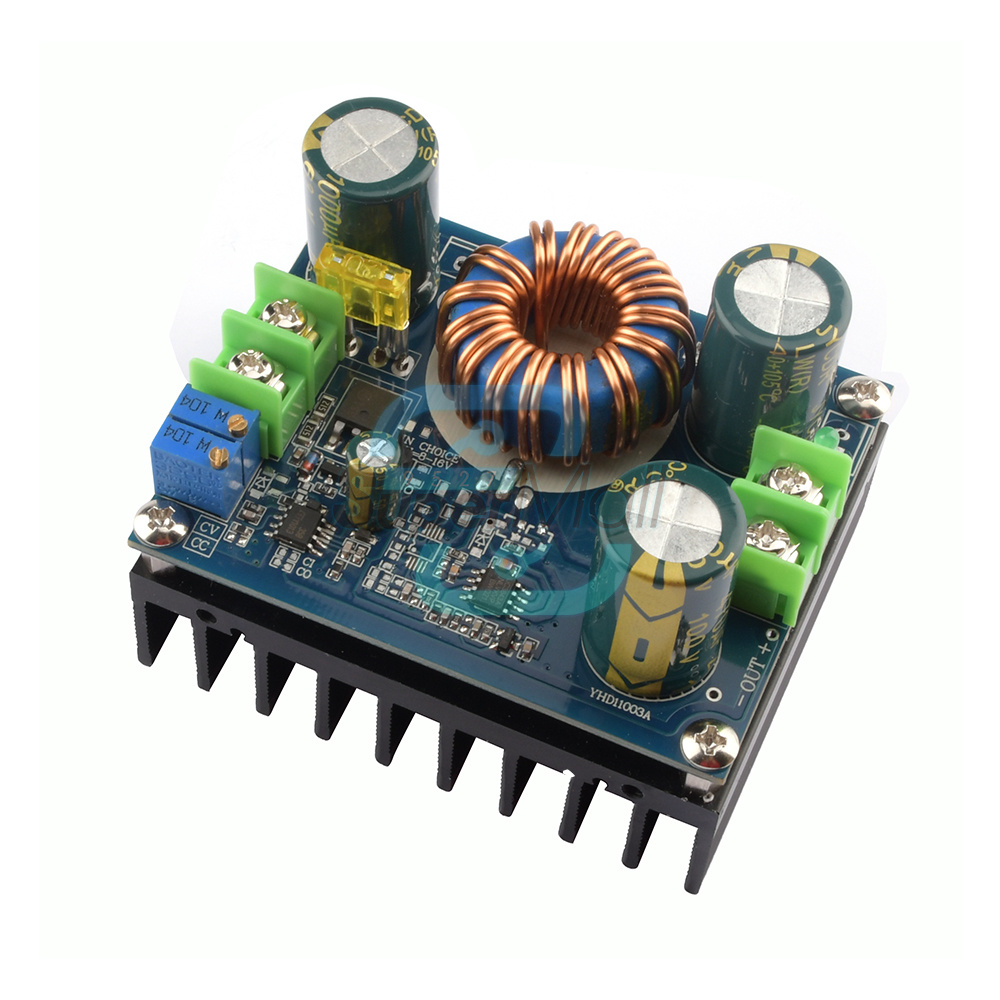

600W boost module, 12-60V wide input voltage, 12-80V adjustable wide output voltage, ultra-low input and output voltage difference.
Module name: 600W step-up constant current module
Module nature: Non-isolated step-up module (BOOST)
Input voltage:Two input voltage ranges are available, (selectable via jumpers on the board)
1, 8-16V input (for three series of lithium and 12V battery applications) in this input state, please do not over-voltage input
Otherwise the module will be burnt out!!!
2、12-60V input factory default range (for wide input voltage range applications)
Input current: 16A (MAX) More than 10A please strengthen the heat dissipation
Static working current: 15mA (12V to 20V, the higher the output voltage, the higher the static too current will increase)
Output voltage: 12-80V continuously adjustable (default output 19V, if other voltages are required, please ask the shopkeeper for clarification)
12-80V fixed output (for bulk customers)
Output current: 12A MAX More than 10A please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference the smaller the output current)
Constant current range: 0.1-12A
Output power: = input voltage*10A, e.g. input 12V*10A=120W, input 24V*10A=240W, input 36V*10A=360W
Input 36V*10A=360W, Input 48V*10A=480W, Input 60V*10A=600W
For more power, two modules can be used in parallel, for example, if the output is 15A, two modules can be used in parallel.
The current of each module can be adjusted to 8A.
Operating temperature: -40~+85 degrees (please strengthen the heat dissipation when the ambient temperature is too high)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and voltage difference)
Overcurrent protection: Yes (input exceeds 17A, automatically reduces output voltage with a range of errors.)
Short circuit protection: Yes (input 20A fuse) Double short circuit protection, safer to use
Input reverse connection protection: yes, (if required please put diodes in series with the input)
Output anti-reverse irrigation: Yes, for charging without additional anti-reverse diodes.
Mounting: 2 x 3mm screws
Wiring method: terminal block solder-free output

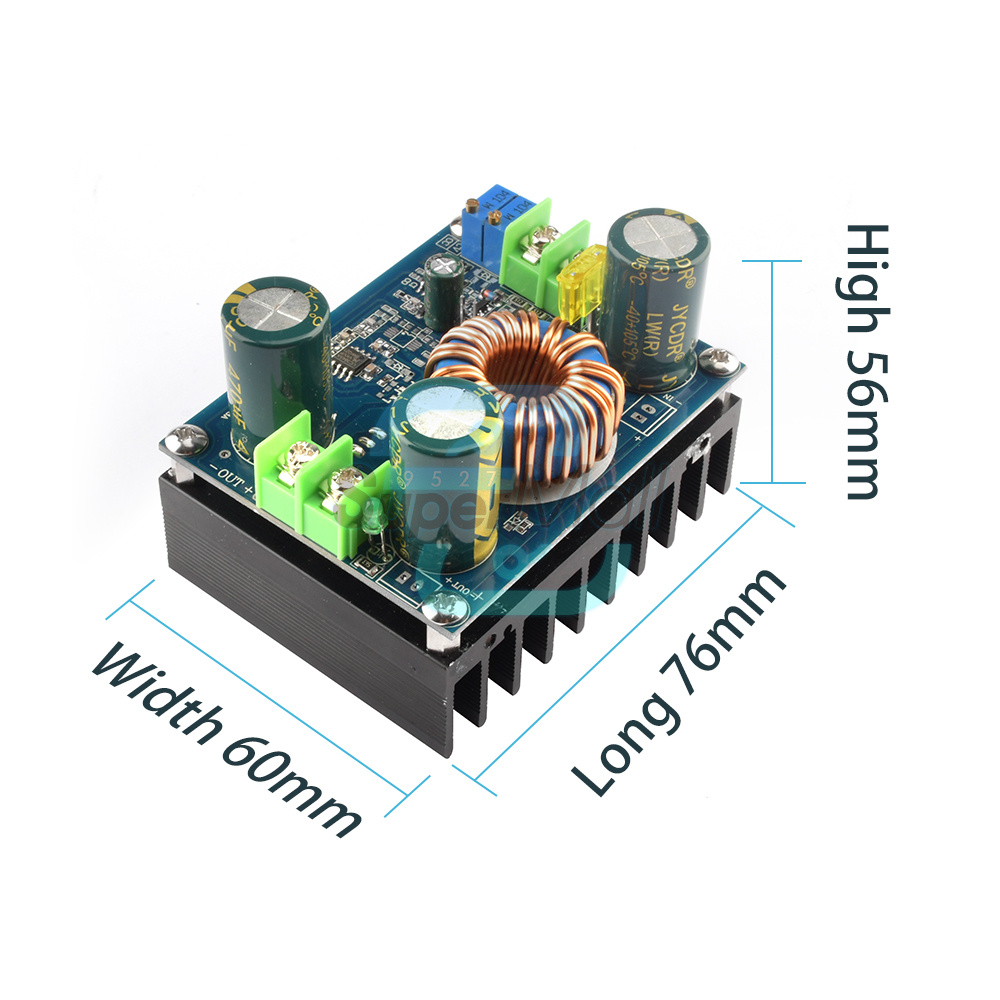

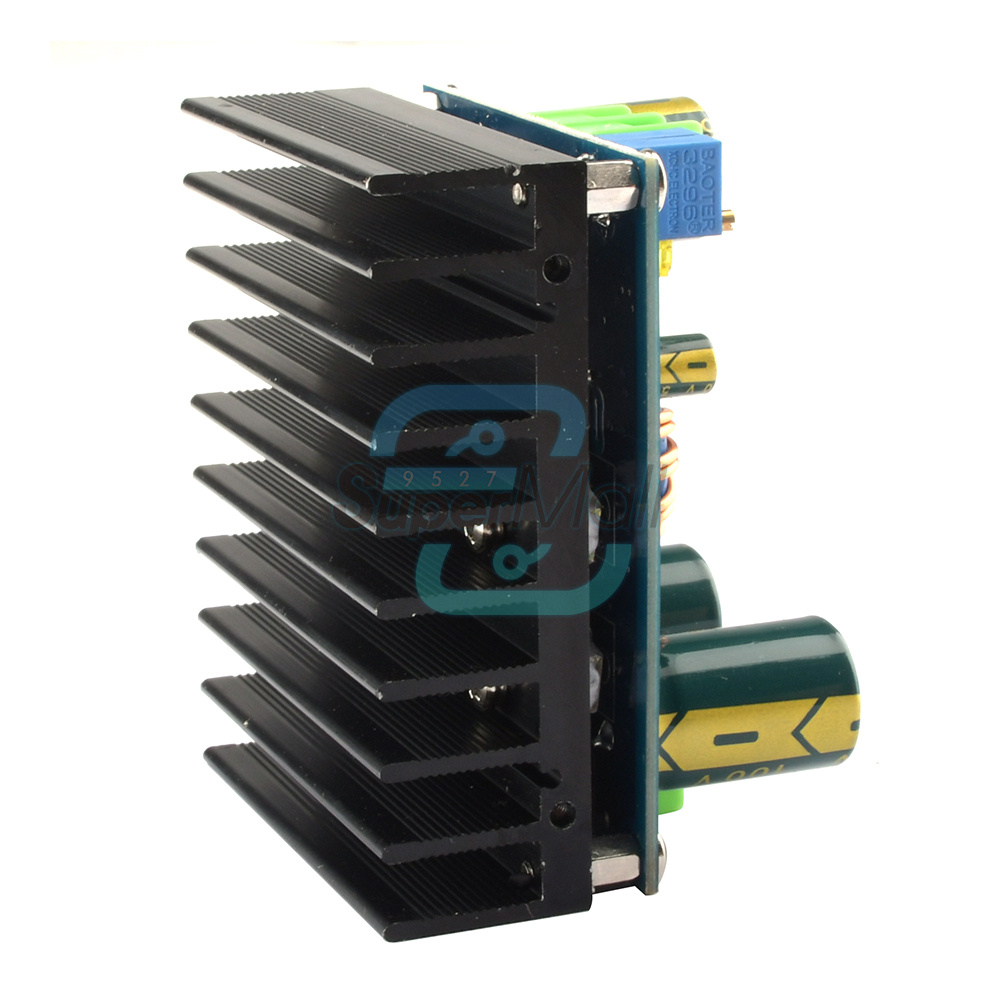

Module size: length 76mm width 60mm height 56mm
Module weight per unit: 210g
Module name: 600W step-up constant current module
Module nature: Non-isolated step-up module (BOOST)
Input voltage:Two input voltage ranges are available, (selectable via jumpers on the board)
1, 8-16V input (for three series of lithium and 12V battery applications) in this input state, please do not over-voltage input
Otherwise the module will be burnt out!!!
2、12-60V input factory default range (for wide input voltage range applications)
Input current: 16A (MAX) More than 10A please strengthen the heat dissipation
Static working current: 15mA (12V to 20V, the higher the output voltage, the higher the static too current will increase)
Output voltage: 12-80V continuously adjustable (default output 19V, if other voltages are required, please ask the shopkeeper for clarification)
12-80V fixed output (for bulk customers)
Output current: 12A MAX More than 10A please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference the smaller the output current)
Constant current range: 0.1-12A
Output power: = input voltage*10A, e.g. input 12V*10A=120W, input 24V*10A=240W, input 36V*10A=360W
Input 36V*10A=360W, Input 48V*10A=480W, Input 60V*10A=600W
For more power, two modules can be used in parallel, for example, if the output is 15A, two modules can be used in parallel.
The current of each module can be adjusted to 8A.
Operating temperature: -40~+85 degrees (please strengthen the heat dissipation when the ambient temperature is too high)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and voltage difference)
Overcurrent protection: Yes (input exceeds 17A, automatically reduces output voltage with a range of errors.)
Short circuit protection: Yes (input 20A fuse) Double short circuit protection, safer to use
Input reverse connection protection: yes, (if required please put diodes in series with the input)
Output anti-reverse irrigation: Yes, for charging without additional anti-reverse diodes.
Mounting: 2 x 3mm screws
Wiring method: terminal block solder-free output
Module size: length 76mm width 60mm height 56mm
Module weight per unit: 210g
Application range.
1、DIY a regulated power supply, input 12V can be, output can be 12-80V adjustable.
2, for your electronic equipment power supply, you can set the output value according to your system voltage.
3、As a car power supply, for your laptop, PDA or various digital products power supply.
4、DIY a high power laptop mobile power supply: with a large capacity 12V lithium battery pack, so that your book can be bright wherever you go
5、Solar panel voltage stabilisation.
6、Charge batteries, lithium batteries, etc.
7、Drive high power LED lights.
1、DIY a regulated power supply, input 12V can be, output can be 12-80V adjustable.
2, for your electronic equipment power supply, you can set the output value according to your system voltage.
3、As a car power supply, for your laptop, PDA or various digital products power supply.
4、DIY a high power laptop mobile power supply: with a large capacity 12V lithium battery pack, so that your book can be bright wherever you go
5、Solar panel voltage stabilisation.
6、Charge batteries, lithium batteries, etc.
7、Drive high power LED lights.
Operating instructions.

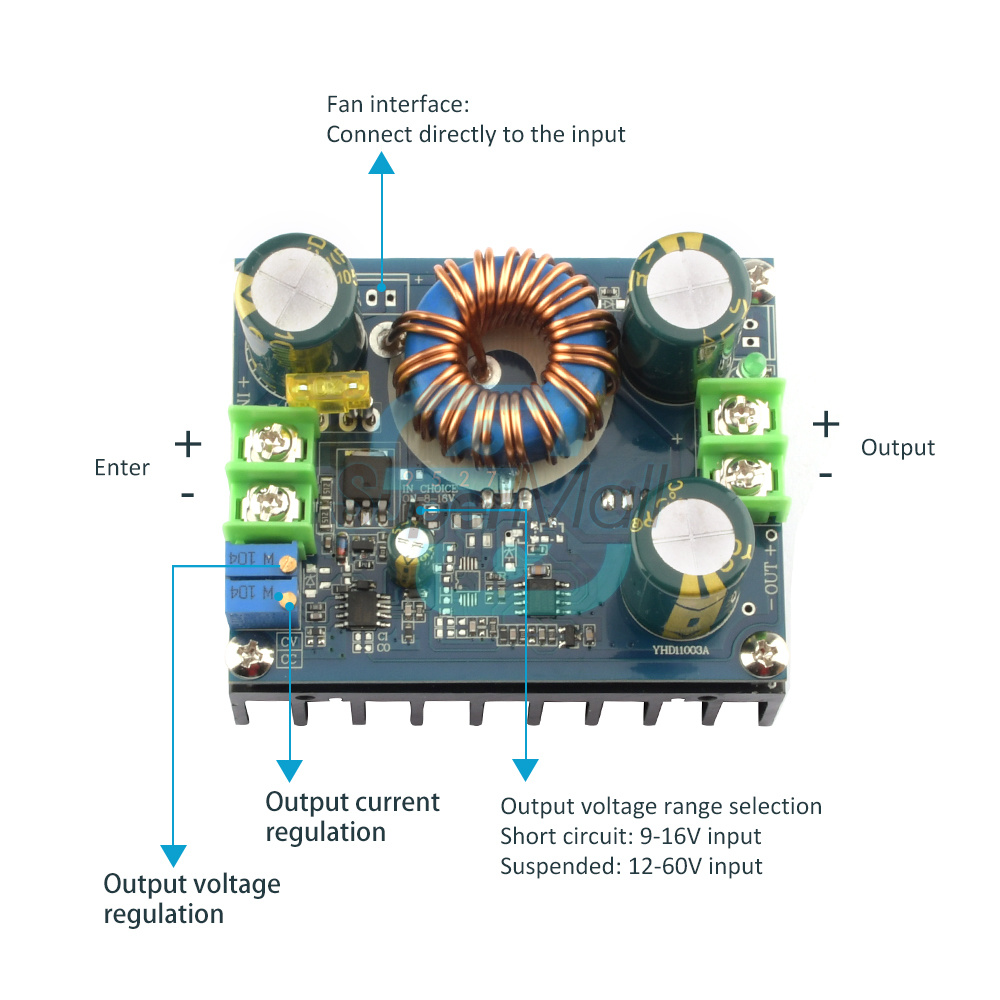

I, input voltage range selection: factory default for 12-60V input, when you use 12V battery or three strings, four strings of lithium, you can put the above jumper with jumper cap short, select 9-16V input.
Second, the output current adjustment method.
1, adjust the CV potentiometer, according to your battery or LED, the output voltage is set to the voltage value you need. Such as 10 strings of LED voltage adjustment 37V, four strings of battery adjustment 55V, etc.
2、Set the CC potentiometer counterclockwise for about 30 turns, set the output current to the minimum, connect the LEDs and adjust the CC potentiometer to the current you need. For battery charging, after discharging the battery, then connect to the output and adjust the CC to your desired current, (for charging, you must use the discharged battery to adjust to be accurate, because the more power left in the battery, the smaller the charging current.) Please do not use a short circuit to adjust the current, the circuit structure of the booster module cannot be adjusted with a short circuit.
I, input voltage range selection: factory default for 12-60V input, when you use 12V battery or three strings, four strings of lithium, you can put the above jumper with jumper cap short, select 9-16V input.
Second, the output current adjustment method.
1, adjust the CV potentiometer, according to your battery or LED, the output voltage is set to the voltage value you need. Such as 10 strings of LED voltage adjustment 37V, four strings of battery adjustment 55V, etc.
2、Set the CC potentiometer counterclockwise for about 30 turns, set the output current to the minimum, connect the LEDs and adjust the CC potentiometer to the current you need. For battery charging, after discharging the battery, then connect to the output and adjust the CC to your desired current, (for charging, you must use the discharged battery to adjust to be accurate, because the more power left in the battery, the smaller the charging current.) Please do not use a short circuit to adjust the current, the circuit structure of the booster module cannot be adjusted with a short circuit.
List
1 x Boost module
1 x Boost module
