1000W 12V Solar Hybrid Inverter Pure Sine Wave MPPT 40A Max PV 600W DC150V Input
For European Union countries:our German warehouse has stock, the package will be sent directly from the German warehouse. Before purchasing, you can contact us to confirm the stock availability. Thanks!
【Pure sine Wave Inverter】1000W Pure sine Wave Inverter 12V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 40A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 12V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery.

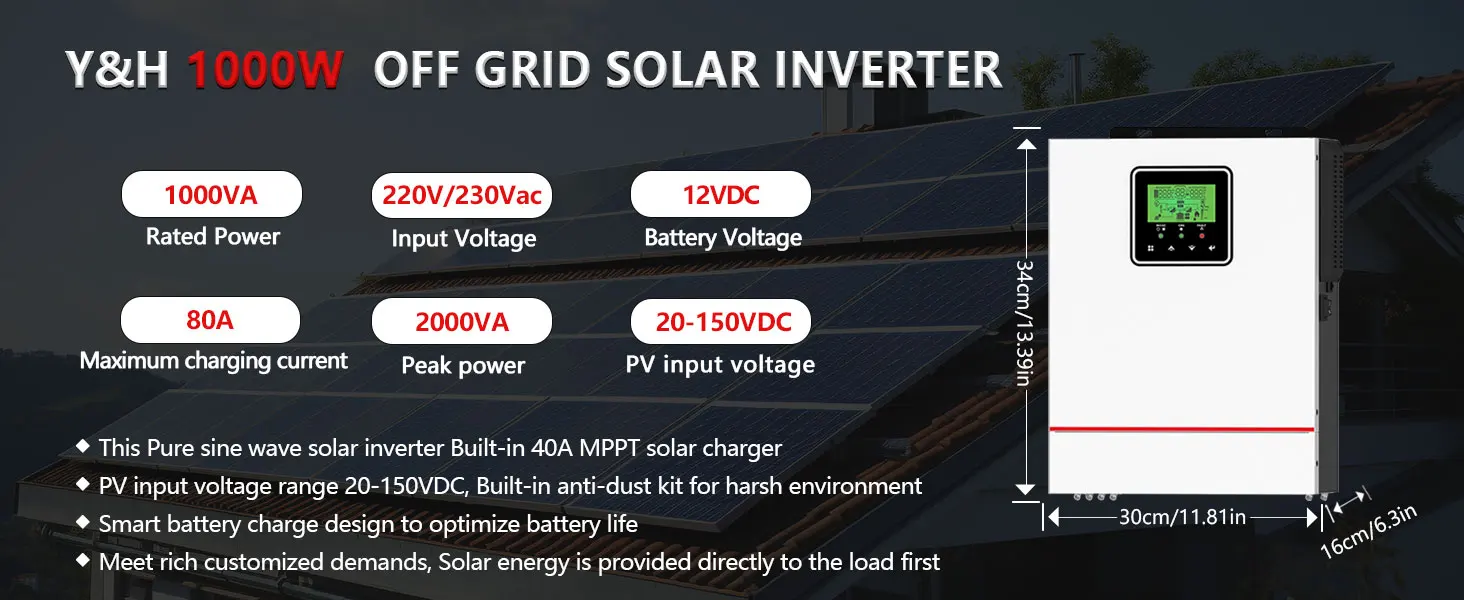

【TECHNICAL SPECIFICATIONS】1kw
Hybrid Solar Inverter Max.PV Input Power: 600W, Voltage range: 20-150Vdc, Max. PV Input VOC: 150V DC, Starting voltage >30V;Recommended PV cable size: 12AWG, Max.charge current: 40A. Nominal Input Frequency: 50/60Hz; Output Power: 1000W, surge Capacity:2000W.

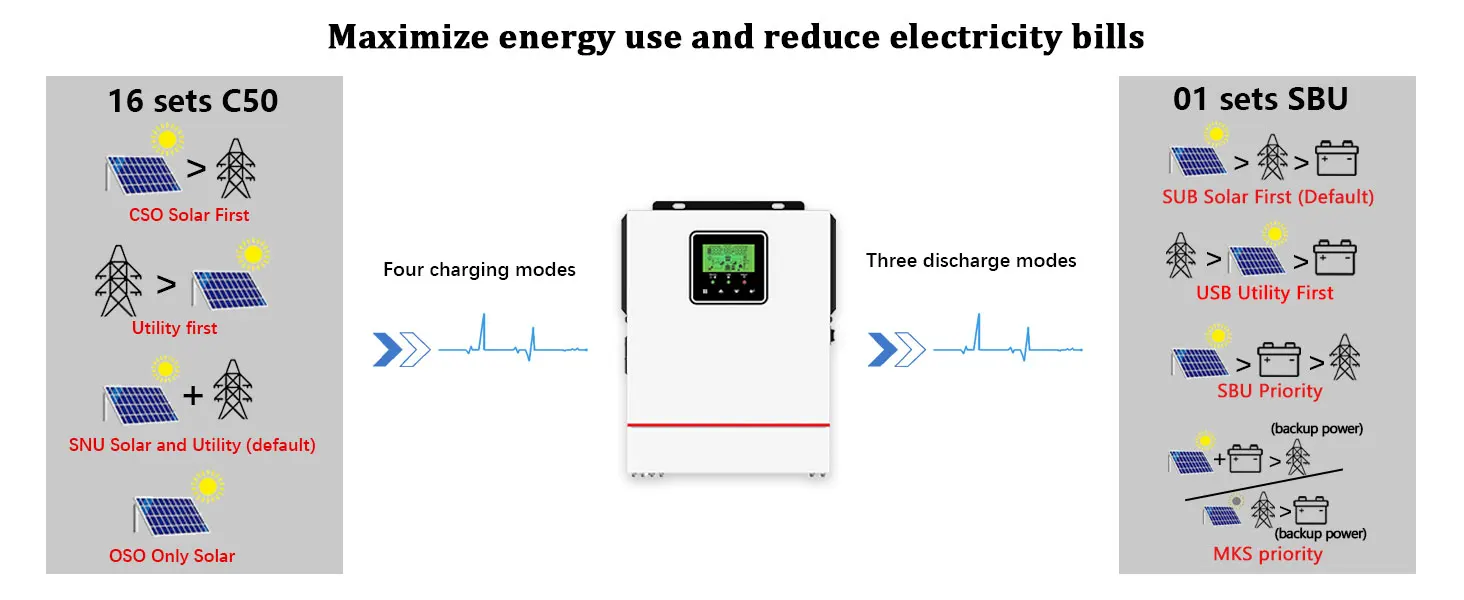

【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 2 output modes are available, i.e. Solar Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 1000W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running.Avoid affecting your rest (expect 50-70 db)）
Features：
Pure sine wave inverter
Programmable supply priority for PV, battery or Grid
High PV input voltage range(20~150VDC)
Reduce the cost of solar panels
Built-in Max 40A MPPT solar charge
Compatibe with lithium-ion battery
Smart battery charge design to optimize battery life
Overload, high temperature,inverter output short circuit protection Intelligent fan speed adjustment
Built-in anti-dusk kit for harsh enviromen
Note: WiFi module is not included. If needed, please contact us for purchase.
| Product Data Sheet | ||
| Model | NMS-1000-12 | NMS-1500-24 |
| RATED POWER | 1000W/1000VA | 1500W/ 1500VA |
| AC Input | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC (For Personal Computers) | |
| 90~280VAC (For Home Appliances) | ||
| Frequency Range | 50 Hz/60Hz (Auto sensing) | |
| AC OUTPUT | ||
| AC Voltage Regulation | 230VAC士5% | |
| Surge Power | 2000VA | 3000VA |
| Efficiency(Peak)PV to INV | 98% | |
| Efficiency(Peak)Battery to INV | 94% | |
| Transfer Time | 10 ms | |
| BATTERY | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 32VDC |
| SOLAR CHARGER &AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 600W | 1200W |
| MPPT Range @ Operating Voltage | 20~150VDC | 30~150VDC |
| Starting voltage | >30V | |
| Maximum PV Array Open Circuit voltage | 150VDC | |
| Maximum Solar Charging Current | 40A | |
| Maximum AC Charging current | 40A | |
| Maximum Solar + AC Charging Current | 80A | |
| PHYSICAL | ||
| Dimension,D*W*H(mm) | 290*240*91 | |
| Cartoon Dimension,D*W*H(mm) | 340*30*16 | |
| Net Weight(kgs) | 3.5 | 3.6 |
| Gross wWelightM（kgs) | 3.8 | 4.2 |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Rellatiwe Humidility (Non-condensling) | |
| Operating Temperature | -10℃-5℃ | |
| STANDARD | ||
| Compliance Safaty | CE | |
