Summary:

• Dual-way independent temperature controller.
• Heating or cooling control. Red and blue LED display.
• All parameters can be saved after short circuit.
• It can be used for home freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature control systems.

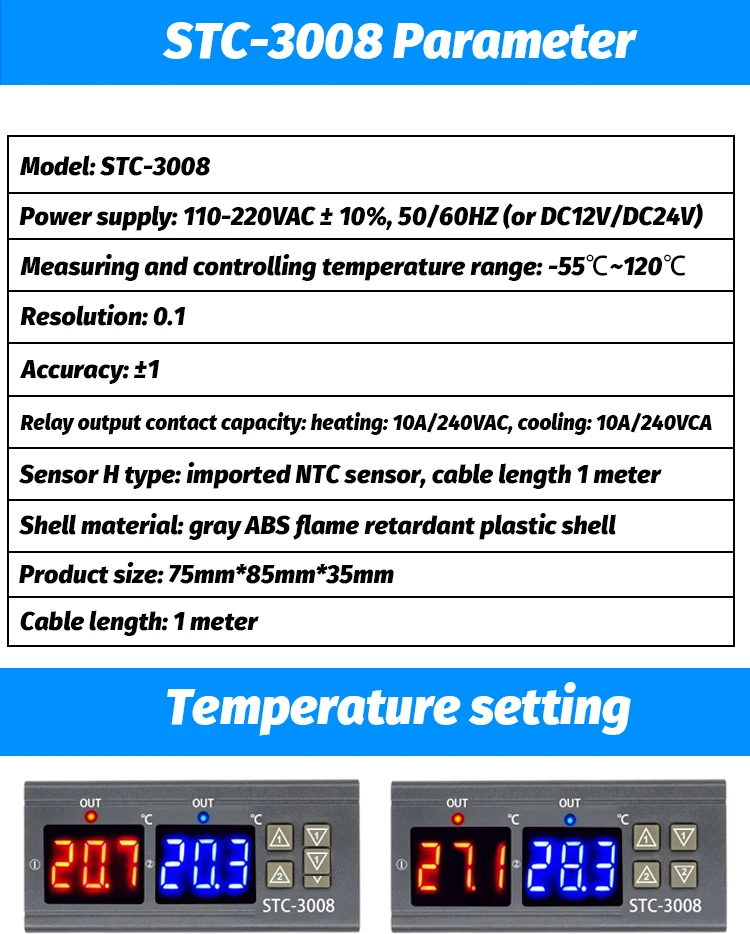

Specifications: Power supply: 12VDC, 24VDC, 110V-220VAC Temperature control range: -50 ~ 120 °C Resolution Ratio: 0.1°C(-9.9-99.9); 1 °C (other range) Measurement accuracy: ±0.1 °C Control accuracy: 0.1 °C Update rate: 0.5S Sensor1 2: NTC10K waterproof sensor each Output 1 2: max. 10A direct output each Environmental requirements: -10-60 °C, humidity 20%-85% RH Size: 100mm (length) x 55mm (width) x 32mm (depth) Cut size: 75(L)mm * 55(W)mm M3 screw hole Power consumption: static current: ≤ 35MA, draw current: ≤ 65MA
