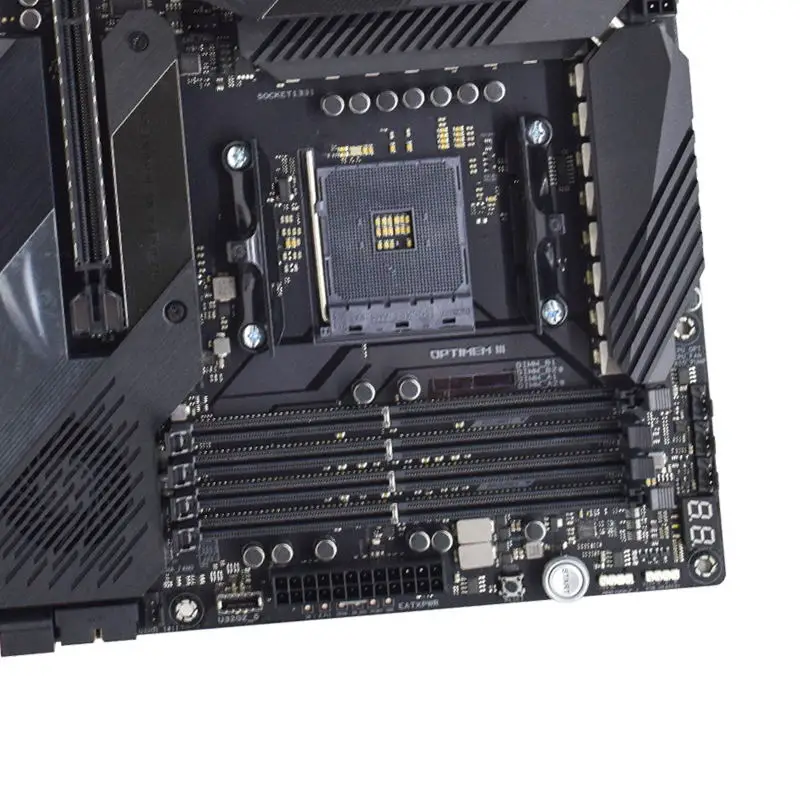

CROSSHAIR VIII HERO (WI-FI) Parameters

Motherboard chip

Integrated chip sound card/network card

Main chipset AMD X570

Chipset description Using AMD X570 chipset

Audio chip integrated ROG SupremeFX 8-channel audio chip

Network card chip Onboard Intel I211-AT Gigabit network card, WiFi AX200 wireless network card

Processor specifications

CPU type AMD 3rd/2nd generation AMD Ryzen, 2nd/1st generation AMD Ryzen equipped with Radeon Vega Graphics processor

CPU socket Socket AM4

CPU description Support AMD RYZEN processor

Memory specifications

Memory type 4×DDR4 DIMM

Maximum memory capacity 128GB

Storage expansion

PCI-E standard PCI-E 4.0

PCI-E slot 2 × PCI-E X16 graphics slot

Storage interface 2×M.2 interface (PCIe 4.0x4+SATA), 8×SATA III interface

I/O interface

USB interface 7×USB3.2 Gen2 Type-A, 1×USB3.2 Gen2 Type-C, 4×USB3.2 Gen1 Type-A, 4×USB3.2 Gen1 port, 4×USB2.0 port

Power connector One 4-pin, one 8-pin, and one 24-pin power connector

Other interfaces

2×RJ45 network interface

Plate type

Motherboard board type ATX board type
