Features
  • YEH-210 is a dedicated electric hook lock suitable for hollow metal and plastic-steel doors and windows Electric hook lock suitable is to install in the temperature circumstance between -40℃~+50℃ / -40℉~122℉,the retention force is larger than 300kg,is a type of dedicated electric hook lock effectively apply to Left and right push-pull sliding rail doors and windows
  • Installed on hollow metal doors, plastic-steel doors and other sliding rail type doors and windows.
  • The standard appearance of the structure apply to various brand hollow metal and plastic-steel doors and windows.
  • The fixed installation parts can be installed on the frame, cylindrical assemblies embeds in the frame, easy to install.
  • There are anticorrosion coating protection for Latch bolt components and Lock bolt
  • The Fail safe feature design, meet with the demand of emergency exit
Advantage
  • Installed on hollow metal doors, plastic-steel doors and other sliding rail type doors and windows.
  • The standard appearance of the structure apply to various brand hollow metal and plastic-steel doors and windows.
  • The fixed installation parts can be installed on the frame, cylindrical assemblies embeds in the frame, easy to install.
  • There are anticorrosion coating protection for Latch bolt components and Lock bolt
  • The Fail safe feature design, meet with the demand of emergency exit
  • The special usage design, during the product life cycle, it don't need to do preventive maintenance and lubricant, etc
Specification
Dimension 79Lx45.5Wx34.3H(mm) / 3.11"x1.79"x1.35" Door catch 91Lx30Wx25.85H(mm) / 3.58"x1.18"x0.98"
Voltage 12VDC Current 100mA
Holding Force 300kg / 661lb Operating Temp -40℃~+50℃ / -40℉~122℉
Operating Humidity ＞95% Weight 0.28Kg / 0.62lb
Dimensions

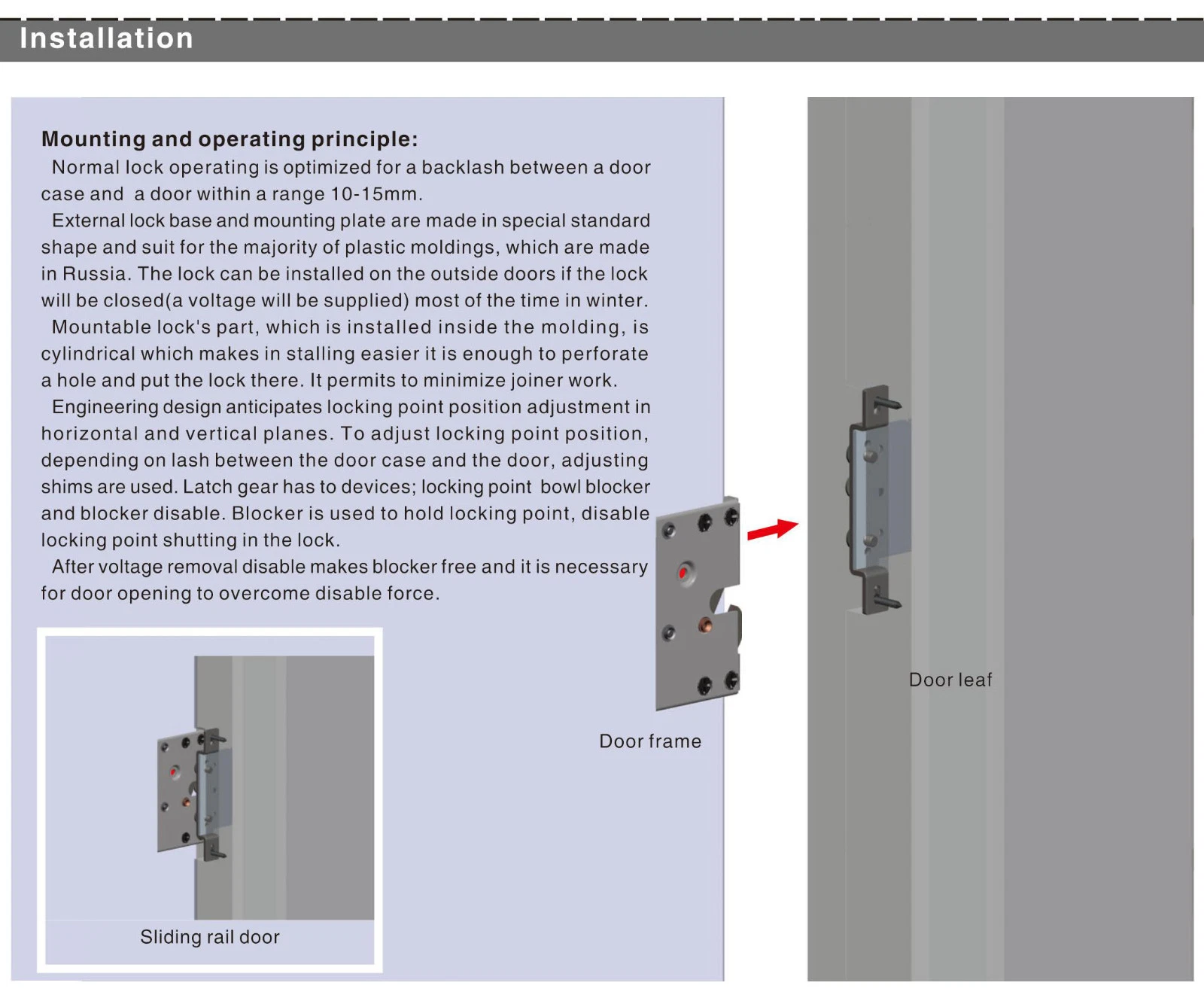

Installation
Package
  • 1 x Electric Hook Lock
