• Fail secure, NO mode (Locked when power is removed)
• Holding 1000kg / 2204lb
• Designed for Metal Frame drill a hole, then install it directly
• Testing to 1000000 cycles
• High-Temperature Painted, Durable and Beautiful Article
• CE Certificate by European Union, MA Certificate by China Public Security office
• This electric strikes with 4-27/32" faceplates are designed for use with mortise or cylindrical type lockset with up to 3/4" latchbolt projection without deadbolt

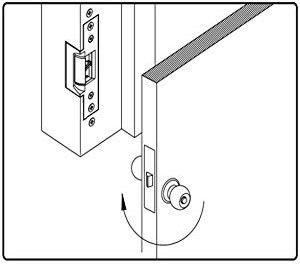

• Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself. The electric strike must be positioned to accommodate offset mortise latches during installation

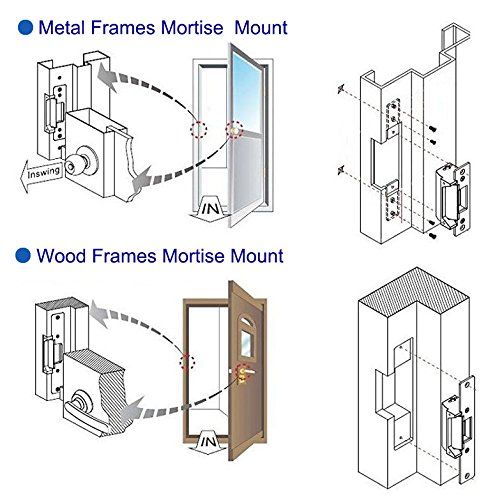

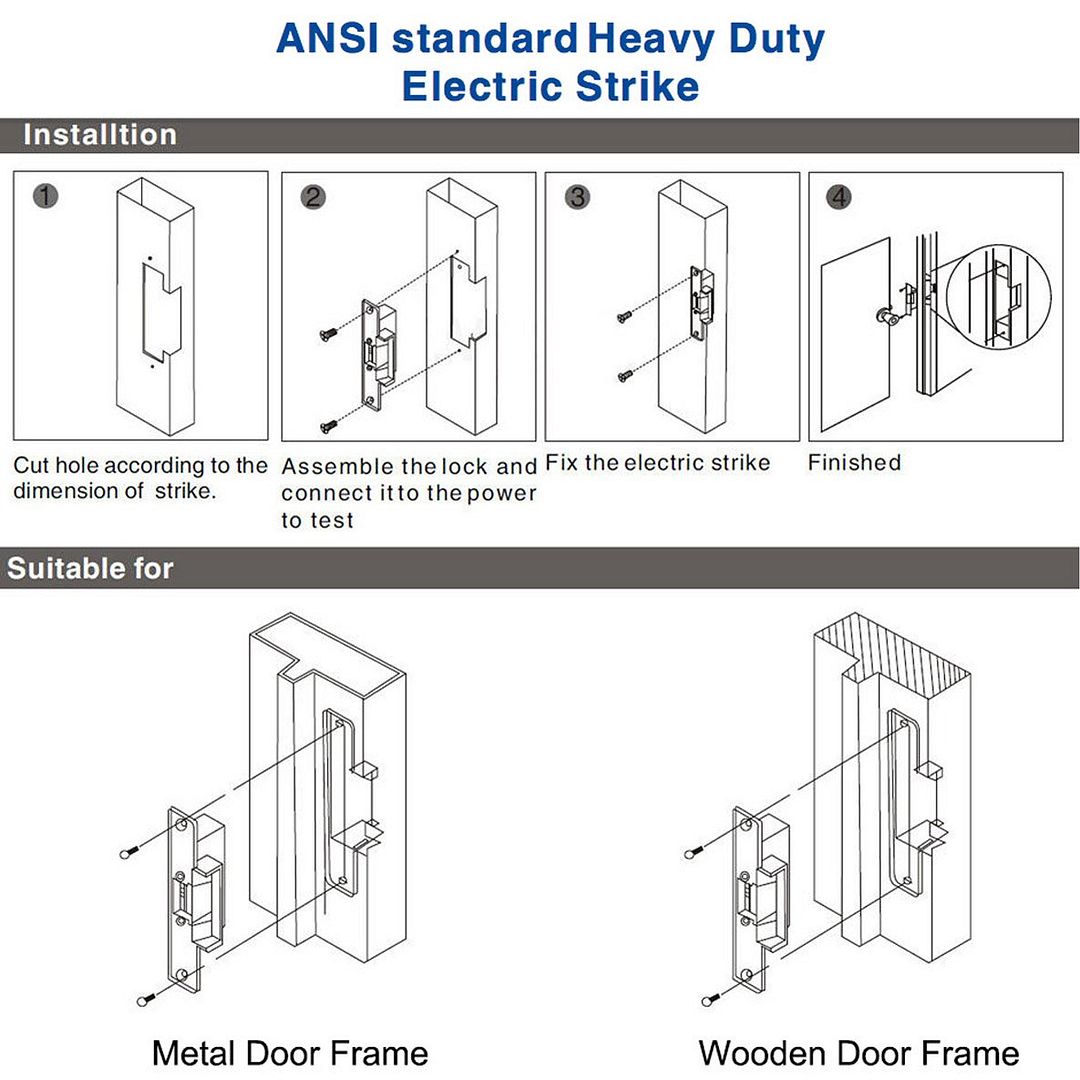

• Designed for Metal Frame drill a hole, then install it directly

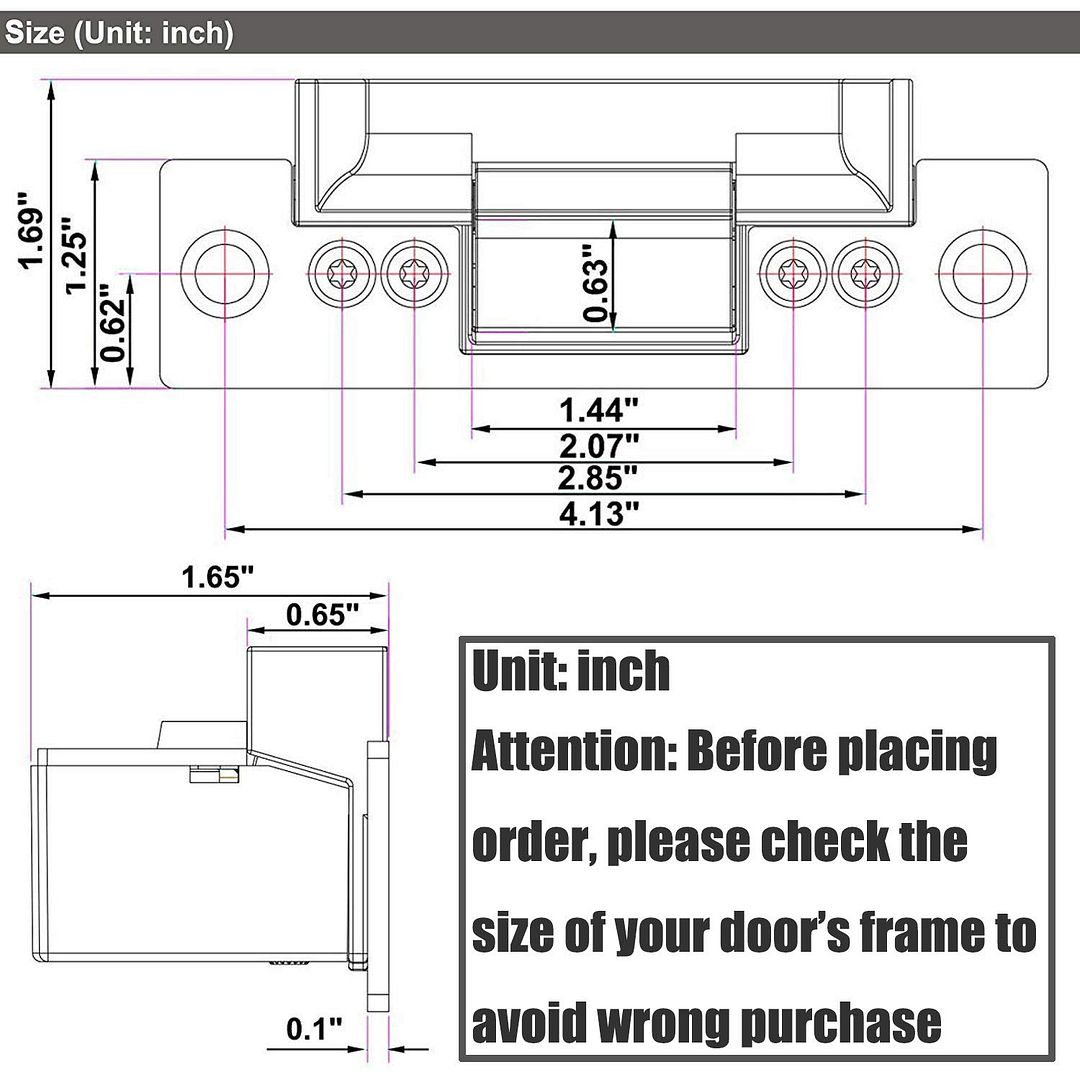

Case Size (LxWxD)	85.5x25.5x39.5mm (3-23/64" x 1" x 1-9/16")	Faceplate Size (LxWxD)	123x31.7mm (4-27/32" x 1-1/4")
Strike Opening (LxWxD)	36.6x16x16.6mm (1-7/16" x 5/8" x 21/32")	Latchbolt Projection	19.1mm (3/4")
Face Plate Material	304 stainless steel force structure	Lock Material	Zinc alloy (baking varnish by high temperature)
Holding Force	1000kg / 2204lb	Working Voltage	DC12V
Current	320mA	Suitable For	Wooden Door, Metal Door, PVC Door
Surface Temperature	Within +20℃ / 68℉	Suitable Temperature	-10℃~+55℃(14℉-131℉)
Operating Humidity	0~90%(non-condensing)	Face plate Housing	Painted Steel
Lock tongue	Surface by coating nickel	Function	Built-out MOV
Weight	0.34kg / 0.75lb

• Before placing order, please check the size of door’s frame to avoid wrong purchase
• Strike lock need work with mechanical lock. Mechanical lock need buy separately.
• This strike is not weatherproof and should only be installed indoors.
