Features
  • This lock offers fail-secure operation, so when power is lost, the strike locks the door
  • The No-Cut Electric Door Strike (Fail-Secure) is used to convert a cylindrical lockset into an electronic access-controlled locking system
  • This "no-cut" model is specially designed to fit most metal or wooden doors with only minimal cutting required of the door frame beyond the hole for the strike
  • Provides 1,000-pound holding force/static strength
  • It's a solenoid with one function, can be wired any way. Uses 2-contacts, non-polarized connection to access control or egress device. (This lock will polarized when the diode added.)
  • Aluminum, Stainless Steel Bolt
  • Testing to 1000000 cycles
  • High-Temperature Painted, Durable and Beautiful Article
  • CE Certificate by European Union, MA Certificate by China Public Security office
  • The No-Cut Electric Door Strike (Fail-Secure) is used to convert a cylindrical lockset into an electronic access-controlled locking system
  • Installation is further simplified by the strike's 2-contacts, non-polarized connection to your access control or egress device, as well as its reversible non-handed design to fit either right- or left-handed doors. (This lock will polarized when the diode added)
Specification
Lock Size 150Lx39.5Wx34H(mm) / 5.9Lx1.6Wx1.3H(in) It structure Zinc alloy
Finishing Electroplating Holding Strength 500kg / 1100 pounds
Voltage DC12V Current 200mA
Mode Fail secure, NO mode (Locked when power is removed) Suitable For Wooden Door, Metal Door, PVC Door
Surface Temperature Within +20℃ / 68℉ Suitable Temperature -10℃~+55℃(14℉-131℉)
Operating Humidity 0~90% (non-condensing) Function Built-out MOV
Net Weight 0.29kg / 0.64lb
Attention
  • Strike lock need work with mechanical lock or cylindrical lockset which sold separately
Details
  • Work With Mechanical
  • Strike lock need work with mechanical lock or knob lock which need buy separate.
  • Before placing order, please check the size of door’s frame to avoid wrong purchase
  • No Polarity Requirement
  • Uses 2-contacts, non-polarized connect to access control or egress device.
  • Tip:
  • Loose the screw and tighten it in the other hole
  • 1N4004 Diode: Prevent high voltage to two ends of the electronic lock while the contact of access control unit relay disconnect. Without diode, there will be high voltage pulse interference to circuits and the life time of the access control unit relay will be greatly reduced.
  • This lock will polarized when the 1N4004 diode wired.

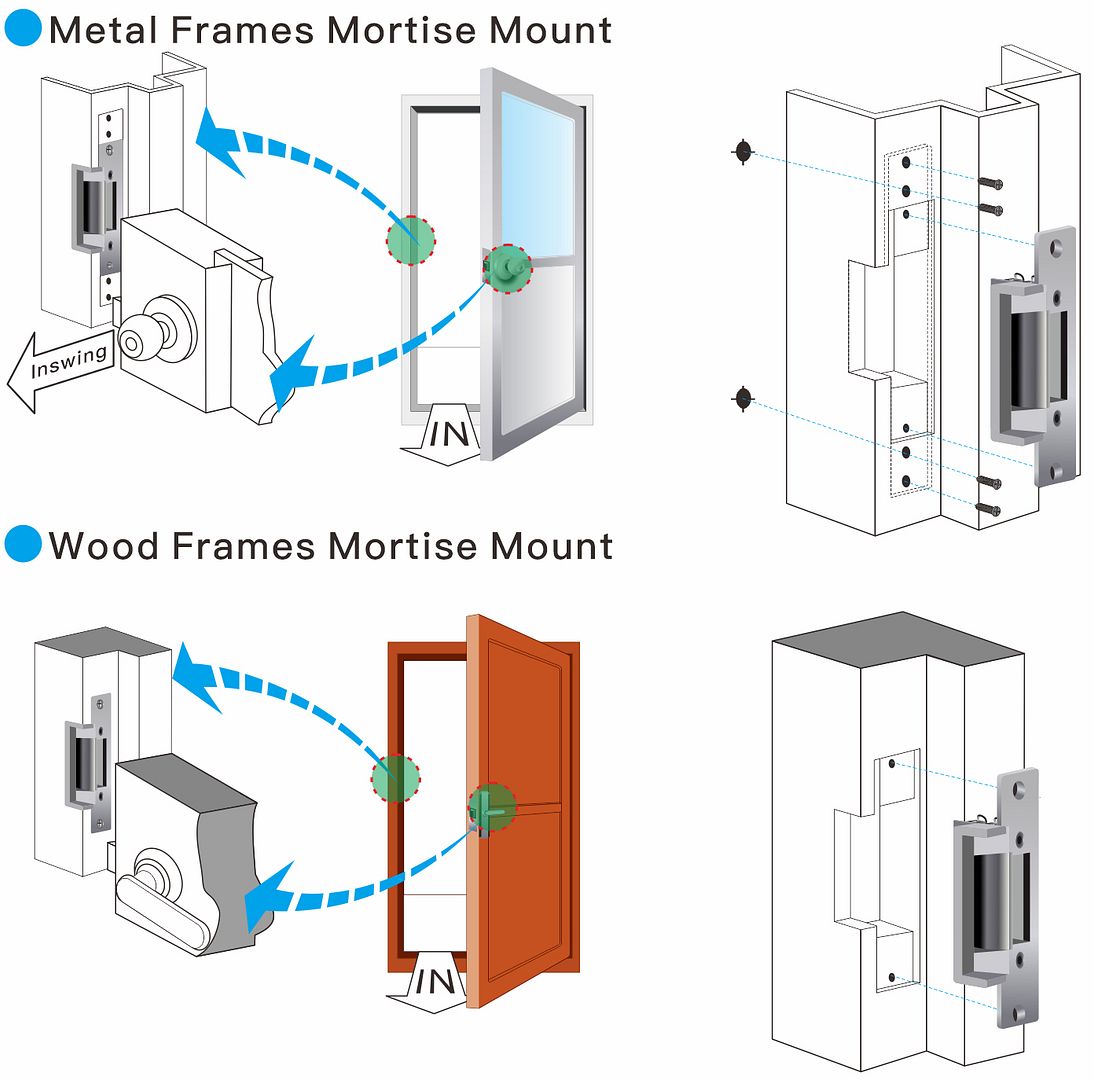

  • Installation:
  • Suitable for metal and wooden door frame
  • Before placing order, please check the size of door’s frame to avoid wrong purchase

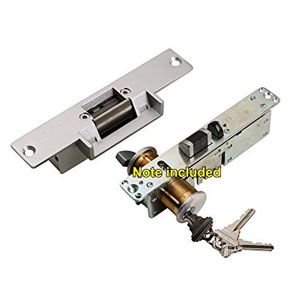

  • Demo:
  • Work with knob lock
  • Knob lock should buy seperate

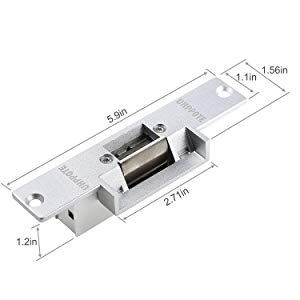

  • Lock Size:
  • 150Lx39.5Wx34H(mm)
  • 5.9Lx1.6Wx1.3H(in)
  • Before placing order, please check the size of door’s frame to avoid wrong purchase
  • Package

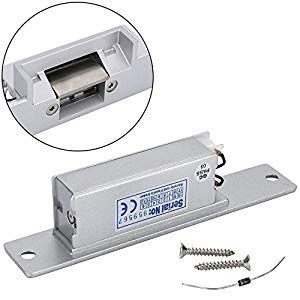

  • 1 x Electric Lock (Fail-Secure Mode)
  • 1 x Diode
  • 1 x User manual
  • 2 x Screws

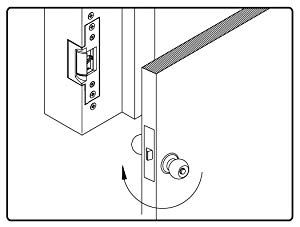

Installation
\
