The card is not a common M1 IC card; can repeatedly erase IC card number and sector, 0 sector and other sectors fully open;
Difficult to solve: for the current property upgrade card does not respond, failure and other issues please click "
Note that this UID card can be repeatedly erased card, you can rewrite the 0 sector and all the sector data full air card can modify the UID mifare card, 1k card, S50 card, 200 / box, key chain 100 bags
1, the card is fully compatible with mifare 1k card;
2, the card block0 (UID where the block) (do not support mobile phone NFC modified 0 sector);
3, block0 directly with ordinary mifare reader to modify;
4, the card's default password is 12 F, that is, FFFFFFFFFFFF.
Storage capacity: 8Kbit, 16 partitions, two passwords per partition
Operating frequency: 13.56MHZ
Communication speed: 106Kboud
Read and write distance: 2.5-10CM
Reading and writing time: 1-2MS
Working temperature: -20 ℃ -85 ℃
Number of erase cycles:> 100000 times
Data retention:> 10 years
Packaging materials: PVC, PET, 0.13 coins
Packaging technology: ultrasonic automatic line / automatic welding
Production standards: ISO 14443, ISO 10536
Application: prepaid, campus card, parking, community management, elevators and so on

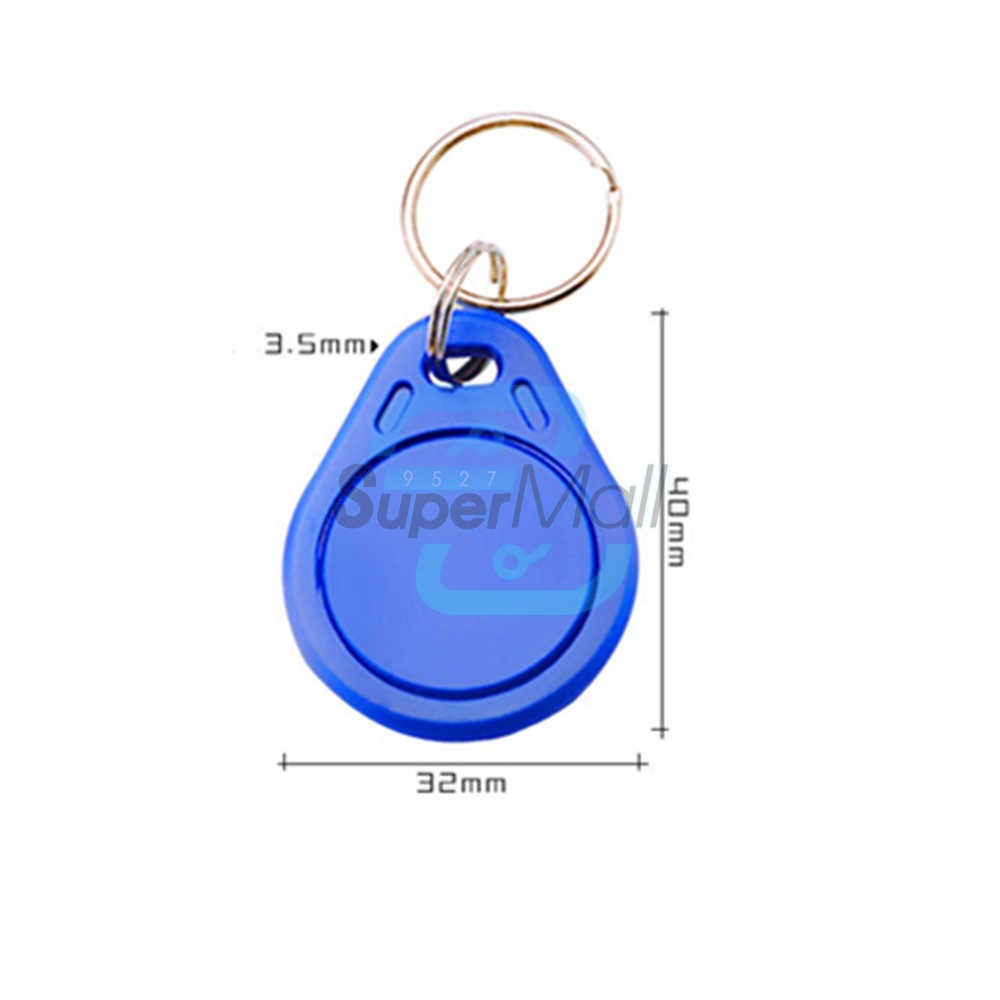

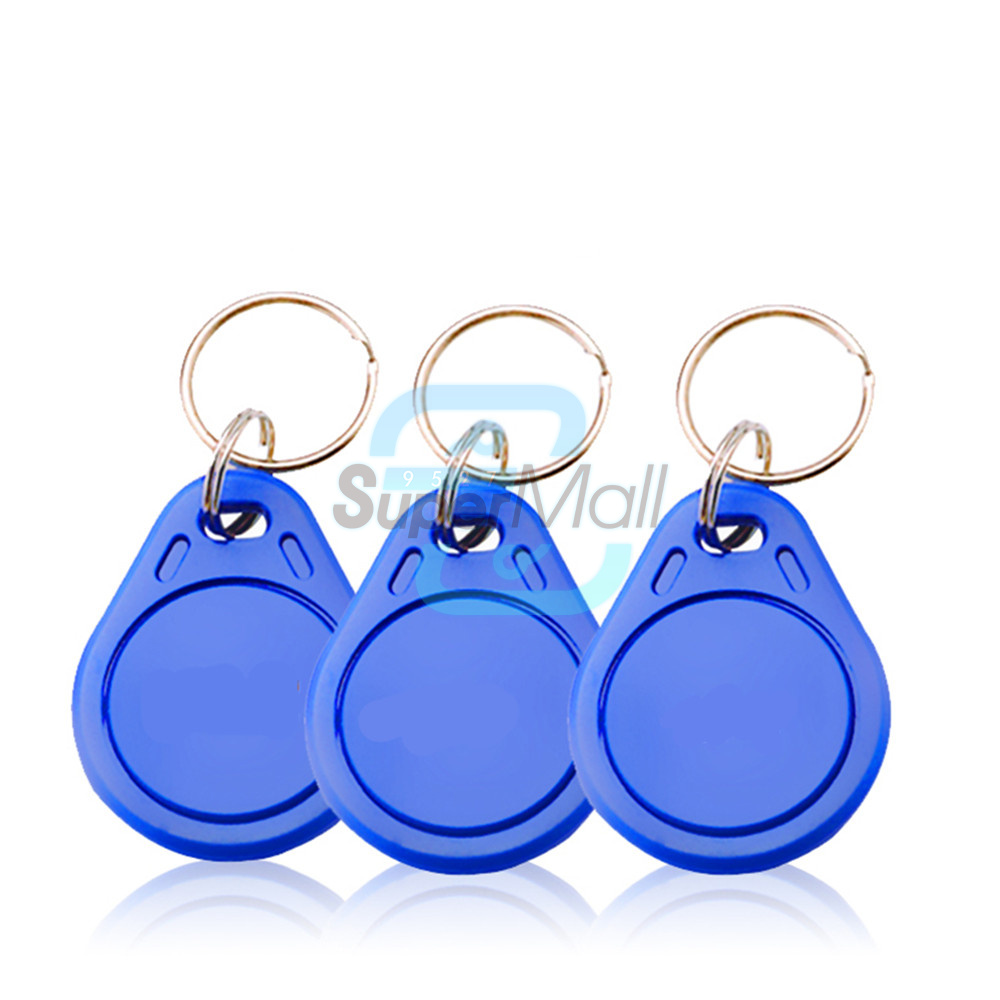

Package included:5 * UID Changeable Keyfob Compatible with MCT block 0 direct writable by phone

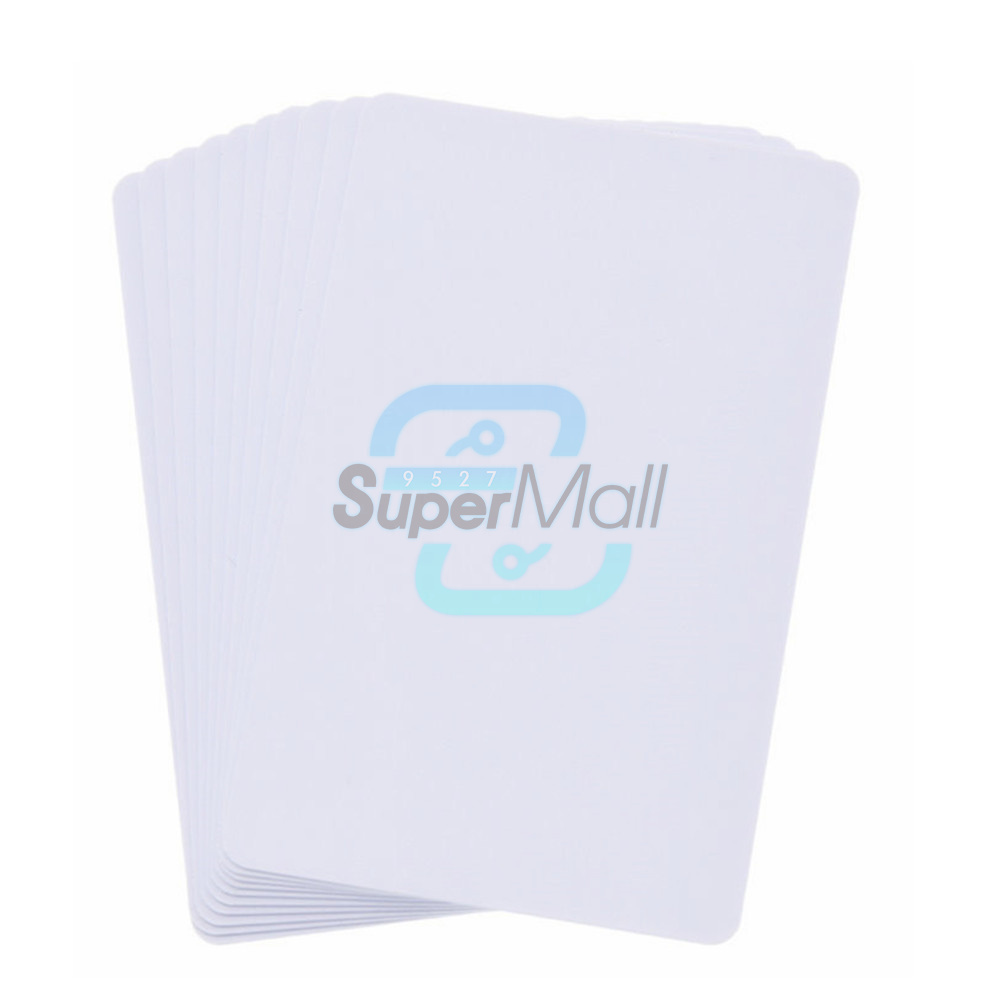

5PCS UID Cards
Note that this UID card can be repeatedly erased card, you can rewrite the 0 sector and all the sector data full air card can modify the UID mifare card, 1k card, S50 card, 200 / box, key chain 100 bags
1, the card is fully compatible mifare 1k card;
2, the card block0 (UID where the block) (do not support mobile phone NFC modified 0 sector);
3, the card's default password is 12 F, that is, FFFFFFFFFFFF.
Storage capacity: 8Kbit, 16 partitions, two passwords per partition
Operating frequency: 13.56MHZ
Communication speed: 106Kboud
Reading and writing distance: 2.5-10CM
Reading and writing time: 1-2MS
Working temperature: -20 ℃ -85 ℃
Number of erase cycles:> 100000 times
Data retention:> 10 years
Packaging materials: PVC, PET, 0.13 coins
Packaging technology: ultrasonic automatic line / automatic welding
Production standards: ISO 14443, ISO 10536
Package included:5*UID card Changeable with Phone 0 Sector 0 block Rewritable M1 IC card

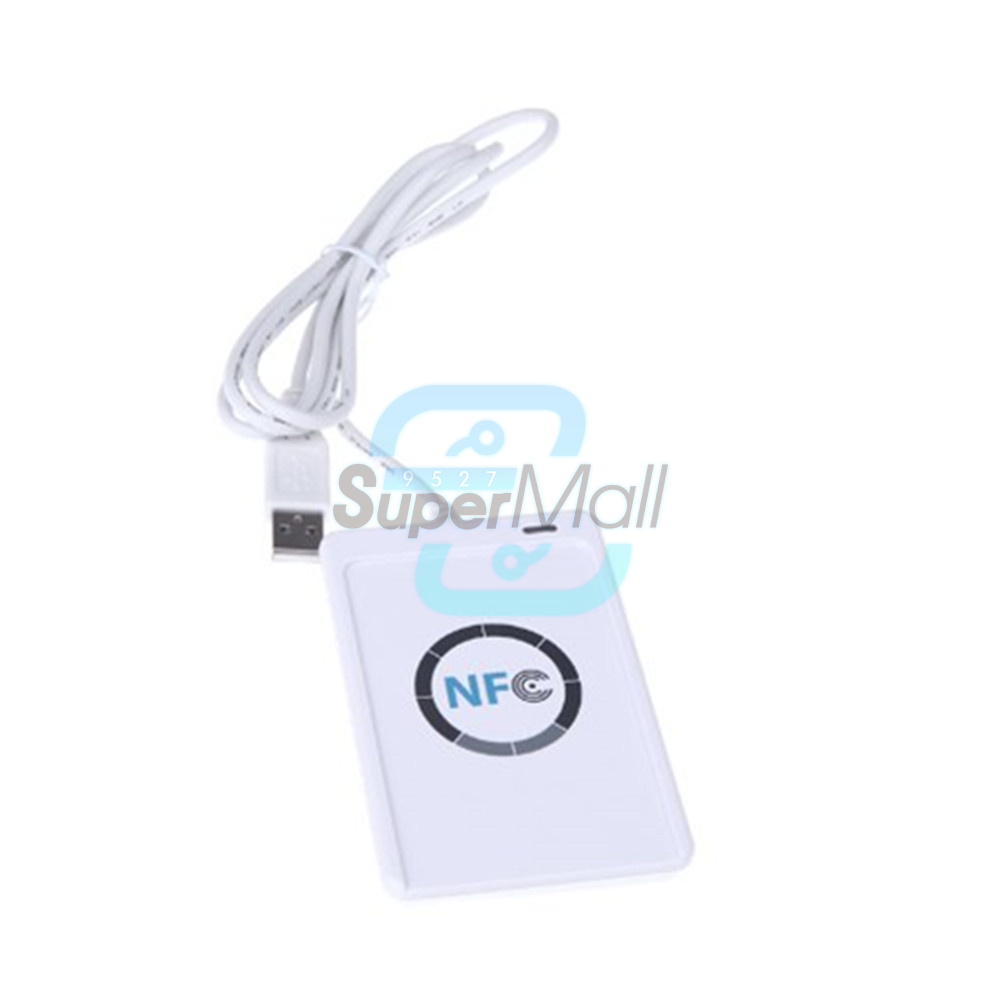

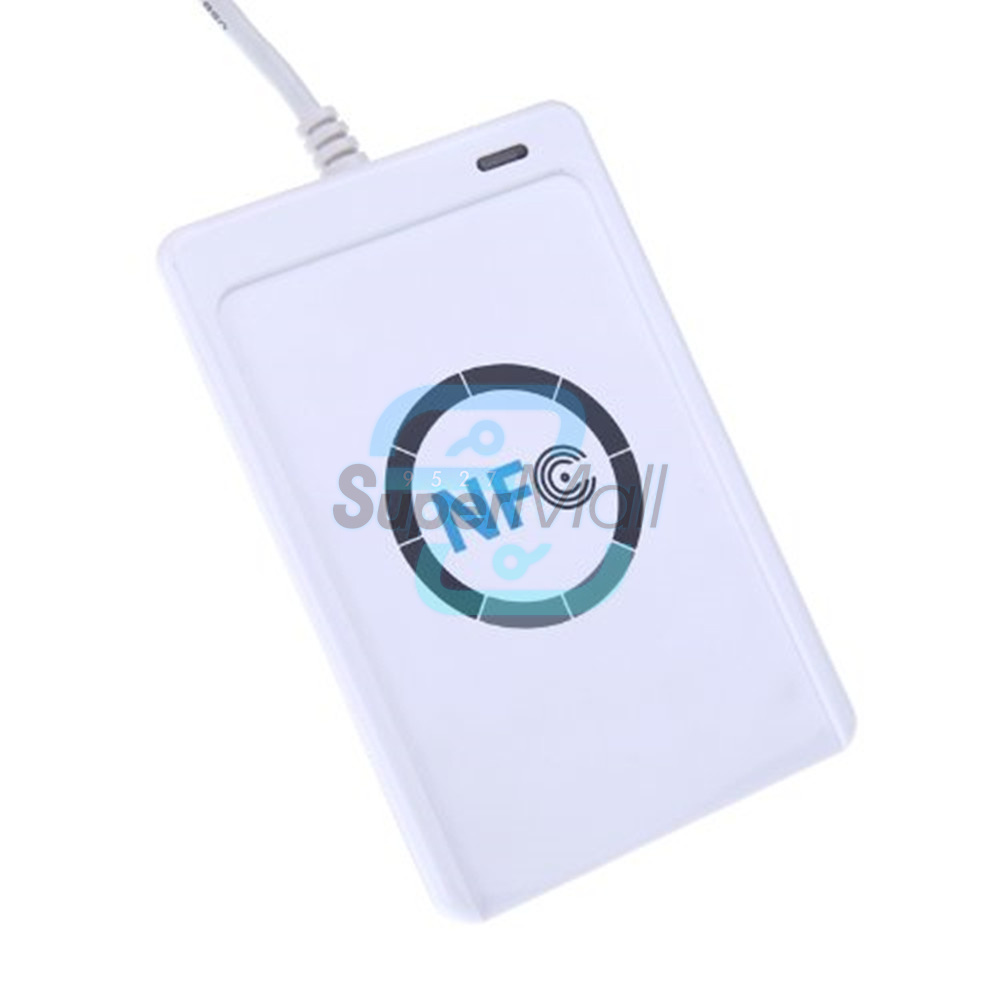

USB ACR122u RFID Copier Duplicator
Overview:
The ACR122U is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only IC and ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.
ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.
In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.
The is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
Features:
CCID-compliant
PC/SC-compliant
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Supports new IC Ultralight C (via pseudo APDUs) and IC Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes
Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
USB PnP
User-controllable bi-color LED
Application
Network access control
Micro-payment
NFC mobile tag
Public transportation terminals
Automatic fare collection
Physical access control
Customer loyalty
Time and attendance
Contactless public phones
Vending machines
Technical Specification
| Dimensions | 98 (L) x 65 (W) x 12.8 (H) mm |
| Weight | 70 g |
| Interface | USB Full Speed |
| Operating Distance | ≤ 50mm (depends on tag type) |
| Supply Voltage | 5V DC |
| Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
| Operating Temperature | 0 - 50°C |
| Operating Frequency | 13.56 MHz |
| Smart Card Interface Support |
|
| Compliance/Certifications |
|
| Operating System Support |
|
Packing:1x ACR122U-A9 NFC Card Reader
Package included:
1x ACR122U-A9 NFC Card Reader
5*UID card Changeable with Phone 0 Sector 0 block Rewritable M1 IC card
5 * UID Changeable Keyfob Compatible with MCT block 0 direct writable by phone

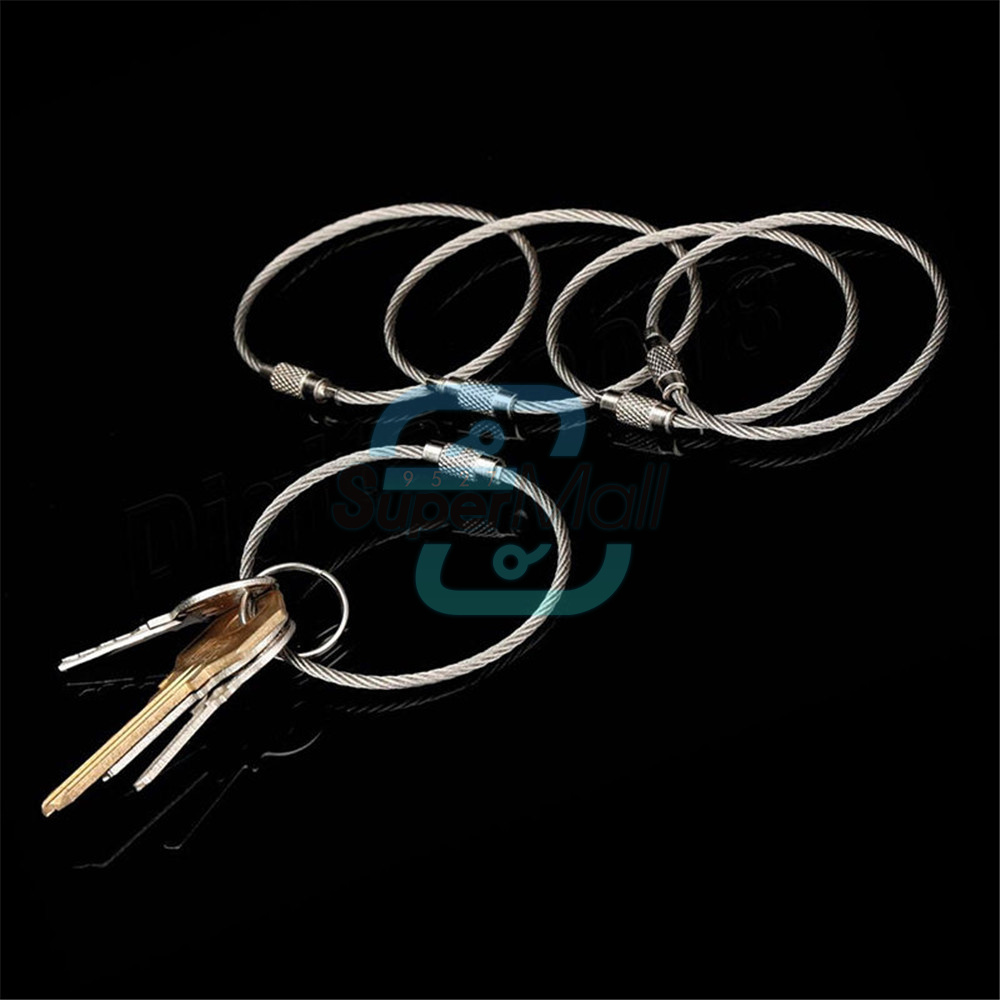

Firm and strong construction, ideal for making key chain and hanging tool
Suitable for hanging flashlight, key rings, pliers and other hand tools
Easy to install, just bend the cable and aim at the ring hole and screw up
Light weight, mini size, easy to carry
Diameter of the wire: 1.5mm
Length: 150mm/5.9inch
Diameter of the ring: 5mm/0.2"
Material: Stainless steel
