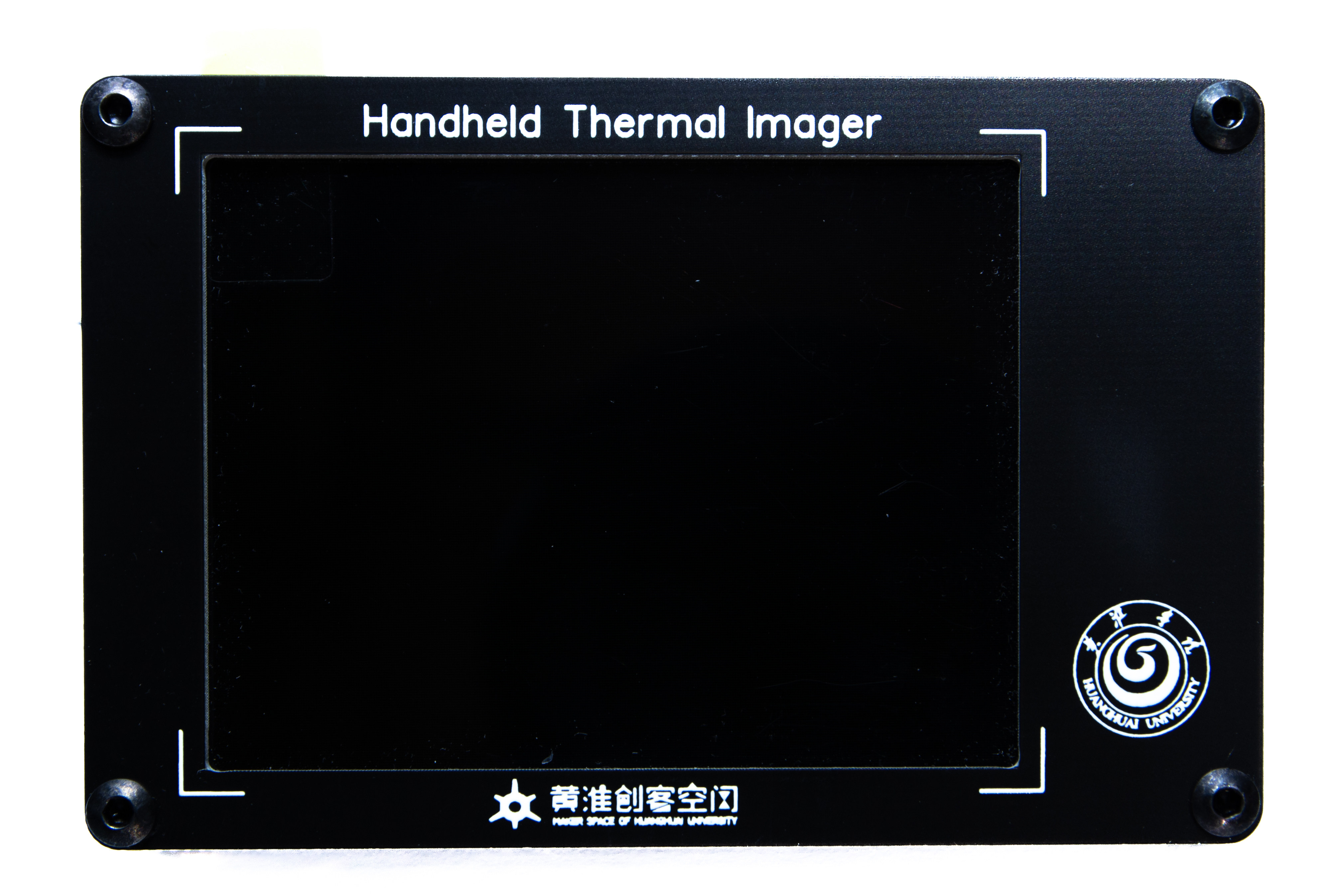

This is a handheld and multifunctional thermal imager, compact and lightweight, with 3.4inch TFT display screen, you can see the data more clearly. It can be used in a variety of situations and is an indispensable tool for household and industry use. Come on and try it, it will not let you down.

Features:
The refresh rate is 8Hz, the target temperature measurement ranges is -40~+300℃, and the use environment is 10~50℃.

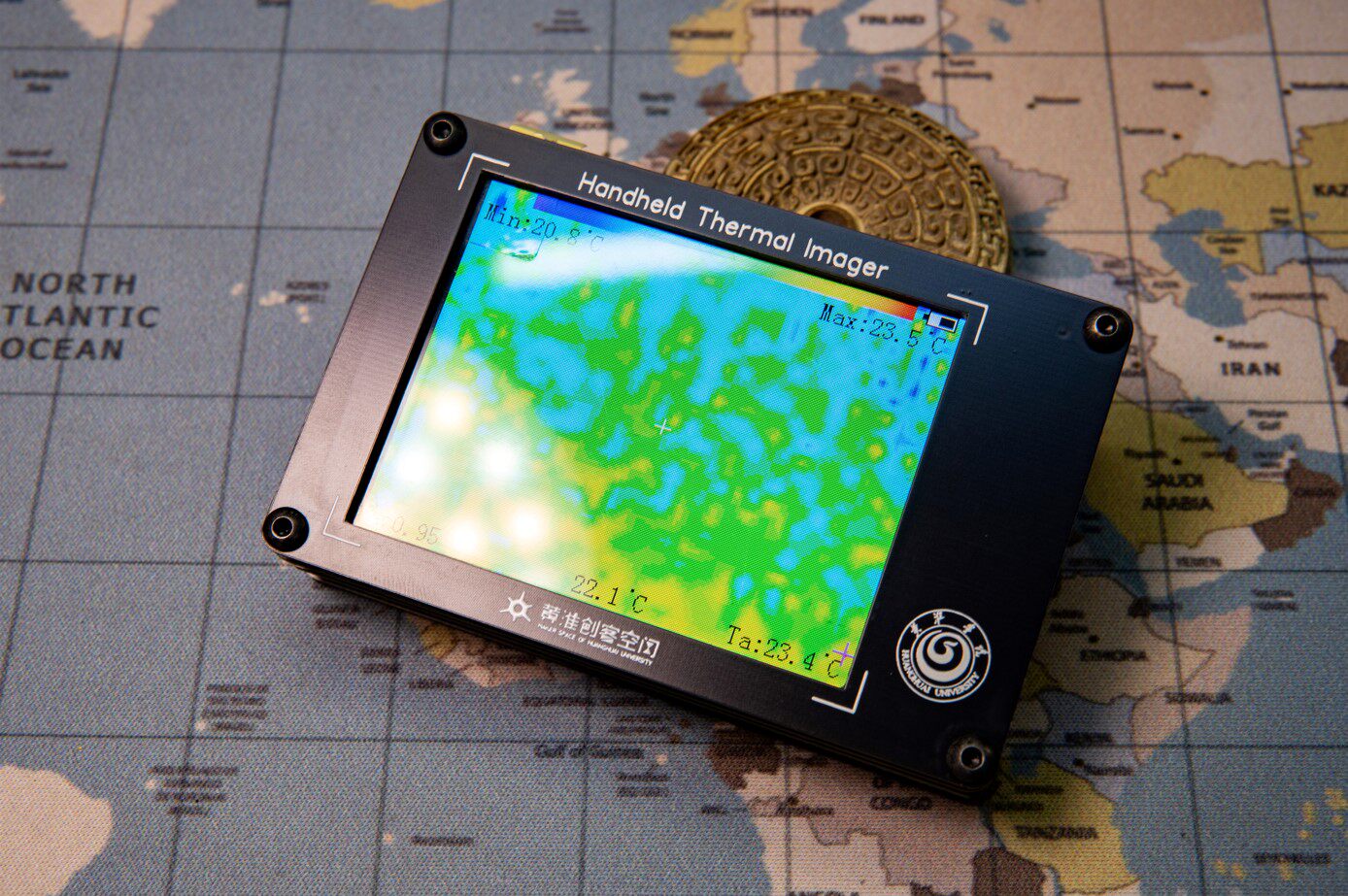

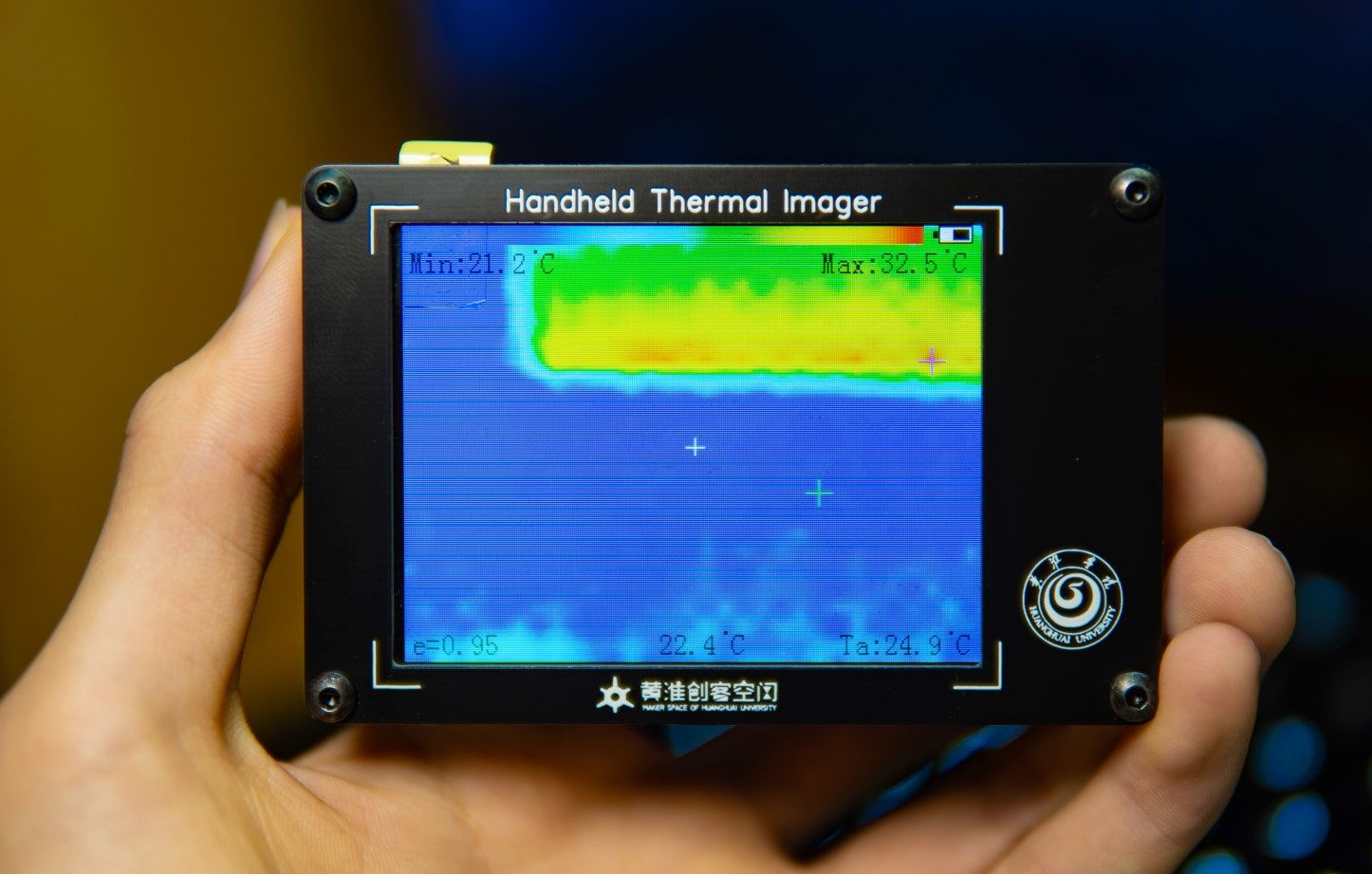

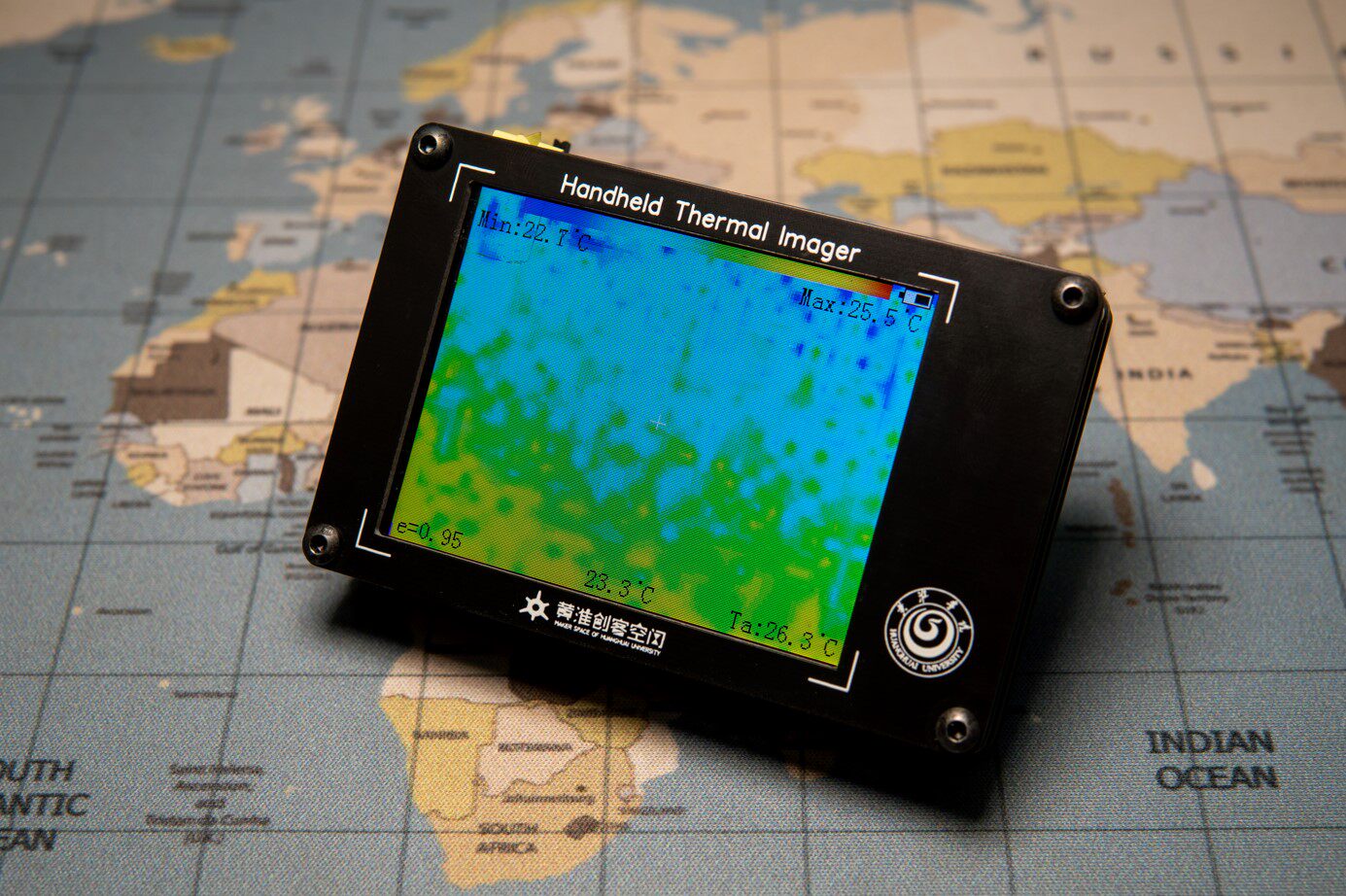

3.4 inch TFT screen resolution is 320*240, the screen shows the highest temperature, the lowest temperature, the center point.
Using acrylic cover, which can better protect the tool and not easy to be damaged, with a long service time.
Small in size and easy to carry, you can take it with you to anywhere you want to use it.
 built-in battery, can use 10 hours ,  and can using when charing !

The built-in SPI flash chip can store 100 pictures, and the data cable can be connected to the computer or mobile phone to view or copy image files

Specifications:

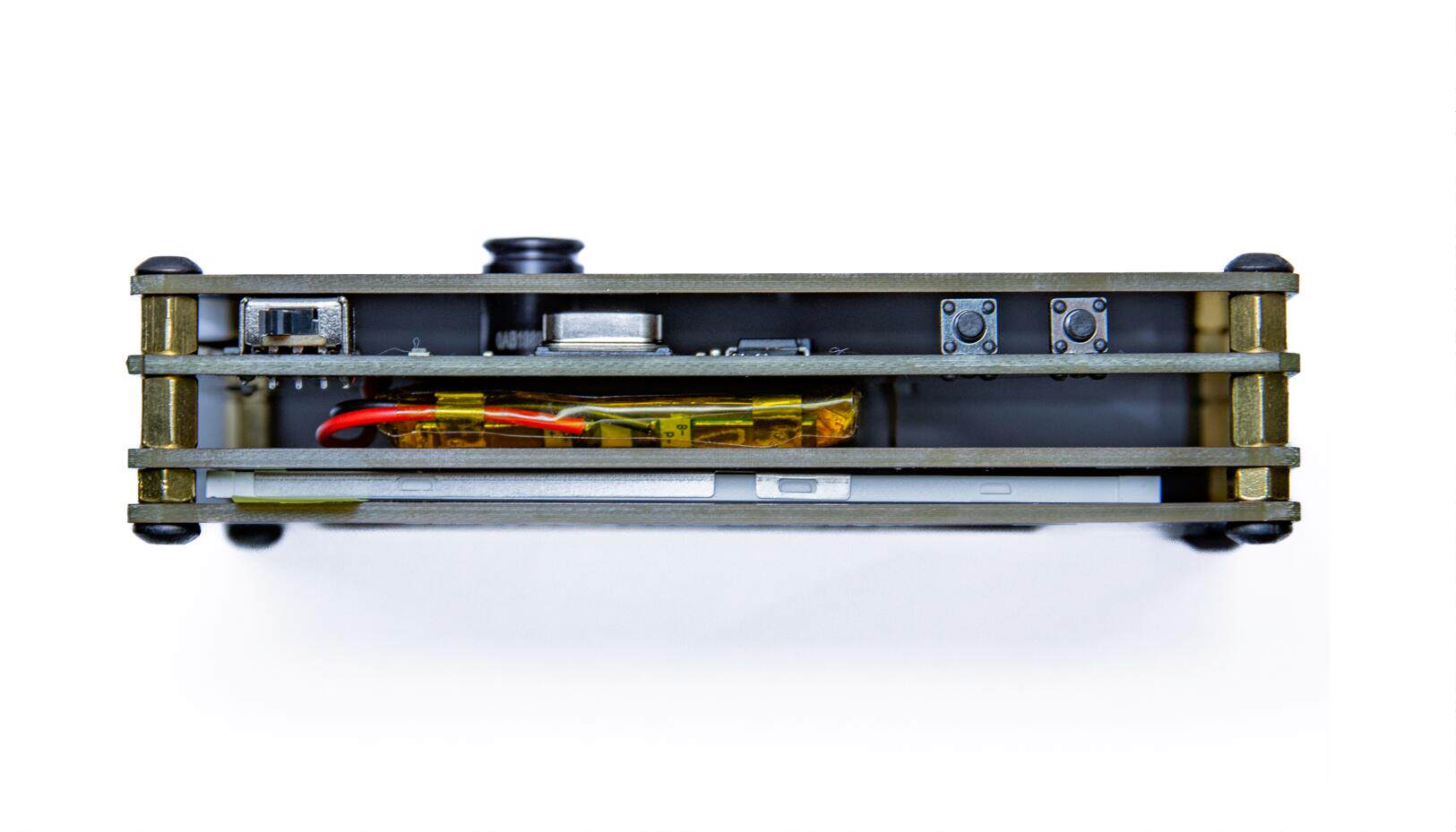

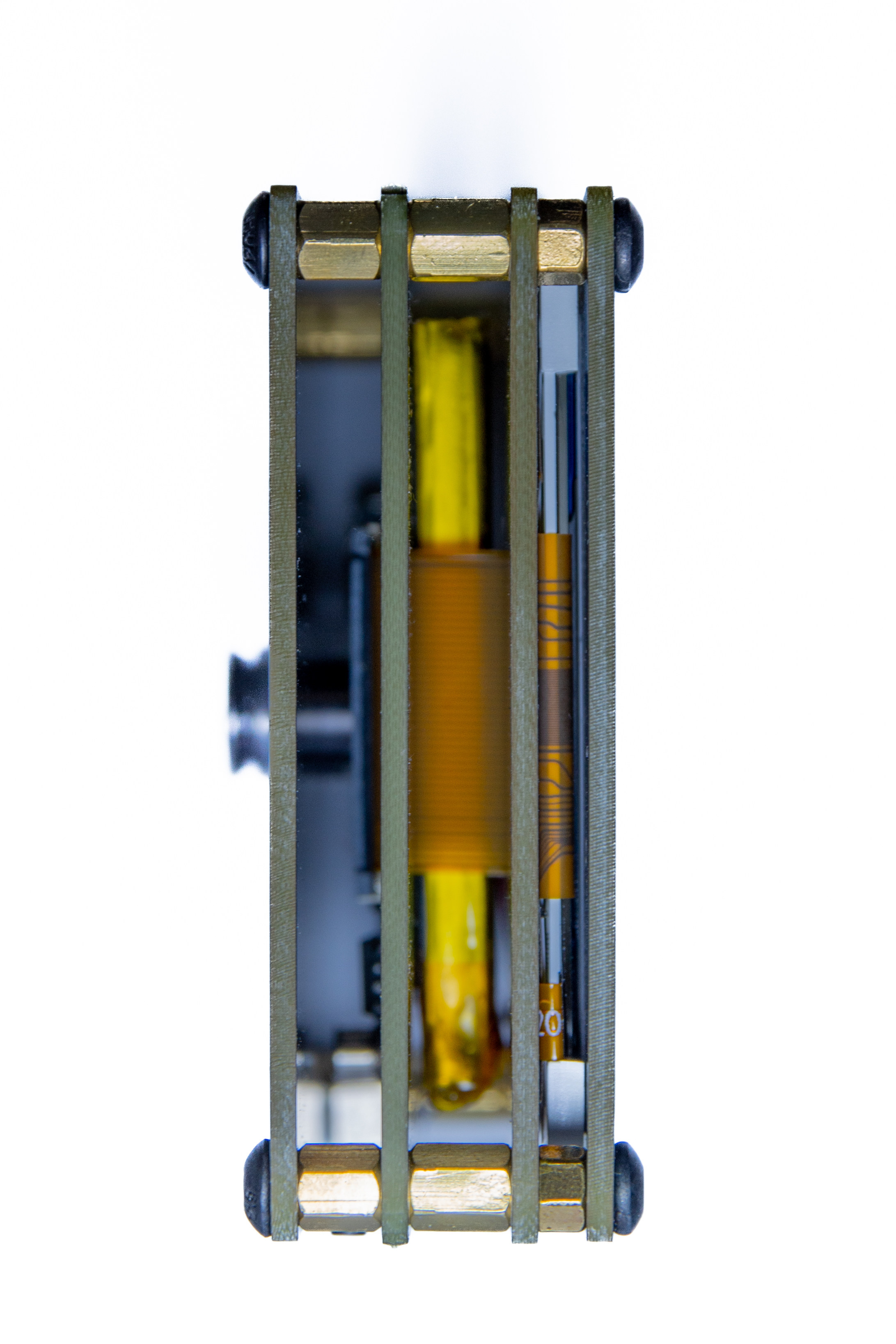

Material: FR4 epoxy plate+printed circuit board

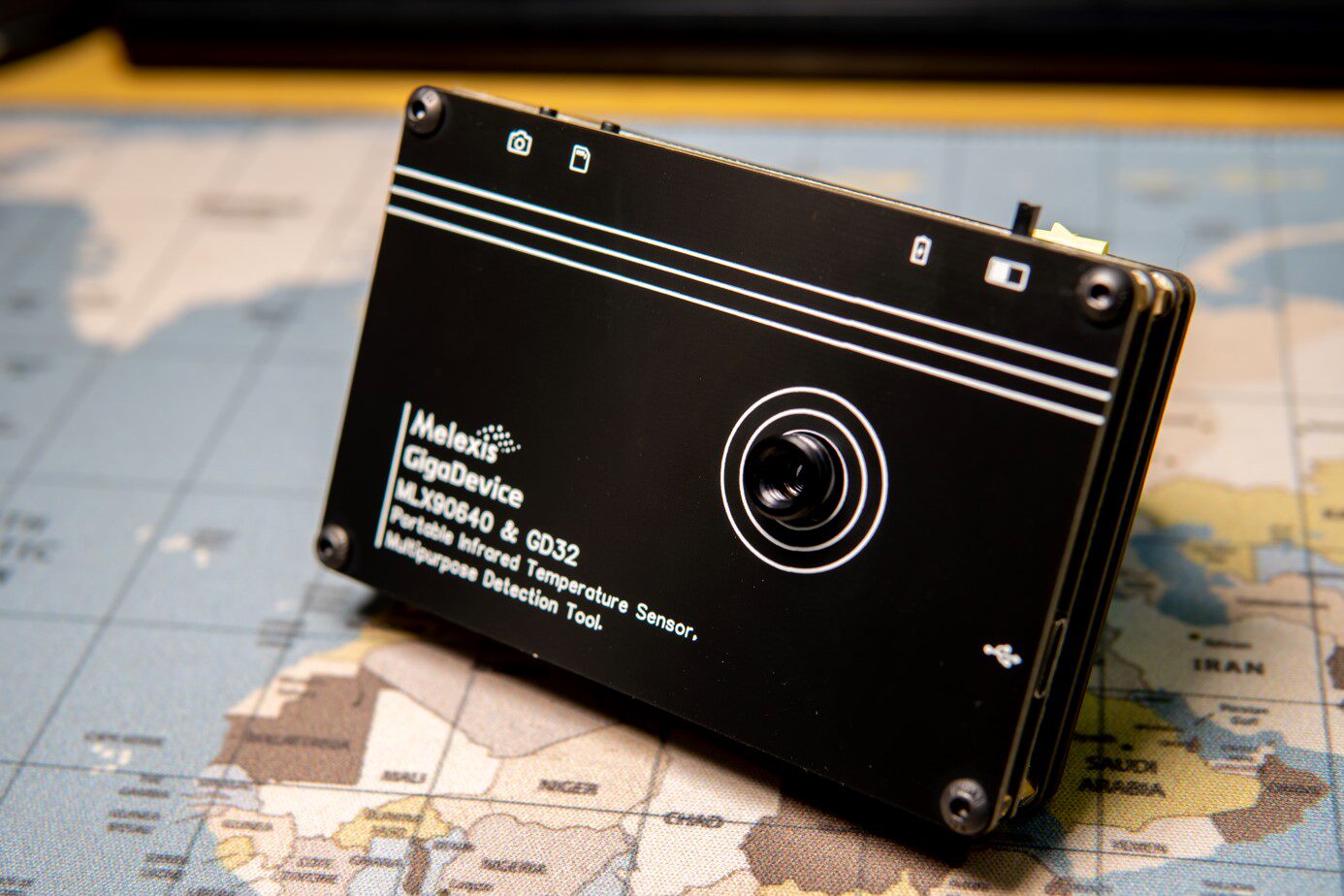

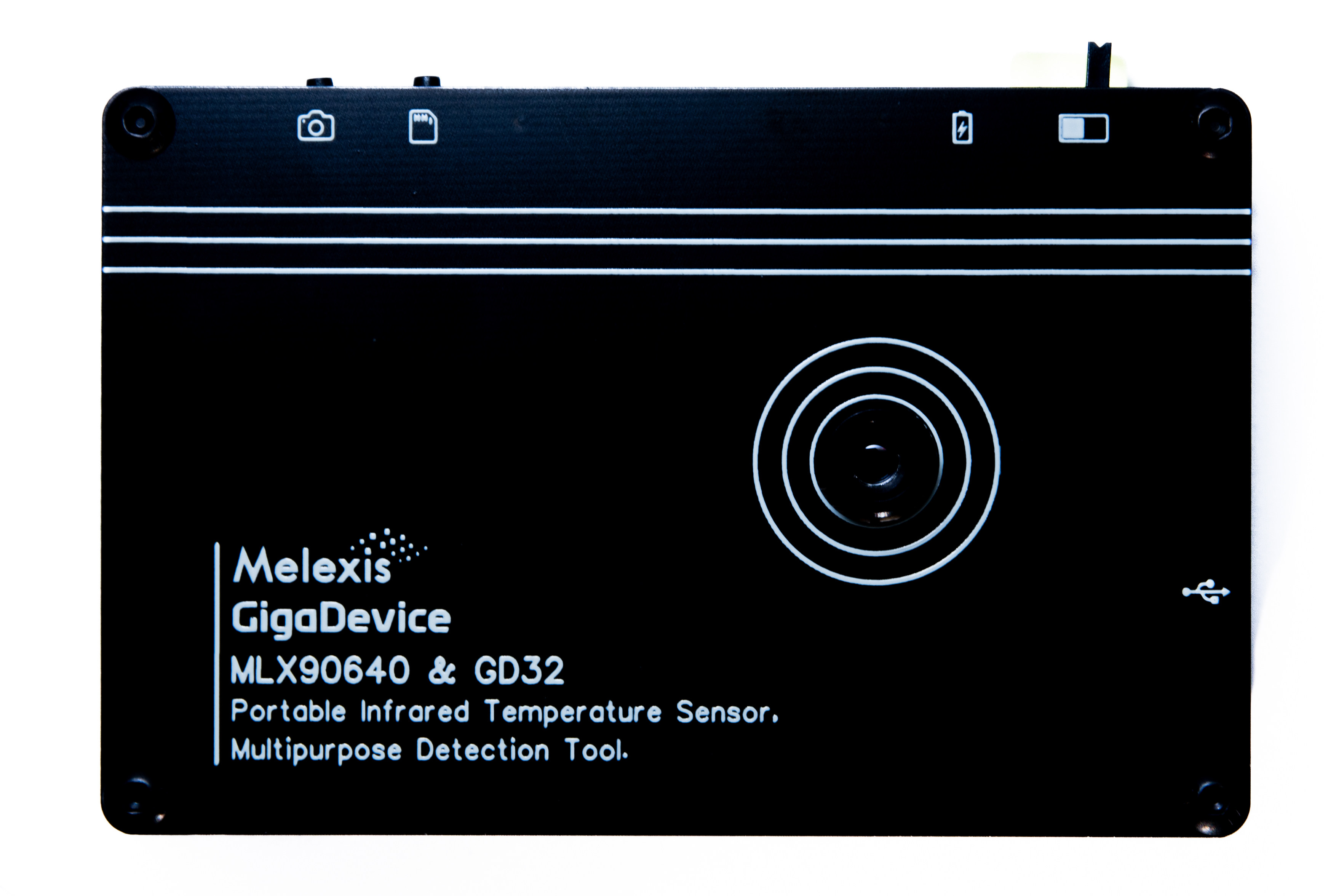

Module: MLX90640ESF-BAB
Infrared sensors: MLX90640ESF‐BAB/MLX90640ESF‐BAA
Resolution: 320*240
Temperature measurement ranges: ‐40℃~300℃
Measurement accuracy: ±2℃(Central point,20~50℃)
Operate temperature: 10℃~50℃
Operate humidity: ≤70%
Refresh rate: 8Hz
FOV: MLX90640ESF‐BAB (55°x35°), MLX90640ESF‐BAA(110°x75°)
Emissivity: 0.95

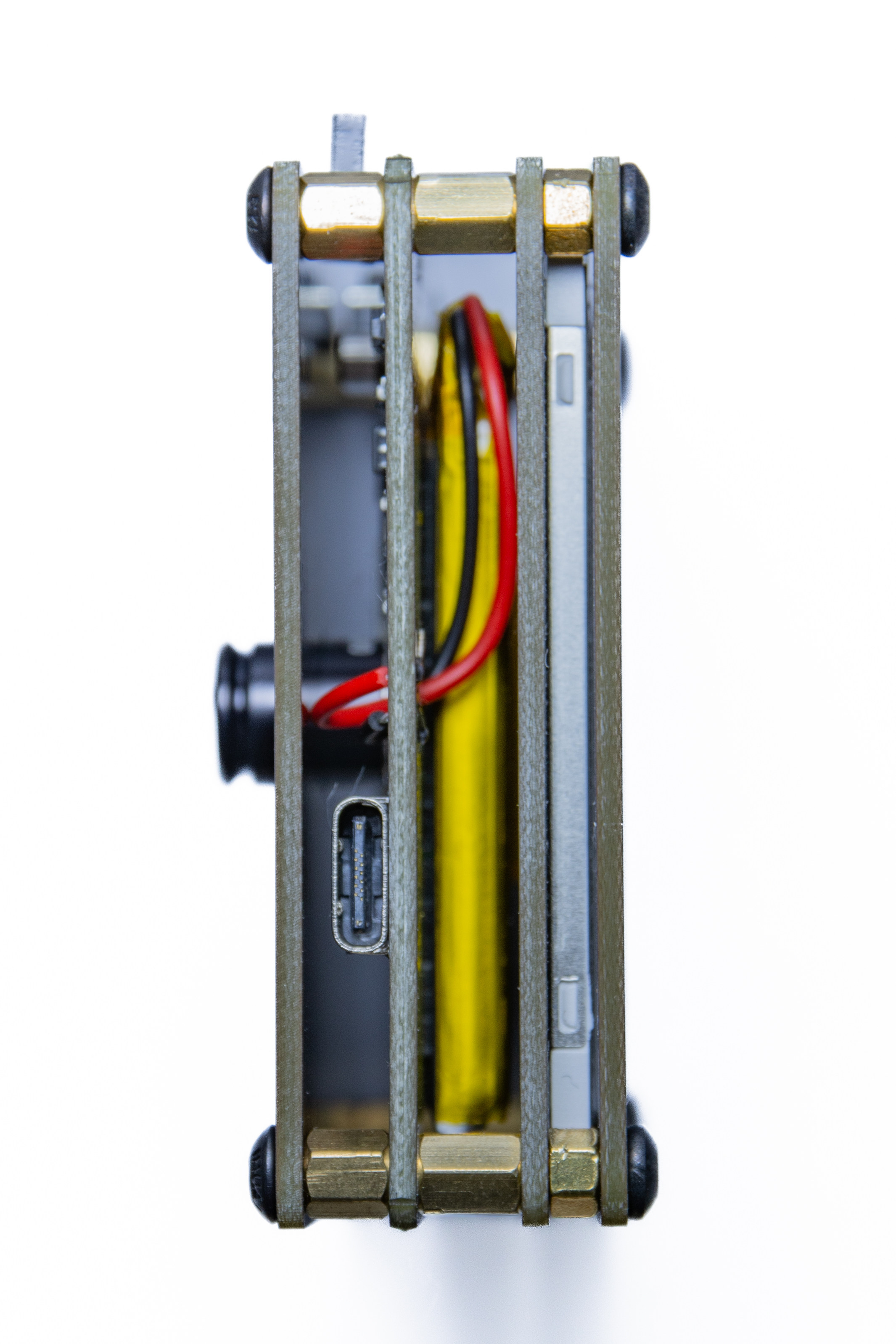

Charge port: Type C 5V/1A

Battery: 3.7v 1500mAh

Working time:  about 10 hours
Item size: 95 * 62 * 20mm


Packing list:
1 * Thermal Imager
