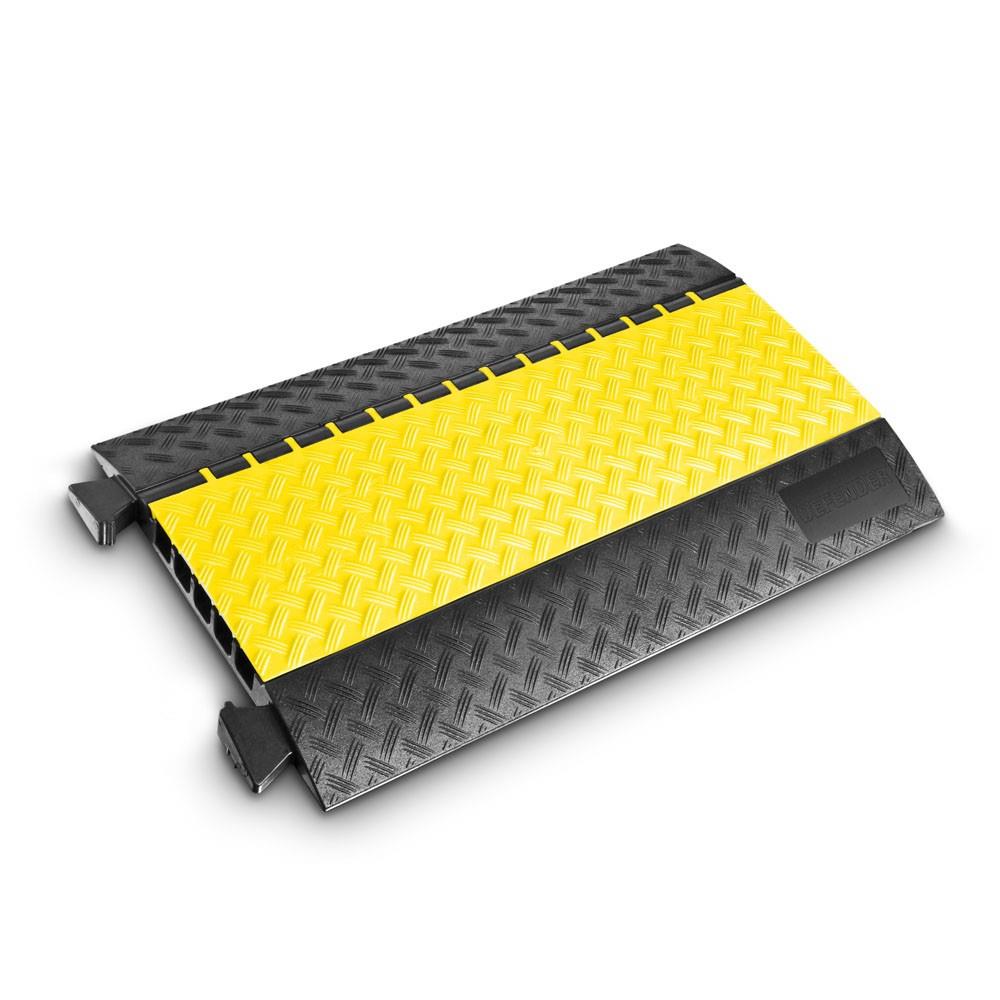

Defender MIDI 5 Cable Protector 5-Channel

Product Description

Description:

5 Medium Channels - The Solution for Nearly AnythingThe DEFENDER® MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 25 x 30 cm load capacity, integrated connectors and handles the straight ramp, 45° curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. DEFENDER® MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.

Label your cable protectors! Customise the DEFENDER® cable protectors with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

Specifications:

Type 5 Channels
Length 870 mm
Height 55 mm
Width 538 mm
Channels 5
Width channel 1: 34 mm
Height channel 1: 36 mm
Width channel 2: 34 mm
Height channel 2: 36 mm
Width channel 3: 34 mm
Height channel 3: 36 mm
Width channel 4: 34 mm
Height channel 4: 36 mm
Width channel 5: 34 mm
Height channel 5: 36 mm
Material Polyurethane
Max load Approx. 5 t on a surface area of 25 x 30 cm
Chemical resistance Oil-resistant, Petrol-resistant, Short-term contact with solvents
Hardness range 88 Shore ± 4 A Shore
Fire protection class B2
Temperature range -30°C to 60°C °C
Weight 13,4 kg
