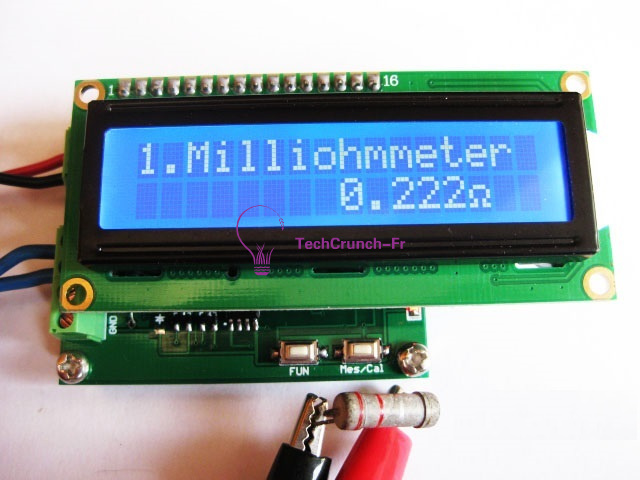

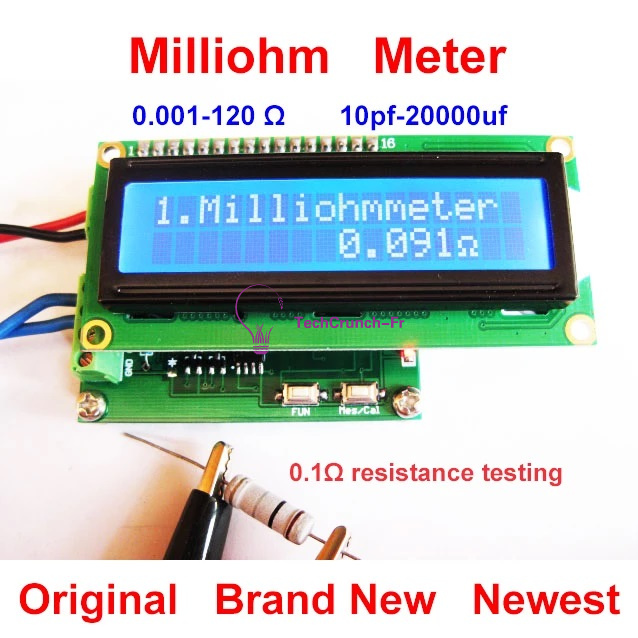

NEW High Precision Milliohm Meter 0 to 120Ohm Low Resistance Capacitance Tester

Technical Parameters



Resistance measuring range

 0.001-120 Ω

Resistance measuring accuracy

 1 mΩ

Capacitance measuring range

 10pf-20000uf

Capacitance measuring accuracy

 1pf

*This Milliohm meter is not suitable for too much high accuracy Capacitance Testing. Capacitance testing results may be NOT very accurately because of capacitors characteristics.



Operating power supply

 7-12VDC, recommend 9VDC

Operating current

 <100mA

Operating temperature

 -10 to +50℃; 85% R.H., non-condensation

Storage temperature

 -20 to +65℃; 85% R.H., non-condensation

Size

 57x45x20mm



Terminal Description



Terminal code

Description

VDD

7-12V operating power supply +

GND

7-12V operating power supply-

R+

Connect to resistance

R-

Connect to resistance

CAP

Connect to Capacitance +

GND

Connect to Capacitance -



Button Function



Button Code

Description

FUN

Resistance and capacitance measurement switching

Mes /Cal

Testing meter calibration



* Resistance measurement calibration: Short-circuited connect resistance measuring wire, then press [Mes/Cal] button.



Capacitance measurement calibration: Open-circuited connect capacitance measuring wire, then press [Mes/Cal] button.


* This Milliohm meter is not suitable for too much high accuracy Capacitance Testing. Capacitance testing results may be NOT very accurately because of capacitors characteristics, thanks.


Milliohm Meter package including:


1 Unit x Original HR390 Milliohm Meter Low Resistance Capacitance Tester

1 Set x Alligator testing clip
