TRENDnet TEG-10GECTX (Version v3.0R) Gigabit PCIe Network Adapter

IMPORTANT : Limit 5 per customer! Orders that exceed listed availability will automatically be voided without notice.

TRENDnet
TRENDnet 10 Gigabit PCIe Network Adapter

TEG-10GECTX (Version v1.0R)

  • Converts a PCIe slot into a 10 G Ethernet Port
  • Supports 802.1Q VLAN Tagging
  • Includes standard and low-profile brackets
  • Windows® and Linux® support

Overview

TRENDnet’s 10 Gigabit PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port.

TRENDnet

10 G Port
Supports five selectable speeds: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps

TRENDnet

Jumbo Frame
Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

TRENDnet

Operating Systems
Compatible with Windows®, Windows Server®, and Linux® operating systems

TRENDnet

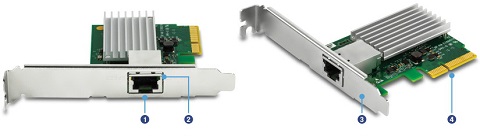

  1. 1. 10 Gbps RJ-45 Ethernet port
  2. 2. LED indicator
  3. 3. Standard and low profile brackets
  4. 4. PCIe 2.0 x4 interface

TRENDnet

10 G Port
Supports five selectable speeds: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps

TRENDnet

PCI Express
Converts a PCIe 2.0 x4 slot into a 10 G Ethernet Port

TRENDnet

NBASE-T™ Ethernet Technology
NBASE-T draft specification supports 2.5 and 5 Gbps speeds over standard Cat 5e cables at distances up to 100 m

TRENDnet

Jumbo Frame
Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

TRENDnet

VLAN Support
IEEE 802.1Q tagged-based VLAN support

TRENDnet

Brackets
Supports most installations with included standard and low-profile brackets

TRENDnet

Operating Systems
Compatible with Windows®, Windows Server®, and Linux® operating systems.

TRENDnet

LED Indicators
LED indicators convey port status, link speed and activity

Package Contents

  • TEG-10GECTX
  • Quick Installation Guide
  • CD-ROM (Driver & User’s Guide)
  • Standard & low profile brackets

Learn more about TRENDnet TEG-10GECTX (Version v3.0R)

Model
Brand
TRENDnet
Model
TEG-10GECTX (Version v3.0R)
Details
Standards
IEEE 802.3uIEEE 802.3abIEEE 802.3bz 2.5G/5GBASE-TIEEE 802.3an 10GBASE-TIEEE 802.1Q
Speed
10Gbps
Connectors
1 x RJ45
Interface
PCI-Express
Temperature
Operating Temperature 0° - 70°C (32° - 158°F)
Humidity
Operating Humidity Max. 90% non-condensing
Features
Features
Cable Requirements10GBASE-T (10Gbps): Cat6 twisted pair @ 55m / 180 ft. (max.) / Cat6A twisted pair @ 100 m / 328 ft. (max.)5GBASE-T (5Gbps): Cat6 twisted pair @ 100m / 328 ft. (max.)2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)1000BASE-T (1Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)100BASE-TX (100Mbps): Cat5 twisted pair @ 100m / 328 ft. (max.)CompatibilityWindows 10, 8.1, 8Windows Server 2016, 2012, 2012 R2Jumbo Frames: Up to 16KBSpecial Features10GBASE-T (10Gbps) & 2.5G/5GBASE-T (2.5Gbps/5Gbps) support for high speed network connectivityWindows Server supportAdditional Support    802.1Q VLAN TaggingReceive-side scaling (RSS)Message Signaled Interrupts (MSI)IP, TCP, and UDP checksum offloadingMinimize overhead with reduced host bus traffic and CPU utilizationPower: Max. consumption: 6.1W
Dimensions & Weight
Dimensions
4.70" x 2.50" x 0.70"
Weight
2.60 oz.
Packaging
Package Contents
TEG-10GECTXQuick Installation GuideCD-ROM (Driver)
