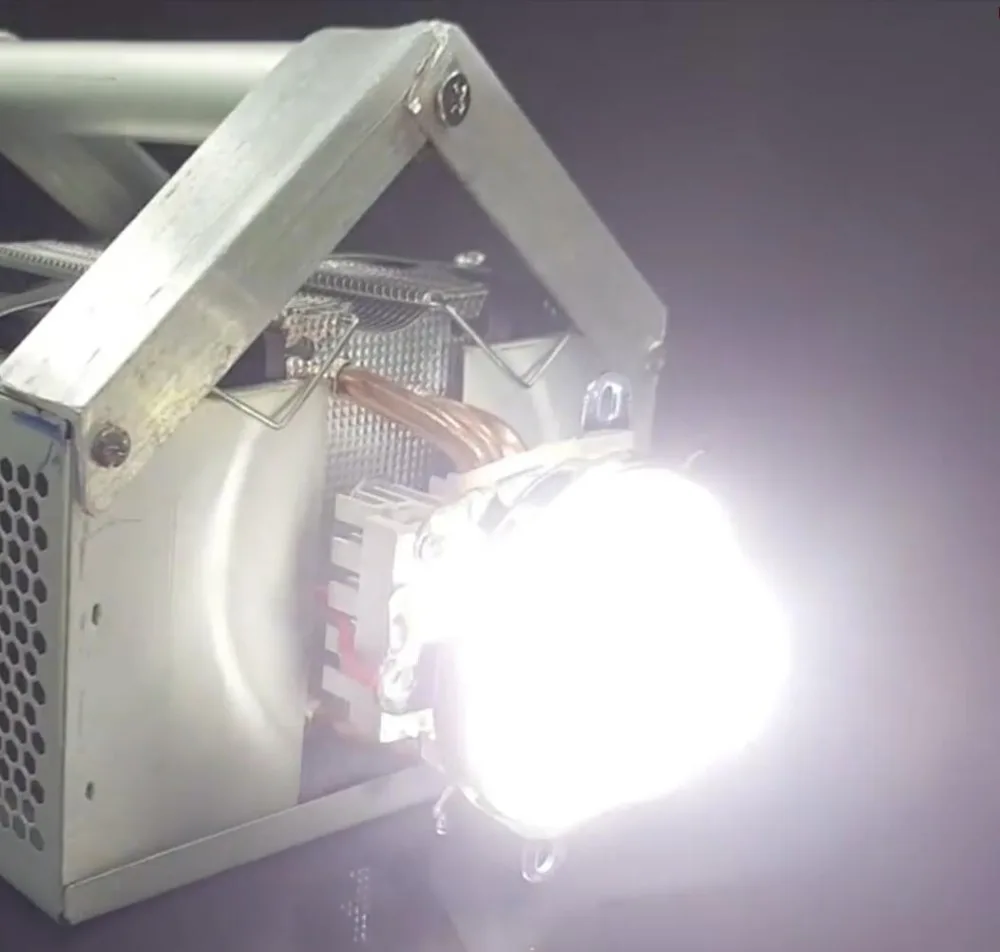

How to use our COB LED to DIY Floodlight or LED Project Lamp, please see our friend "DIY Perks" DIY Video at his youtube channel:

Make a 1000w equiv. LED flashlight - aka DIY Sun-Blaster!: https://www.youtube.com/watch?v=c--5c3Egv4E&t=1s

DIY Studio Light | CRI 90+/95+ | 100W: https://www.youtube.comwatchv=okU-M9NY-hI

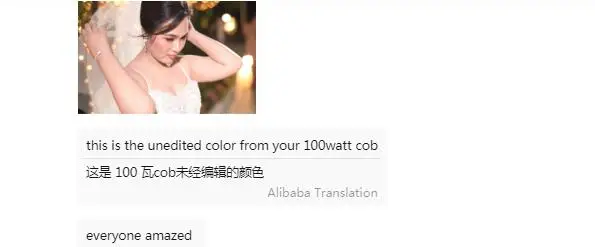

What is CRI:

Color Rendering Index, it describes how a light source makes the color of an object appear to human eyes,and how well subtle variations in color shades are revealed. The CRI is a scale from 0 to 100 percent indicating how accurate a "given" light source is at rendering color when compared to a "reference" light source.

The higher the CRI, the better the color rendering ability. Light sources with a CRI of 80 to 90 are considered good at color rendering. Light sources with a CRI of 90 or higher are excellent at color rendering and should be used for tasks requiring the most accurate color discrimination.

Product Parameters of 100W COB LED:

Brand of LED Chip: CITIZEN

Color Temperature: 5600K

Voltage (V): 36-38Volts

Rated Current (A): 2.5A, Max 2.7A, please note: in order to protect COB LED not burned, the working current must be limited to 2.8A, can not over 2.8A, hope you understand.

Luminous Flux (LM): 9500-10000 LM

CRI Ra: 93-96

Material: Copper Brackets

Working Temperature: -30-60℃

Note: It will work more than 30000 hours if the working temperature is less than 60 Degree Celsius. So, they need to work wih heat sinks or Thermal Silica otherwise the light will die due to too much heat. Please see this our testing Video at listing page.

The cost performance of our this 100W 5600K COB LED is better than YUJI COB LED.

FEATURES of 100W COB:
1: External Dimensions: 28.0mm x 28.0mm x 1.0mm
2: Internal Structure: Aluminum Base Chip on Board
3: IConnection to Heat Sink: By M3 screw (Recommended)
4: RoHS Compliant
5: Available in ANSI bins as well as 3-SDCM bins at 3200K, 5600 K
5-SDCM bins at 5700K and 6500 K CCT

Outdoor applications:
1: Stage Light
2: Outdoor & Engineering lighting
3: Public lighting
Indoor applications:
1: Stage Light
2: Decorative lighting

3: DIY LED Flashlight or Floodlight

Feature of Radiator Heat Sink:

1: Heatsink Material:Copper & Aluminum

2: Size: Length x Width x High: 10cm x 5cm x 15cm

Feature of Radiator Cooling Fan:

1: Length x Width x High: 9cm x 9cm x 2.5cm

2: Bearings: high precision double ball bearings

3: Speed: 3400 RPM

4: Standard voltage: DC12V

5: Working Current: 0.18A

6: Fan interface: 3 Pin

7: Advantages: maintenance free double ball bearing, long service life, sufficient heat dissipation and wind pressure.

8: Application: chassis heat dissipation, CPU radiator, power supply fan transformation, water cooling heat sink, switch power supply heat dissipation

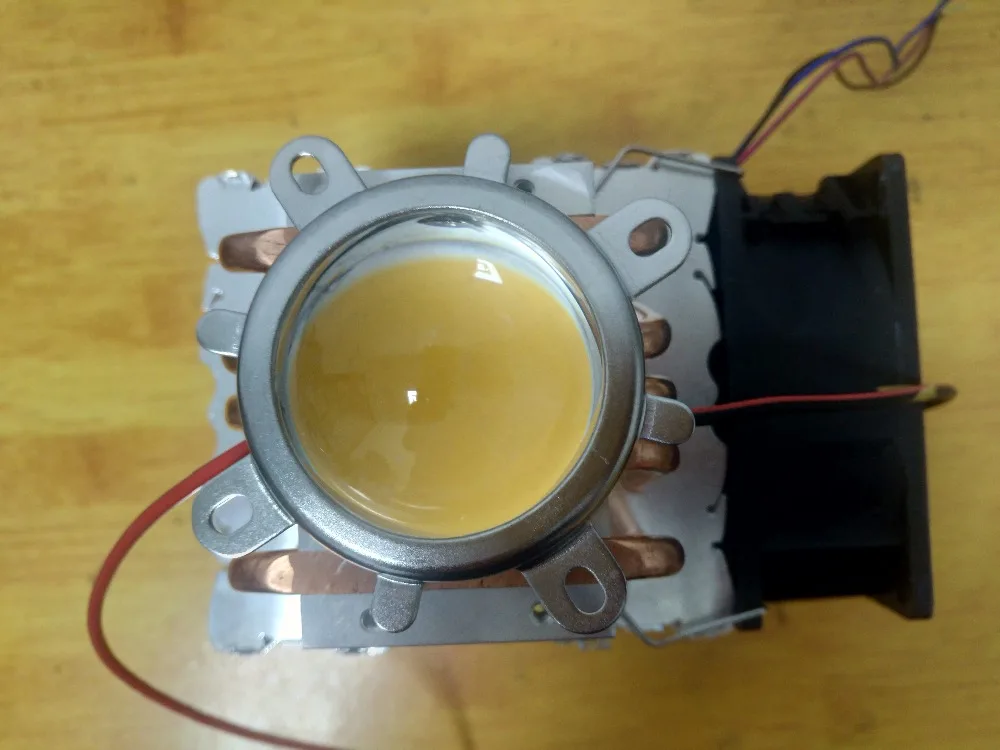

Features of 1 Set DIY Kit(1 LED LENS+1 Reflection Cup+1 Fixed Support Base for 100W COB LED:

First: LED Lens:

1: Size of LED Lens: Diameter: 44.4mm, internal diameter: 40mm.

2: Height: 19.0mm

3: Light Transmittance Rate: Above 95%

4: Viewing Angle: 60 degree

5: Material: High Quality temperature resistant optical glass.(temperature resistance: -30 degree centigrade to 120 degree centigrade

Second: Reflection Cup

1: Size: Diameter: 50mm

2: Heigh: 11mm

3: Bottom Size: 26.3mm x 26.3 mm

4: Material: Plating on Plastics

5: Suitable for: installing 100W/200W/300W COB LED

Third: Fixed Support Base, not include screws, you need to buy at local store:

1： Size: Diameter: 77mm(including screws hole parts), Diameter: 53mm(not including screws hole parts)

thick: 6.5mm

Please note: this listing is multi-option products, including COB LED or Radiator or Cooling Fan or 1 Set 3pcs Small accessaries, please choose which one item you need to buy, you also put them into your cart one by one, and pay them together, we will ship them in one package together to you.

Package Included, it's up to your choice:

1 x only 100W Daylight 5600K COB LED

1 x Radiator Heat Sink

1 x 9cm Cooling Fan
