Product features:

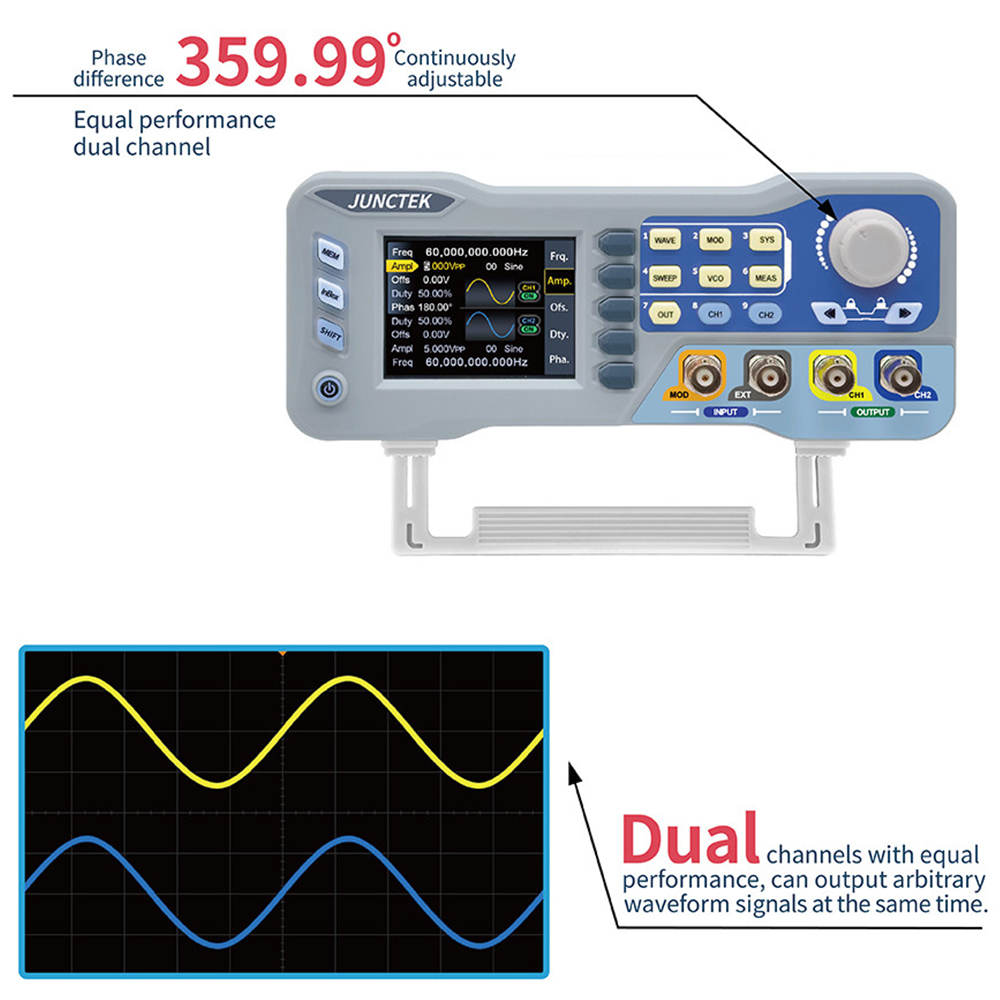

1. two channels with exactly the same performance, can output the same or different waveforms at the same time, phase difference 0-359.99° freely adjustable.
2. Sine wave output frequency range 1nHz-60MHz (JDS8060) or 1nHz-80MHz (JDS8080), output amplitude 1mVpp-25Vpp.

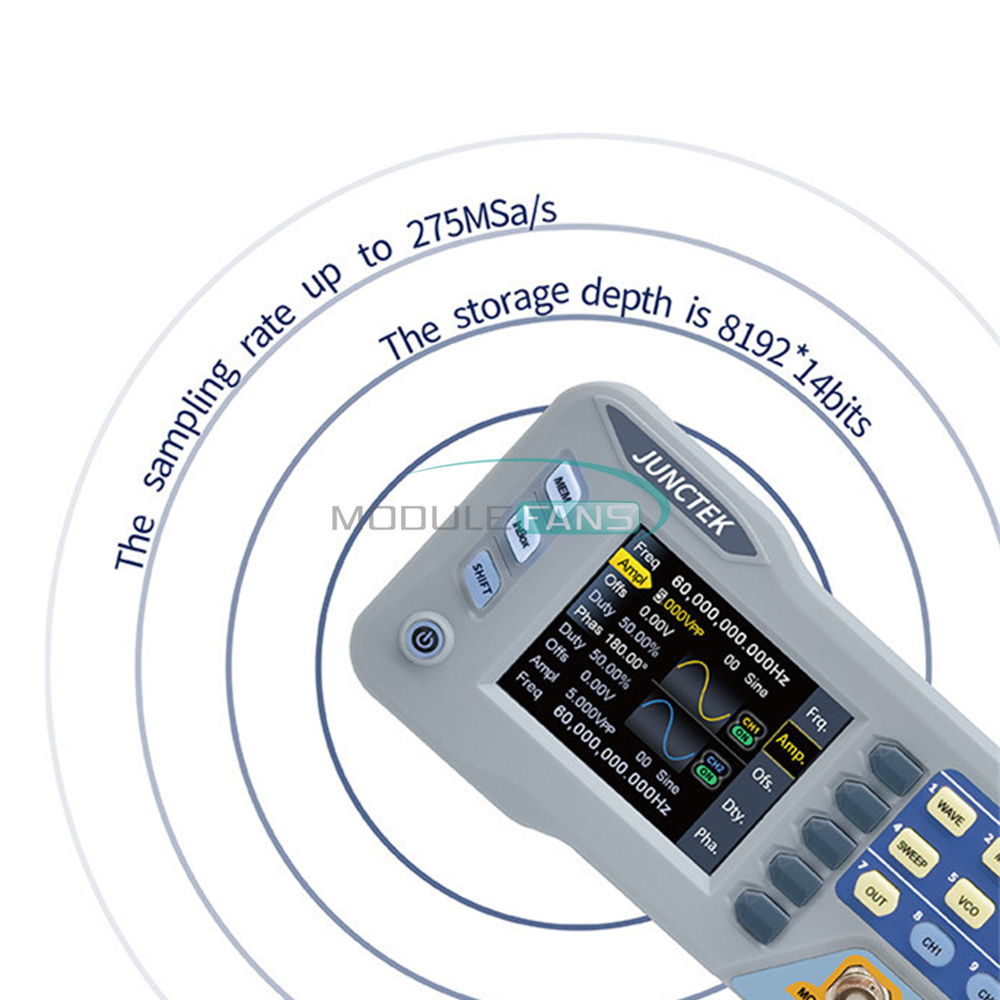

3. Sampling rate up to 275MSa/s, vertical resolution of 14Bits * 8192 points, more waveform data per unit of time, thus making the waveform more accurate.

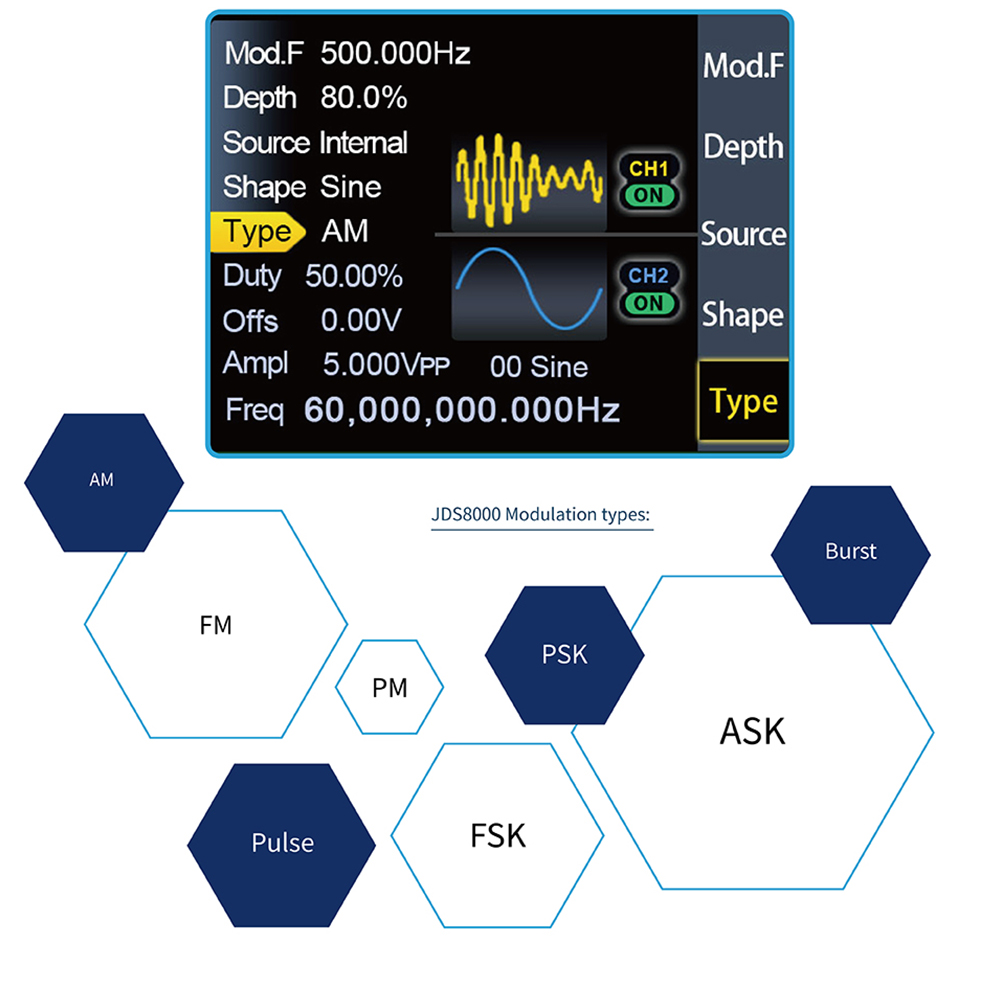

4. Modulation function: both channels can output AM FM PM ASK FSK PSK and other modulated waveform signals.

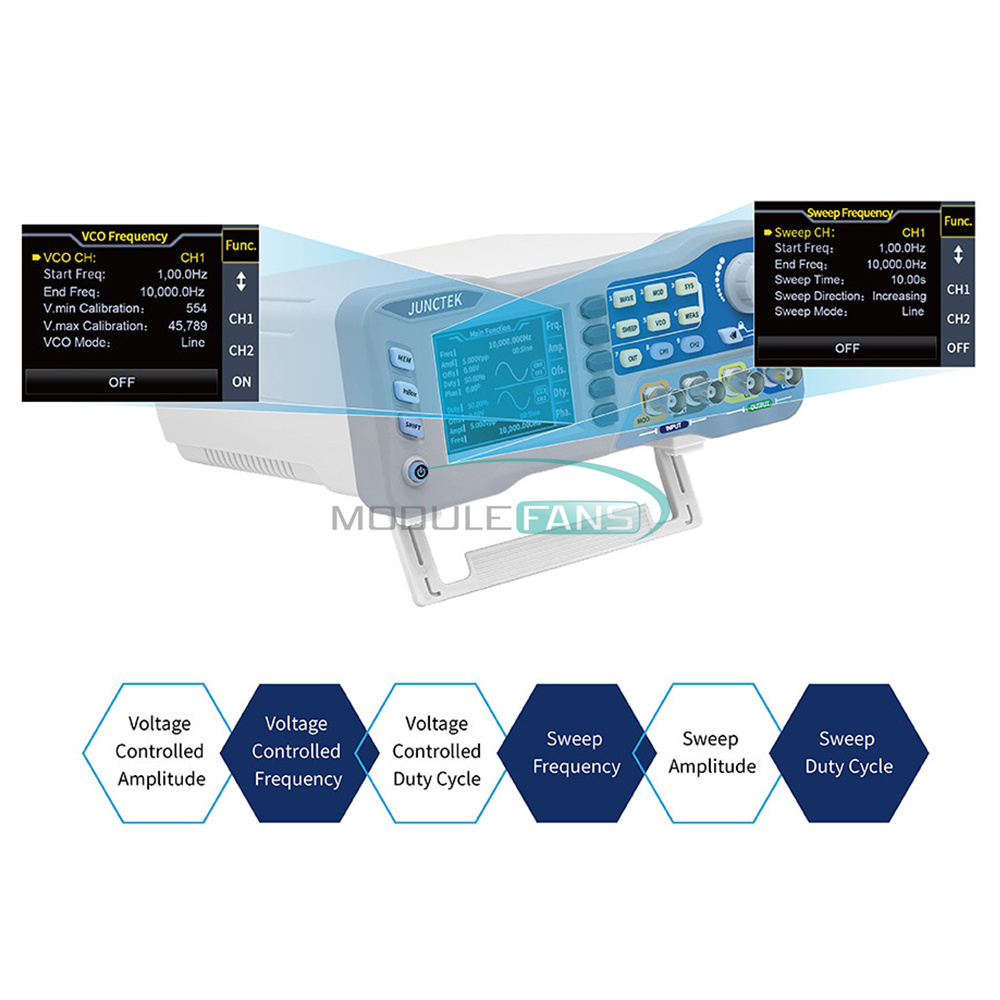

5. Scanning function: scanning frequency, scanning amplitude, scanning duty cycle, with two scanning modes: linear and logarithmic.
6. VCO voltage control scanning; control the frequency, amplitude and duty cycle of the output waveform through the change of external voltage signal.
7. Pulse width modulation function: digital adjustment of the width of the pulse waveform and the cycle time of the pulse.
8. Burst function: can set the output 1-1048575 arbitrary period of the waveform signal.

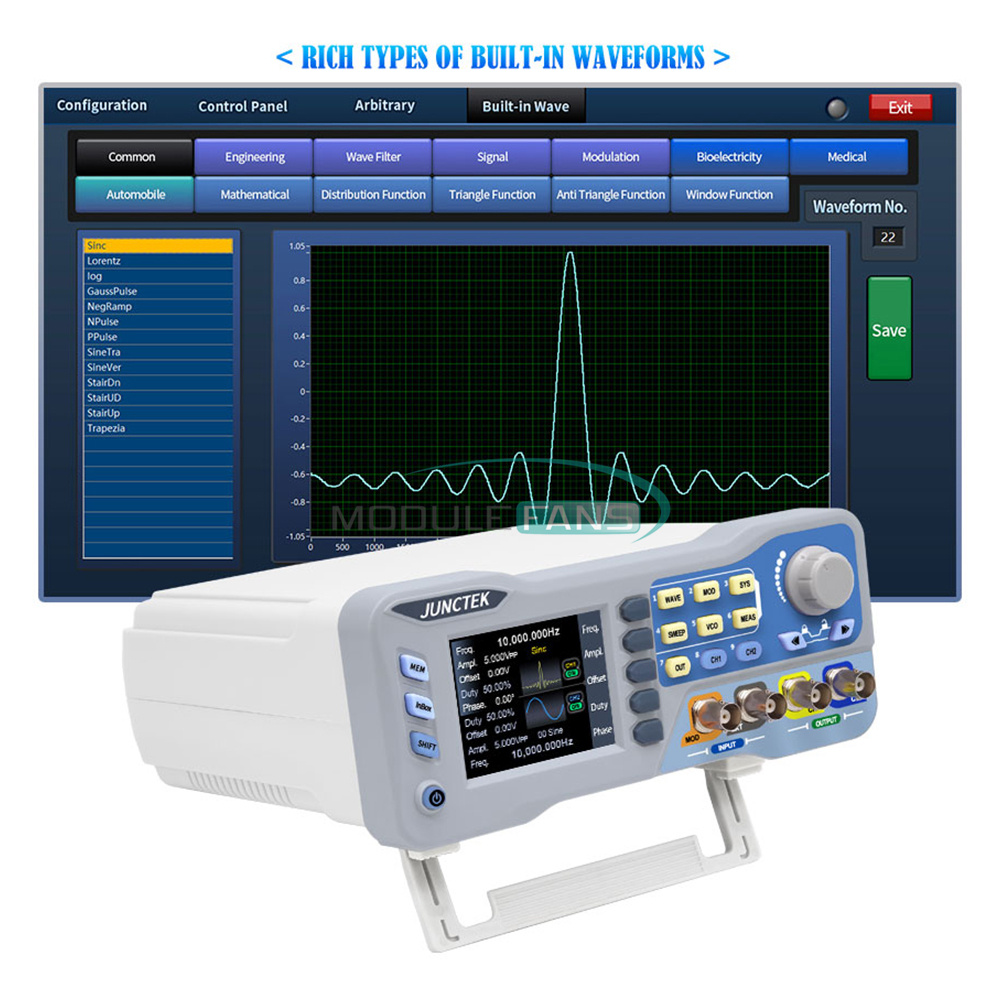

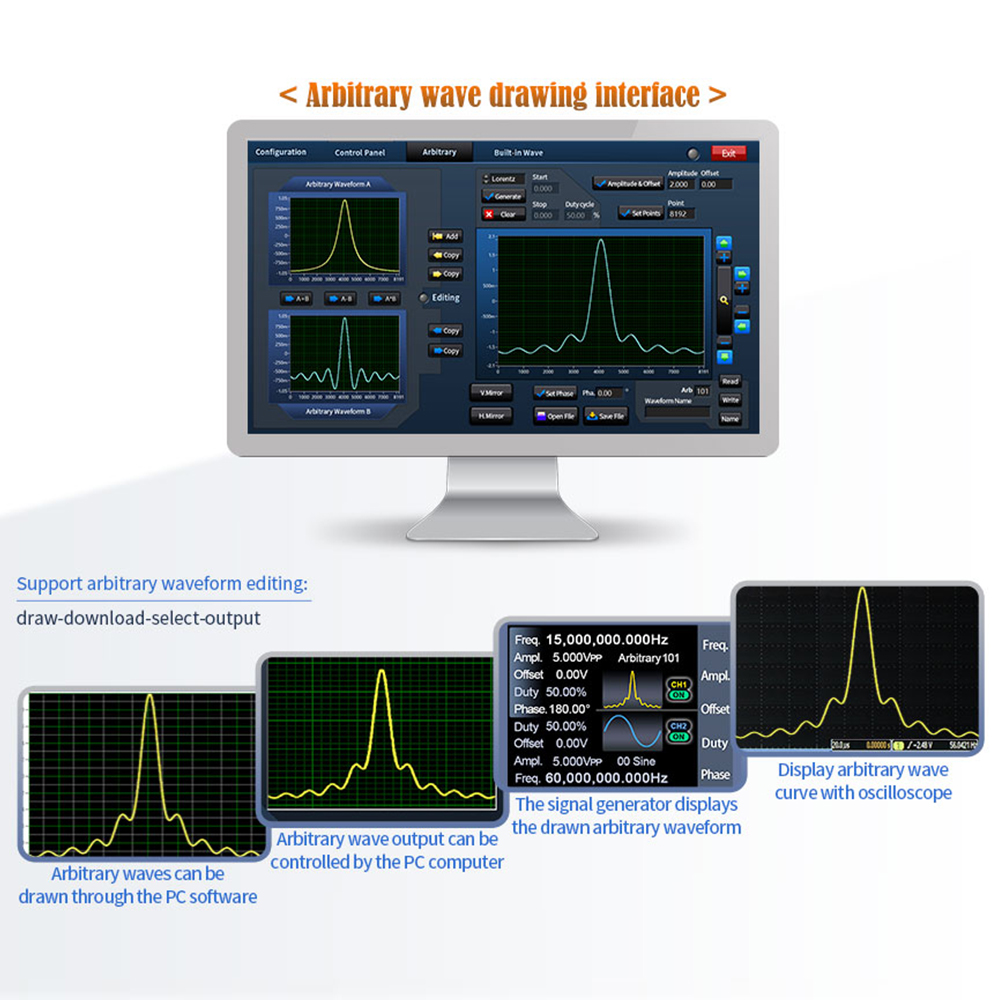

9. Arbitrary waveform function: more than 160 kinds of commonly used arbitrary waveforms are built-in in the upper computer software, and you can also custom draw arbitrary waveforms and download them to the signal generator with one click.
10. Measurement function: comes with 1Hz-100MHz frequency meter and counter, with AC coupling and DC coupling two modes.
11. Firmware update function; new firmware can be obtained free of charge through the firmware upgrade software to continuously improve the performance of the product.
12. Cell phone APP: built-in Bluetooth chip, wireless remote control and drawing arbitrary waveform through cell phone APP.
13. Secondary development function: free communication protocol and computer software are provided to facilitate programming control.
14. Multi-level synchronization function, two or more machines online can output multi-channel waveform signal
1. two channels with exactly the same performance, can output the same or different waveforms at the same time, phase difference 0-359.99° freely adjustable.
2. Sine wave output frequency range 1nHz-60MHz (JDS8060) or 1nHz-80MHz (JDS8080), output amplitude 1mVpp-25Vpp.
3. Sampling rate up to 275MSa/s, vertical resolution of 14Bits * 8192 points, more waveform data per unit of time, thus making the waveform more accurate.
4. Modulation function: both channels can output AM FM PM ASK FSK PSK and other modulated waveform signals.
5. Scanning function: scanning frequency, scanning amplitude, scanning duty cycle, with two scanning modes: linear and logarithmic.
6. VCO voltage control scanning; control the frequency, amplitude and duty cycle of the output waveform through the change of external voltage signal.
7. Pulse width modulation function: digital adjustment of the width of the pulse waveform and the cycle time of the pulse.
8. Burst function: can set the output 1-1048575 arbitrary period of the waveform signal.
9. Arbitrary waveform function: more than 160 kinds of commonly used arbitrary waveforms are built-in in the upper computer software, and you can also custom draw arbitrary waveforms and download them to the signal generator with one click.
10. Measurement function: comes with 1Hz-100MHz frequency meter and counter, with AC coupling and DC coupling two modes.
11. Firmware update function; new firmware can be obtained free of charge through the firmware upgrade software to continuously improve the performance of the product.
12. Cell phone APP: built-in Bluetooth chip, wireless remote control and drawing arbitrary waveform through cell phone APP.
13. Secondary development function: free communication protocol and computer software are provided to facilitate programming control.
14. Multi-level synchronization function, two or more machines online can output multi-channel waveform signal
Product description:

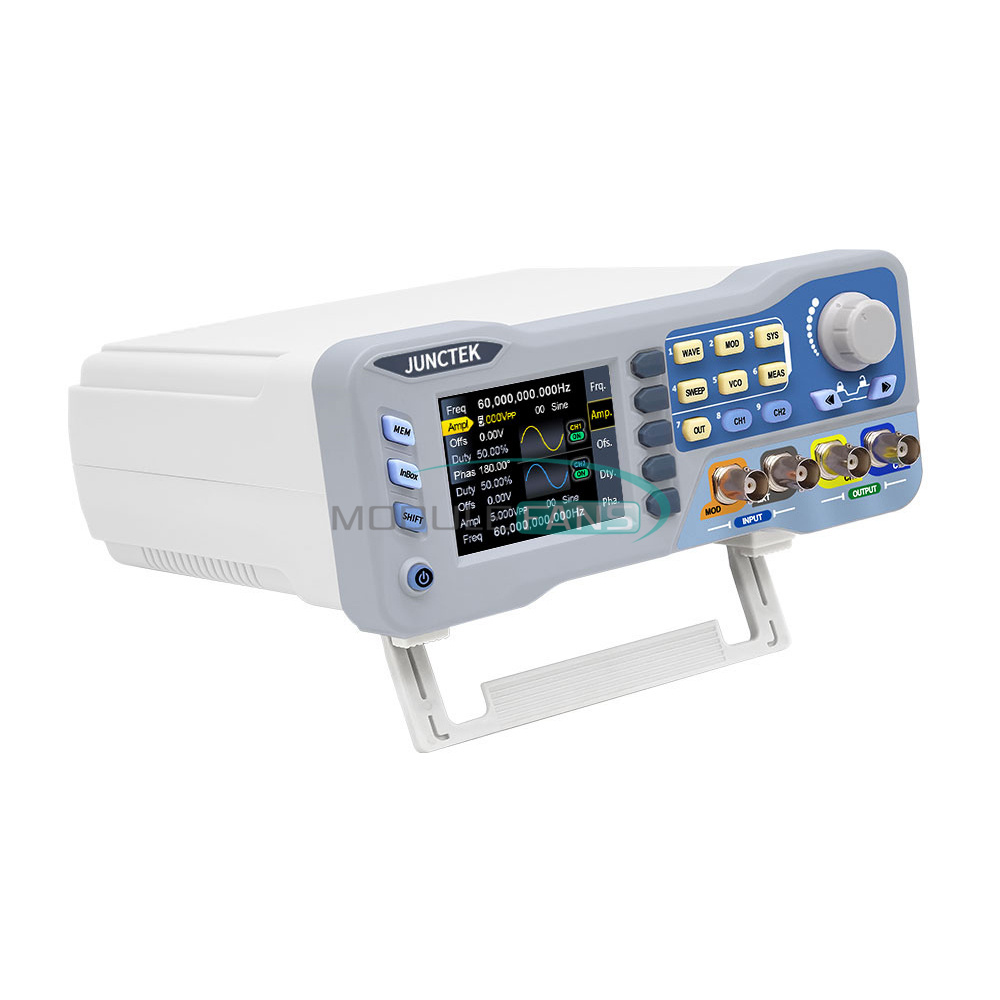

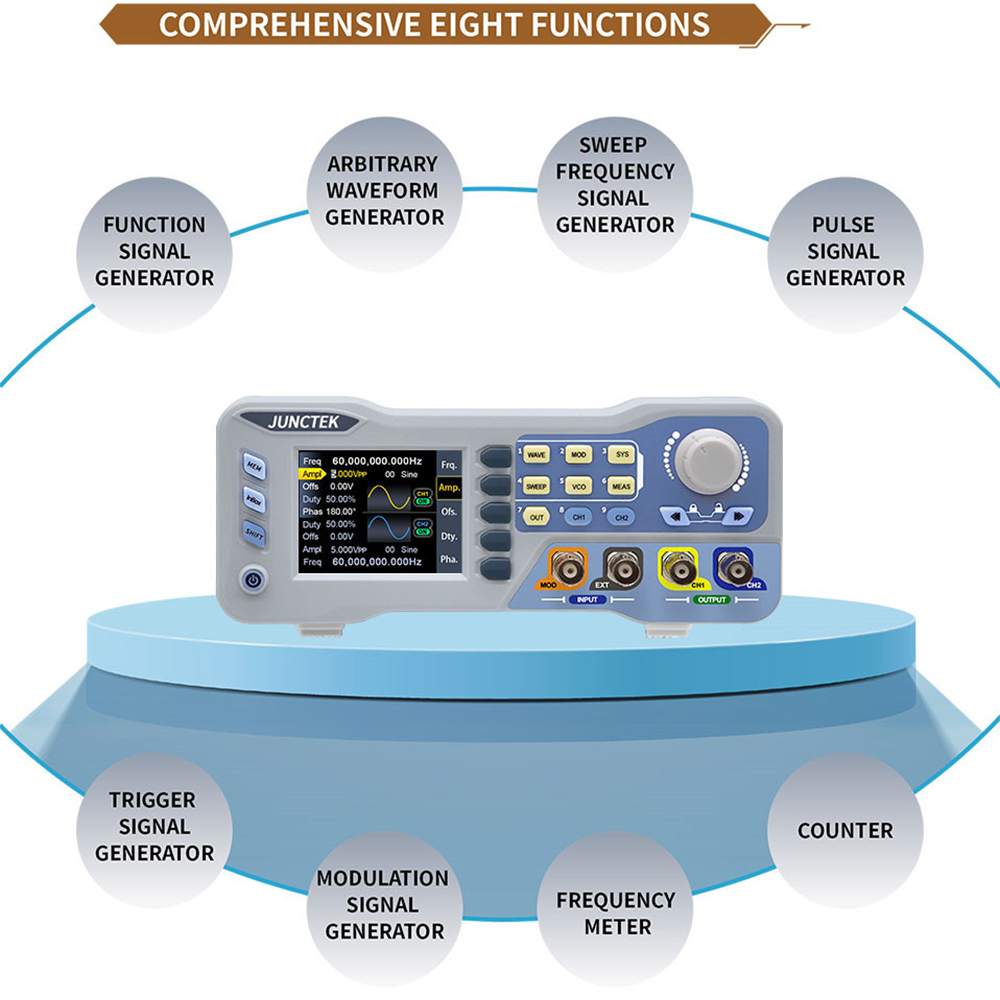

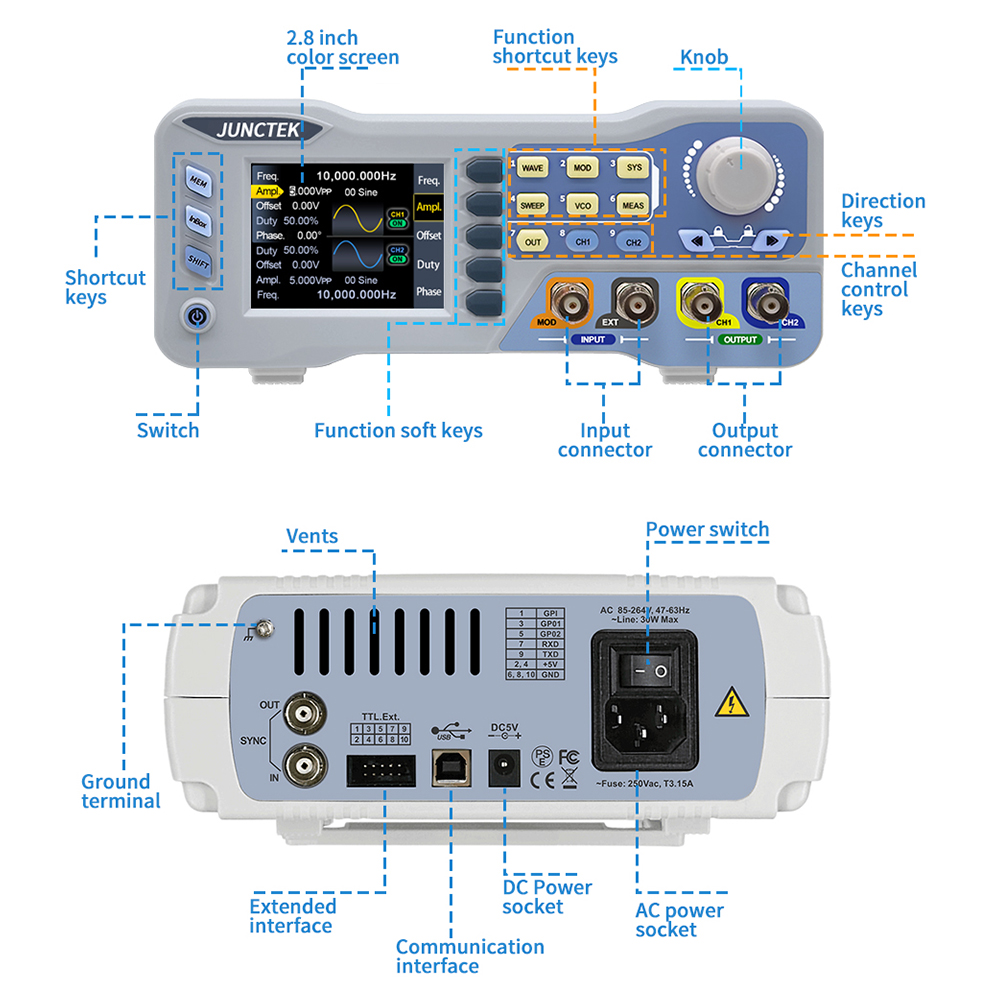

JDS8000 series dual-channel function/arbitrary waveform generator, with 2.8-inch high-definition color screen and soft silicone keys, can output sine wave, square wave, triangle wave, pulse wave, DC signal and arbitrary waveform, with waveform modulation, burst, pulse width digital adjustment, scan frequency, scan amplitude, scan duty cycle, VCO voltage control scan and other functions, with its own frequency meter and counter, suitable for Electronic enthusiasts DIY, scientific research and teaching, product development and debugging and other scenarios use.
JDS8000 series dual-channel function/arbitrary waveform generator, with 2.8-inch high-definition color screen and soft silicone keys, can output sine wave, square wave, triangle wave, pulse wave, DC signal and arbitrary waveform, with waveform modulation, burst, pulse width digital adjustment, scan frequency, scan amplitude, scan duty cycle, VCO voltage control scan and other functions, with its own frequency meter and counter, suitable for Electronic enthusiasts DIY, scientific research and teaching, product development and debugging and other scenarios use.
Shipping list:
Signal generator* 1
Power cord* 1
Q9-Q9 direct line* 1
USB data cable* 1
Clip cable* 2
User's guide* 1
Signal generator* 1
Power cord* 1
Q9-Q9 direct line* 1
USB data cable* 1
Clip cable* 2
User's guide* 1
