10.1" 4K Split DVR MP5 Monitor+ 4 x AHD 1080P RV  Rear View Reverse Backup Camera

4CH video input Quad Split 4Pin  10.1 inch Monitor with DVR Recorder
Build in Video & Music Player
FM & Bluetooth / Moblie mirror-link (Android only)
Free 1x 10m 4Pin cable
Free 1 x 20m 4Pin cable
Free 2 x 5m 4Pin cable
2x 4Pin 18 LED IR HD 1080P Backup Camera
2x 4Pin 12 LED IR HD 1080P Side View Camera
32GB SD Memory
Best for 12V~24V All Truck /Caravan/Bus/Trailer/RV/5th  wheel/Pickup/ Boat
Shipping From US Local Stock Via USPS

This is 4 pcs HD 1080P Backup Camera and 10.36 inch Car Monitor System with DVR  MUSIC VIDEO BLUTOTH :
10.1 inch Large Screen Monitor with 4 x IR Reverse Backup Camera
Hard wired version Camera system,
come with 32GB Memory for Video Record,
guarantees safe and 360° View clear image Avoid Blind spot
The 10.1 inch IPS technology monitor
Build-in Great DVR Loop Recorder with H.265 video
4 channels video input

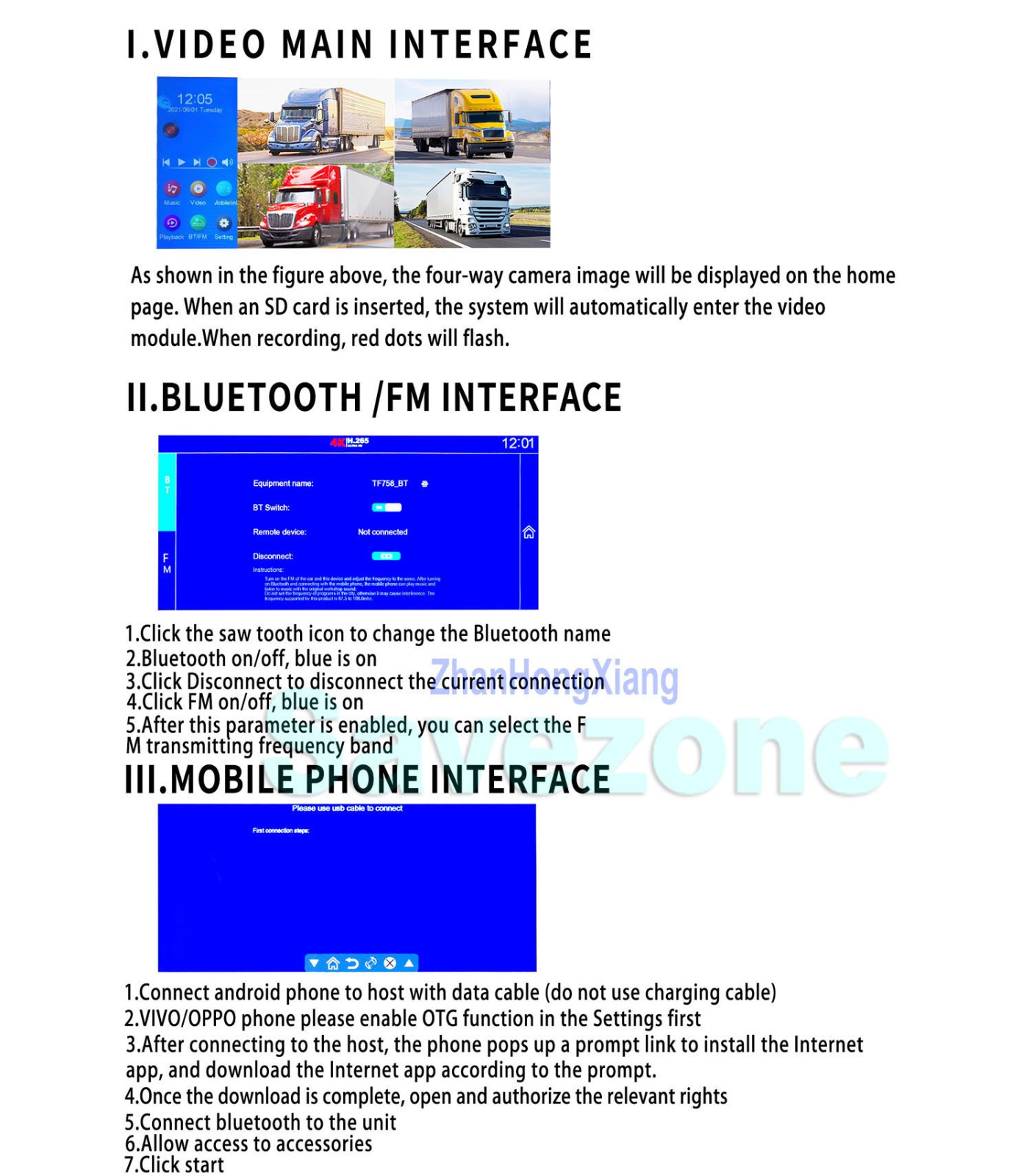

Quad Split Screen Display,
It can display Full images/Stand large image/2 images /3 images/4 images,
Grid Line Can be adjust,
Image can be adjust for mirror or none mirror or flip with Upside Down
So you can make each camera working for Front View or Rear View or Side View at  your enjoy
FHD 1920*1080 Pixels (2.0 Megapixels) Rear Camera
IP68 Waterproof with 4 Pin Aviation Connector(Shockproof),
2x 18 LED IR Night Vision Car HD Color Backup Camera 2.5mm lens (140° horizontal wide view angle )

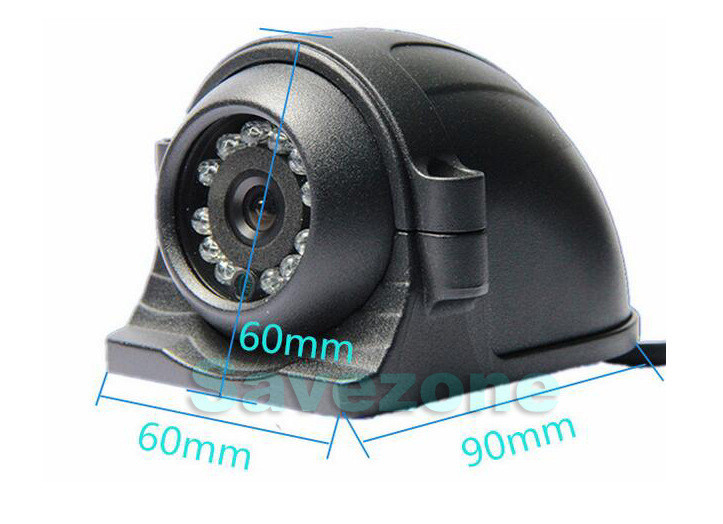

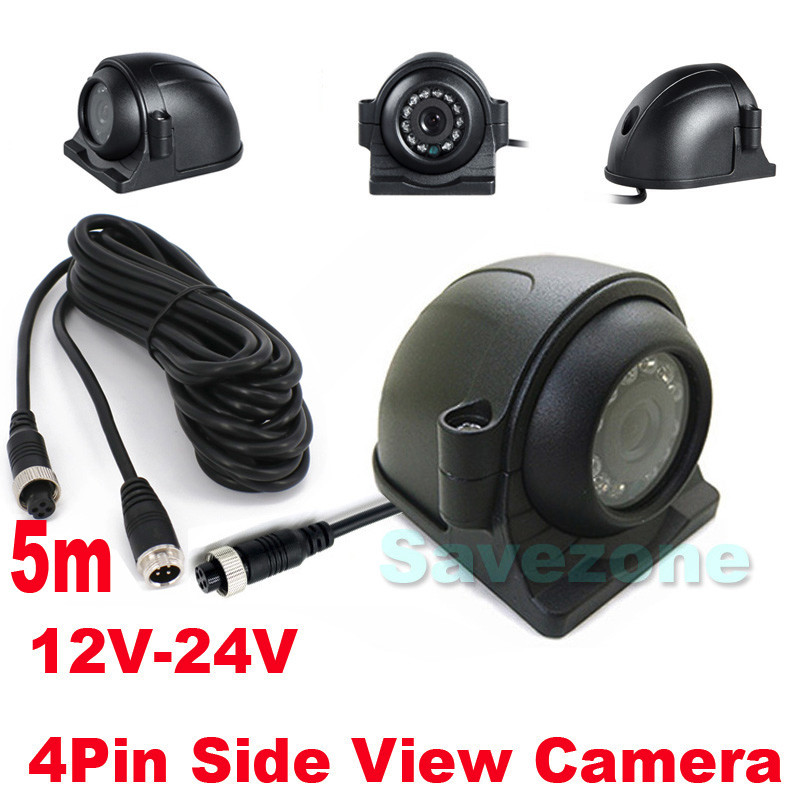

2x 12 LED IR side view Camera , 2.8mm lens (140° horizontal wide view angle )
100% Not Wash Out AHD 1080P Sensor Rear View Camera,
The Backup Camera System come with 4pcs Backup cameras ,and 5m 10m 20m 4-Pin  Aviation Extension cable
Support all 12V~24V vehicle
Best for Long Vehicle RV Bus Truck Motorhome Pickup Boat School Bus Tractor  Camper Lorry 5th wheel and All heavy Vehicle
There is 3x trigger wire to control video input priority,can be connect  for reversing light, turn left light ,turn right light and forward,
Four cameras can be viewed simultaneously from the Front Rear Side views in one  display, Protect your driving safety to away from Danger

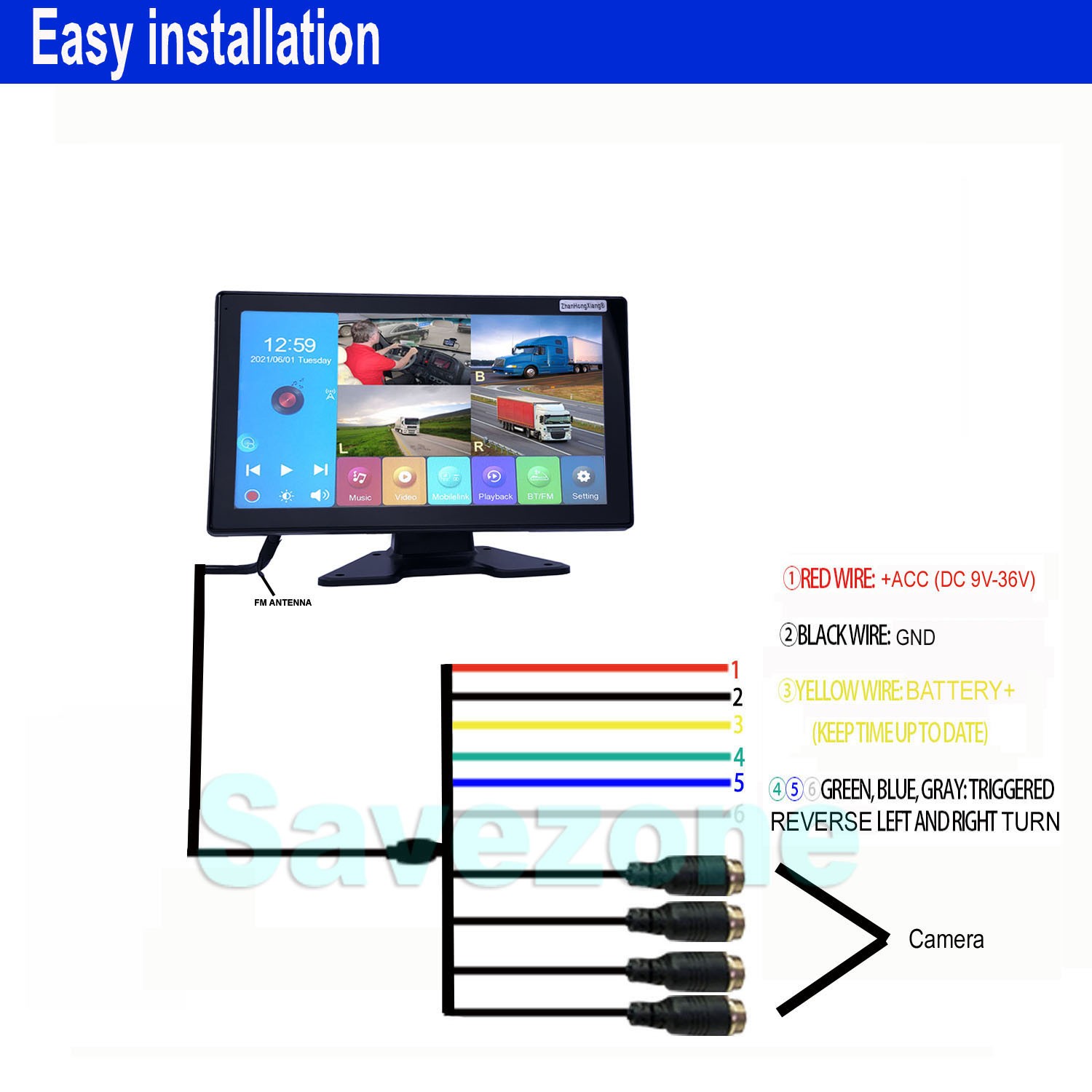

Only need to connect the monitor power wire with car electronics system:
Red wire to key on ACC+,
Black wire to GND,
Yellow wire to Battery+
Green Blue Grey wire to reversing or left/right turn Trigger+ (or No need to  connect)
Insert the Memory to the card slot
Simple to installation, Easy to use Easy to mount
Best for All Heavy Vehicle such as Box Truck Trailer Bus RV 5th Wheel Camper  Pickup Boat School Bus Tractor Motorhome

10.1" 4CH Split BT MP5 DVR Touch Screen Monitor

Display Size:10.1 inch AHD DVR MP5 BT Screen
Power requirement: DC 9V-36V
Video:4 channels input,Quad Split Screen Display
Our Split monitor can display Full images/2 image/3 images/4 images (more then  10 video mode for select)
Build in SD DVR Great Loop Recording functions
Each camera Record with a separate video
Come with 32GB TF Card, Max support 128GB
Reverse Grid Lines adjustable
Image Can be adjust for mirror or none Mirror
Image Support Flip with Upside Down
Suitable for Front view/ rear view/side view
360°clearly View to avoid blind spot
Support Video and music play by USB port

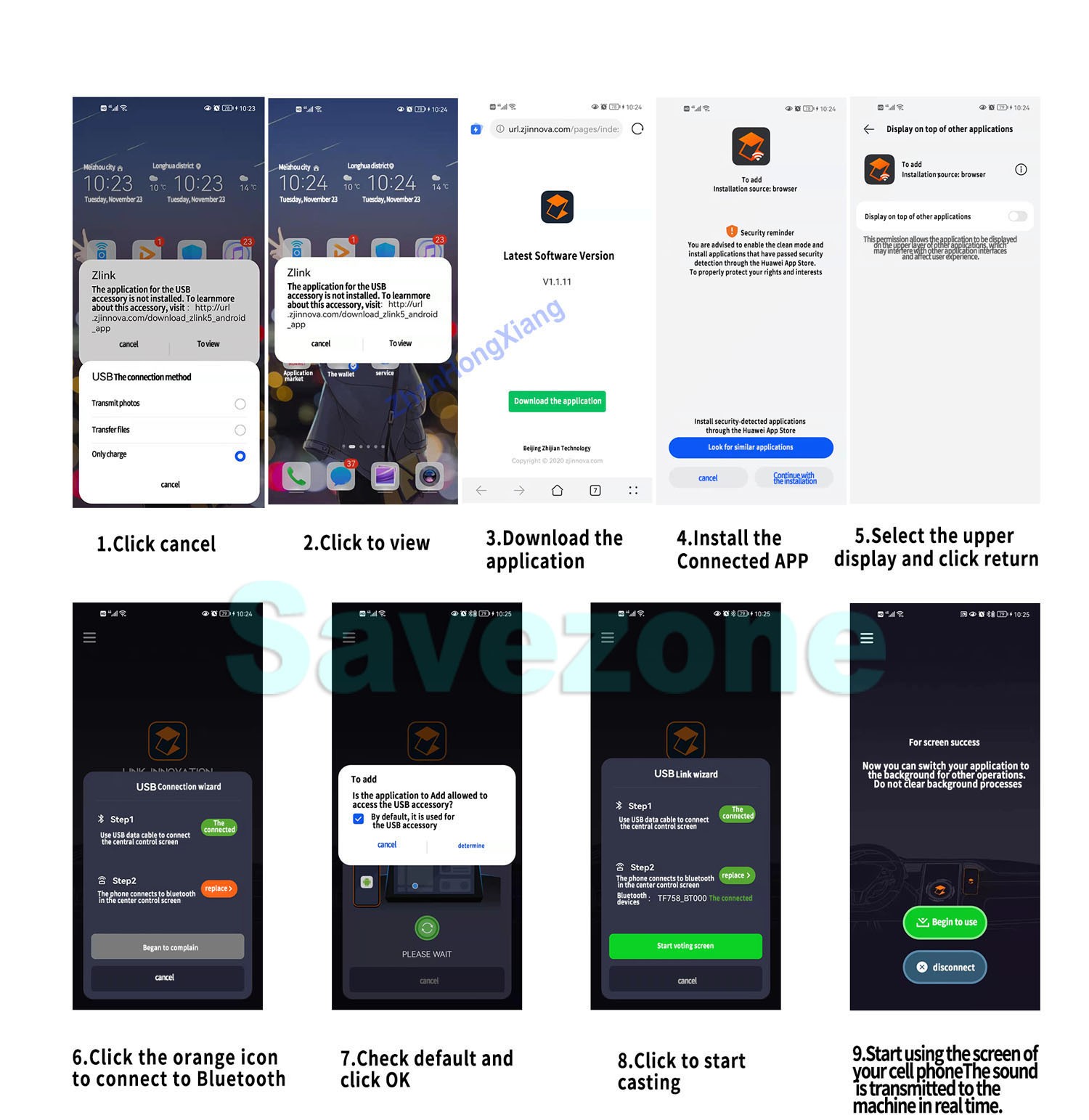

Support Bluetooth connect, support mobilelink(Andriod phone and need to download  APP)

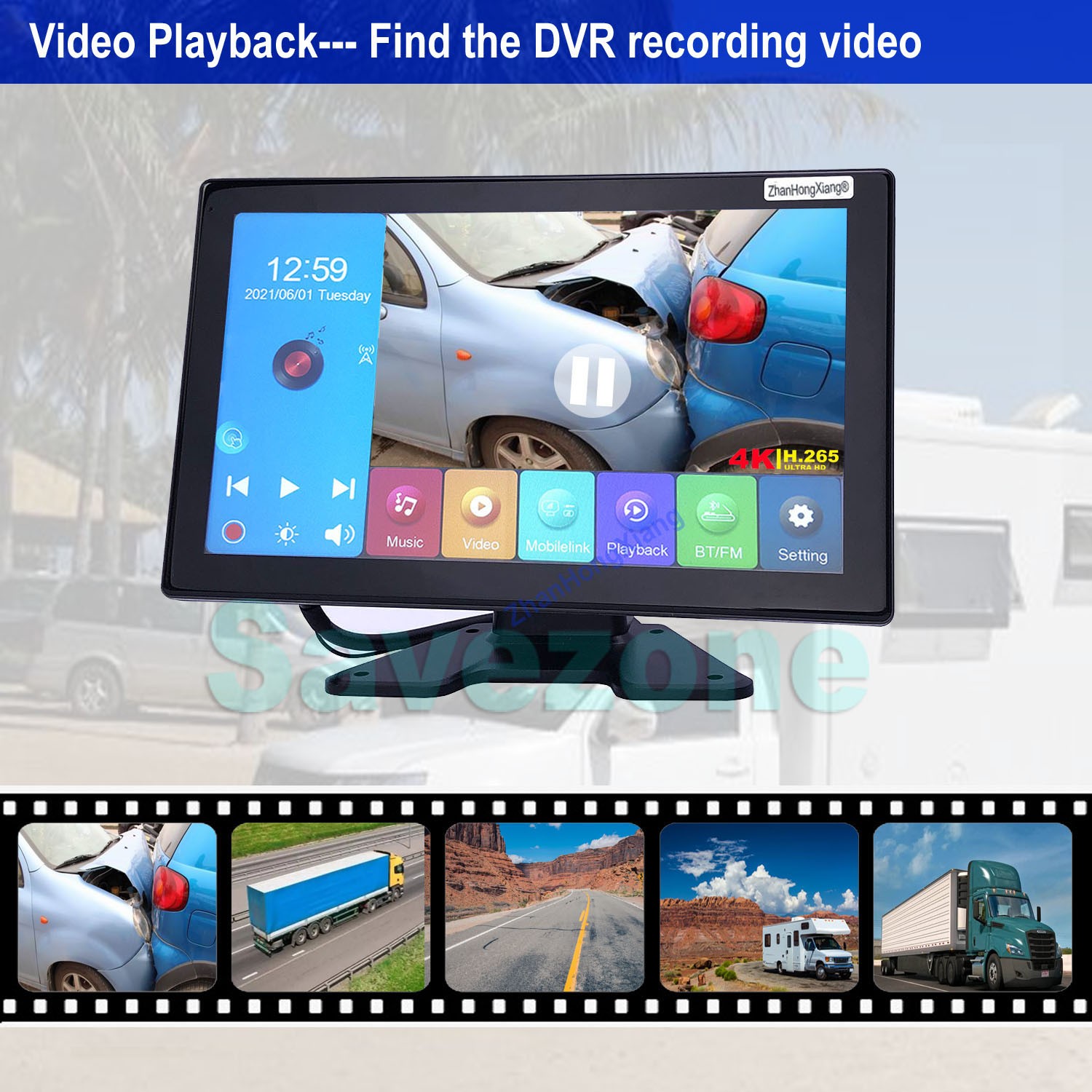

Support video playback with the DVR record,can find the recording video easy
Net Weight: Approx. 1000g

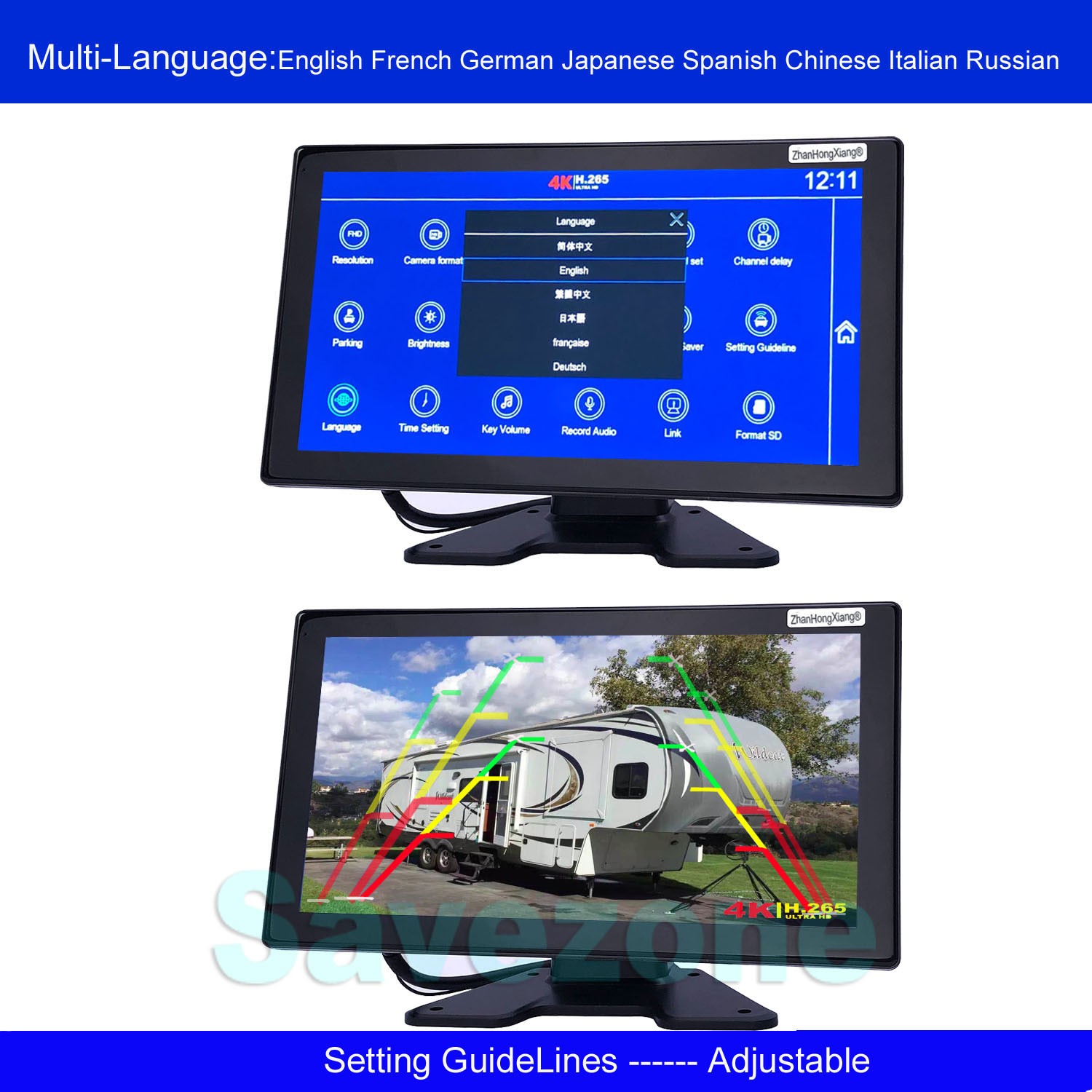

Lauguage:English,Chinese,German,Italian,French,Russian,Spanish,Japanese ......

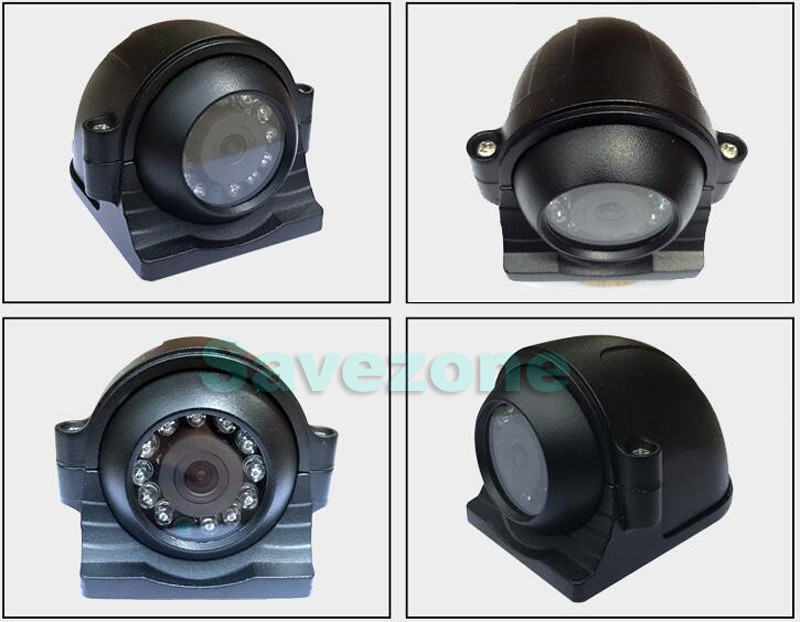

AHD 1080P IR Backup Camera
100% Not Wash Out AHD 1080P Sensor Mirror image
Lens:2.5mm(150 Wide View angle )
Number of pixels:2.0 MP Camera(1920*1080)
Minimum illumination:0 LUX
Night vision: LED IR
Video Output:4Pin Aviation Connector
work Temperature:-20°C~+60°C
Power Requirement: DC 12V-24V
Waterproof: IP 69

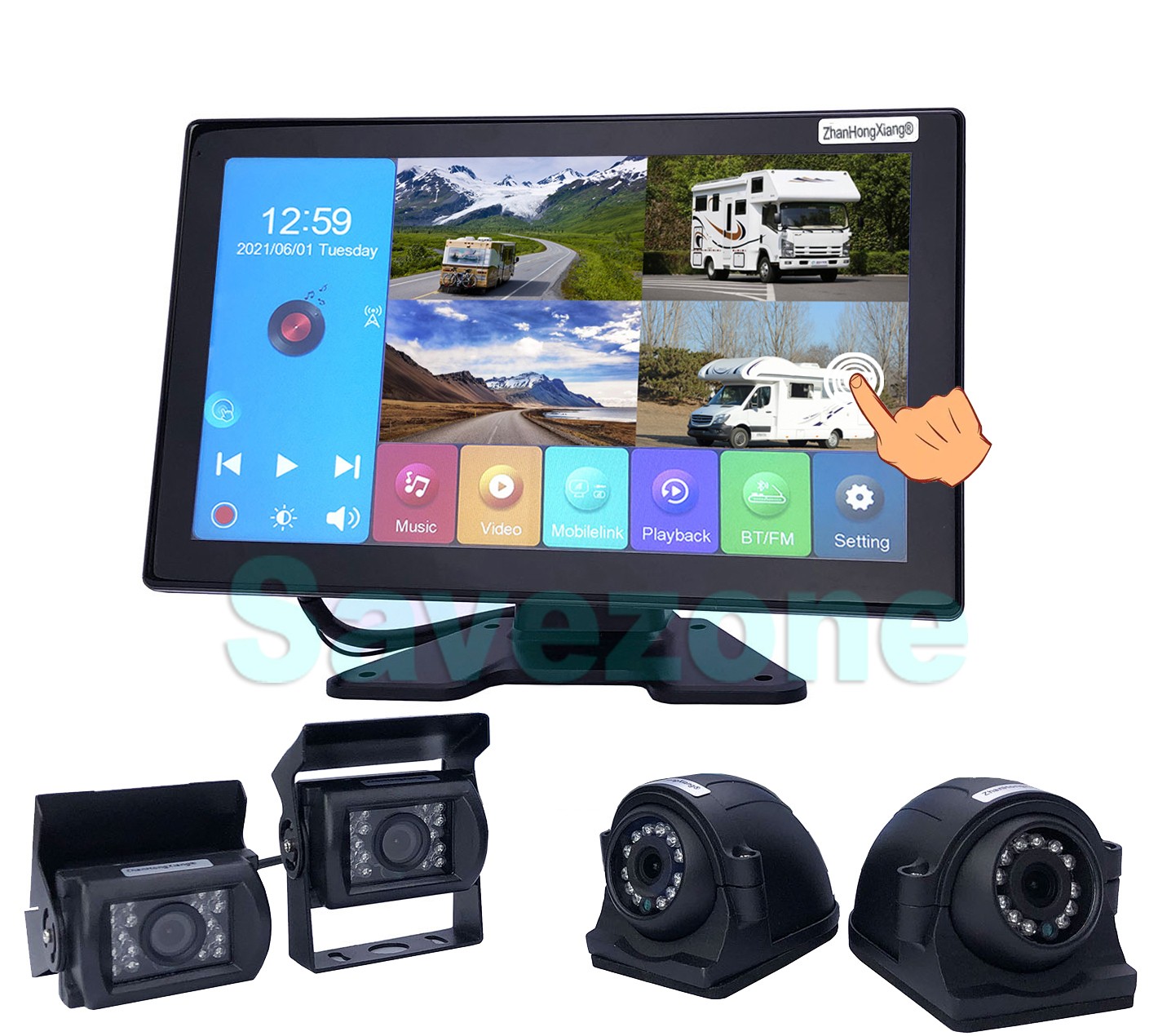

Package included:

1 x 10.1" 4CH QUAD Split DVR MP5 Monitor

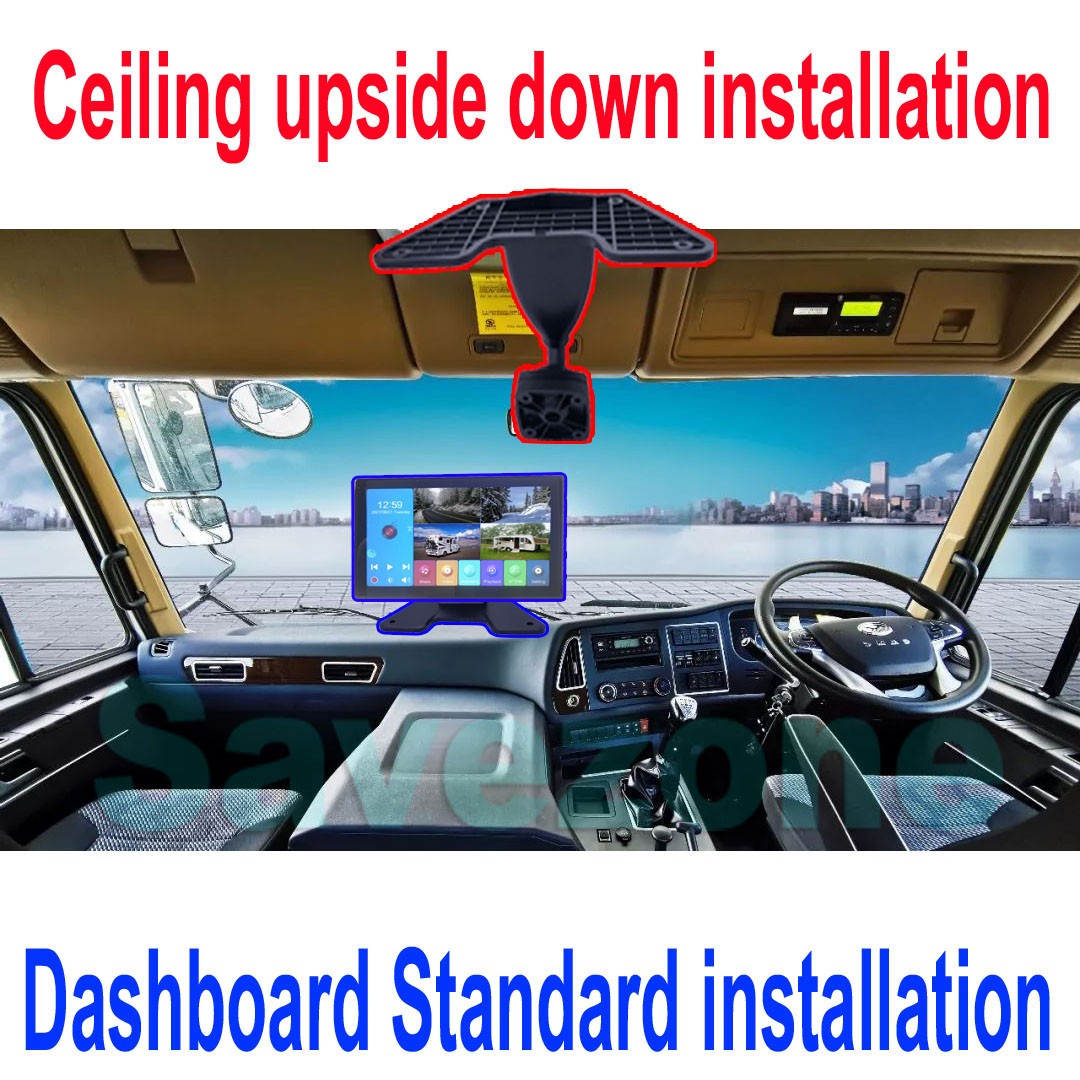

1 x Monitor Bracket
2 x 1080P 18 LED IR Rear View Camera
2 x 1080P 12 LED IR Side View Camera
1 x 4Pin 65ft Aviation Cable
1 x 4pin 33ft Aviation Cable
2 x 4Pin 16ft Aviation Cable
1 x 32GB TF Card
