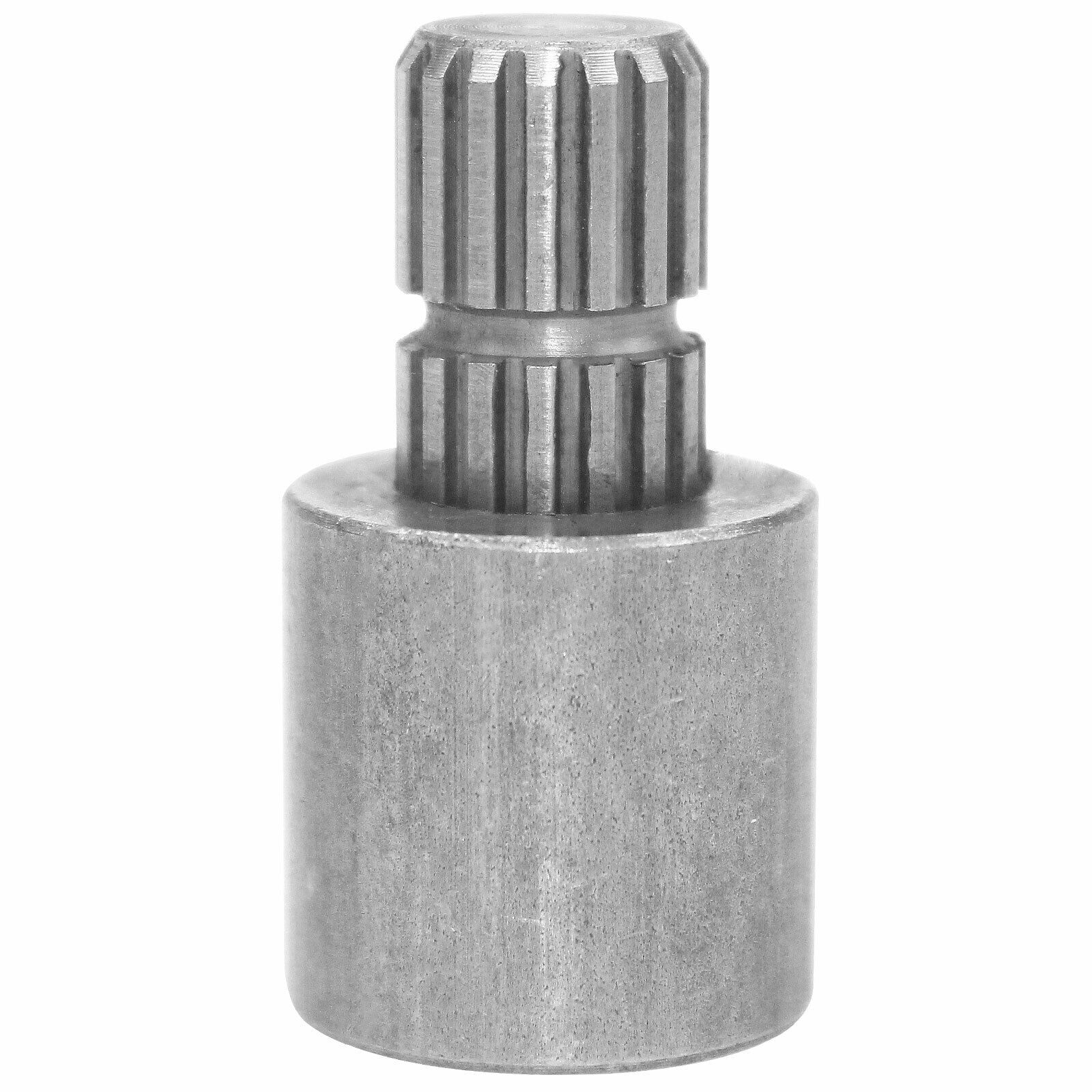

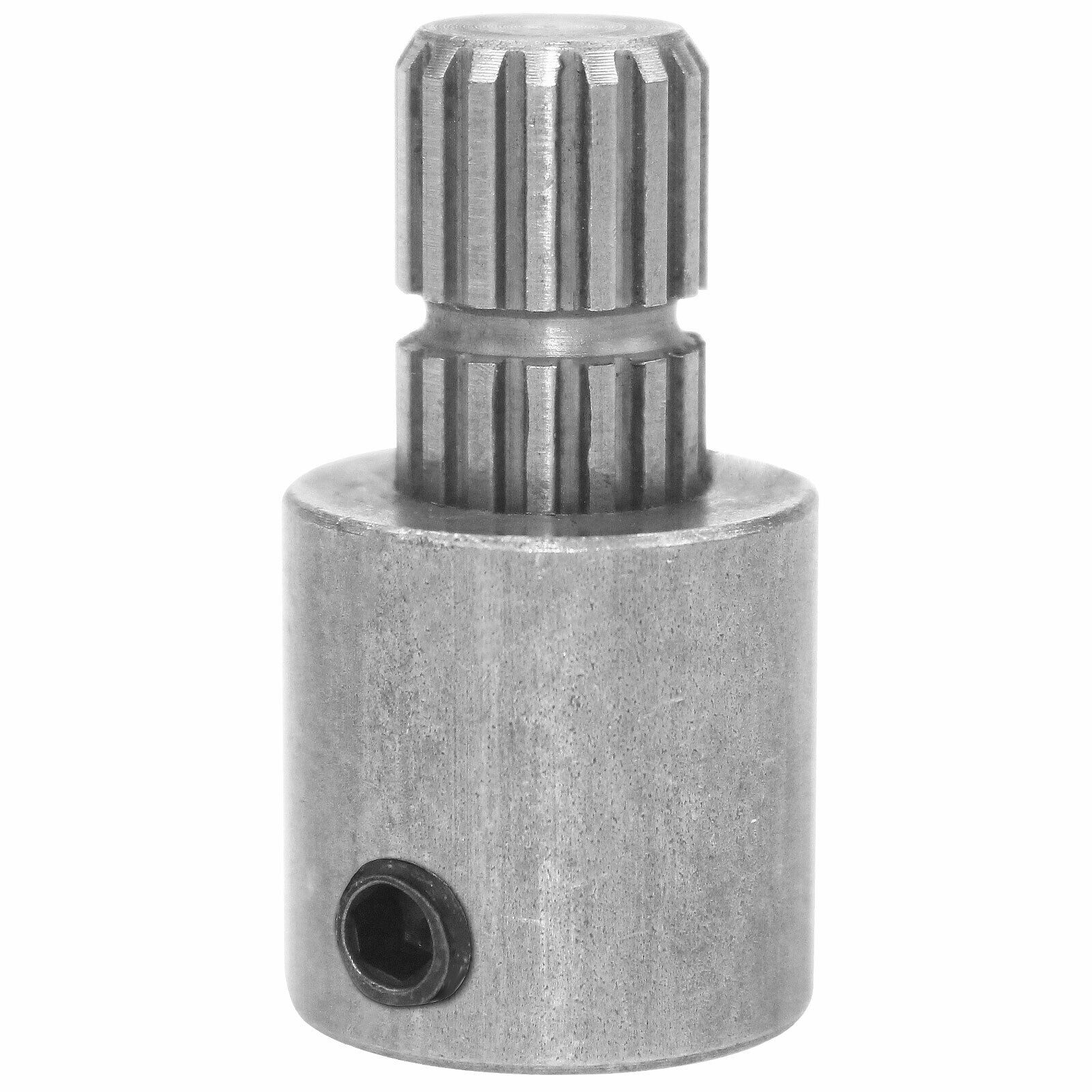

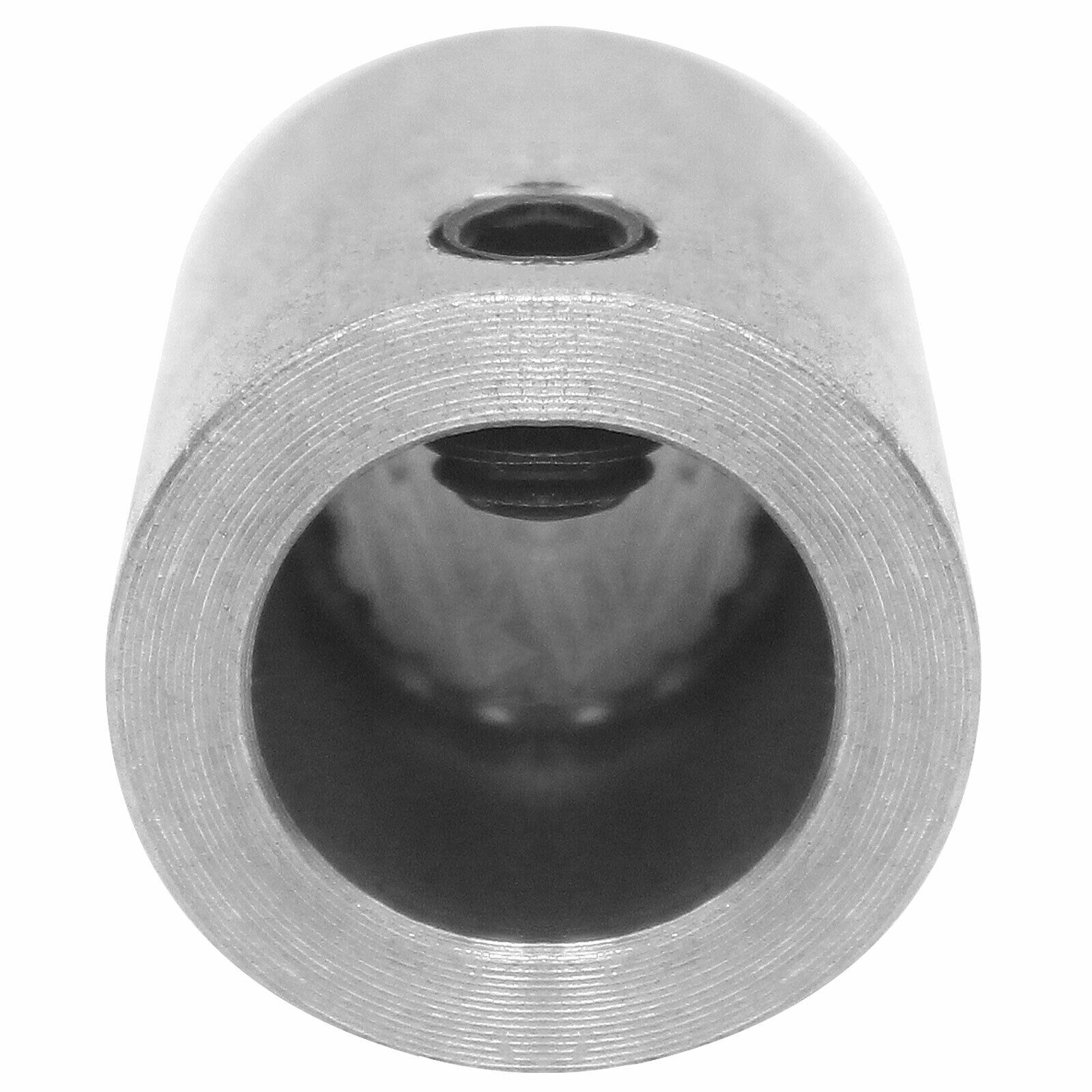

Universal Window Crank Shaft Extension and Door Latch Shaft Extension.
First , Remove stock door handle(s) and remove the armrest and door panel as required . Install crank shaft extension over existing shaft and tighten set screw(s) with a 1/8" hex head, allen wrench to 72-75 inch pounds (We recommend using Blue Lock-Tite on the set screw to prevent it from backing out )
Next, re-install the door panel and push door handle on to the shaft extension. Check to ensure the clip is engaged into the groove on the shaft extension.
This product will extend your door handle shaft by 5/8" (tolerence is 0 to + 1/16") depending on the length of your existing shaft. If you need another 1/8" to 1/4" don't bottom out the extension on the original shaft when installing the extension and or if you need a little less extension, you can grind down the existing shaft to about where the groove for the c-clip would go ... just be sure the set screw will properly engage the original shaft then install the extension.
If you return the item and the reason is "Too Long" I will charge a 20% fee for processing. I find that people are not reading the details of the product and expect a 1/4" extension which is impossible to make and it's costing me a lot of money. I can't be more upfront about the length of the extension.
10 Years Warranty : Tested, proven product. We conduct random VT and PT testing of our weld process to ensure the welds are adequate. Additionally, we conducted destructive testing by inserting a 24" steel pipe over the extension and attempted to break the welds... the result was, we twisted and destroyed the window regulator and the splined shaft remained attached to the tubing as designed. That is why we offer a LIFETIME warranty on our material and quality craftsmanship.
Copyright©2017 DataCaciques
Universal Window Crank Shaft Extension and Door Latch Shaft Extension.
First , Remove stock door handle(s) and remove the armrest and door panel as required . Install crank shaft extension over existing shaft and tighten set screw(s) with a 1/8" hex head, allen wrench to 72-75 inch pounds (We recommend using Blue Lock-Tite on the set screw to prevent it from backing out )
Next, re-install the door panel and push door handle on to the shaft extension. Check to ensure the clip is engaged into the groove on the shaft extension.
This product will extend your door handle shaft by 5/8" (tolerence is 0 to + 1/16") depending on the length of your existing shaft. If you need another 1/8" to 1/4" don't bottom out the extension on the original shaft when installing the extension and or if you need a little less extension, you can grind down the existing shaft to about where the groove for the c-clip would go ... just be sure the set screw will properly engage the original shaft then install the extension.
If you return the item and the reason is "Too Long" I will charge a 20% fee for processing. I find that people are not reading the details of the product and expect a 1/4" extension which is impossible to make and it's costing me a lot of money. I can't be more upfront about the length of the extension.
10 Years Warranty : Tested, proven product. We conduct random VT and PT testing of our weld process to ensure the welds are adequate. Additionally, we conducted destructive testing by inserting a 24" steel pipe over the extension and attempted to break the welds... the result was, we twisted and destroyed the window regulator and the splined shaft remained attached to the tubing as designed. That is why we offer a LIFETIME warranty on our material and quality craftsmanship.
