for fuel injection system

For drive by cable LS1 engines T56 or Non-Electric Tran 4.8 5.3 6.0 1997-2006 DBC

for LS TRUCK 99-06 W/ T56 Standalone Wiring Harness

for Corvette / Cts-v  Ls1 / Ls6 Engines (drive By Cable Only) 1997 - 2004 w/ T56 OR NON-ELECTRONIC AUTOMATIC TRANSMISSION (TH350, TH400, POWERGLIDE, 700R4, 200-4R)

for GMC 1999 and newer Vortec engines with Drive By Cable throttle body and T56 or non- electronic transmissions(TH350, TH400, POWERGLIDE, 700R4, 200-4R)

Type: Standalone Harness (Fuel Injection & Transmis)

LS1 Applications:

- 5 wire mass airflow sensor

- 1 wire alternator.

- Drive by Cable (nonelectric throttle body).

- T56, TH350, TH400 power-glide 700R4 or nonelectric transmissions.

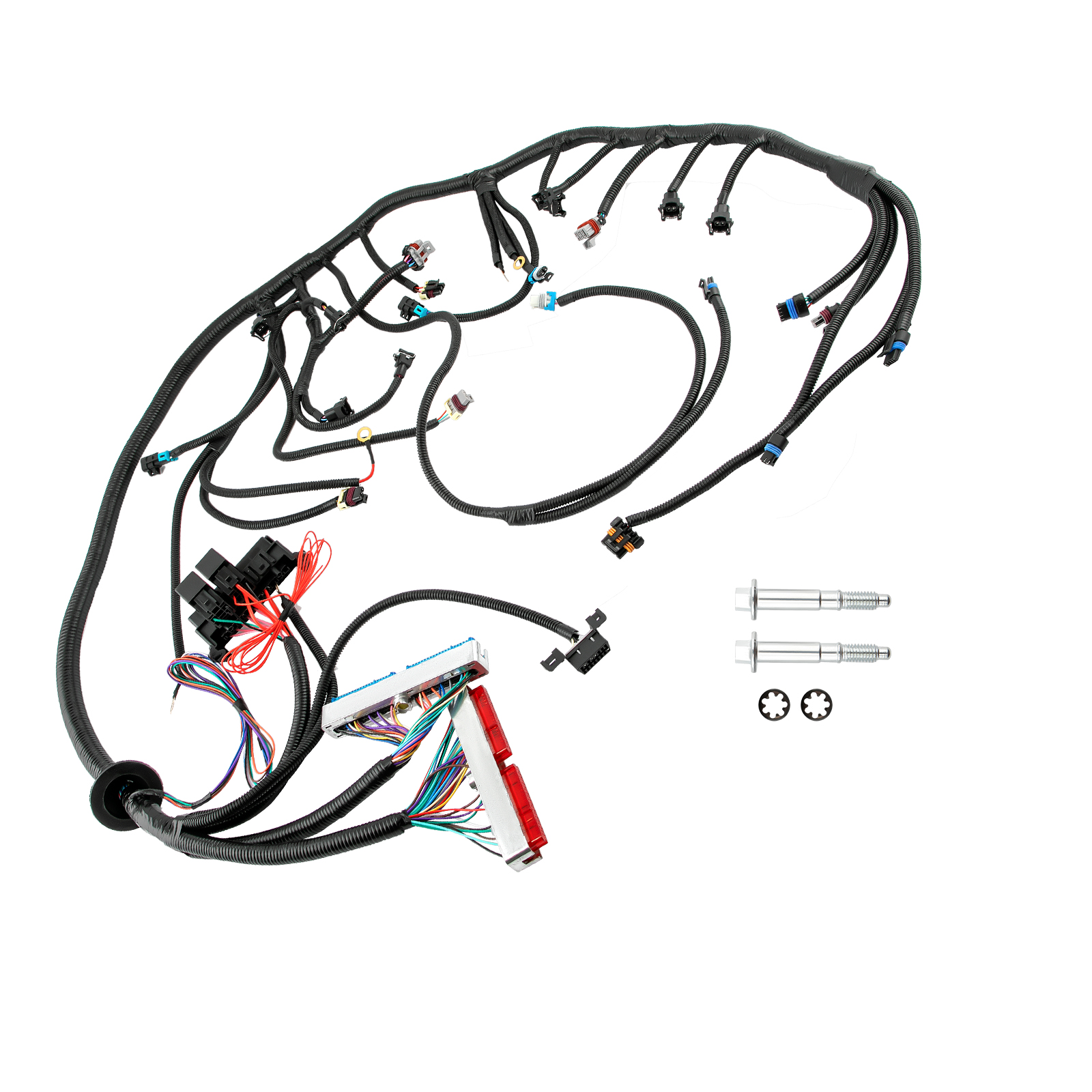

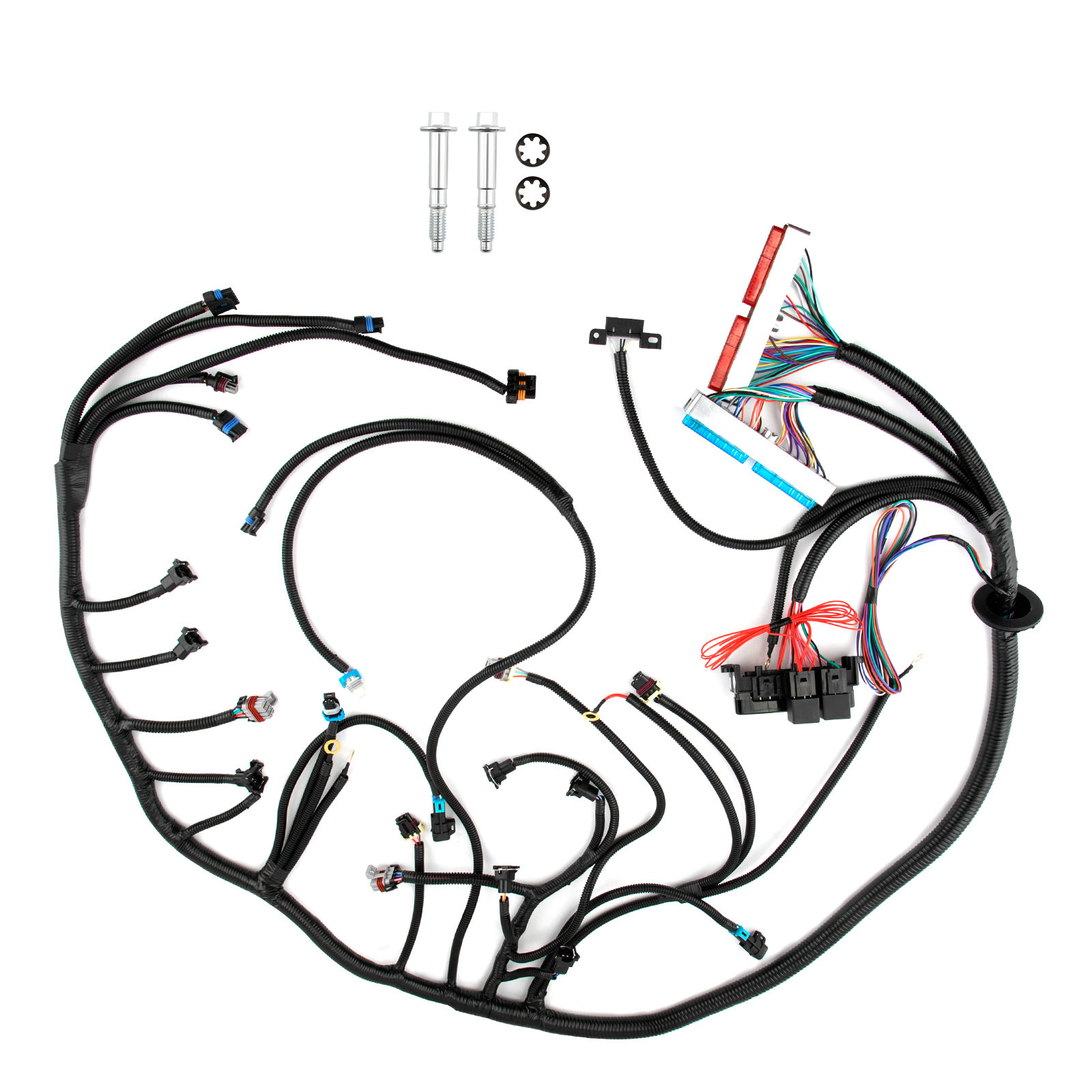

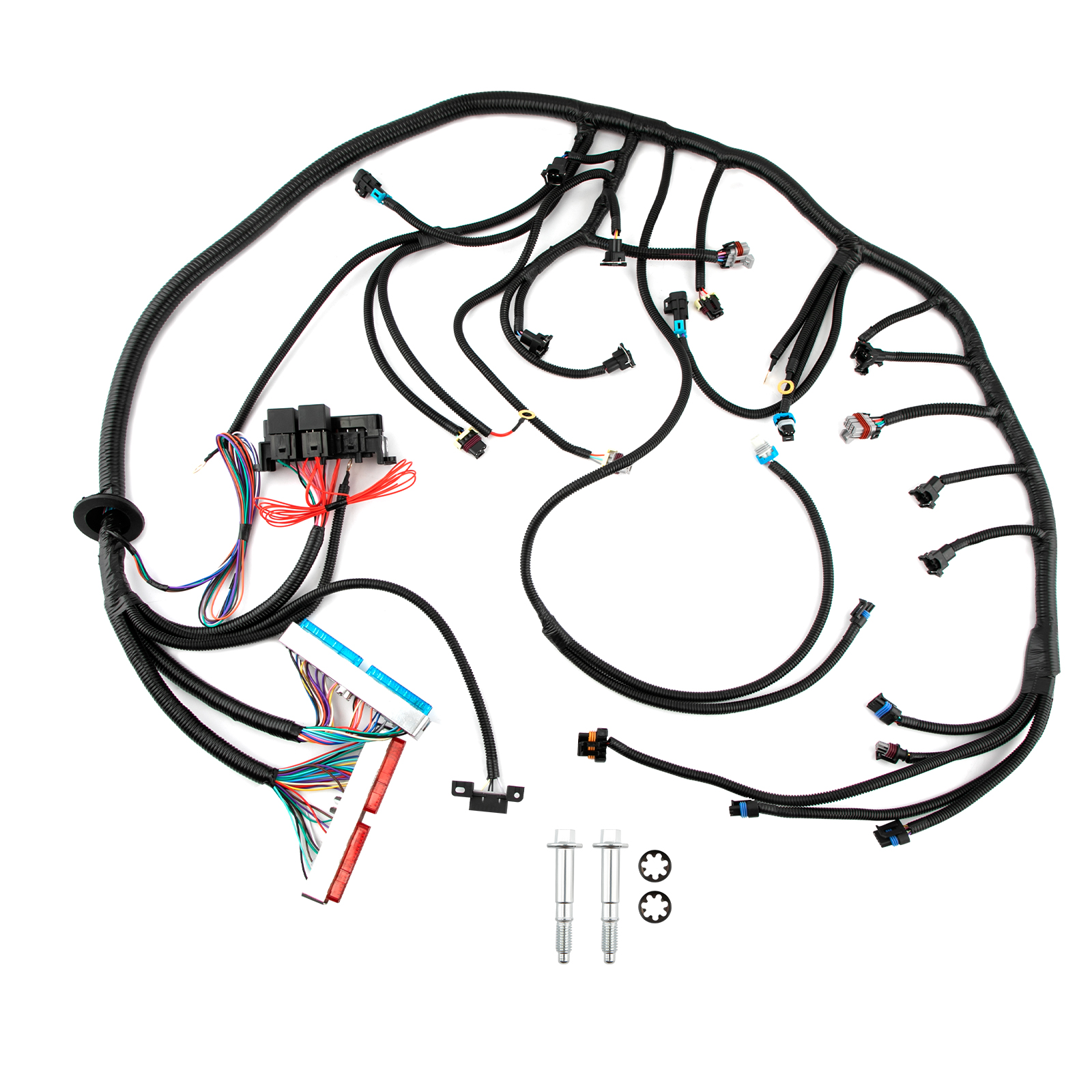

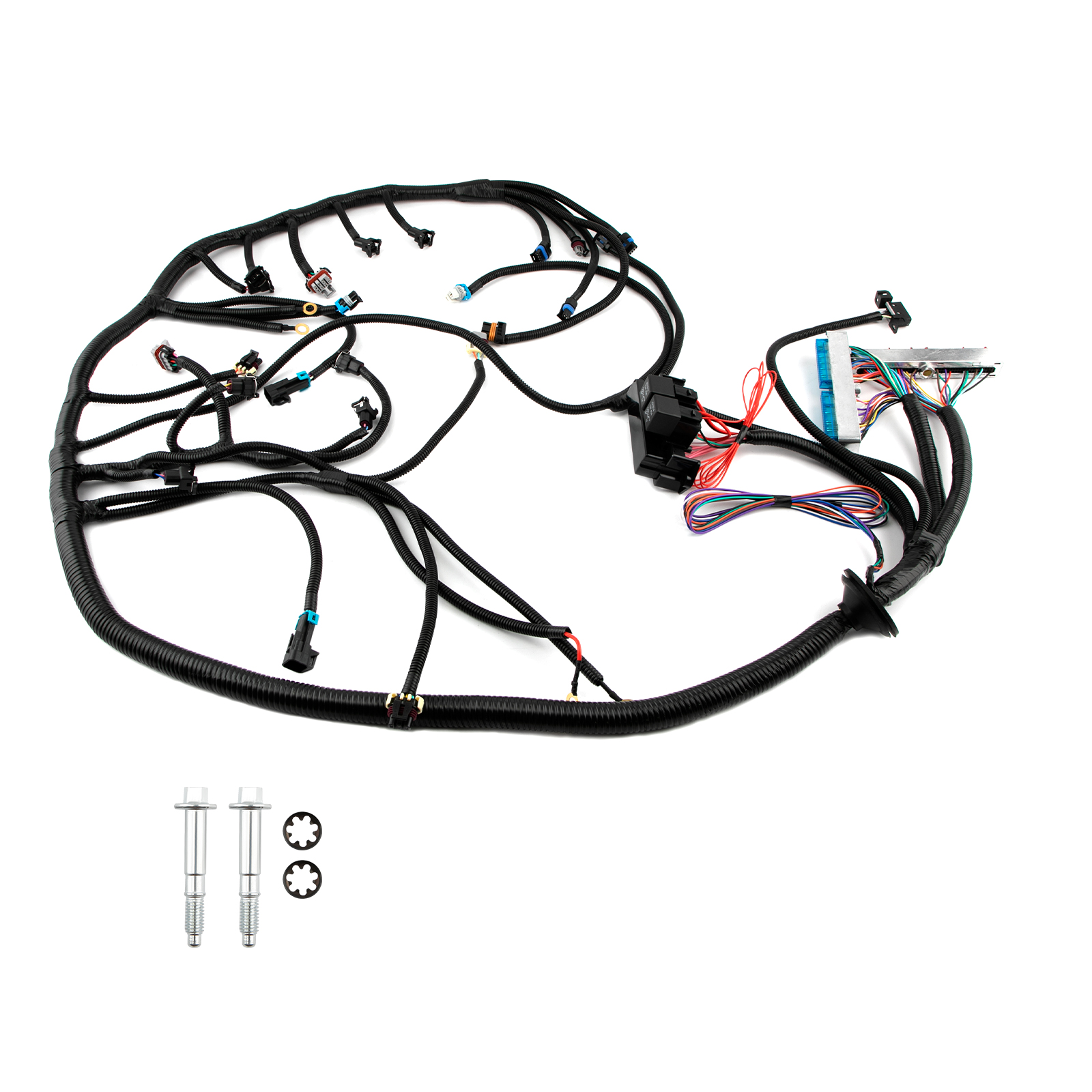

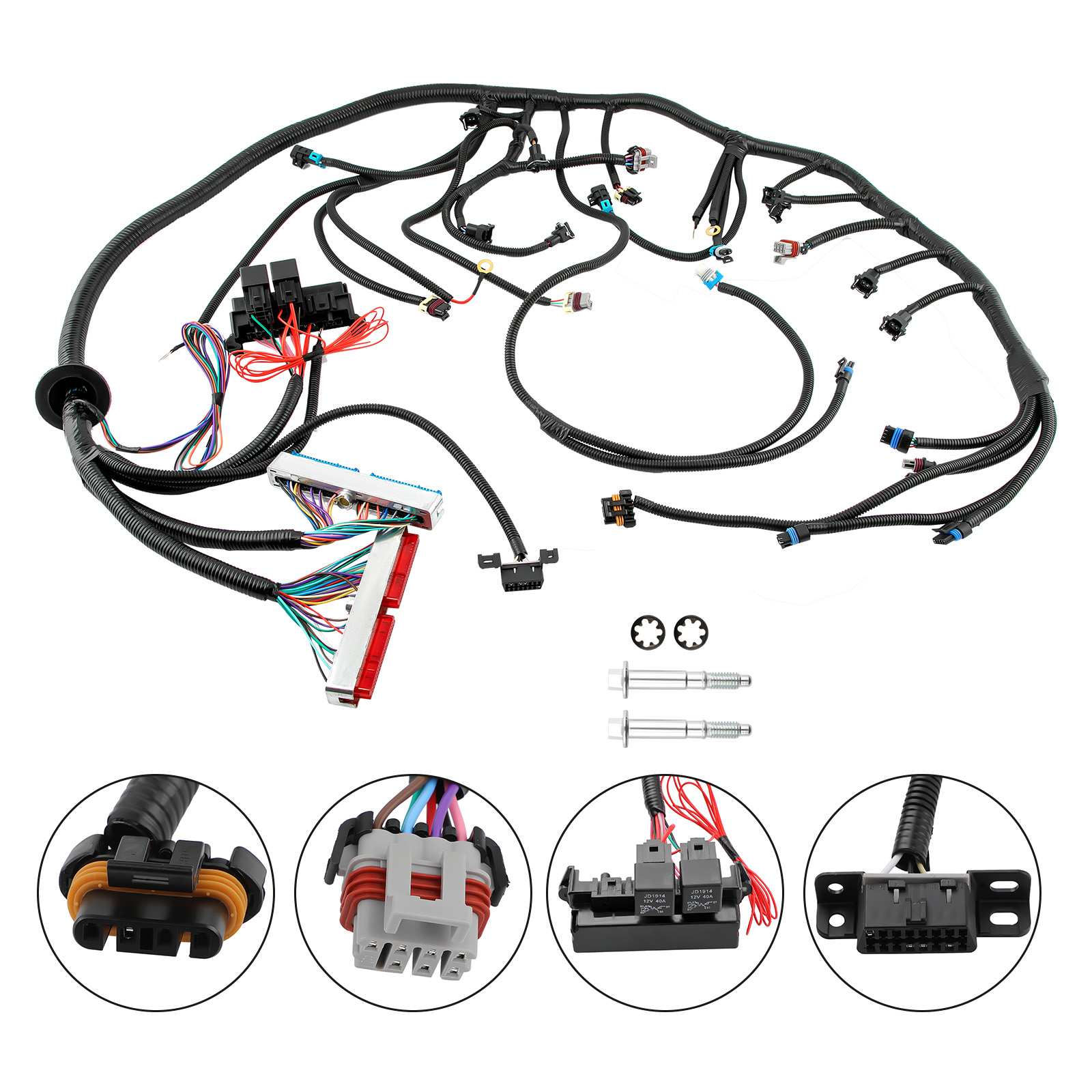

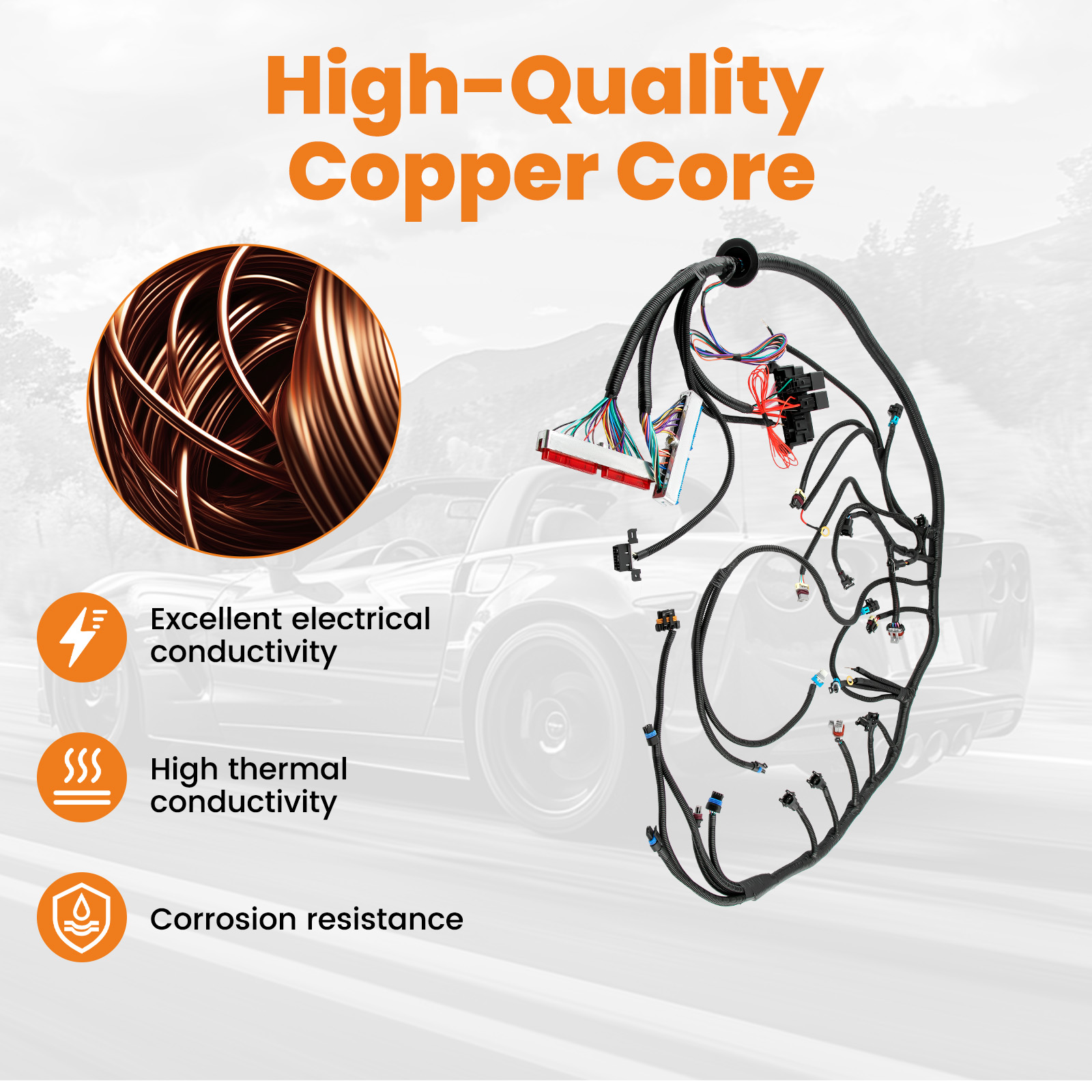

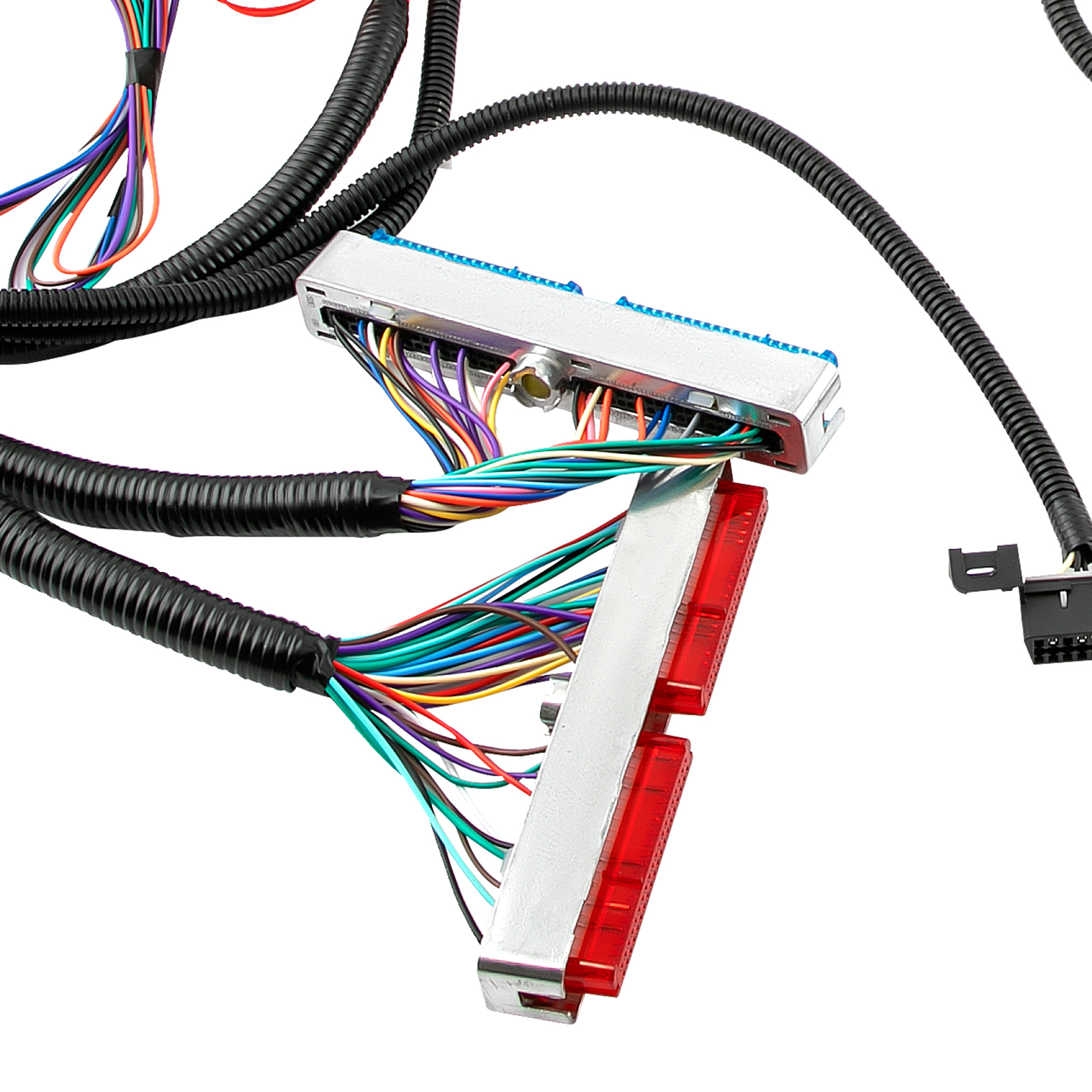

This is a complete wiring harness

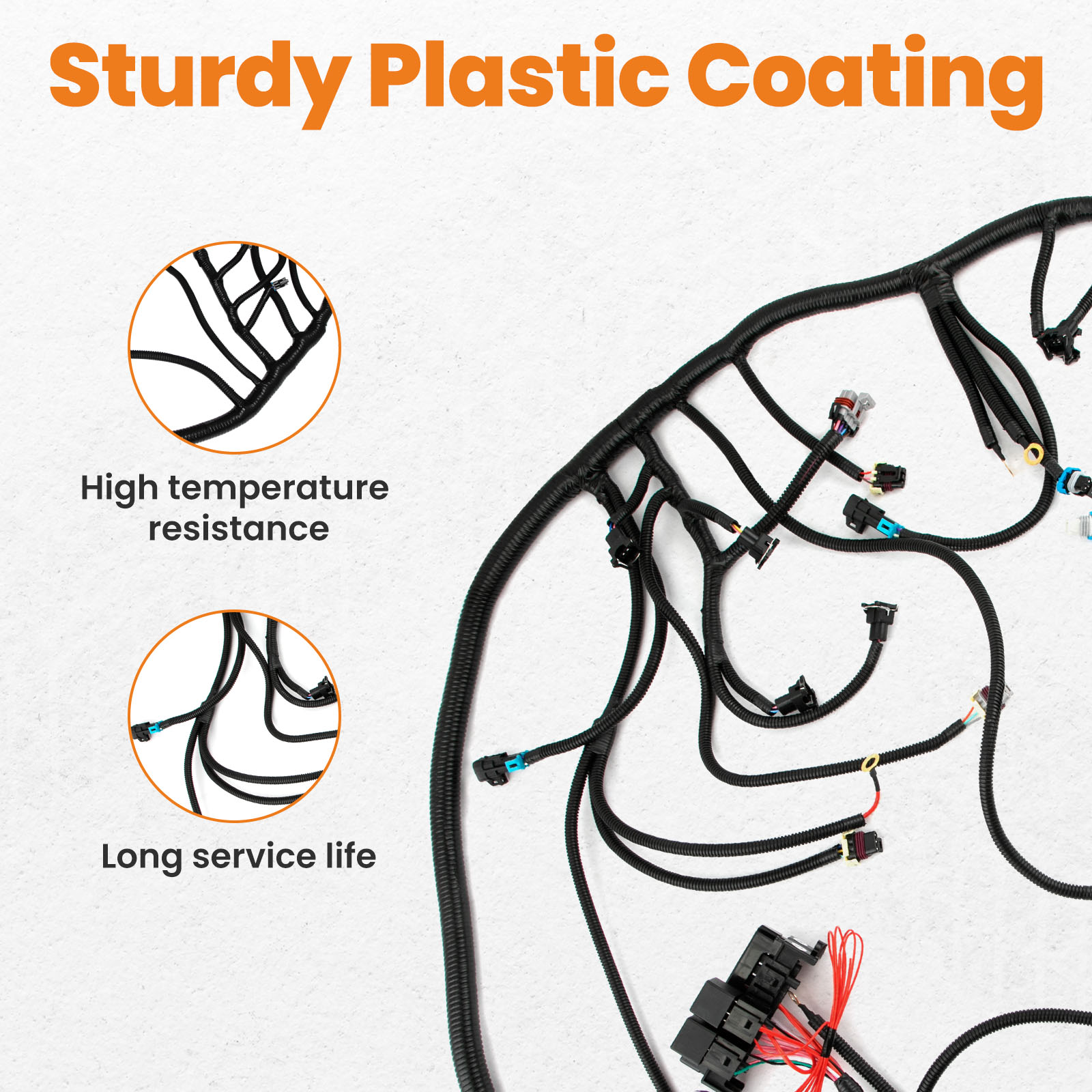

Heat shielding

Extended 36" added for easier computer mounting.

All wires match Color Codes

Fully tested under extreme condition for stable performance and long time use

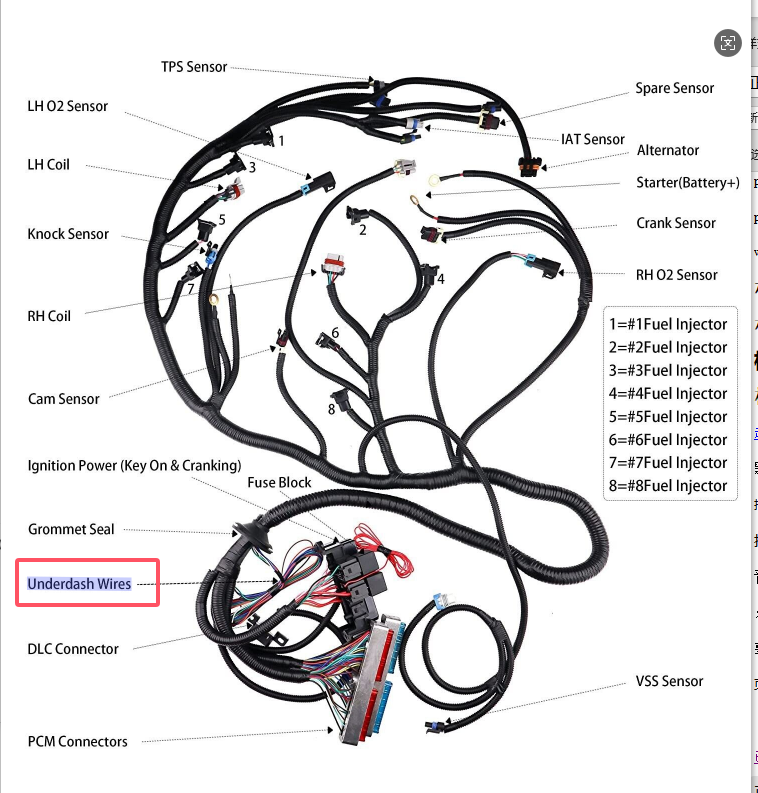

The 8 injectors are shown in the figure.

It's unclear whether there's fan control, but with 8 injector nozzles, it should be controlled by a fuel pump. It's recommended to consult a local auto repair shop.

It's compatible with LS engines and 700R4 transmissions, but it likely cannot control truck lights and accessories.
