Notice: Please double-check the OE number before purchase to ensure fitment. You may provide last 8 digits of your VIN to a local authorized dealer on your own to help confirm OE reference number, if available.

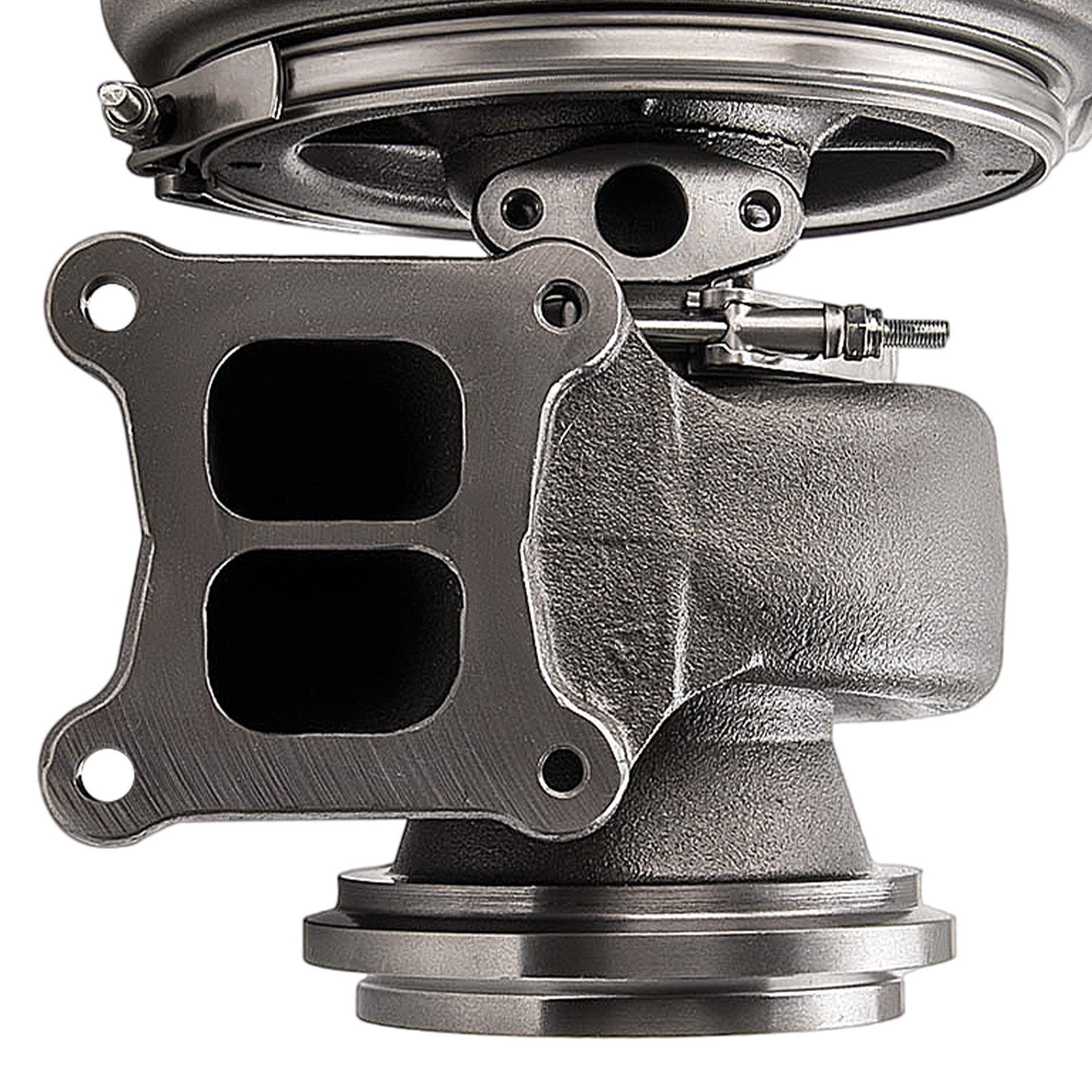

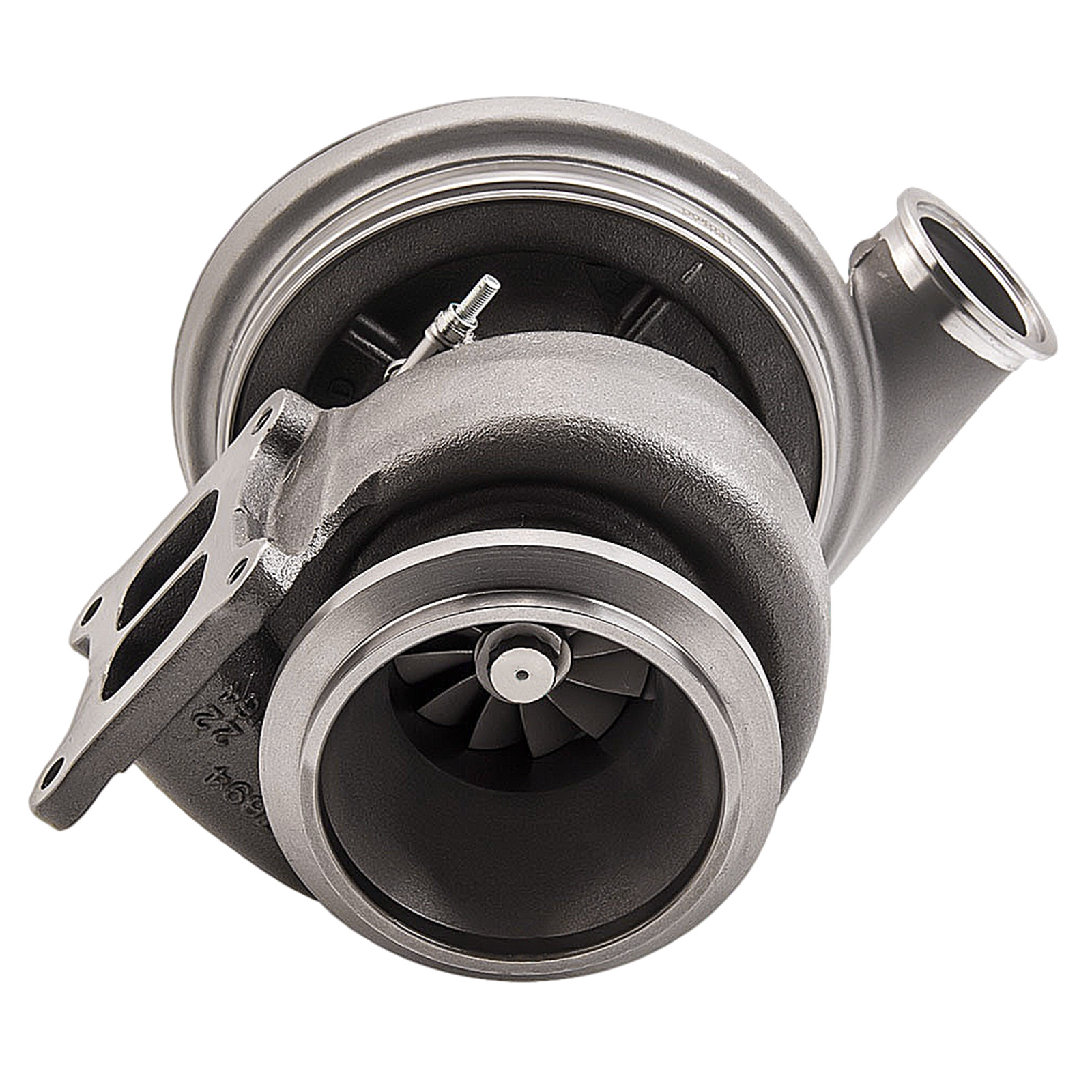

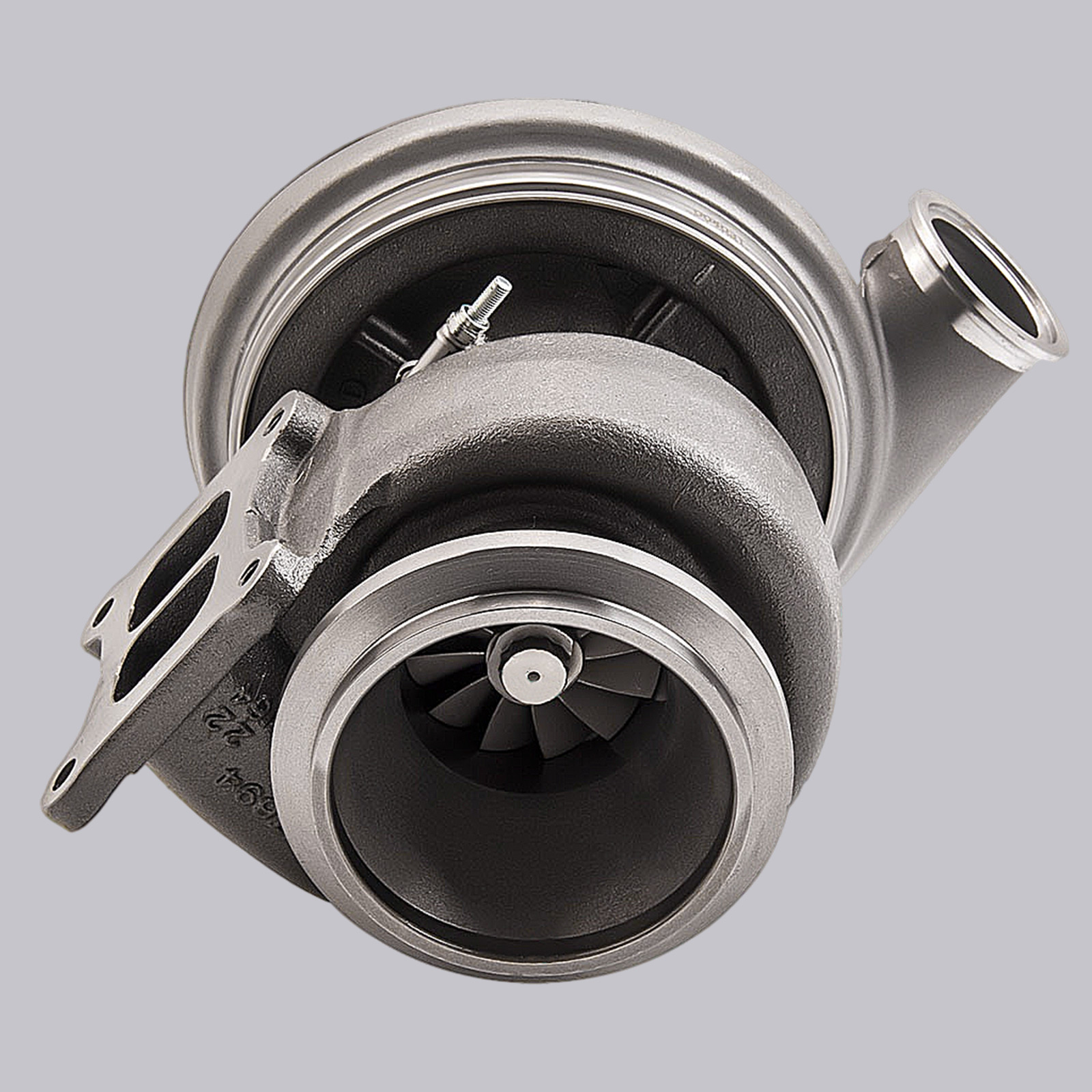

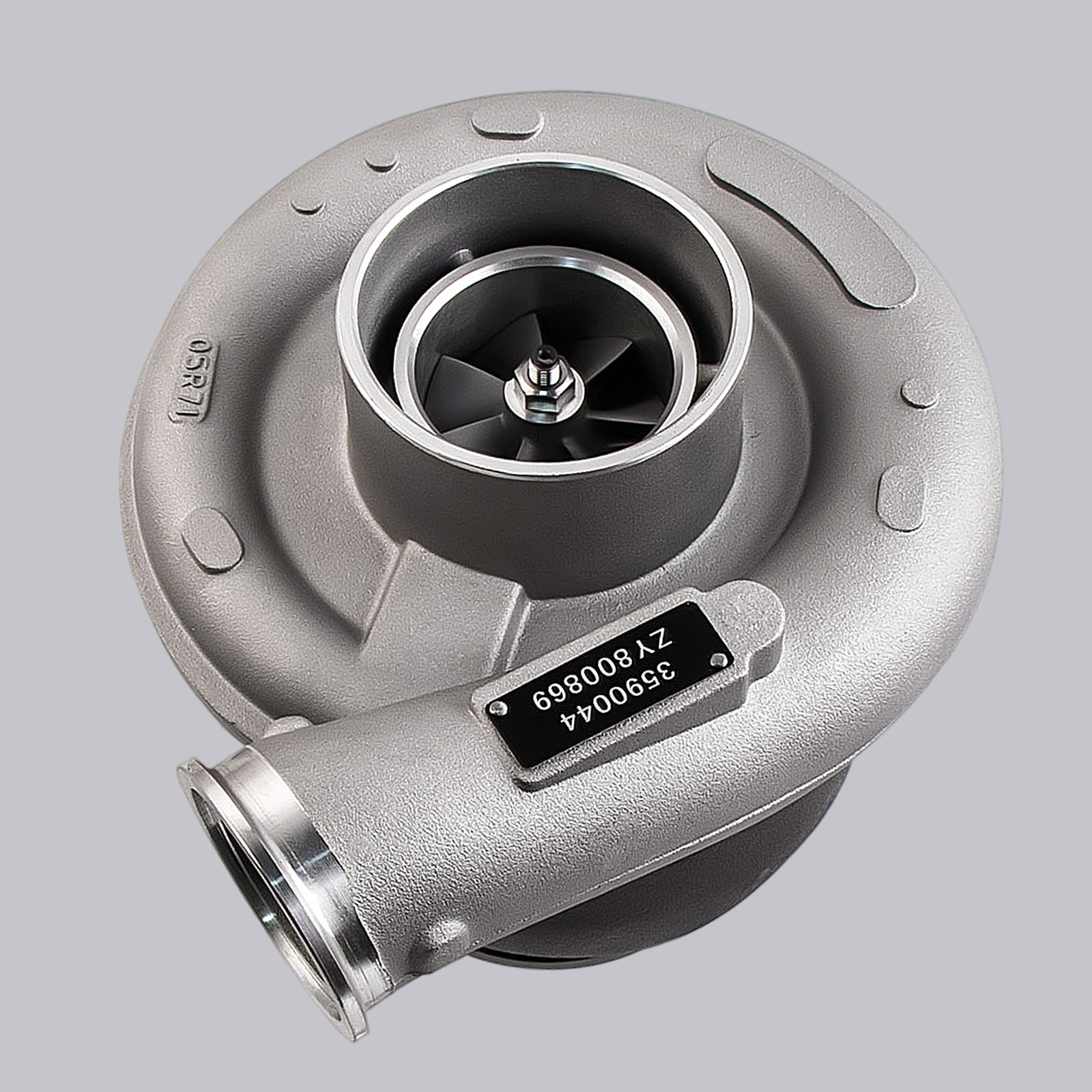

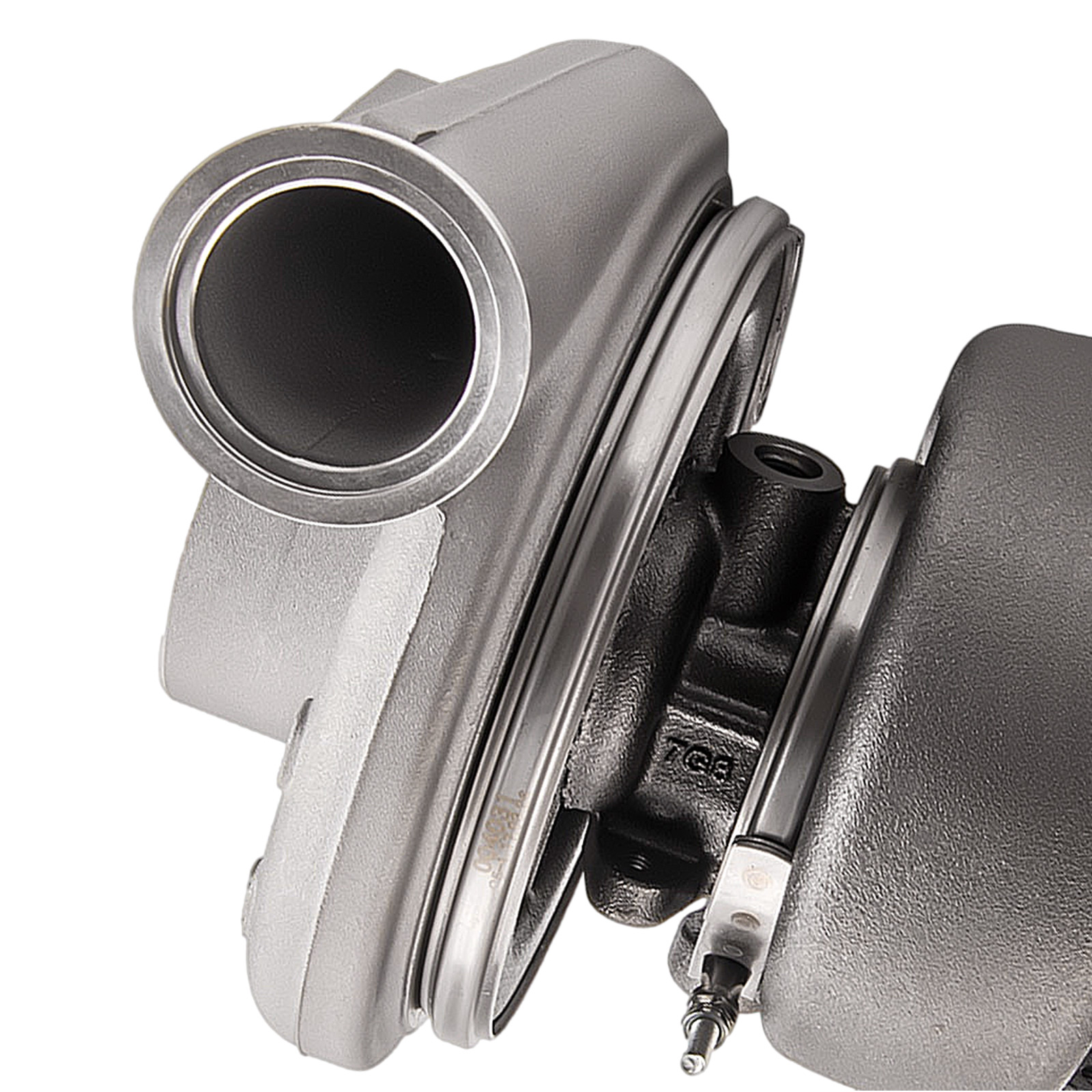

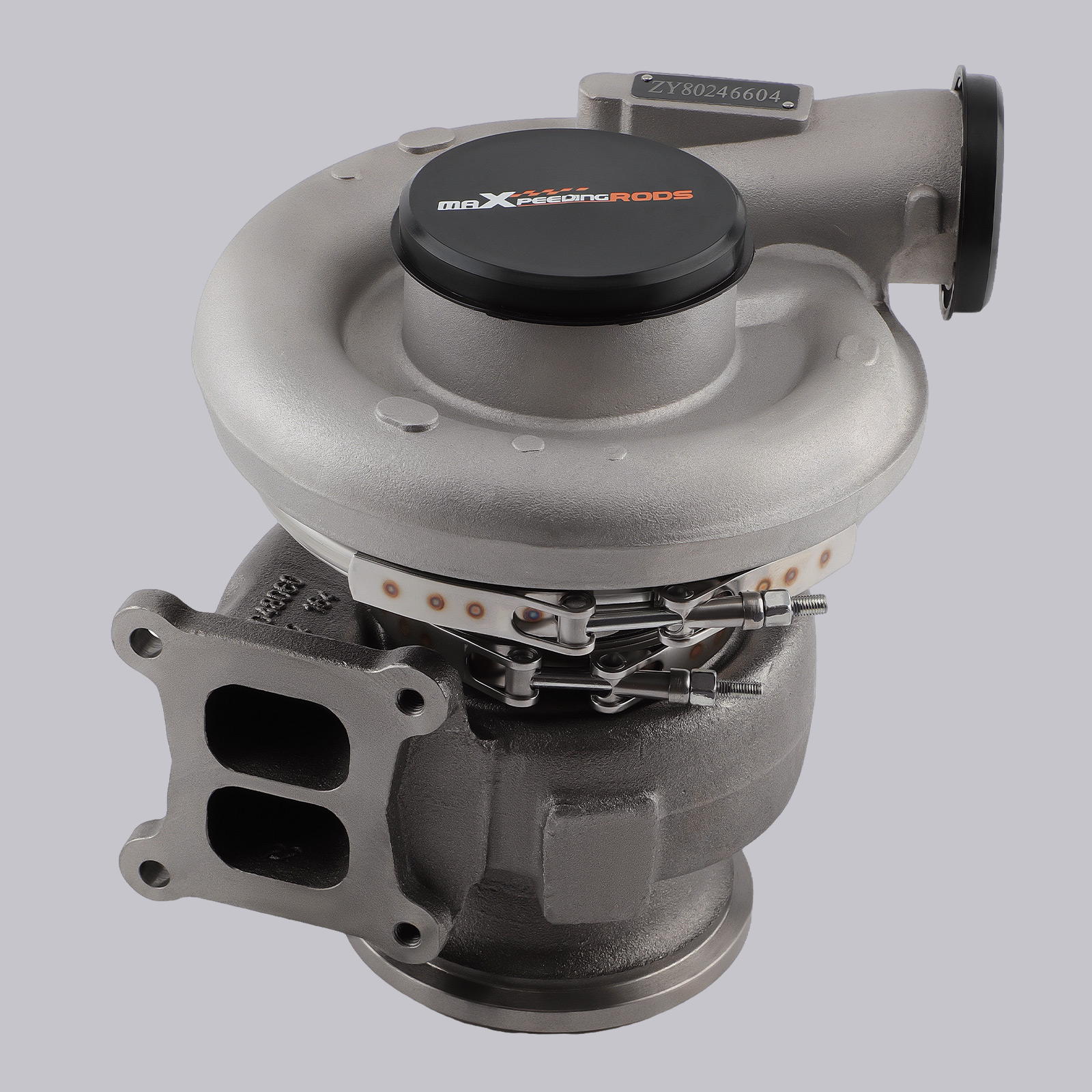

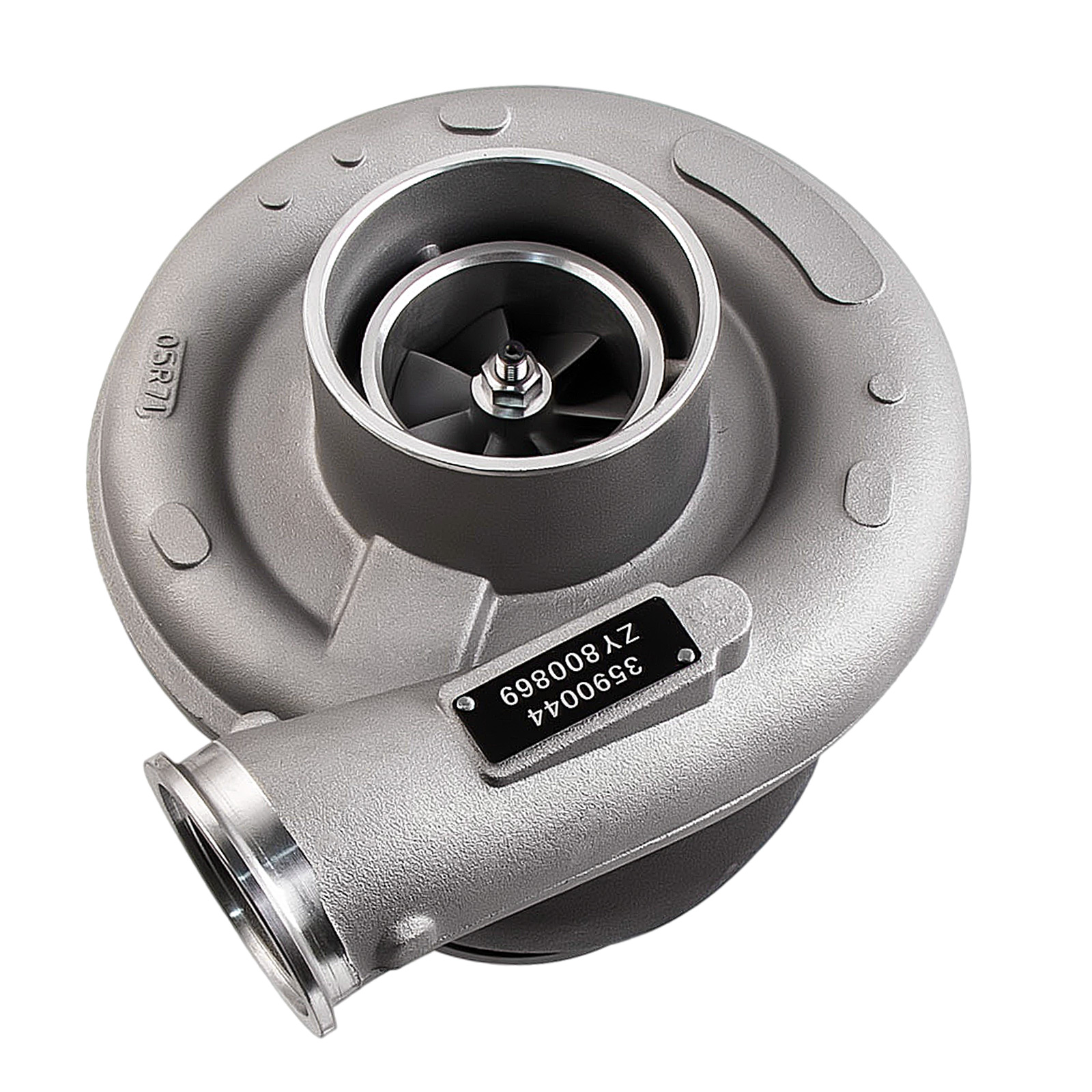

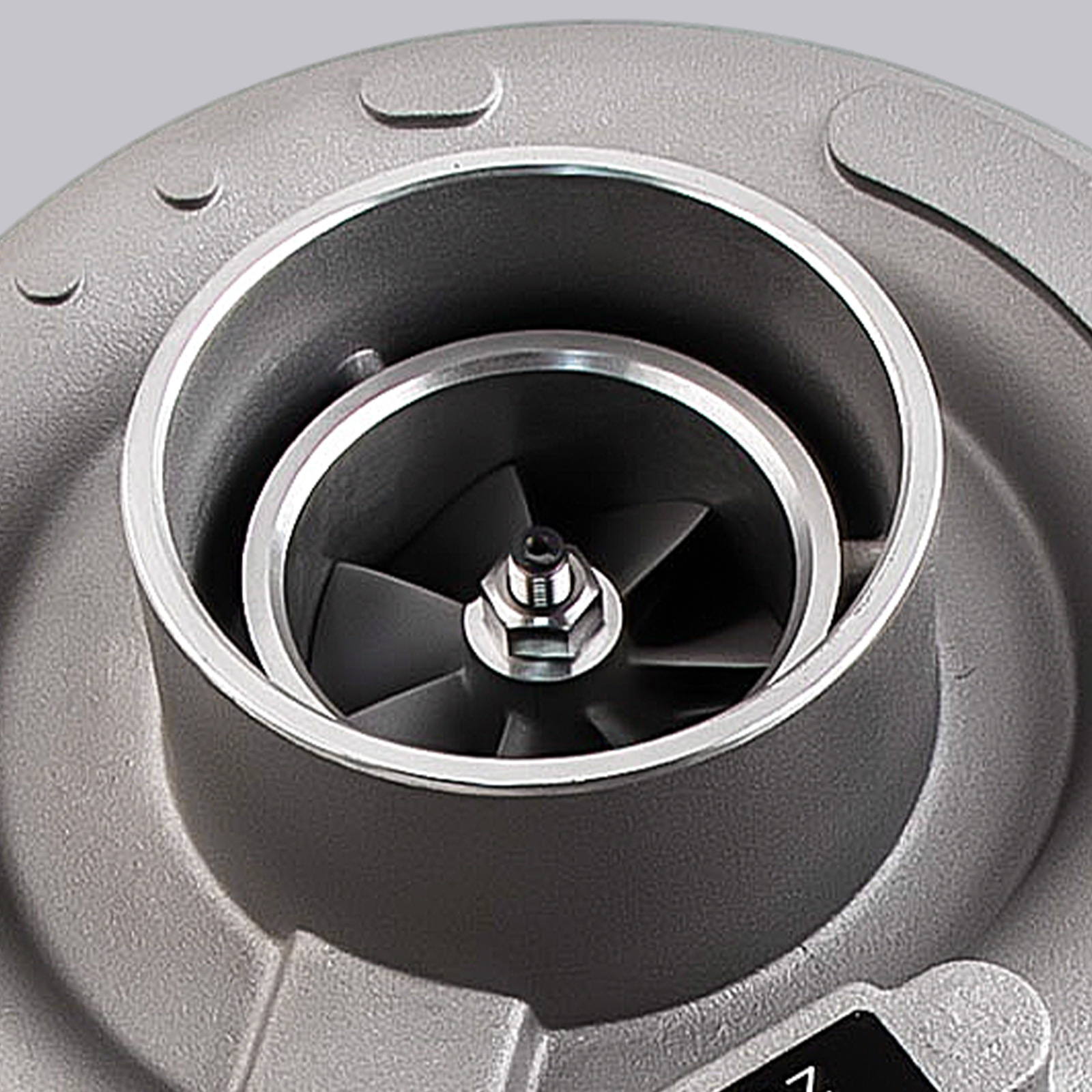

HX55W Turbo Turbocharger 359044 For Dodge Cummins M11 1994-2001

Application:
for Cummins Truck, Bus with ISM, ISME, M11 Engine 2007-2012
for Cummins Truck Bus, Truck Delta Alpha Plus with M11 Engine 1999-2009

Engine:  For Cummins Diesel Engine ISM / ISME / M11  L10 10.8L

Interchange Part Number:
3590044, 3590045, 3803938,2480262
3536995, 3536996, 3800471 ,2834364,
4039173, 4046031, ​​​2834419
3536149, 800471, 3800471RX

3593604, 3593601, 3593602, 3593604H
4024965, 4024966, 4024966RX,3593603

Product Specific:

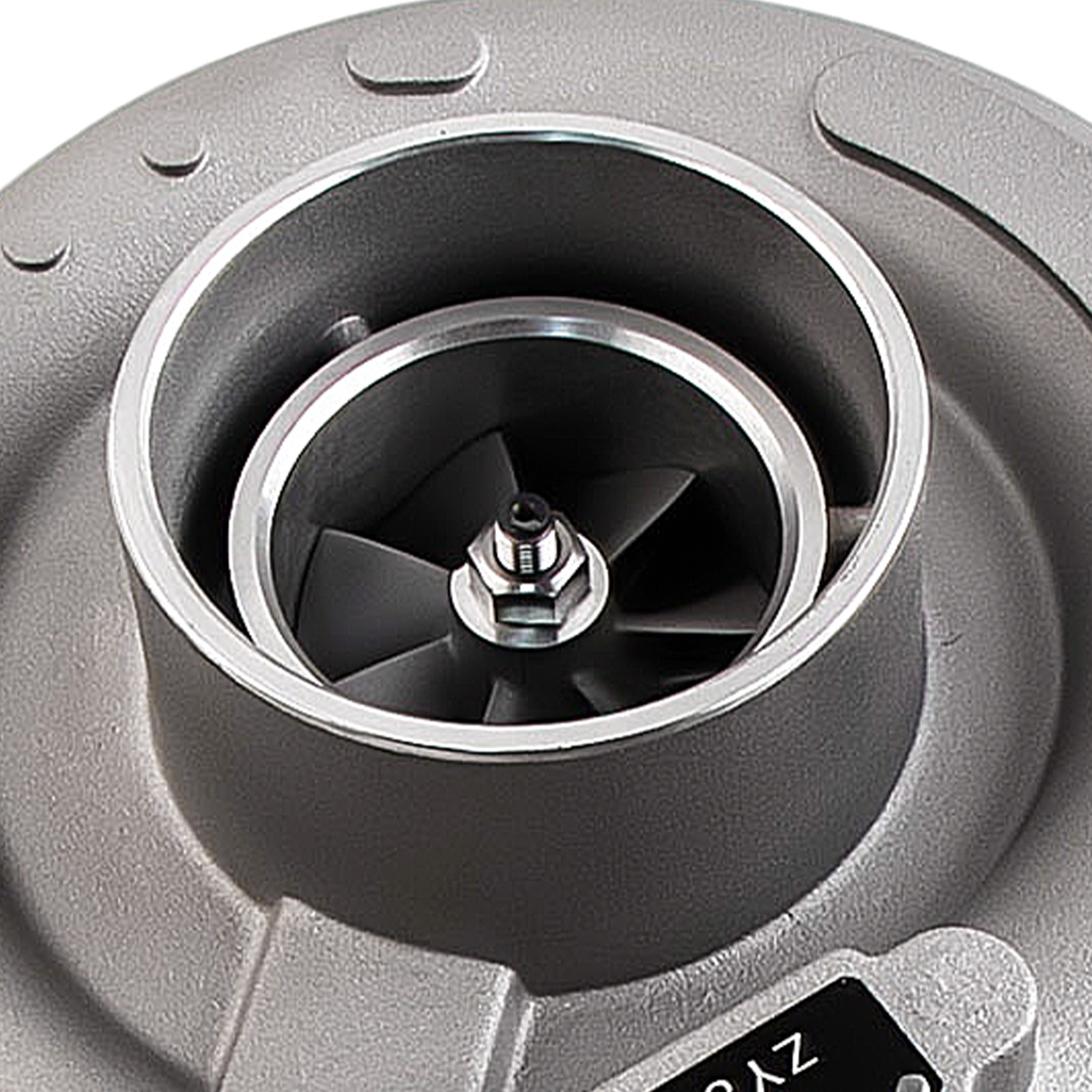

Compressor:
Trim: 0.70
A/R: 0.68
IND: 62.90
EXD: 97.80
Turbine:
Trim: 0. 93
A/R: .88
IND: 86.40
EXD: 77.80

Thread specification: M16 x 18.56

Diameter of oil return hole: 20 MM

Turbo Model: HX55
Engine: M11, ISM, ISME 380 20, B5.9-C, ISME Euro-2 & Euro-3
Displacement: 11.0L, 1100 ccm
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearing: 270 Degrees
Horsepower:  Up to 500HP
Condition: Brand New

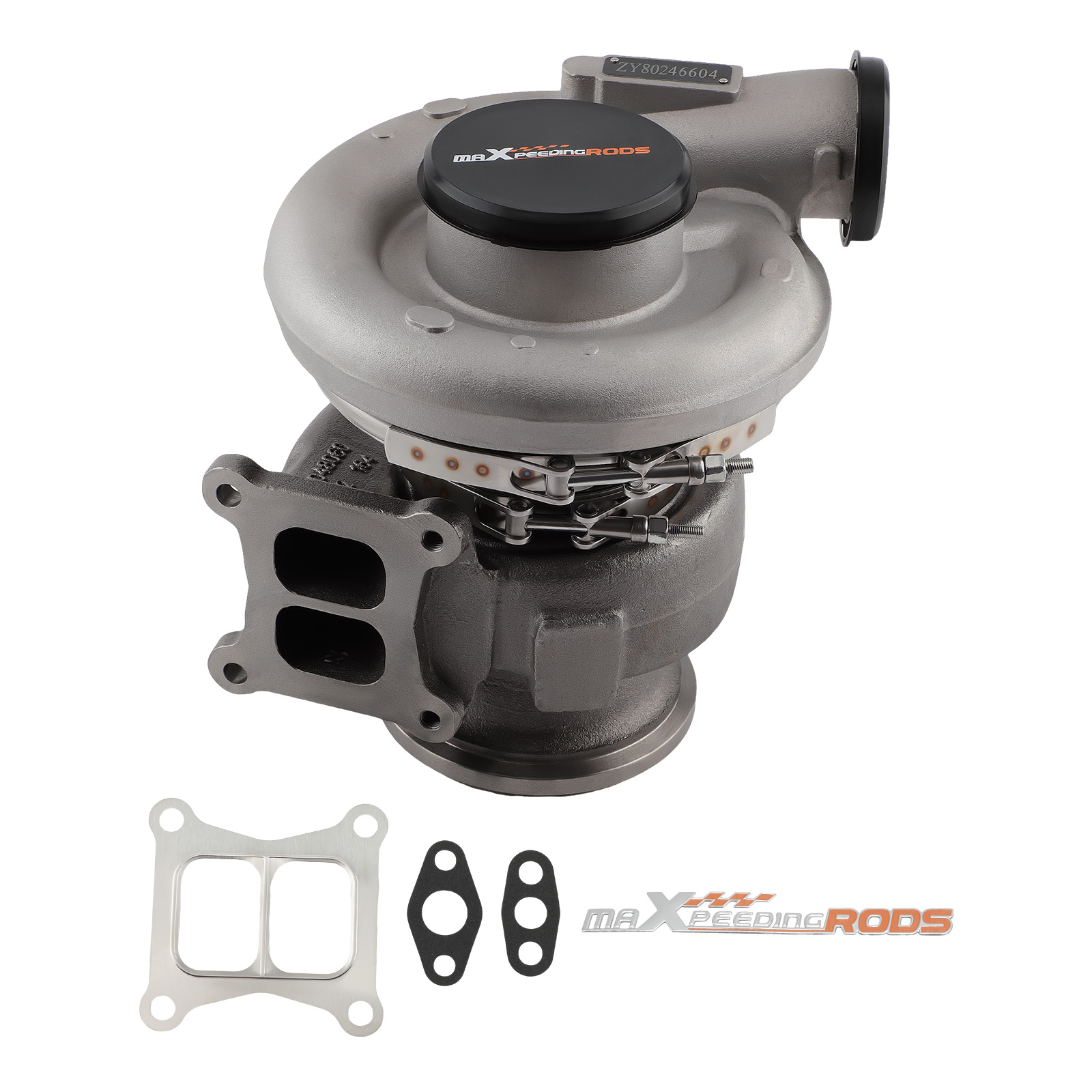

Accessories: You will get exactly as shown in the picture above
Package Size: 34x 31 x 29 cm
Package Weight: 17680 g

Feature:

* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
